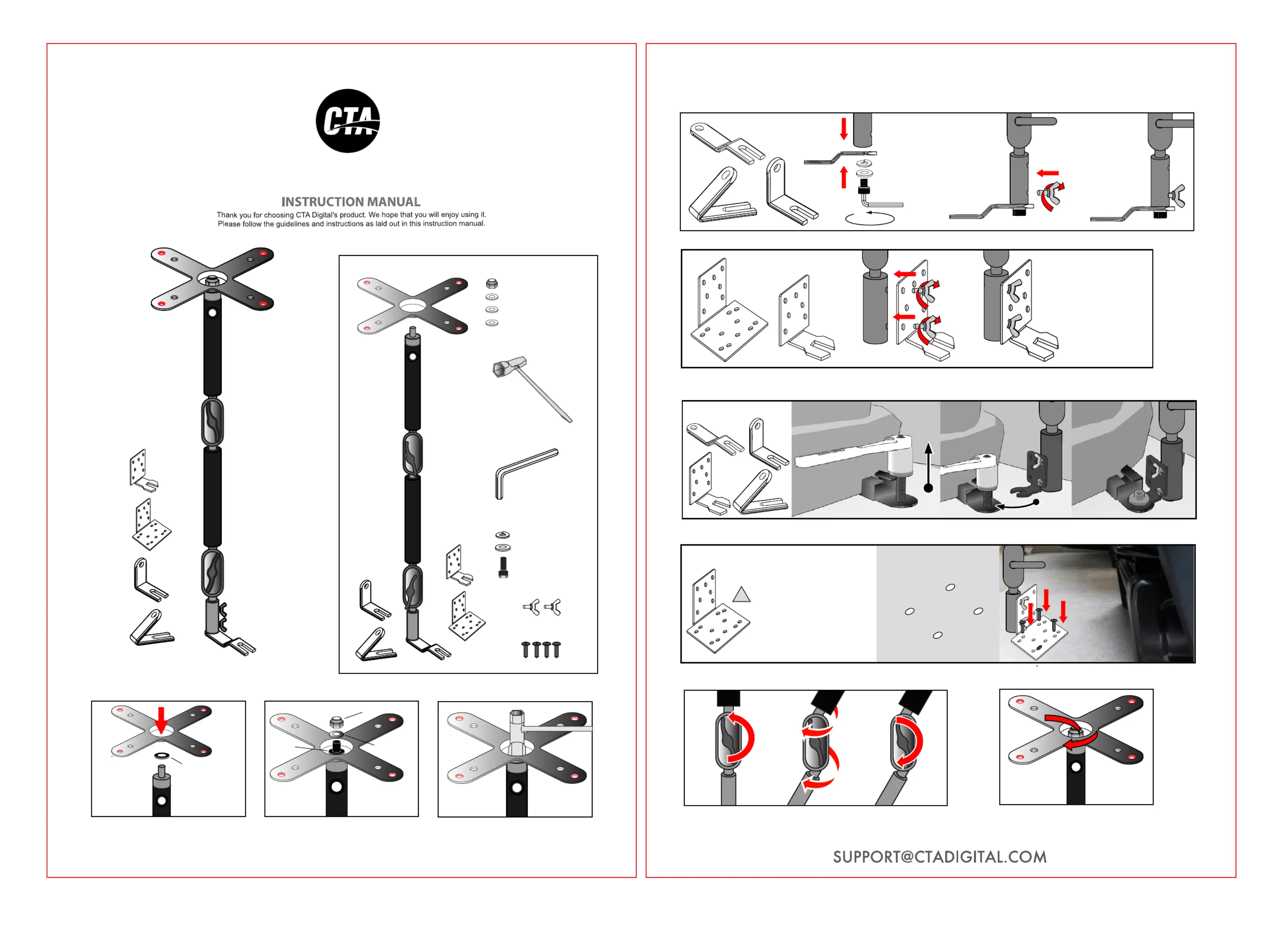

ADD-AUTSAM
Package Contents:
AMPS Mounting Base for Vehicles w/ VESA Plate
1.Connecting VESA Plate to the Pole Body
1. Put a plastic washer on the top of
the Pole and then insert it into the
VESA Plate.
2. Place a plastic washer then a metal washer
over the Pole tip, screw nut over to lock
in place.
3. Use the Socket Wrench to tigten it securely.
Instructions:
4. Adjusting Joints
1. Loosen the Handle Rod of the Pole,Adjust the Pole to desired position
then tighten the Handle Rod.
2. Rotate the VESA Plate to adjust it in horizontal.
“Y ” Screws
Wall Screws
2. Attaching Car Seat Rail Clamp to Multi-Flex Pole.
These three clamps allow you to connect from the bottom of Multi-Flex Pole.
Depending on your car or vehicle, you may need to choose the diffrent car seat rail clamp according to your needs.
Allen Key
Spring Washer
Metal Washer
Screw Y Screw
1. Choose the base with the angle
that matches your needs.
Seat Rail Connection Bases
3. Screw a Y screw into hole on
the base of the multi-flex arm to
prevent rotation.
2. Align washers and base as shown
Use Allen key to screw together.
3. Installing to Your Car
These four clamps allow you to connect it to the car seat rail.
2.Insert c seat ar rail clamp . 1.With a socket wrench,
loosen car seat rail bolt
3.Retighten car seat
rail bolt.
These two clamps allow you to connect the side of the Multi-flex pole
Y Screw
Y Screw
Use this piece if you need to attach
the gooseneck to the side of your
seat rail (instead of directly above) 1. Align the holes on the clamp
to the screw holes on the side
of the gooseneck.
2. Use 2 Y screws to tighten
connection to pole.
This clamp allow you to connect it to the car floor or console.
Hole Diameter: 4.5 mm
For permanent installation, connect the Multi-Flex
Security Car Mountto the flooror console. This will
require drilling into your vehicle’s interior surface.
Drilling into the dash, floor, or console
will permanently damage the vehicle.
Use caution and consult a mobile install
professional to avoid drilling into the
gas tank,electrical system or other
highly sensitive vehicle components.
!
2.Screw up the clamp
to floor or concole
of the car.
1.Make holes on the floor or
console of the car according to
the holes you selected on the
clamp.
Socket Wrench
Nut
Metal Washer
Wear-resistant Washer
Spring Washer
Metal Washer
Screw
Wear-resistant Washer
VESA Plate
Allen Key
Plastic Washer
Metal Lock Nut
Plastic
Washer
Metal Washer
