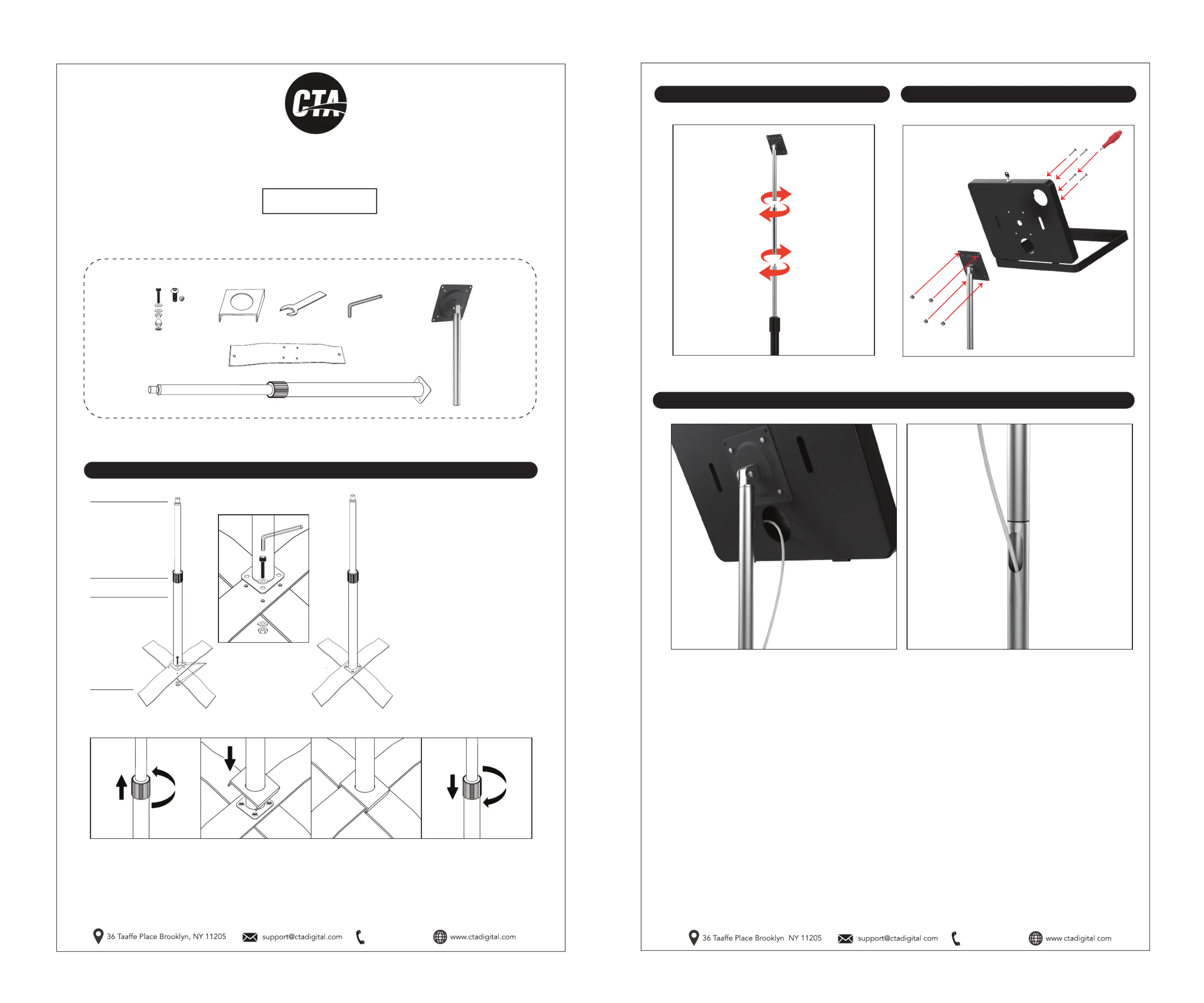

VESA-Compatible, Height-Adjustable
Floor Stand (Black)
USER MANUAL
PAD-AFSVP
METAL CONNECTION
HEIGHT
ADJUSTMENT
KNOB
POLE
METAL CROSS
BASE X 2
CONNECTION SCREW BOLT,
WASHERS AND NUT
Pole Assembly and Pole Nut
Cross Base Sections (2)
Allen Key
1) Place the metal base pieces with the higher
piece on top of the cross base. Align the holes
at the bottom of the pole with the holes on the
cross base.
2) Insert a screw bolt with a washer into each
of 4 holes. Place another washer on the
underside of each screw bolts.
3) Grip the nut on the underside with one hand,
and use the other to tighten each screw with
the Allen key. Repeat to tighten all four
screw bolts.
1. Base Assembly and Connecting the Metal Cover:
x4 x1
x1
x1
x1
x2
x4
Screw in ADD-VPOLE and ADD-POLE as shown above.
2. VESA Pole Assembly to Base:
4. Cable Routing/Cable Management:
3. Mounting Item to VESA plate:
Combine nuts and bolts through VESA plate from the front & back as
shown with provided tools.
Route the cable through the hole at the top of the body and out
the bottom.
Contents:
Instructions:
4) Rotate the grip counter
clockwise to loosen completely
and remove from top of pole.
5) Place the square metal cover over the top of the pole and
slide down to stand base.
6) Place grip back over stand
pole and tighten
888-733-4448 888-733-4448
x1
**Enclosure is not included and
shown for example purposes.
**Enclosure is not included and
shown for example purposes.
