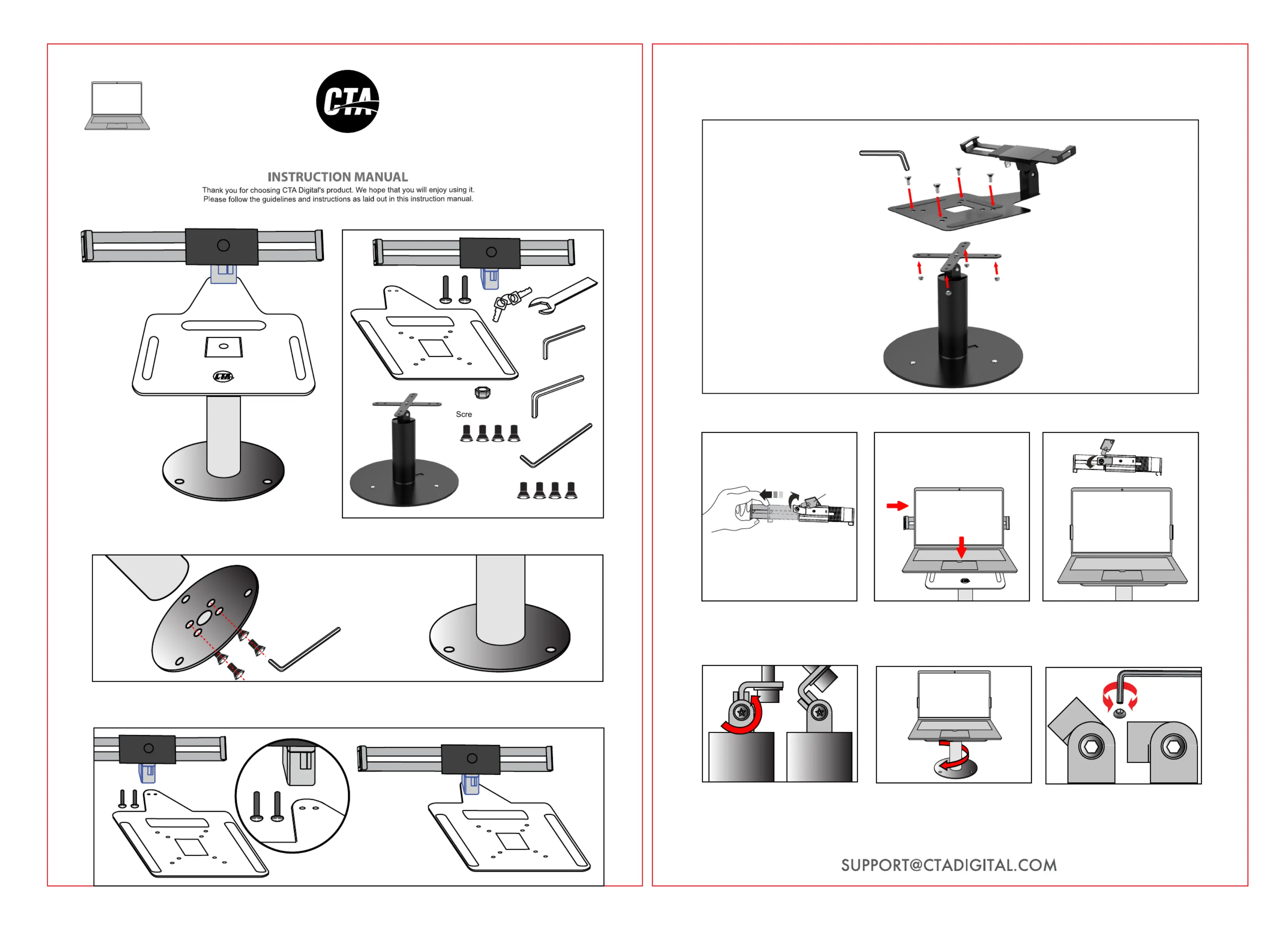

PAD-SAM
5. Adjusting Joints
Tilt the stand joint to adjust laptop holder plate
for desired angles.
Rotate the body to swivel to desired
orientations for user preference.
1.Connecting the Pole to the Base
Instructions:
For Laptop
Package Contents:
Wrench
Laptop Security Arm with Heavy-Duty Base Stand
3.Connect the Laptop Holder Plate Base to VESA
Keys
Nut
2.Connecting the Holder to the Laptop Plate Base
Allen Key
(Medium)
Allen Key
(Bigger)
Allen Key
(Smaller)
Allen Key
(Smaller)
Allen Key
(medium)
ws for VESA
Take the laptop holder and align the holes on the bottom of the middle joint to the holes on laptop plate as shown. Using the provided tool,
screw in the screws from below into the bottom of the laptop holder joint until securely tightened.
Take the base plate of the kiosk, and align the holes. Then using the provided allen key tool, screw in the screws until securely tightened
Take the laptop holder plate base and align the VESA holes with the VESA adapter. Screw in the screws from above using the provided tool
while holding the hex nuts from behind the VESA adaptor with your fingers. Screw in one at a time until firmly secured.
4. Installing your Laptop to the Holder Plate Base
Key
Unlock the holder with the key, and pull
out the lock component to allow the holder
to adjust.
Extend/Retract the holder to fit the
laptop as shown. Once the laptop holder is secure, push
the lock component back in, and rotate and
lock the holder on the back.
Using the provided allen key tool, loosen
the hinge of the laptop holder to tilt the
screen to desired angles. Re-tighten securely
to firmly hold the angle and holder in place.
