4-Channel high Power (40W 4Ch)
Electronic Tuning
Electronic Volume/Bass/Treble/Balance/ Fader
30Memory Capability (18FM+6MW+6LW)
Local/DX Switch
Loudness
Detachable Face for Anti-Theft
Logical cassette player
INSTRUCTION MANUAL
AKL-3010RC
Cassette Player/Receiver with 4-Channel High Power Output
Full Detachable Face Panel
WIRING CONNECTIONS
1

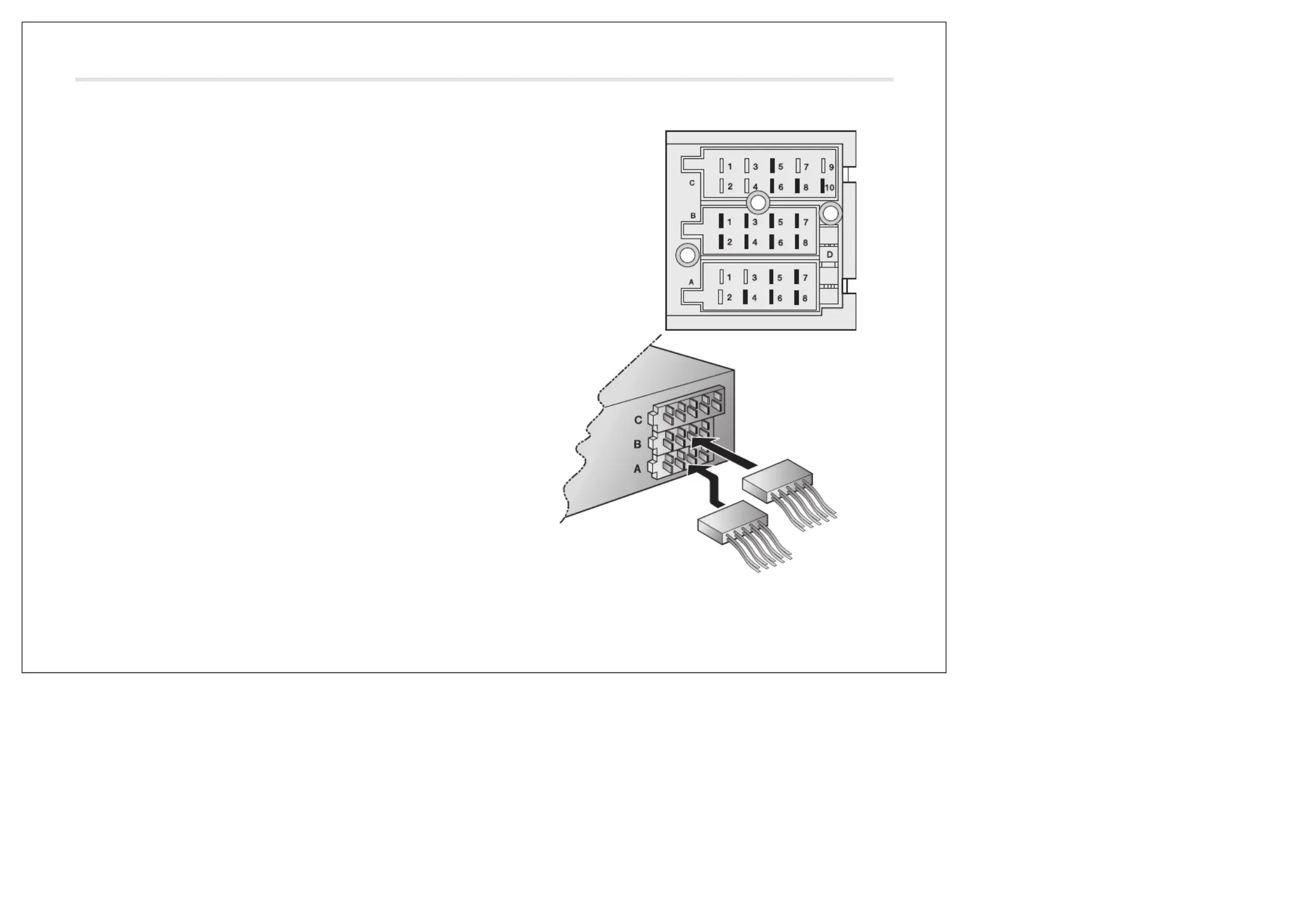

The pins in the ISO connector have the following functions
(connector seen from the rear)
A. ELECTRIC CONNECTIONS
4. Back-up+12V : YELLOW
5. +12V (electric antenna) : BLUE
6. Dimmer : PINK
7. +12V supply(from ignition lock) : RED
8. Earth : BLACK
B. LOUD SPEAKER
1. +Right Rear : VIOLET
2. - Right Rear : VIOLET/BLACK
3. +Right Front : GRAY
4. - Right Front : GRAY/BLACK
5. +Left Front : WHITE
6. - Left Front : WHITE/BLACK
7. +Left Rear : GREEN
8. - Left Rear : GREEN/BLACK
C. OTHER (OPTION)
5. EARTH
6. TRIP LINE AMPLIFIER(ACC 12V)
8. LINE-OUT(RIGHT)
10. LINE-OUT(LEFT)
D. FUSE
10A
NOTE! The red cable must be connected via the car’s ignition lock
to prevent unwanted discharge of the battery if it is not used
for longer periods of time.
ASSEMBLY & REMOVAL OF THE APPARATUS
NOTE !
Only use the enclosed mounting components. Foreig n
components can upset operation.
Please refer to your nearest dealer if you get any problems with
installation.

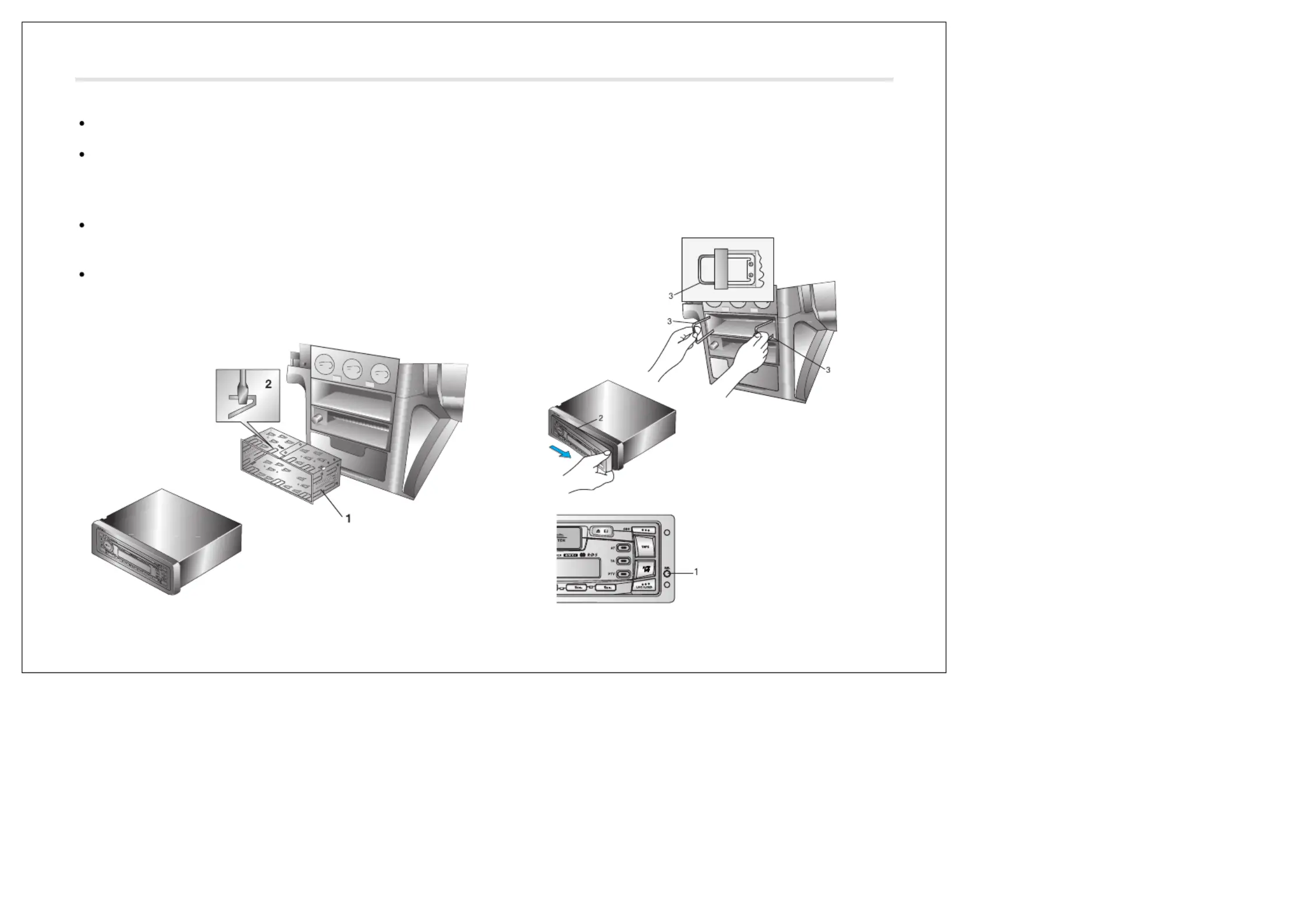

HOLDER
Insert the holder(1) in the car’s radio aperture. Fasten the holder
by pressing out and bending tabs the(2) around the panel edge.
Select attachment tabs which fit the panel thickness.
Slide the radio into the holder. Check that it locks in the holder.
Press knob(1) and remove front panel(2). (Always take the
cassette out first). Insert the enclosed handles(3) into the cutouts in
the apparatus, as in the figure, press the handles up somewhat so
that the lock tabs release and pull the apparatus out of the holder.
Remove the handles (3) from the apparatus.
2
