Mobile Machine Management
The JS1 Heavy Duty Joysticks (JS1-H) portfolio is a
modular joystick design that allows complete grip
and base configuration for efficient control of any
machine. The heavy duty design will result in
extended life for years of reliable operation.
Five different heavy duty grips can be paired with the
JS1-H base to offer the operator complete comfort.
Each of the grips can be configured with a
comprehensive portfolio of finger functions for true
customization.
The JS1-H base incorporates proven Danfoss design
elements and builds on the PLUS+1® architecture.
Several options are available for the electrical and
mechanical output so the joystick can be tailored for a
positive human machine interaction. The JS1-H base
is designed to be dependable and reliable for the
extreme and harsh conditions of the mobile machine
environment.
Features
•Hall effect with two sensors per axis or
long life potentiometer position sensing
•Simultaneous operation of two
proportional rollers
•Operator Presence switch
Options
Axis
•Dual Axis Spring Return
•Single Axis Spring Return
•Single Axis with Friction
•Dual Axis with one axis Spring, one axis
Friction
Output options
•CAN J1939
•CANopen
•PVE
•CANalog
•CAN+
•Analog Category 1
•Analog Category 3
•PWM (programmable)
Ergonomic grip
•Right hand
•Left hand
•Ambidextrous (used with either the left
or right hand)
On axis shaft, deflection
•±18°

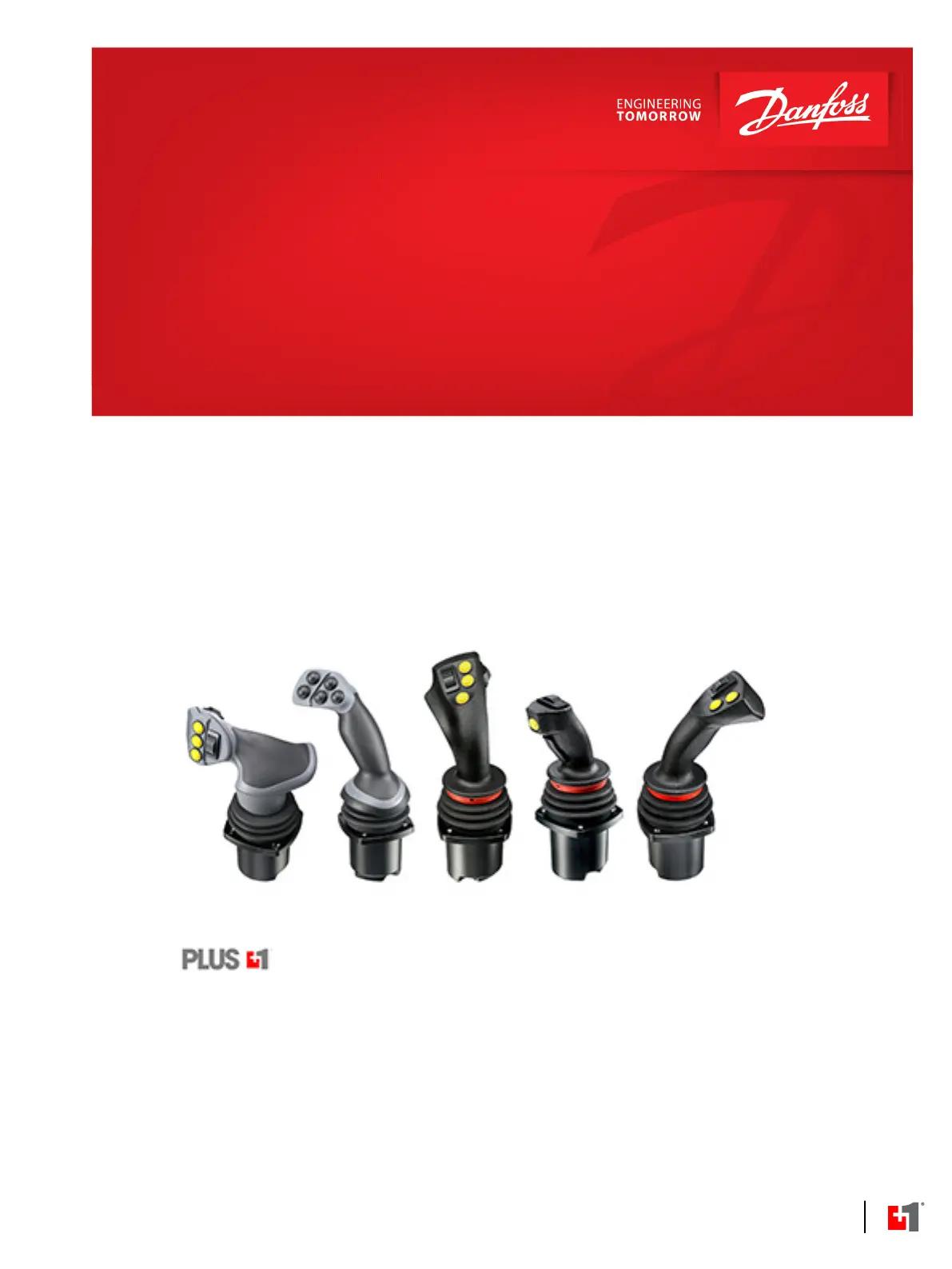

JS1-H grips
•HR1
•ST2
•ST7
•PR2
•PR7
Comprehensive technical literature is
online at www.danfoss.com
Data Sheet
Joystick
JS1 Heavy Duty Joysticks
© Danfoss | March 2019 AI00000239en-000901 | 1
Dimensions in millimeters [inches]
10.00 [0.39]
68.80 [2.71]
Ø 72.60 [2.86]
150.00 [5.90]
145.00 [5.73]
18° 18°
88.00 ± 0.05 [3.46 ± 0.002]
Ø 6.00 [0.24]
45.00
[1.77]
90.00 [3.54]
18° 18°
Ø 75.80 [2.98]
10.00 [0.39]
68.80 [2.71]
Ø 72.60 [2.86]Ø 72.60 [2.86]
68.80 [2.71]
10.00 [0.39]
Ø 75.80 [2.98]
18 18°
166.00 [6.55] 190.00 [7.48]
HR1 ST2 PR2
ST7 PR7
190.00 [7.48 ]
18° 18°
Ø 75.80 [2.98]
10.00 [0.39]
68.80 [2.71]
Ø 72.60 [2.86]
10.00 [0.39]
68.80 [2.71]
Ø 72.60 [2.86]
195.20 [7.69]
18°18°
1
2
143.00 [5.63]
43.70 [01.72]
1. Bottom view
2. BC00000347Cable harness (included) based on specific options, see , JS1 Heavy Duty Joysticks Technical Information
Spring return, base only
Breakout load on axis
Standard duty spring: 6 to 8.5 N (3.37 to 5.71 lbf) Heavy duty spring: 12 to 19 N (2.698 to 4.271 lbf)
Friction hold, base only
Friction level Friction Center detent
A Low friction-Low detent 0.8 Nm 1.5 Nm
B Low friction-High detent 0.8 Nm 2.0 Nm
C High friction-High detent 1.6 Nm 3.0 Nm
Friction hold/Spring return, base only
Friction level Spring type
E A Standard
J A Heavy
Data Sheet
JS1 Heavy Duty Joysticks
2 | © Danfoss | March 2019 AI00000239en-000901
Mechanical characteristics
Shaft mechanical angle limits ± 18˚
Base mechanical life Single axis with friction = 1 million full operating cycles
Single axis and dual axis with spring return = 2.0 million full operating cycles
Dual axis with spring in one axis, friction in one axis = 1 million full operating cycles
Maximum force on handle 1000 N
Maximum torque 15 Nm
Base only mass 0.75 kg (1.65 lbf)
Weight (base without grip) 725 G (1.8 lb)
Vertical maximum load 2500 N (560 lbs)
Electrical—PVE (Standard and Extended) characteristics
Supply voltages UDC 9 to 36 VDC
Maximum current consumption 8 A
Current consumption, no load 150 mA
Maximum load for push buttons and directional switches for all proportional functions 0.6 A
Neutral position switch 3 A
Sensor type Hall effect with redundant sensors
Potentiometer
Signal voltage USMinimum to maximum 0.25 to 0.75
Neutral position 0.50
Signal load in neutral position Load type PVE Other
Load impedance >6 kΩ >15 kΩ
Signal current at maximum movement UDC = 12 V 6 kΩ 15 kΩ
± 0.6 mA 0.2 to 0.6 mA
UDC= 24 V ± 1.2 mA 0.4 to 1.2 mA
Signal current in neutral position UDC = 12 V ± 0 mA ± 0.4 mA
UDC = 24 V ± 0 mA ± 0.8 mA
Inverter Non inverted Output signal = Us
Inverted Output signal = -1 x (Us -0.5 x U+) + 0.5 x U
+
Electrical—PVE (Extended only) characteristics
Signal regulation UsUs Minimum (50%) 0.37 to 0.63 at 100% movement
U+
Maximum (200%) 0.25 to 0.75 at 50% movement
Dead band compensation Us Minimum 0.00
U+
Maximum 0.06
Electrical—Analog Cat 1, Cat 3 characteristics
Sensor type Hall effect with redundant sensors
Supply voltage (Vs) 4.5 to 5.5 VDC
Output 10 to 90% of input voltage
Output impedance 1 mA max output current at 200 Ohm output impedance
Digital outputs Vs-0.3 VDC, maximum current 100 mA
Data Sheet
JS1 Heavy Duty Joysticks
© Danfoss | March 2019 AI00000239en-000901 | 3
