Our instruments' quality level is the results of the product continuous development. This
can bring about differences between the information written in this manual and the
instrument that you have purchased. We cannot entirely exclude errors in the manual, for
which we apologize.
The data, figures and descriptions contained in this manual cannot be legally asserted. We
reserve the right to make changes and corrections without prior notice.
REV. 1.0
14th Nov. 2006
HD25.2
- - 2

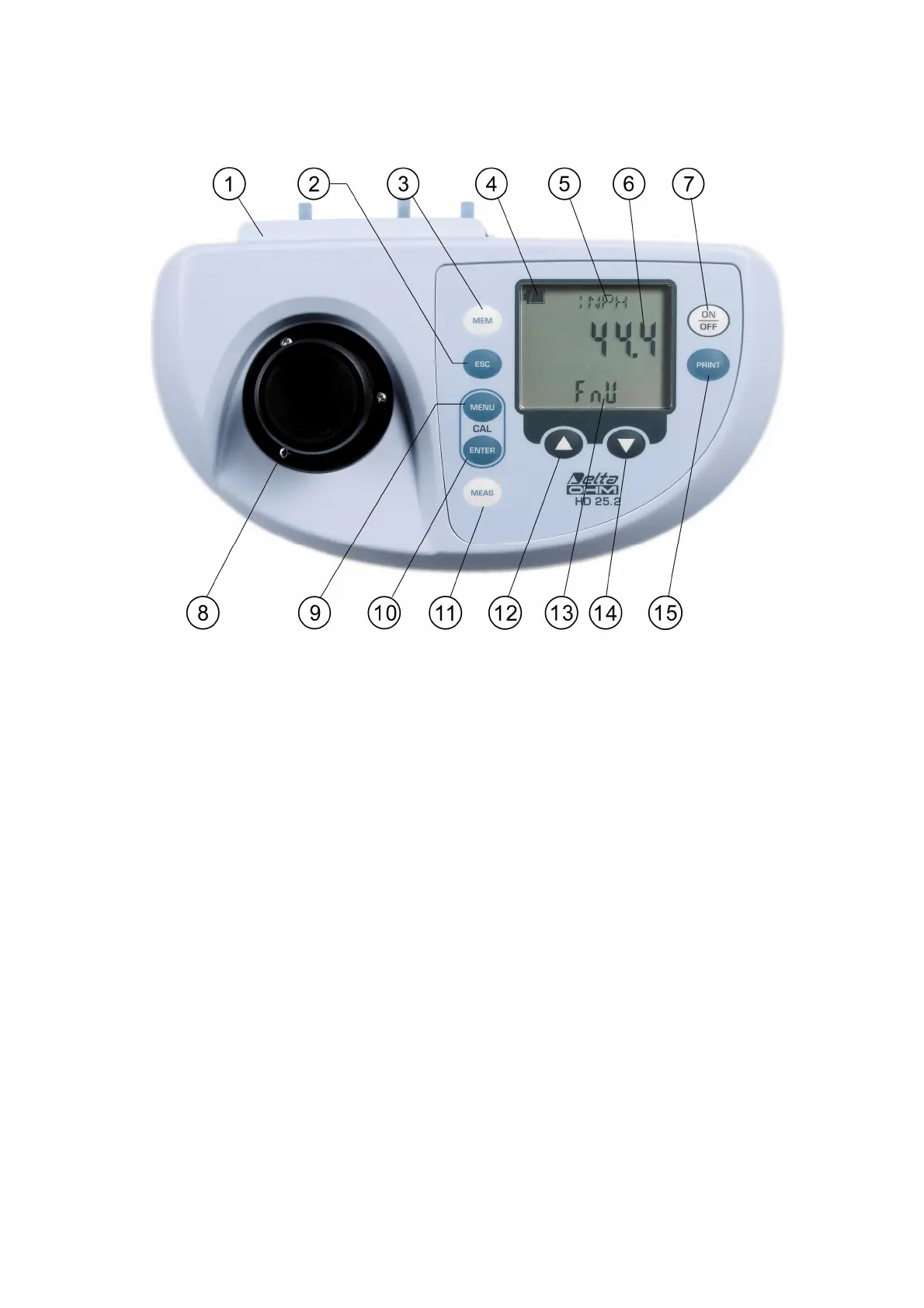

HD25.2 - Turbidimeter
1. Connectors
2. ESC key: in the menu, cancels the current setting.
3. MEM key: stores the currently displayed screen.
4. Battery symbol: indicates the battery level. The symbol does not appear when the external
power supply is connected.
5. Line for symbols and comments.
6. Main display line.
7. ON-OFF key: turns the instrument on and off. When pressed together with the key, disables
the automatic turn off.
8. Measurement piece.
9. MENU key: allows access to and exit from the menu. When pressed together with the ENTER
key, starts the calibration procedure.
10. ENTER key: in the menu, confirms the current selection. When pressed together with the
MENU key, starts the calibration procedure.
11. MEAS key: performs the selected measurement. Use the arrows ( and ) to choose the type
of measurement before pressing the MEAS key.
12. key: selects the type of measurement. When pressed together with the ON/OFF key, disables
the automatic turn off. In the menu, increases the current value.
13. Secondary display line.
14. key: selects the type of measurement. In the menu, decreases the current value.
15. PRINT key: prints the data on the current screen. It uses the serial communication port
RS232C or the USB 2.0 port.
- - 3

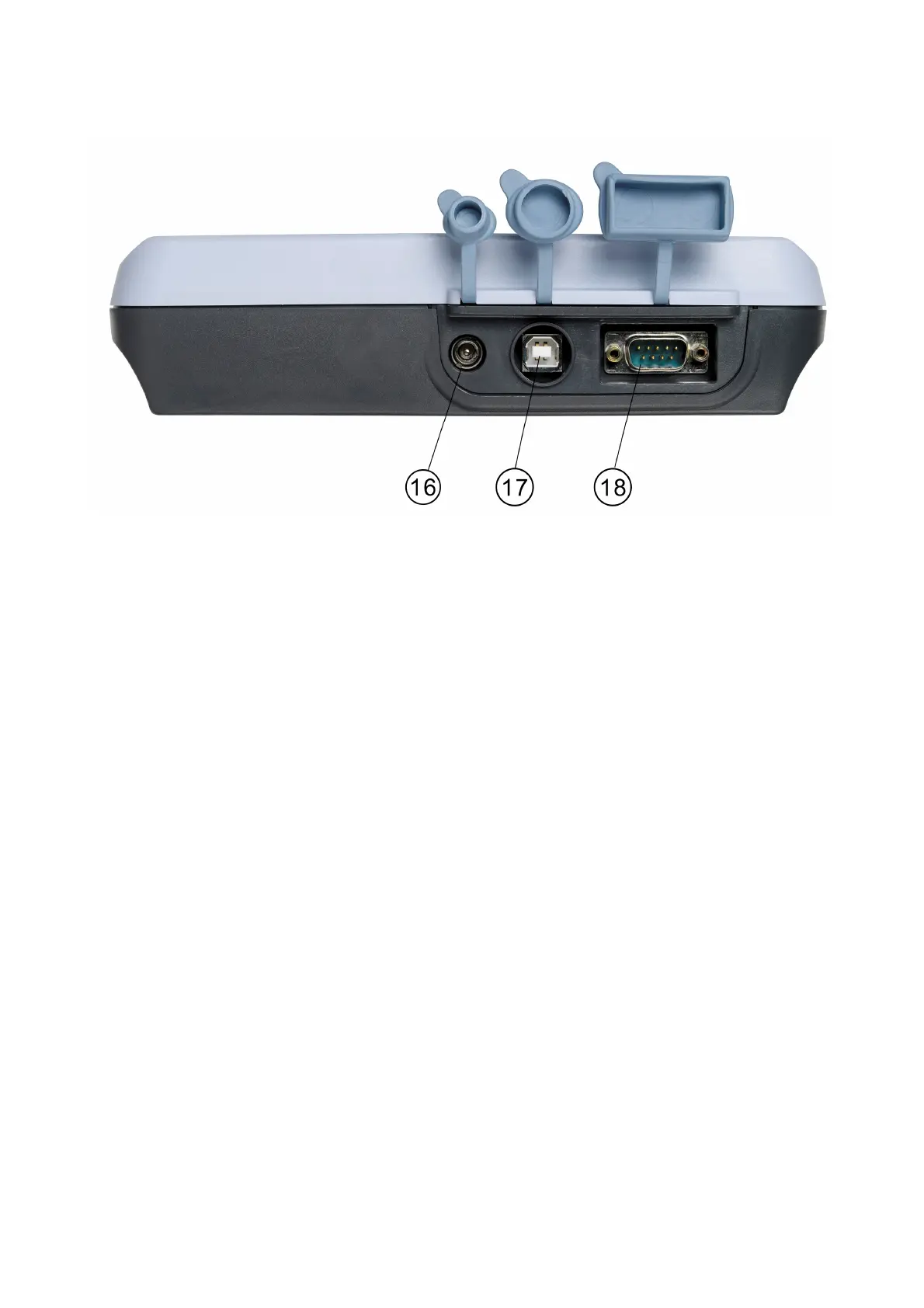

HD25.2 Connectors
16. Power supply input 12Vdc/1A for ∅ 5.5mm - 2.1mm connector.
17. USB2.0 connector - type B.
18. RS232C serial port, sub D 9-pole connector.
