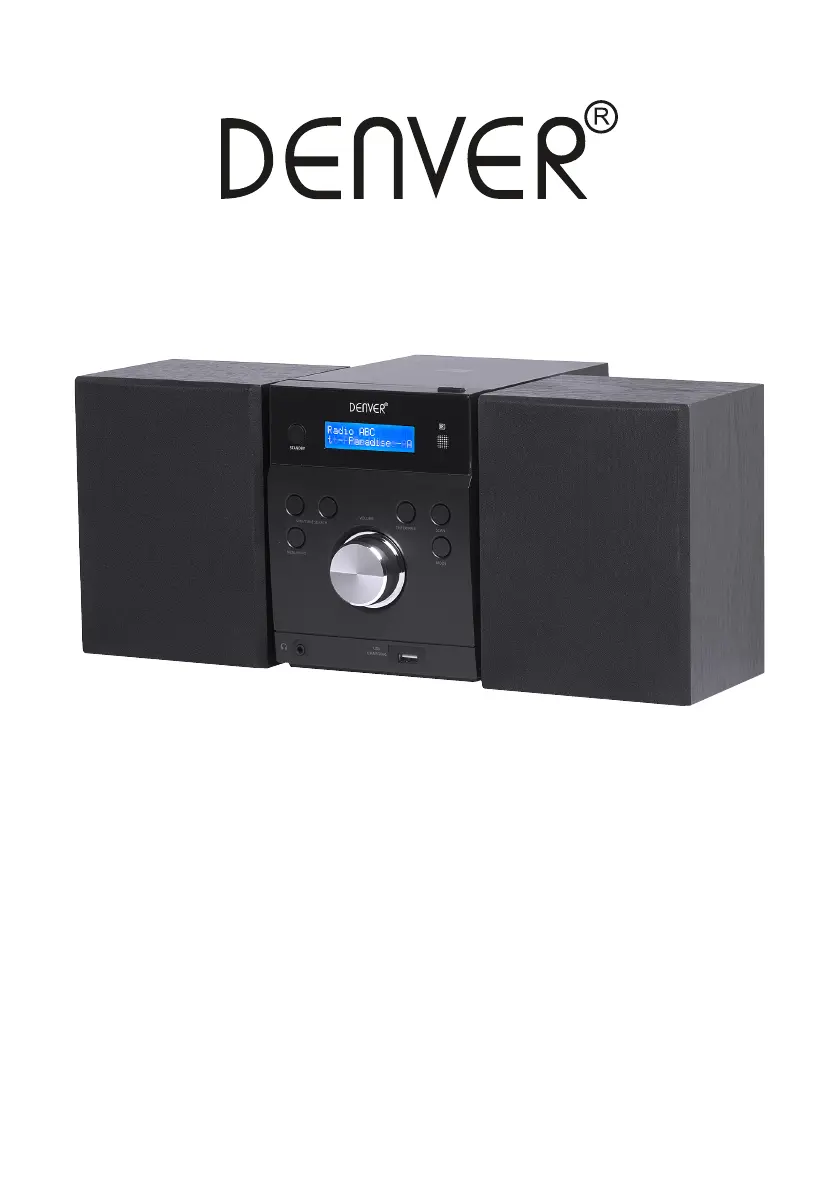

USER’S MANUAL

MDA-240

www.denver-electronics.com

Before connecting, operating or adjusting this product, please read the

user’s manual carefully and completely.

ENG-1

Note:

- This unit will become warm when used for a long period of time. This is normal and does not indicate a

problem with the unit.

- The CD player includes micro-processors which may malfunction as a result of external electrical interfe-

rence or noise. If the CD player is not working properly, disconnect the power source and then reconnect

it.

- Excessive sound pressure from earphones and headphones can cause hearing loss.

- If an unusual conditions occurs in the display window or key button, switch the unit off, then turn on the

unit again.

- The normal function of the product may be disturbed by strong Electro-Magnetic Interference.

If so, simply reset the product to resume normal operation by following the instruction manual.

In case the function could not resume, please use the product in other location

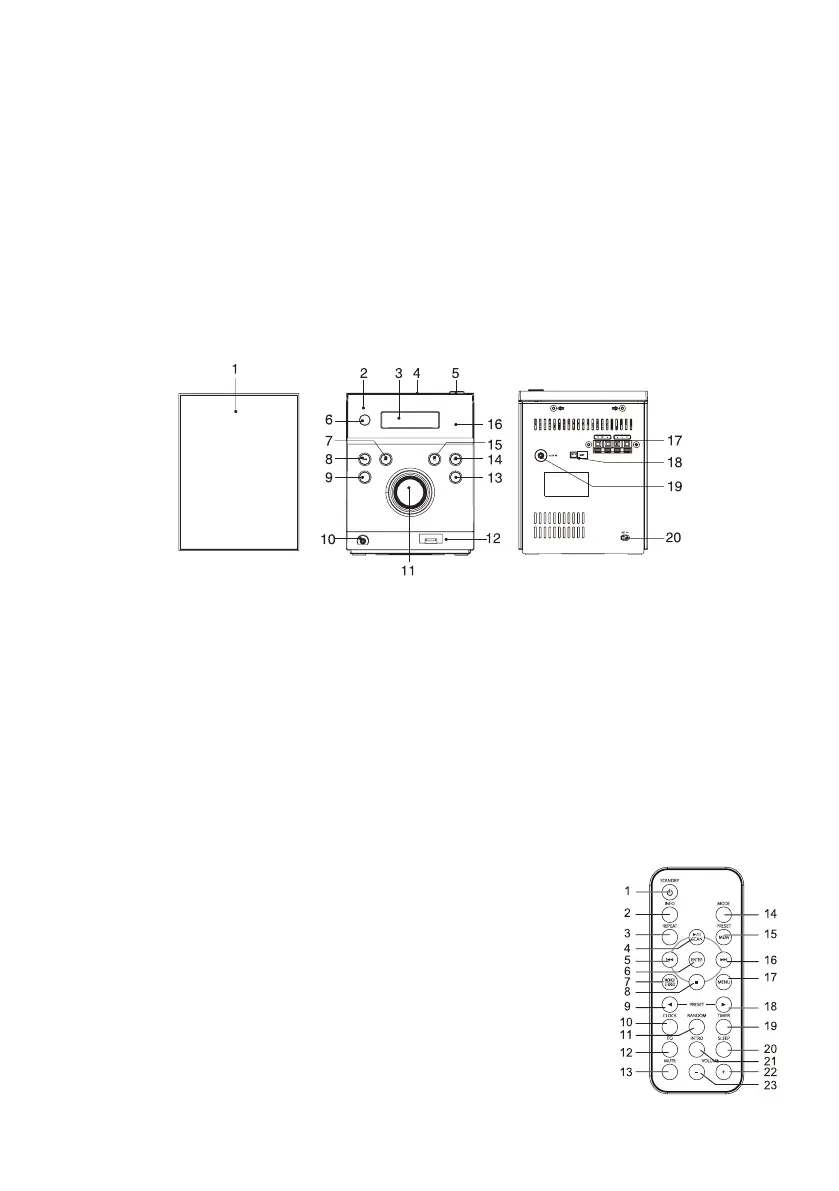

FEATURES AND CONTROLS

REMOTE CONTROL

1. SPEAKER

2. STANDBY LED INDICATOR

3. LCD DISPLAY WINDOW

4. CD DOOR

5. OPEN/CLOSE BUTTON

6. STANDBY BUTTON

7. SKIP/TUN SEARCH UP BUTTON

8. SKIP/TUN SEARCH DOWN BUTTON

9. MENU/INFO BUTTON

10. EARPHONES JACK

1. STANDBY BUTTON

2. INFO BUTTON

3. REPEAT BUTTON

4. PLAY/PAUSE/SCAN BUTTON

5. SKIP/TUNE SEARCH DOWN BUTTON

6. ENTER BUTTON

7. MONO/STEREO BUTTON

8. STOP/PAIR BUTTON

9. PRESET UP BUTTON

10. CLOCK BUTTON

11. RANDOM BUTTON

12. EQ BUTTON

13. MUTE BUTTON

11. VOLUME(+ or -) KONB

12. USB CHARGING JACK

13. MODE BUTTON

14. PLAY/PAUSE/SCAN BUTTON

15. STOP/PAIR BUTTON

16. IR SENSOR

17. SPEAKER TERMINALS

18. DAB/FM ANTENNA

19. AUX IN JACK

20. AC CORD

14. MODE BUTTON

15. PRESET/MEMORY BUTTON

16. SKIP/TUNE SEARCH UP

BUTTON

17. MENU BUTTON

18. PRESET DOWN BUTTON

19. TIMER BUTTON

20. SLEEP BUTTON

21. INTRO BUTTON

22. VOLUME + BUTTON

23. VOLUME - BUTTON

ENG-2

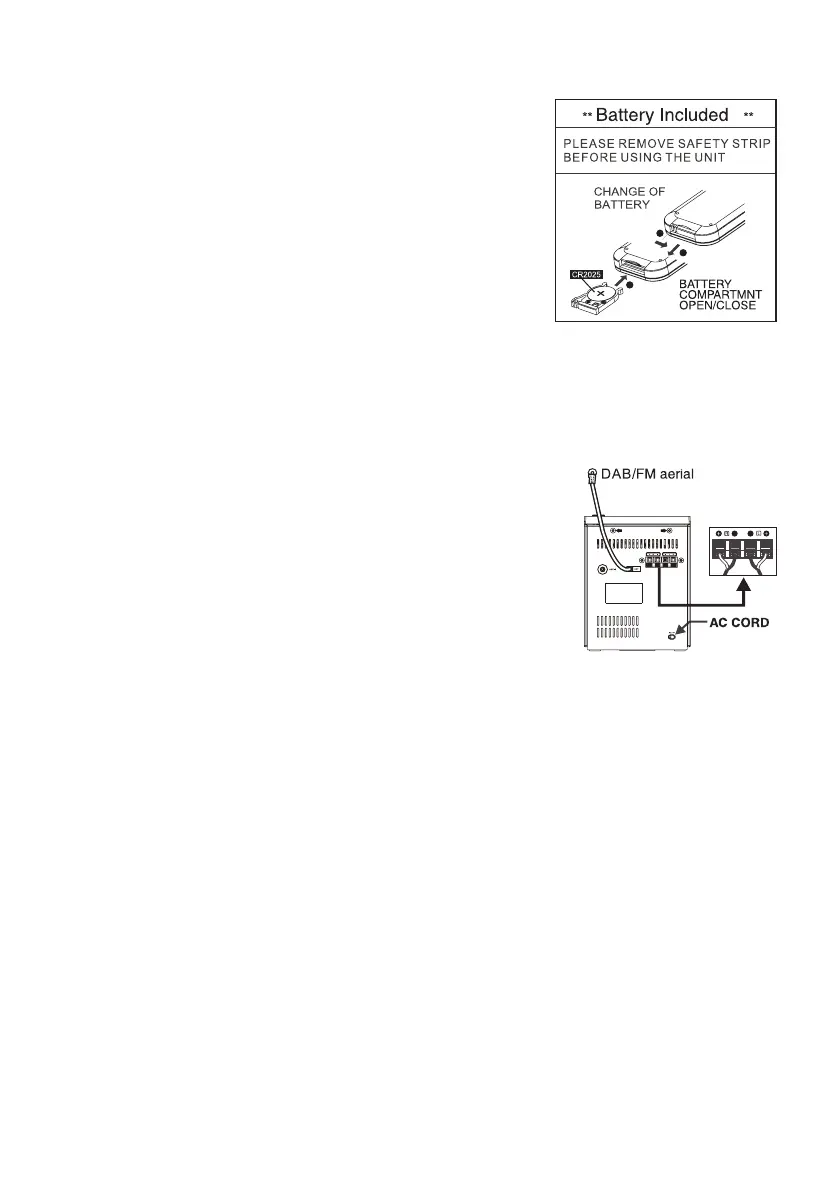

PUTTING THE BATTERIES INTO THE REMOTE CONTROL UNIT

Press down on the compartment cover, and slide the cover off

to open the compartment. Place the one CR2025 battery in the

remote control according to the polarity markings ("+" and "-")

inside the compartment and on the battery.

Place the cover into the compartment, press down lightly, and

push it inside until it snaps on.

Note:

1. If the remote control is not in use for long periods, the battery

will become weak and the remote control will not function,

please replace with a new one if the above happens

2. The battery of remote control shall not be exposed to

excessive heat such as sunshine, re or the like.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

INSTALLING THE SPEAKER WIRE TO THE SPEAKER TERMINALS

1. Speakers Connection

Extend the SPEAKER WIRES and connect them to the

SPEAKER TERMINALS.

2. Power Cord Connection

Before using , connect the AC Power Cord to the AC outlet .

Standby indicator will light on.

3. Supplied DAB/FM aerial:

Connect the DAB/FM aerial wire to the ANT socket and

position the DAB/FM aerial wire in the direction where the

strongest signal can be received.

Note:

Placing the aerial on the unit or near the AC power lead may

cause noise pickup. Place the aerial away from the unit for

better reception.

COMPACT DISC

1. Always use a compact discs bearing the mark as shown.

2. Notes on handling discs

Removing the disc from its storage case and loading it.

* Do not touch the reective recorded surface.

* Do not stick paper or write anything on the surface.

* Do not bend the disc.

3. Storage

* Store the disc in its case.

* Do not expose discs to direct sunlight or high temperatures, high humidity or dusty places.

4. Cleaning a disc

* Should the disc become soiled, wipe off dust, dirt and ngerprints with a soft cloth.

* The disc should be cleaned from the center to the edge.

* Never use benzene, thinners, record cleaner uid or anti static spray.

* Be sure to close the CD door so the lens is not contaminated by dust.

* Do not touch the lens.
