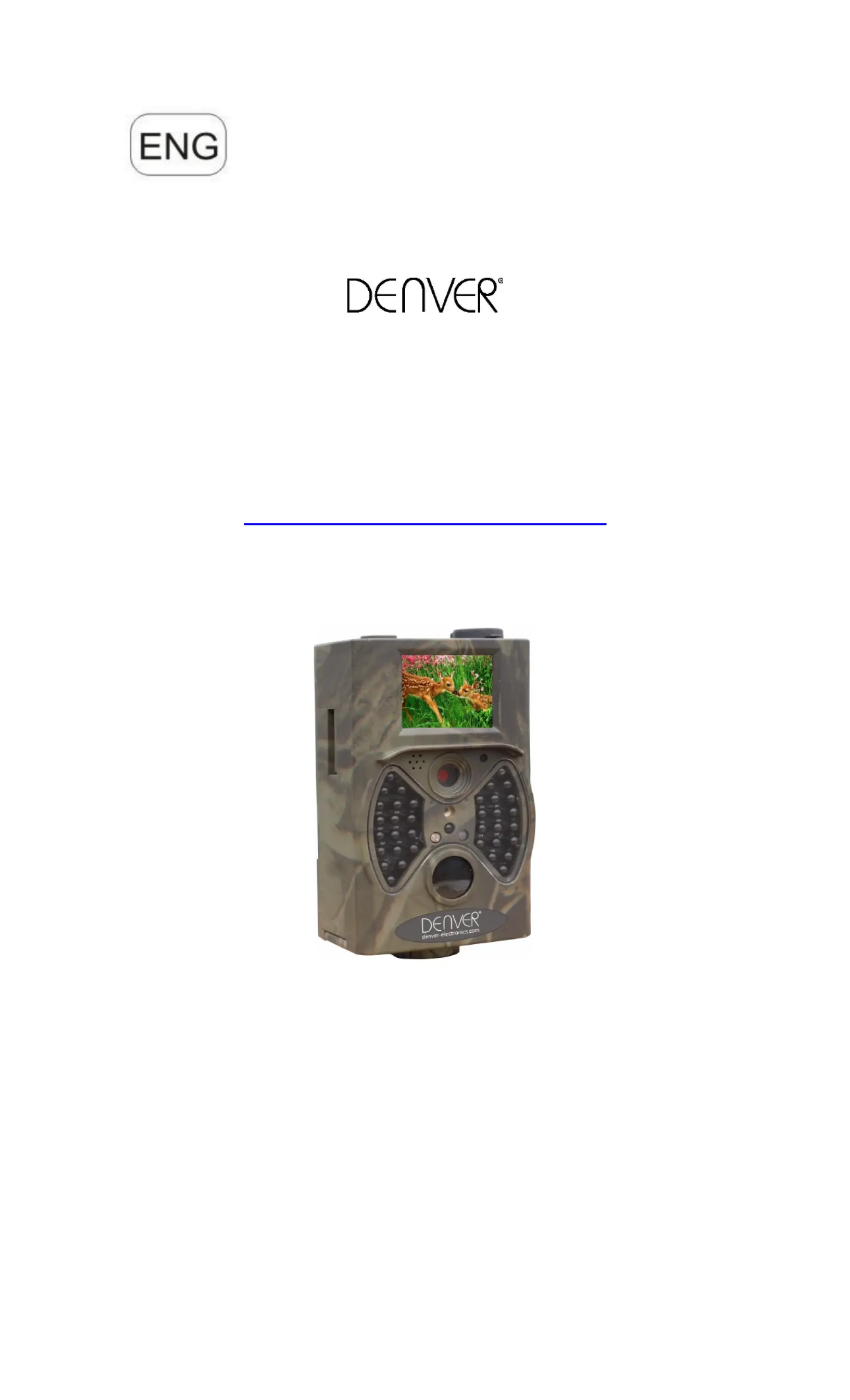

ENG-1
Wild Camera
DENVER WCT-5003
Instruction Manual
WWW.DENVER-ELECTRONICS.COM
ENG-2
Table of Contents
1. Instructions .................................................................................................................. 3
1.1 General Description ........................................................................................... 3
1.2 Camera Body Interface ...................................................................................... 3
1.3 Camera components and features .................................................................... 3
1.4 Remote Control . 3................................................................................................
1.4.1 Navigating 4...............................................................................................
1.5 Shooting Information Display ............................................................................ 4
1.6 Supported Format 5.............................................................................................
2. Cautions ....................................................................................................................... 5
3. Easy Operation ............................................................................................................. 6
3.1 Power Supply ..................................................................................................... 6
3.2 Insert the SD- card.............................................................................................. 6
3.3 Power on and Enter into the ON Mode ............................................................. 6
3.4 Enter into the TEST Mode .................................................................................. 7
3.4.1 Custom Settings 7......................................................................................
3.4.2 Manual Capturing 7...................................................................................
3.4.3 View Images or Videos ........................................................................... 7
3.5 Power Off ........................................................................................................... 7
4. Advanced Operations ................................................................................................... 8
4.1 Settings Menu .................................................................................................... 8
4.1.1 Photo Setting ........................................................................................... 8
4.1.2 Video Setting ........................................................................................... 9
4.1.3 System Setting ......................................................................................... 9
4.1.4 Default ................................................................................................... 10
4.1.5 General Settings .................................................................................... 10
4.1.6 Set Camera Mode ................................................................................. 10
4.1.7 Format SD- Card..................................................................................... 10
4.1.8 Set Photo Size ........................................................................................ 11
4.1.9 Set Video Size ........................................................................................ 11
4.1.10 Set Date and Time ................................................................................ 11
4.1.11 Set Multi ............................................................................................... 11
4.1.12 Set ISO .................................................................................................. 11
4.1.13 Set Video Length .................................................................................. 12
4.1.14 Set Video Sound ................................................................................... 12
4.1.15 Set Delay ............................................................................................... 12
4.1.16 Set Timer .............................................................................................. 12
4.1.17 Enter Password ..................................................................................... 12
4.2 Playback ........................................................................................................... 13
4.2.1 Viewing Photo or Video ........................................................................ 13
4.2.2 Delete Photo or Video .......................................................................... 13
4.3 File Numbering ................................................................................................ 13
4.4 Firmware Upgrade ........................................................................................... 13
Appendix Ⅰ: Technical Specifications ................................................................................. 14
Appendix Ⅱ: Parts List…………………………………………… ………………………………………………. 14
ENG-3
1. Instructions
1.1 General Description
This digital trail camera is a surveillance camera working automatically. It can be
triggered at once by any movement of human (or animals) in a certain region of
interested (ROI) monitored by a high sensitive Passive Infrared (PIR) motion sensor, and
then automatically captures high quality pictures (up to 12M pixels) or records 1080p HD
video clips (WVGA or QVGA).
At sunrise the unit begins to take color photos and video until there is insufficient light
(dusk) when it begins to take infrared (monochrome) photos and video.
It is easy to use, there is a 2.0 inch colorful LCD display on camera. It is resistant against
water and snow for outside uses.
1.2 Camera Body Interface
The camera has the following I/O interfaces: USB connector, SD- card slot, TV output.
Take a few moments to familiarize yourself following the camera controls and displays. It
is helpful to bookmark this section and refer to it as you read through the rest of the
manual.

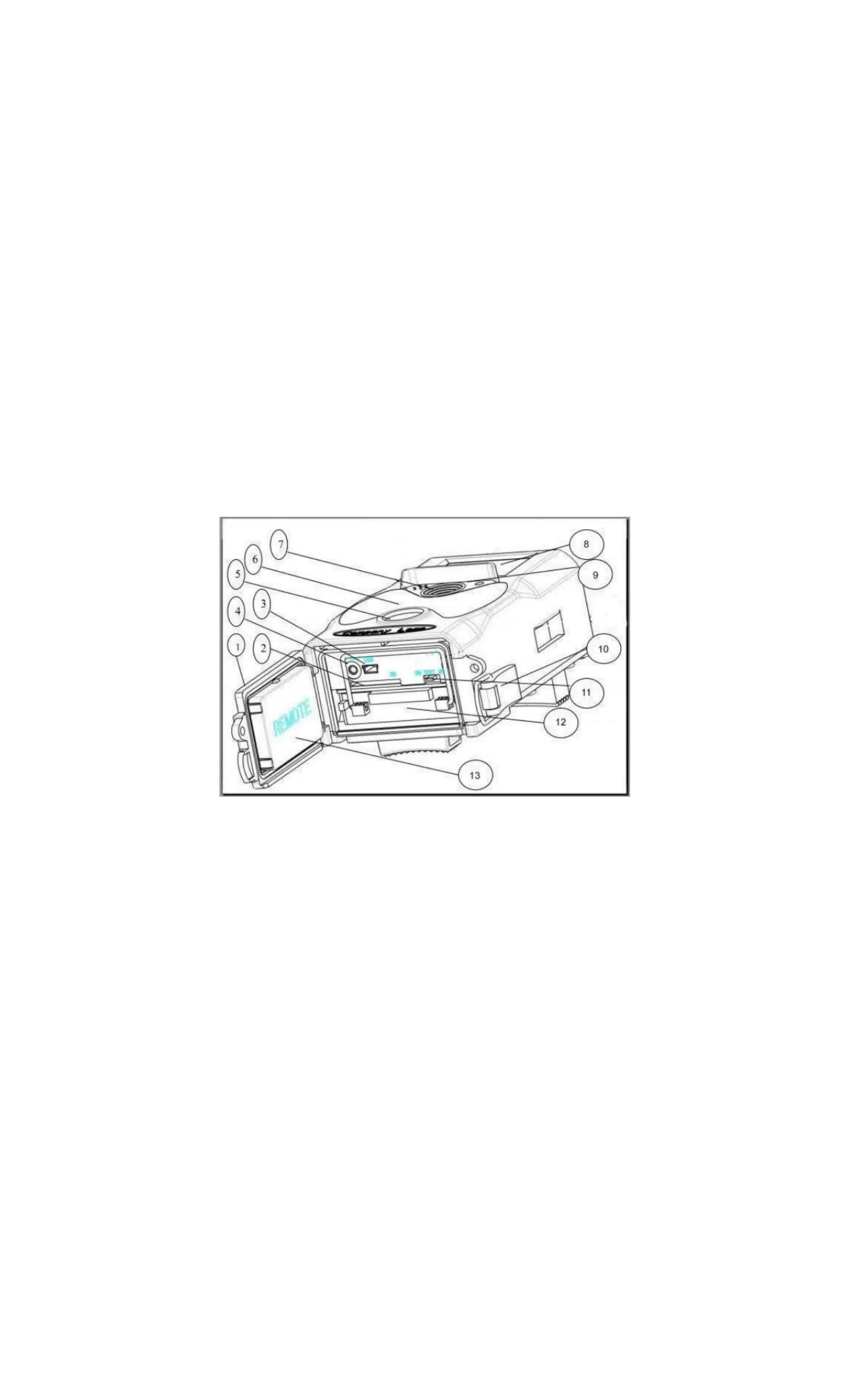

1.3 Camera components and features
1) Bottom cover
2) SD- Card slot
3) USB connector
4) TV out connector
5) PIR
6) Infrared flash
7) Lens
8) 2 inch color LCD Display
9) Sound recorder
10) Lock
11) Power switch
12) Battery depot
13) Portable remote controller
1.4 Remote Control
The remote control is an input device of the camera and is primarily used for customer
settings and password input. This is an infrared type wireless remote control. The
maximum remote distance is 9 meters. There are fifteen buttons on the remote control.
(Note: Remote control is inside of the camera.)
