Combi-Stat RTS8

Room Thermostat

Installation

instructions

RELEVANT EC DIRECTIVES:

2006/95/EC Low Voltage Directive

2004/108/EC Electromagnetic Compatibility

2011/65/EU RoHS Directive

APPLIED STANDARDS:

EN60730-1, EN60730-2-9

Energy Class I = 1% (According to EU 811/2013,

812/2013, 813/2013, 814/2013)

Telephone: +44 (0) 845 130 5522

Facsimile: +44 (0) 845 130 0622

Technical Helpline: +44 (0) 845 130 7722

Website: www.draytoncontrols.co.uk

Email: customer.care@draytoncontrols.co.uk

6490018-1 Iss D

0503

Drayton Controls reserve the right

to make changes without notice

and cannot accept liability for errors.

THERMOSTAT INTERCHANGE GUIDE

deifsitaSdnameDnommoCeviLlartueNhtraEledoMekaM

3LN1SRsaG hsitirB

British Gas RS2 L 2(for 2 wire connectionwith loads of 0.1 to 0.6 A)

British Gas RS2 L 3(for 2 wire connection with loads 0.6 to 6A)

British Gas RS2 N L 3(for 3 wire connection with loads under 2A)

231LN4SR saG hsitirB

Drayton RTS7 and RTS8 L 2(for 2 wire connection with loads of 0.1 to 0.6 A)

Drayton RTS7 and RTS8 L 3(for 2 wire connection with loads 0.6 to 6A)

Drayton RTS7 and RTS8 N L 3(for 3 wire connection with loads under 2A)

3LN 1 STRnotyarD

3LN 2 STRnotyarD

231 LN4 STRnotyarD

214E241 STelytsefiL LCA

2315053 AT elytsefiL LCA

Drayton 3214 TR(old version)

Drayton 4ETR 3(old version) 1 2

3214032TMRlladnaR ssofnaD

43LN032TERlladnaR ssofnaD

Danfoss Randall RT1 21 3

2143DR lladnaR ssofnaD

214A3DR lladnaR ssofnaD

213NECTR lladnaR ssofnaD

213NEMTR lladnaR ssofnaD

213NERSR lladnaR ssofnaD

213N405R lladnaR ssofnaD

Honeywell T4360B 1 3

4312B0606T llewyenoH

4312B1606T llewyenoH

4312B3606T llewyenoH

4312B0636T llewyenoH

214E1TRH nnamtsroH

Horstmann Centuarstat 31 2

321E1 DAR ryG & sidnaL

Landis & Gyr RAD 1N 31 2

Landis & Gyr RAD 1EM 31 2

HLN1 TRP notrettoP

HLTN 2 TRP notrettoP

HLTNTS 001 TRP notrettoP

CHLTNTD 001 TRP notrettoP

134E2222 XLTcivnuS

13/LNE9522 XLT civnuS

213NE6532 XLT civnuS

134E4562 XLTcivnuS

2134E2582 XLTcivnuS

231E053 AT capoS

2314E153 AT capoS

23152 TRS retsamhctiwS

214ESS rewoT

NOTE: British Gas RS2 & Drayton RTS7 details are for guide use only. ALWAYS follow above instructions.

TECHNICAL DATA

Electrical supply 24V-230V AC/DC

Double insulated no earth

required

Temperature range 10°C to 30°C

Switch type SPST 6(2)A

See Figs 5 to 7 for supply

voltage and maximum loads

which are dependant on

wiring configuration used

Temperature sensor Bi metallic

Continued from overleaf

Combi-Stat boiler compatibilty information

Make Model

Alpha 240 2 wire

Ocean 80 3 wire

Ariston Genus 27 2 wire

Euro Combi 27 2 wire

Biasi Prisma 2 wire

Riva 3 wire

Chaffoteaux Britony Combi 80 3 wire

Celtic FF 3 wire

Ferrolli Domina 80 2 wire

Modena 80 2 wire

Halstead Finest 2 wire

Finest Gold 2 wire

Radiant RSF 24 2 wire

Ravenheat RSF 820/20 2 wire

CSI 85 Condensing 2 wire

Saunier Duval 623 Combi 2 wire

Myson Midas BF 2 wire

Elm Le Blanc 2 wire

CombiStat

2. Undo the captive

restraining screw

3. Hinge from bottom

and pull top

forward. Lower

outer cover to

remove

4. Fix directly to a flat wall or onto a flush mounting

conduit box or optional Pattress box using suitable

screws

RTS8 Combi-Stat Thermostat

The RTS8 is a 24V-230V AC/DC mechanical thermostat

that can be used for either 2 or 3 wire applications,

making it suitable for replacement of older 2 wire

thermostats with no Neutral, or 3 wire thermostat

replacement where a Neutral connection has been

used. (Optimum performance is attained with 3 wire

connection.)

IMPORTANT NOTES

The installation instructions must be followed for this

thermostat to operate correctly. Failure to do so may

result in inadequate room temperature control.

Particular attention should be paid to the sections on

wiring and set up.

All electrical work should be carried out by a

competent person to conform to all relevant standards

and regulations.

Isolate/disconnect the power supply to the appliance

and/or system before commencing any electrical work.

A switch having a contact separation of at least 3mm

on both Live and Neutral poles must be incorporated

in the fixed wiring of the system to provide full

isolation of the mains supply.

Ensure that the system fuse is the correct rating. For

Gas fired radiator heating systems this is .3A

INSTALLATION INSTRUCTIONS

Location

Care should be taken to mount the thermostat in a

position, which is not subject to direct sunlight or

draughts. Preferably it should be mounted on an inside

wall about 1.5m (5ft) above the floor in a position

where it can respond to room temperature but away

from the direct influence of radiators or other

appliances giving off heat.

Fixing

Standard cable entry

can be from the rear

or top, if bottom

entry or extra space

for cabling is

require use thd e

optional Pattress box.

1. Pull temperature

setting knob

forward to remove.

Set up to be followed when wiring to Fig 6 only

The thermostat utilises a series resistor as a heat

anticipator when wired in accordance with Fig 6

diagram.

To avoid inaccurate room temperature control it

is that the following set upVERY IMPORTANT

procedure is followed.

An electrical multimeter will be required for the

following procedure.

• Isolate electrical supply

• Mount base unit to wall

• Connect wires to L and 2

• Turn red setting shaft until switch contact opens

(see Fig 4)

• Set meter to 1 amp, current range

• Carry out electrical safety checks on the system/

appliance and turn system ON

• Put meter probes across L and 2

• Read current. Expected reading for Gas CH

systems = 0.1A to 0.6A

• If reading is wire as Fig 6 (isolateBELOW 0.6A

electric supply before rewiring)

• If reading is wire as Fig 7 (isolateABOVE 0.6A

electric supply before rewiring)

• Reset the red setting shaft so that the small slot

is vertically downwards

• Reassemble thermostat

Range limiting

The setting range may be limited or a particular

setting locked through the use of the mechanism

to be found under the control knob.

To set the range limits:

1. Set thermostat to the desired temperature

2. Remove the setting knob by carefully pulling it

forward

3. Lift and rotate the two limiting arms to

reposition them in the required notches

4. Replace the knob in its previous position Continued overleaf

Earth loop

connection

Red

setting

shaft

Screw

slots

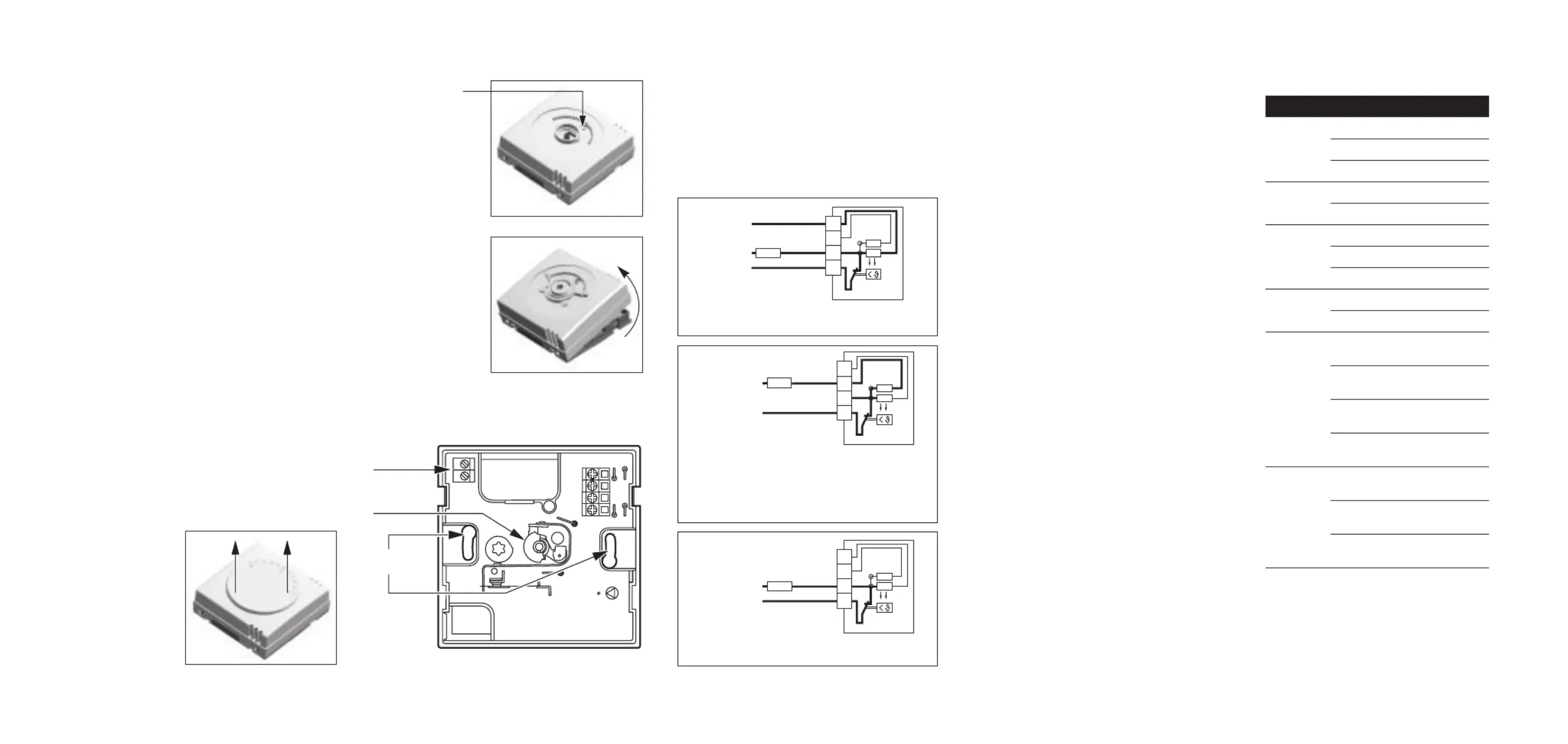

Fig 1 Fig 4

Acc.

Call for heat

LOAD

230V AC 50Hz

Fused 3A

Fig 5. 3 wire connection. Max load = 2A

Suitable for most wet CH systems

Acc.

Call for heat

LOAD

24V-230V AC/DC

Fused 3A

Acc.

Call for heat

LOAD

24V-230V AC/DC

Suitably rated

fuse

Fig 7. 2 wire connection. No Neutral. Load = 0.6A to 6A

Typically for higher loads (ie electric heating)

Fig 3

Fig 2

Fig 6. 2 wire connection. No Neutral. Load = 0.1A to 0.6A

Suitable for most wet CH systems

Note: Use this connection for gas CH systems, where there is

no neutral wire, and follow set-up procedure. If current

reading above 0.6 amps, wire as Fig 7. 2 wire

connection no Neutral.

Wiring

The RTS8 is double insulated and does not require an

earth, if there are existing earth wires that need to be

connected, use the Earth loop connection (Fig 4).

Terminate the wiring as shown in diagrams (Figs 5 to

7), ensure that the correct diagram is followed to match

the current load (Amps) and cabling of the heating

system. If unsure of current load, follow Set up

procedure to determine it.

Combi-Stat boiler compatibilty information

Make Model

Worcester Series 2/3 wire*

CDi Series 3 wire

Si Series 2/3 wire*

Vaillant EcoMax 2/3 wire*

TurboMax 2/3 wire*

Ideal Isar 2 wire

Response 2 wire

Mini 2 wire

Glow-Worm Energysaver 2/3 wire*

Compact E 2/3 wire*

Baxi 80 Eco 3 wire recommended

by Baxi across range

Combi 80E 3 wire recommended

by Baxi across range

105E 3 wire recommended

by Baxi across range

Maxflow 3 wire recommended

by Baxi across range

Potterton Bahama 3 wire recommended

by Pott’s across range

Puma 3 wire recommended

by Pott’s across range

Combi 3 wire recommended

by Pott’s across range

* Where 2/3 wire is indicated use 3 wire connection for

optimum performance.

This information is for guidance only as the boiler

manufacturer may change the mode of operation at any

time without warning. For further information please

refer to the boiler manufacturers handbook.
