Drayton

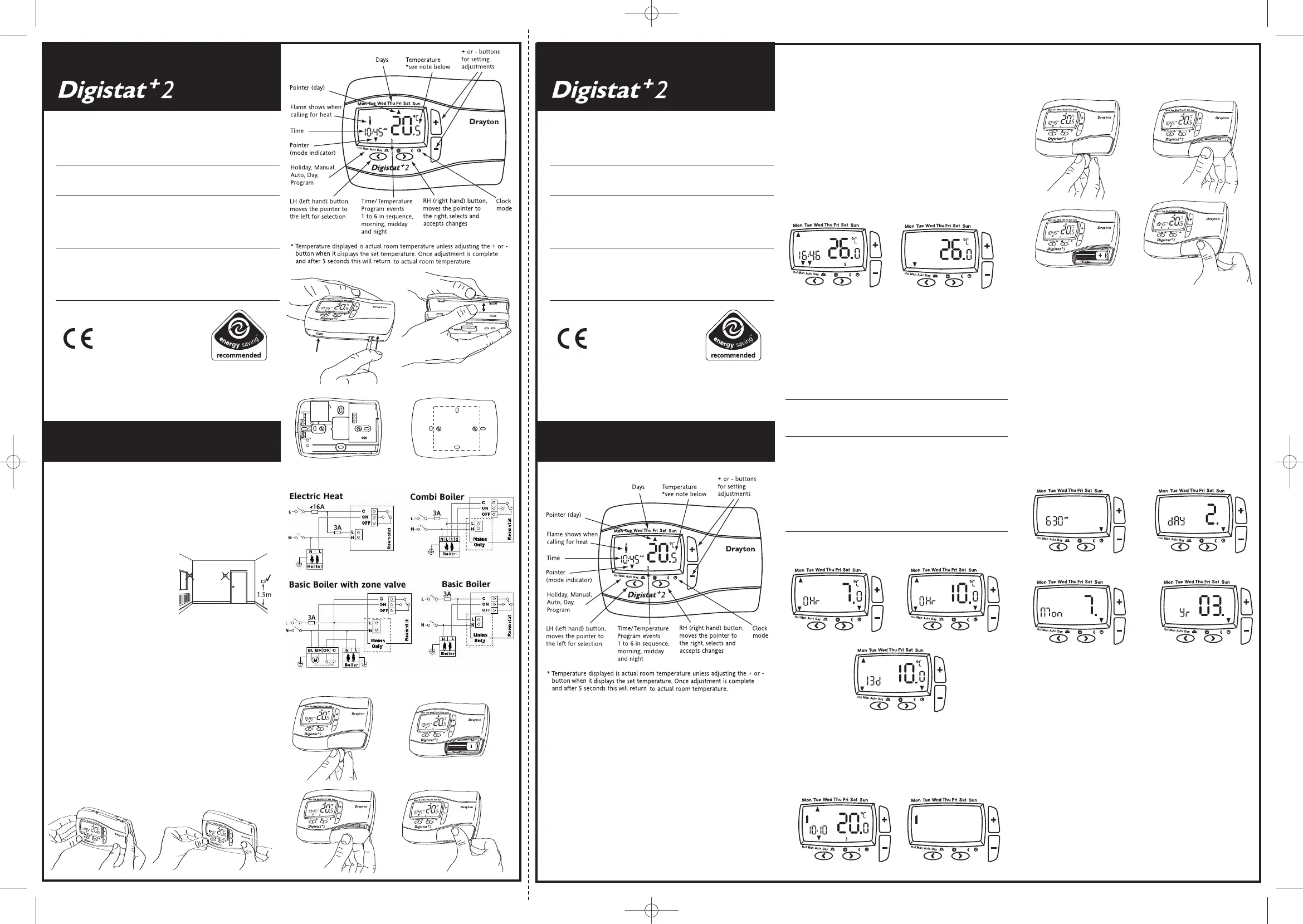

Installation Guide
Programmable Room
Thermostat
24 Hour
Models:
22084 / 22088
Power Supply:
Battery / Mains
Invensys Controls Europe
Technical Helpline: +44 (0) 845 130 7722
www.draytoncontrols.co.uk
Installation / User Guide 06490045001 (0406)
Drayton
User Guide
Programmable Room
Thermostat
24 Hour
Models:
22084 / 22088
Power Supply:
Battery / Mains
Invensys Controls Europe
Technical Helpline: +44 (0) 845 130 7722
www.draytoncontrols.co.uk
Installation / User Guide 06490045001 (0406)
Warning
If you do not have the knowledge to install the Digistat+2
safely, arrange for a competent electrician to install it for you.
Wiring should conform to the current IEE wiring regulations.
Isolate mains supply before removing an existing room
thermostat and fitting Digistat+2.
Digistat+2 programmable room thermostats are double
insulated therefore Neutral and Earth connections are not
required. Unused existing cables should be safely insulated.
Location
Care should be taken to mount the
Digistat+2 on a wall, in a postion
which is not subject to direct
sunlight or draughts. Preferably it
should be mounted on an inside
wall about 1.5M (5ft) above the
floor in a position where it can
respond to room temperature but
away from the direct influence of radiators or other appliances
giving off heat.
Installation
1. Remove the front cover using a flat screwdriver and separate
from back plate (Fig 1).
2. Fix the back plate directly onto the wall using suitable wall
plugs and screws or mount over existing wall box (Fig 2).
3. Complete the wiring according to the connection suggestions
shown in (Fig 3). For Basic boiler, Combi boiler and Basic
boiler with zone valve applications Digistat+2 with battery or
mains supply are suitable.
For Electric Heat application use Digistat+2 with mains supply only
.
4. Replace the front cover by locating in position and pushing
fully onto the back cover (Fig 4).
5. Remove the battery cover using a coin (Fig 5). Battery model only.
6. Install the 2 AA batteries provided (Fig 6). Battery model only.
7. Replace battery cover (fig 7). Battery model only.
8. The Digistat+2 is now installed and will automatically start to
control the room temperature according to the pre-set
program 1 as shown in the User Guide.
The display shows the correct time and date which is
automatically set together with the actual room temperature.
Your Digistat+2 programmable room
thermostat. 24 Hour
Digistat+2 programmable room thermostat allows you to set
time and temperature periods (up to 6 per day) to suit your own
lifestyle. Once fully installed and powered the Digistat+2 will
automatically set the correct time and in auto mode will control
your heating system according to pre-set program 1 (9 till 5).
The temperature is controlled by sensing air temperature,
switching on the heating when the air temperature falls below
the thermostat setting and switching it off once this set
temperature has been reached.
(Fig 1)
(Fig 2)
How to change the temperature for a short time (Override).
When in Auto mode you can override the existing temperature
setting by pressing + or -. During adjustment the temperature will
flash then stop. The Digistat+2 will now control at this
temperature until the next programmed time/temperature event is
reached, when the Digistat+2 will revert back to Auto mode.
Whilst in temperature override the pointer indicates both Man and
Auto. To exit override press > to return to Auto. (Fig 1) shows
Digistat+2 in override.
How to set a constant room temperature (Manual mode).
Manual mode will allow you to set a temperature, over-riding all
programs, until you exit manual mode. In this mode all pre-set
time temperature events will be disabled.
To enter manual mode press < until the pointer indicates MAN
(Fig 2). The screen will only show the temperature, which can be
adjusted by pressing + or -.
Once you have set the temperature it will flash for 5 seconds and
then stop. The Digistat+2 will now control at this temperature until
you adjust using + or - or exit by pressing > to enter Auto mode.
(Fig 3)
(Fig 1) (Fig 2)
(Fig 4)
(Fig 6)
(Fig 7)
(Fig 5)
TEAR HERE TEAR HERE
(Fig 3)
How to set my room temperature for my holiday period.
(Holiday Mode)
When going on holiday you can lower the temperature of your
home for the duration of your holiday, but set Digistat+2 to
return to your normal programming ready for your return.
Holiday mode works by counting down the days or hour until
your return.
Time periods of between 1 to 24hr then 1 day to 199 days can
be set.
Example
I am ready to leave for my 2 week (14 day) holiday and would like
the house temperature held at a constant 10.0 ºC during this time
and on my return the house temperature will be already running
at my normal pre-set temperature.
To enter Holiday mode press the < button until the pointer is
indicating HOL (fig 3). The temperature will flash and by pressing
the + or - buttons you can change to the temperature required
(in this example to 10.0 ºC) (Fig 3a).
Then press < again to set the time period.(in this example 14
days) using the + or - buttons. (it would be advisable in this
example to set the time period 1 day less (13 days) to ensure the
house temperature is back to normal on your return). (Fig 3b)
Once you have set your time period the time will flash for 10
seconds and then start the holiday period. To exit the Holiday
mode press either < or > to return to auto mode.
When changing time the display will scroll through Hr (Hours)
1-24 then d (Days) 1-99.
The display will show holiday time period and set temperature.
(Fig 3) (Fig 3a)
(Fig 3b)
(Fig 4) (Fig 5)
Battery Model only.
How do I know when to change the batteries.
When the batteries start to run low a battery icon will blink for
15 seconds every 15 seconds to indicate “low battery” during this
time the Digistat+2 will function normally (see fig 4).
Please replace batteries with (2 x AA 1.5V Alkaline batteries).
After 6 months the will cease to function and willDigistat+2
permanently display the battery icon and nothing else, shown in (fig 5).
(Fig6)
(Fig 8)(Fig 7)
(Fig 10)(Fig 9)
How to change the time, day, month & year.
Digistat+2 comes with a pre-set clock, which also automatically
adjusts for summer/winter time changes. It is activated
automatically on 1st installation. There should be no need to
change these settings, however, should you wish to, it can be
done in clock mode.
To enter the clock mode press > to move through Day and all 6
time/temperature events until the arrow points to the clock
symbol. The time will now flash and can be adjusted (Fig 7) by
pressing + or - then press > to accept and move to Day.
Change day. (Fig 8).
If you wish to change the day press + or - then press > to accept.
Digistat+2 will move to the next field - month.
Change month. (Fig 9).
If you wish to change the month press + or - then press > to
accept. Digistat+2 will move to the next field - Year.
Change year. (Fig 10).
If you wish to change the year press + or -, then press > to
accept. Digistat+2 will now return to Auto mode.
Display Error code E1 or E2.
When the display shows E1 or E2 this indicates a sensor fault
and your heating system will remain Off. Please contact your
installer.
How to select another pre-set time/temperature program.
There are 3 pre-set time/temperature programs already held in
memory as shown, if pre-set program 1 is the best program to
suit your lifestyle do nothing and the Digistat+2 will control to
program 1.
If you would like to select one of the other pre-set programs,
refer to ‘How to change User Options’, Option 3 and select your
preferred program.
How to replace the batteries see fig 6.
R emove the battery cover using a coin. Replace the spent
b atteries with 2 x AA 1.5V alkaline batteries ensuring correct
o rientation. Replace the battery cover pressing fully home.
Certification Mark
06490045001 Digistat+2 update 7/3/06 11:25 am Page 1
Installation Guide –continuedUser Guide – continued
What is a programmable room
thermostat?
...an explanation for householders
A programmable room thermostat is both a programmer
and a room thermostat. A programmer allows you to set
‘On’ and ‘Off’ time periods to suit your own lifestyle. A room
thermostat works by sensing the air temperature, switching
on the heating when the air temperature falls below the
thermostat setting, and switching it off once this set
temperature has been reached.
So, a programmable room thermostat lets you choose what
times you want the heating to be on, and what temperature
it should reach while it is on. It will allow you to select
different temperatures in your home at different times of the
day (and days of the week) to meet your particular needs.
Turning a programmable room thermostat to a higher
setting will not make the room heat up any faster. How
quickly the room heats up depends on the design of the
heating system, for example, the size of boiler and radiators.
Neither does the setting affect how quickly the room cools
down. Turning a programmable room thermostat to a lower
setting will result in the room being controlled at a lower
temperature, and saves energy.
The way to set and use your programmable room
thermostat is to find the lowest temperature settings that
you are comfortable with at the different times you have
chosen, and then leave it alone to do its job. The best way to
do this is to set low temperatures first, say 18C, and then
turn them up by one degree each day until you are
comfortable with the temperatures. You won’t have to adjust
the thermostat further. Any adjustments above these settings
will waste energy and cost you more money.
If your heating system is a boiler with radiators, there will
usually be only one programmable room thermostat to
control the whole house. But you can have different
temperatures in individual rooms by installing thermostatic
radiator valves (TRVs) on individual radiators. If you don’t
have TRVs, you should choose a temperature that is
reasonable for the whole house. If you do have TRVs, you can
choose a slightly higher setting to make sure that even the
coldest room is comfortable, then prevent any overheating in
other rooms by adjusting the TRVs.
The time on the programmer must be correct. Some types
have to be adjusted in spring and autumn at the changes
between Greenwich Mean Time and British Summer Time.
You may be able to temporarily adjust the heating
programme, for example, ‘Override’, ‘Advance’ or ‘Boost’.
These are explained in the manufacturer’s instructions.
Programmable room thermostats need a free flow of air to
sense the temperature, so they must not be covered by
curtains or blocked by furniture. Nearby electric fires,
televisions, wall or table lamps may prevent the thermostat
from working properly.
Hol Man Aut o Day
96.5
31.3
137.0
Technical Data
Model 22084 22088
Power supply 2 X AA 1.5V 230V AC 50Hz
alkaline batteries
Battery life 3 years typical –
Switch rating
Heating (switch N.O.) 16(2)A 230 Vac
Switch type SPDT (voltage free contacts)
Min. recommended current 10mA @24Vac (inductive)
Ambient temperature Operating 0°C to 50°C
Storage – 20°C to 85°C
Ambient humidity Operating 25% to 85%
(non condensing) Storage 15% to 95%
Temperature range 0°C to 32°C
Accuracy (between 7°C & 32°C) 0.5°C
Timing resolution 1 minute
Temperature resolution 0.1°C
Rated impulse voltage 2.5KV
Ball pressure test 75°C
Pollution situation Degree 2
Protection level IP30
Wiring : Designed for fixed wiring only,
to comply with IEE wiring regulations
Dimensions
Installer Options.
If you wish to change any of the Installer Options as shown
below, enter the Installer Option Menu from Auto mode by
pressing < and + simultaneously for 5 seconds.
Pressing < and + again for 5 seconds will exit the Menu and
return to Auto mode.
Once the Installer Options screen has been selected (Fig 8), the
< and > buttons allow you to scroll through the Menu (shown
below). The + and - allow you to change values. Once a value
has been changed pressing > before exiting the Menu will save
the new setting. (Fig 9 shows Option 1 OFF).
Access protection lock.
The access protection lock allows the installer to lock the
Digistat+2 so that the user cannot make any adjustments.
The default is OFF mode allowing the users to adjust the
Digistat+2 (see User Guide).
To Lock the Digistat+2 settings enter the Installer Options Menu
(Refer to Installer Option 1) and select On and press > to accept.
Once the Installer Options Menu is exited all buttons will be
locked.
To switch off the Protection Lock enter the Installer Menu and
change to OFF. Press > to accept.
Once the Installer Menu is exited all buttons will be free to adjust.
Freeze protection.
Freeze protection will switch on the heating if the room
temperature falls to 5ºC and will then control the temperature at
7ºC even if the Digistat+2 is in OFF mode.
The freeze protection default is ON.
To switch off the Freeze protection mode enter the Installer
Options Menu (Refer to Installer Options 2) and change to OFF.
Press > to accept.
Low and High Limit set points.
The user temperature set points defaults are High 32ºC and Low
7ºC, to change these limits enter the Installer Options Menu
(Refer to Installer Options 3 & 4).
Intelligent Delayed Start (Energy saving feature).
The Intelligent Delayed Start is an energy saving feature which
automatically reduces the warm up time for the heating system.
As the weather becomes milder, Intelligent Start will delay the
heating start times so that fuel is not wasted bringing the room
up to temperature earlier than necessary.
Note: Intelligent Delayed Start only applies in Auto mode.
Intelligent Delayed Start default is in OFF mode.
To switch on Intelligent Delayed Start enter the Installer Options
Menu (Refer to Installer Options 5).
Note the Intelligent Delayed start option is not suitable for
Hydronic underfloor application.
Ensure Installer option 5 is set to Off before final commissioning
for Hydronic underfloor application.
Valve protection.
In some hydronic heating systems there may be a requirement to
protect the valve by operating it once a day, for a given period
without bringing on the heating system.
If valve protection is selected the valve will be operated for a
period as shown in Valve protection time (mins).
Valve protection time every day at 10.00am.
Valve protection default is OFF.
To enable the valve protection mode enter the Installer Options
Menu (Refer to Installer Option 6)
Valve protection time (mins).
Valve protection time can be set between 1 and 5 minutes
(default 3 minutes)
To change this once a day on time enter the Installer Options
Menu (Refer to Installer Option 7).
Installer
Options What is it Select between Default
1 Access protection lock On Off Off
2 Freeze protection On Off On
3 Low limit set point ºC 7 High limit 7
4 High limit set point ºC Low limit 32 32
5 Delayed start
(Energy saving feature) On Off Off
6 Valve protection On Off Off
7 Valve protection time (Mins) 1 5 3
8 Sensor fault function On Off Off
9 Application type 1 0 0
Sensor fault function.
When the display shows an error code (E1) or (E2) this indicates
a sensor fault and the heating system will remain Off.
(E1) = internal sensor and (E2) = external sensor.
If (E1) is shown the Digistat+2 should be replaced.
If (E2) is shown, first check the external sensor terminal block
connections before replacing the
D igistat+2.
Sensor fault function allows you to temporally set the
Digistat+2
to cycle the heating system 30% On and 70% Off until you have
replaced the product.
This can be done by entering the installer Option Menu (Option
8) and selecting On. Press > to accept.
To reset to default Off, entering the installer Option Menu
(Option 8) and selecting Off. Press > to accept.
Application type.
Model 22084
(Battery) can be used for radiator or Hydronic underfloor
applications.
In installer Option select:
0 = Radiator.
1 = Hydronic underfloor.
Default 0 = Radiator.
Model 22088
(Mains) can also be used for electric heat applications.
0 = Radiator and electric heat.
1 = Hydronic underfloor.
To change application enter the installer Option Menu and refer
to Option 9.
Drayton – Digistat+2 24 Hour Programmable Room
Thermostat
Programs are the same every day (Monday to Sunday).
TEAR HERE TEAR HERE
(Fig 8) (Fig 9)
When you get to the event you wish to change press + or - to
change the required time, then Press > to accept. Use + or - to
select the required temperature, then > to accept.
Digistat+2 will
now show the next time/temperature event. To exit press < until
you return to Auto mode.
How to change User Options.
If you wish to change any user options 1 to 8 shown in table 1 they
can be accessed from Auto or Man by pressing < and >
simultaneously for 3 seconds. Once you have accessed the user
setting Menu (Fig 13) press > to scroll through selectable options
1 to 8. The settings for each option can be changed by pressing +
or - as required. Press > to accept the change and move to the
next option. To exit press < and > simultaeously for 3 seconds.
Alternatively, not pressing any buttons for 2 mins will cause the
Digistat+2 to return to Auto. (Fig 13a) shows option 1 24 (24
hour clock).
Only selected options which have been accepted by pressing >
will be changed.
(Fig 11)
(Fig 12) (Fig 12a)
(Fig 13) (Fig 13a)
Pre-set programs for Digistat+2 24 Hour.
Program 1 (9 till 5) as shown below
Monday to Sunday
Events 1 2 3 4 5 6
Time 6:30 8:30 12:00 14:00 16:30 22:30
Temperature C 20.0 16.0 16.0 16.0 21.0 7.0
Program 2 (Home for lunch)
Monday to Sunday
Events 1 2 3 4 5 6
Time 6:30 8:30 12:00 14:00 16:30 22:30
Temperature C 21.0 16.0 21.0 16.0 21.0 10.0
Program 3 (Home worker)
Monday to Sunday
Events 1 2 3 4 5 6
Time 6:00 8:30 12:00 14:00 17:30 22:30
Temperature C 21.0 19.0 21.0 19.0 21.0 16.0
How to change the pre-set time/temperature program to my
own selection.
Press > to select the day function. (refer to fig 11).
This indicates that any changes made are valid for all days of the week.
Press > to view the existing time/temperature event (1). (Fig 12)
time will flash. Press > again to view the temperature setting,
temperature will flash. Press > again to view the 2nd
time/temperature event (Fig 12a).
How to change temperature offset (Option 6).
The temperature displayed on the thermostat may not match
that of other temperature measuring devices in the controlled
space, because of its location. The displayed and set temperature
may be offset to bring it in line with other devices. To adjust the
temperature, enter the user options, select option 6. The
temperature may be offset by +/- 5 degrees by pressing the +
and – keys. Press > to accept the desired change.
How to restore the built in time temperature programs
(Option 7).
Enter user options, select option 7 and use + and – keys to select
desired option. Off = current programs retained. On = restore
factory program settings. Press > to select the desired change.
Please note enabling this function will lose any user changes
to the preset programs.
How to switch the and heating system off Digistat+2
(Option 8).
To switch the Digistat+2 and the heating system off you need to
enable the Off function. Enter user options, select option 8 and
use + or – keys to select On to enable the Off function .The
thermostat and heating system will now be Off unless the
temperature in the controlled space falls below 7
oC the frost
protection set-point. The LCD will display Off and room
temperature only and the keys will not function. To switch On
the Digistat+2 enter user options select option 8 and use + or –
keys to select Off to disable the Off function. The thermostat will
now regulate the heating system in line with the currently
selected program. Please note this does not effect the operation
of domestic hot water where provided.
How to change from 24hr to 12hr clock (Option 1).
Enter user options, select option 1 and use + and – keys to select
desired option, 12 = 12hr and 24 = 24hr. Press > to accept change.
How to change the default manual set-point temperature
(Option 2).
Enter user options, select option 2 and use + and – keys to set
desired temperature. Press > to accept desired change.
How to change to another predefined program 1, 2 or 3
(Option 3).
Enter user options, select option 3 and use + and – keys to
select desired program 1, 2 or 3. 1 = program 1, 2 = program 2
and 3 = program 3. Press > to accept desired change.
How to change the number of program events per day
(Option 4).
Enter user options, select option 4 and use + and – keys to select
desired option. 2 = 2 time / temp events per day, 4 = 4 time /
temp events per day and 6 = 6 time / temp events per day. Press
> to accept desired change.
How to switch on/off the automatic summer / winter time
change (Option 5).
Twice a year the actual time is automatically changed to keep it in
line with the summer / winter time change. Default setting is On.
If you wish to disable / enable this feature enter user options,
select option 5 and press – or + key to display Off or On as
desired. Press > to accept desired change.
User
options Min Max DefaultWhat is it
1 Change 12h or 24h clock 12 24 24
2 Change the manual set
point temperature
0
C 7 0C 32 0C 20
0
C
3 Change to another
pre-set programme 1 3 1
4 Change the number of
programme events per day 2, 4 or 6 6
5 Switch on/off automatic
summer/winter time change On Off On
6 Change temperature offset
0
C -5 5 0
7 Restore pre-set programme On Off Off
8 To enable Off function On Off Off
(Table 1)
06490045001 Digistat+2 update 7/3/06 11:25 am Page 2
Produktspecifikationer
| Varumärke: | Drayton |
| Kategori: | Termostat |
| Modell: | Digistat+2 |
Behöver du hjälp?
Om du behöver hjälp med Drayton Digistat+2 ställ en fråga nedan och andra användare kommer att svara dig
Termostat Drayton Manualer
17 Oktober 2024
17 Oktober 2024
17 Oktober 2024
17 Oktober 2024
17 Oktober 2024
5 Oktober 2024
25 September 2024
25 September 2024
25 September 2024
25 September 2024
Termostat Manualer
- Termostat ATAG
- Termostat Bosch
- Termostat AEG
- Termostat Panasonic
- Termostat Honeywell
- Termostat Junkers
- Termostat Nefit
- Termostat Remeha
- Termostat Siemens
- Termostat Vaillant
- Termostat Ambiano
- Termostat Amfra
- Termostat Google
- Termostat Silvercrest
- Termostat Renkforce
- Termostat Itho
- Termostat De Dietrich
- Termostat TP Link
- Termostat Elro
- Termostat EMOS
- Termostat Truma
- Termostat Energenie
- Termostat Schneider
- Termostat Hama
- Termostat Fenix
- Termostat Theben
- Termostat Elektrobock
- Termostat Devi
- Termostat Stiebel Eltron
- Termostat Buderus
- Termostat Dimplex
- Termostat Emerson
- Termostat Vemer
- Termostat Ferroli
- Termostat Magnum
- Termostat Horstmann
- Termostat Salus
- Termostat Perel
- Termostat Tylö
- Termostat Somfy
- Termostat Corberó
- Termostat Oventrop
- Termostat King
- Termostat Arnold Rak
- Termostat Cotech
- Termostat Heatmiser
- Termostat Viessmann
- Termostat Carrier
- Termostat Nest
- Termostat Itho-Daalderop
- Termostat Danfoss
- Termostat Saunier Duval
- Termostat Netatmo
- Termostat Seitron
- Termostat Bticino
- Termostat Sygonix
- Termostat Tado
- Termostat Hunter
- Termostat Plieger
- Termostat Aube
- Termostat Busch-Jaeger
- Termostat UPM
- Termostat Optima
- Termostat AWB
- Termostat Finder
- Termostat Fantini Cosmi
- Termostat Delta Dore
- Termostat Orbis
- Termostat EBERLE
- Termostat Grasslin
- Termostat Gira
- Termostat Jung
- Termostat Basetech
- Termostat HQ
- Termostat Eneco
- Termostat Frico
- Termostat Vasco
- Termostat Nobo
- Termostat Baxi
- Termostat Fibaro
- Termostat EQ3
- Termostat Homematic IP
- Termostat Go Green
- Termostat Landis Gyr
- Termostat Weishaupt
- Termostat ICY
- Termostat Computherm
- Termostat Avidsen
- Termostat Heimeier
- Termostat Crestron
- Termostat ORNO
- Termostat Cepra
- Termostat Heatit
- Termostat 2Heat
- Termostat Watts
- Termostat Etherma
- Termostat Emmeti
- Termostat Thermy
- Termostat Eurotronic
- Termostat Oregon Scientific
- Termostat Muller
- Termostat Econo-Heat
- Termostat Vimar
- Termostat PECO
- Termostat H-Tronic
- Termostat Intertechno
- Termostat Schwaiger
- Termostat EQ-3
- Termostat Tru Components
- Termostat Emko
- Termostat IMIT
- Termostat Innogy
- Termostat Maico
- Termostat HomePilot
- Termostat Ouellet
- Termostat Techno Line
- Termostat THERMAFLEX
- Termostat Wachendorff
- Termostat Yokis
- Termostat Eliwell
- Termostat Plugwise
- Termostat Johnson Control
- Termostat Drayton Erie
- Termostat Tellur
- Termostat Lowes
- Termostat Jumo
- Termostat Warmup
- Termostat Qubino
- Termostat STI
- Termostat ELKO
- Termostat TrickleStar
- Termostat Gewiss
- Termostat Sinustec
- Termostat Rose LM
- Termostat Otio
- Termostat MundoControl
- Termostat Enda
- Termostat Bearware
- Termostat GENERAL Life
- Termostat Oreg
Nyaste Termostat Manualer
27 Oktober 2024
27 Oktober 2024
26 Oktober 2024
26 Oktober 2024
26 Oktober 2024
26 Oktober 2024
26 Oktober 2024
26 Oktober 2024
26 Oktober 2024
26 Oktober 2024
