What is a room thermostat?
... an explanation for householders
A room thermostat simply switches the heating
system on and off as necessary. It works by sensing
the air temperature, switching on the heating when
the air temperature falls below the thermostat setting,
and switching it off once this set temperature has
been reached.
Turning a room thermostat to a higher setting will not
make the room heat up any faster. How quickly the
room heats up depends on the design of the heating
system, for example, the size of boiler and radiators.
Neither does the setting affect how quickly the room
cools down. Turning a room thermostat to a lower
setting will result in the room being controlled at a
lower temperature, and saves energy.
The heating system will not work if a time switch or
programmer has switched it off.
The way to set and use your room thermostat is to
find the lowest temperature setting that you are
comfortable with, and then leave it alone to do its job.
The best way to do this is to set the room thermostat
to a low temperature – say 18ºC – and then turn it up
by one degree each day until you are comfortable
with the temperature. You won’t have to adjust the
thermostat further. Any adjustment above this setting
will waste energy and cost you more money.
If your heating system is a boiler with radiators, there
will usually be only one room thermostat to control the
whole house. But you can have different temperatures
in individual rooms by installing thermostatic radiator
valves (TRVs) on individual radiators. If you don’t
have TRVs, you should choose a temperature that is
reasonable for the whole house. If you do have TRVs,
you can choose a slightly higher setting to make
sure that even the coldest room is comfortable, then
prevent any overheating in other rooms by adjusting
the TRVs.
Room thermostats need a free flow of air to sense
the temperature, so they must not be covered by
curtains or blocked by furniture. Nearby electric
fires, televisions, wall or table lamps may prevent the
thermostat from working properly.
MiStatTM N
Room Thermostat
Model: N110R
Invensys
Customer Service Tel: 0845 130 5522
Customer Service Fax: 0845 130 0622
Technical Helpline: 0845 130 7722
Website: www.draytoncontrols.co.uk
E-mail: customer.care@invensys.com
l @DraytonControls
x /DraytonControls
EU Design Regs:- 002180638-1/2/3
User Guide 06490191001 Iss E
MiStat
MiStat
HOMEOWNER Guide
HOMEOWNER Guide →
Symbol in
display
Function Description
Comfort setting Selects the comfort setting. The pre-set value is used each time when activated,
adjustable within the user settings (see step 3).
Eco setting Selects the Eco setting. The pre-set value is used each time when activated,
adjustable in the user settings (see step 3).
None Home screen Indicates that the pre-set temperatures were changed via +/- key

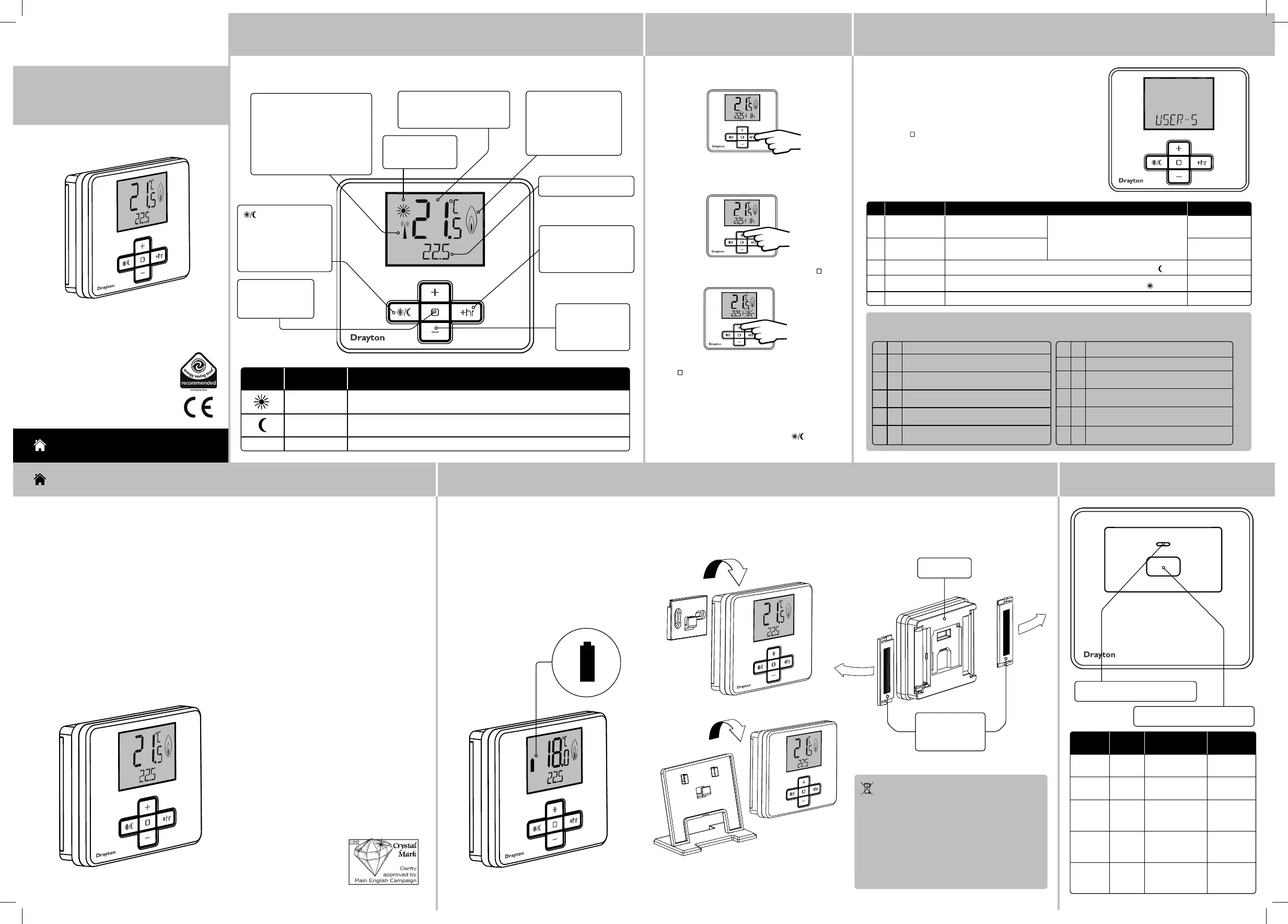

Step 1: Keys and Display - MiStat
RF Pack: MiStat N110R
→Step 2: +hr (Timer)
Press +hr to start the Timer. The prior used
temperature and time will be displayed and the
temperature will flash.
MiSt at
Press +/- to adjust +hr temperature, then press ( )
to confirm.
Press +/- to adjust +hr period between 0 and 23 hours.
Press ( ) to confirm.
→
Step 3: Additional User Settings
ID Feature: Description: Factory Pre-Set:
1 MAX-TEMP It will not be possible to set a
higher temperature
If MAX-TEMP and MIN-TEMP are set to the
same value, it will not be possible to change
temperature with the +/- keys.
30°C
2 MIN-TEMP It will not be possible to set a
lower temperature 5°C
3 ECO-TEMP ECO Temperature used for energy saving periods e.g. during the night ( ) 16°C
4 COMF-TEMP Comfort Temperature used for comfort periods e.g. during the day ( ) 21°C
DONE Exit from the settings menu to USER-S
To enter User Settings
Press + & – keys for approx. 5
Seconds to enter the settings
menu as shown below.
Press Select ( ) to enter the user
settings.
→
Battery Handling
Batteries, rechargeable or not, should not be disposed
of into ordinary household waste. Instead, they must be
recycled properly to protect the environment and cut down
the waste of precious resources.
Your local waste management authority can supply details
concerning the proper disposal of batteries.
In compliance with the EU Directive 2006/66/EC, the button
cell battery located on the printed circuit board inside the
product, can be removed at the end of the product life, by
professional personnel only.
Step 4: Changing the Batteries
How do I know when to change
the batteries?
When the batteries start to run low a battery icon will
flash in the display to indicate “low battery”, during
this time the MiStat will function normally. When
the battery icon alone is shown in the display, the
batteries are completely exhausted and the MiStat will
cease to function (see below). Re-activate by replacing
the batteries.
How to replace the batteries
Remove the battery covers as shown. Replace the batteries with 2 x 1.5V IEC LR6 (AA) Alkaline bat teries ensuring
correct orientation. Replace the battery covers pressing fully home.
Battery Covers:
Slide outwards
to remove
MiStat Rear
Step 5: Receiver - Key & LED
Lamp
colour
Mode Action Key
Function
Green Normal Call for heat
(boiler is firing)
None
Green
Flashing
Normal RF
communication
None
Off Normal No call for heat
(boiler is not
firing)
None
Red RF loss
or not
bound
No call for heat Switches
the boiler
On
Amber RF loss
or not
bound
Call for heat Switches the
boiler Of f
LED: See table below for details
Key: See table below for details
MiStat
MiStat
MiSt at
MiStat
To set a suitable temperature for up to 23 hours, e.g.
for short term absence.
Now the timer is running. The time will be counted
down each hour.
Once the time has elapsed, control returns to the prior
temperature screen.
The Timer can be cancelled by pressing key or by
setting the +hr period to 0.
To exit User Settings
Press + & – keys for approx. 5
seconds to exit.
If there is no key pressed for
2 minutes, the system will exit
the menu, any changes will be
saved.
✎ Troubleshooting:
1Setting temperature values is restricted
aAre Minimum/Maximum temperatures activated?
see Homeowner Guide Step 3.
2NO SIGNAL is visible on the screen, no reaction on
key presses anymore
aIs the receiver powered? (Red signal lamp should
be visible)
3LOCKED is displayed
asee Installation Guide Step 5 - LOCK
MiStat
Current set temperature
Call for heat indication.
This flame will be visible
when the heating
temperature is below
the set temperature.
+hr key: Press to set a
suitable temperature
for up to 23 hours (see
step 2).
Select key: Press
to open and save
editor screens + & - keys:
Press to change
the current
temperature.
Current room temperature
Current Set ting,
see table below
key: Press to toggle
between Comfort
setting, Eco setting and
Home
(Room thermostat only).
See table below.
Customize the controller according to personal requirements.
4Is the battery symbol visible?
aReplace batteries, see Homeowner Guide Step 4.
5STARTING is visible on the screen, no reaction on key
presses anymore
aIs the receiver powered? (Red signal lamp should
be visible)
6WAIT is visible on the screen, no reaction on key
presses anymore
aIs the receiver powered? (Red signal lamp should
be visible)
RF transmission indication. The
RF symbol will be visible as
follows,
Short flashes = RF transmission
Continuous flashing = RF signal
issue
6444 Invensys MiStat N 06490191001 IssE.indd 1 27/09/2013 09:26
1.2m
ID Feature: Description: Factory Pre-Set:
5 BACKLIGHT Available options are: On with timeout (TIMED), Always Off (OFF) TIMED
6 OFFSET Adjust displayed temperature to suit personal needs (-5 to 5°C) 0.0°C
7 LOCK Protect MiStat against unauthorised use. If active, any key press will show LOCKED for a few Secs.
To lock: Enter your 3 digit code for protection.
To unlock: Press +&- key for approx. 5 sec. Enter your 3 digit code
000
Master code 401
8 CTRL-TYPE Configure the control parameters for the specific application
9CTRL-ALG Select TPI, TP or On/Off TPI
CYCL-RATE (only shows when CTRL-ALG is TPI
or TP)
Select 6 (GAS) cph (cycles per hour), 12 (ELECtric) cph or 3 (OIL) cph 6 cph
HYST (only shows when CTRL-ALG is On/Off) Select OFF, 0.1 to 5°C (OFF = No temperature hysteresis, even on very low temp. changes, the
relay will switch over according to MIN-OnOFF time)
0.5°C
MIN-OnOFF (only shows when CTRL-ALG is On/Off) Select 1 to 30 minutes (The minimum duration for the relay to be On or Off) 5 min
DONE To exit CTRL-TYPE sub menu
10 VALV-PROT The output will be activated for the specified time (in Minutes). This will happen weekly, related to
the last actuation of the output. Select OFF, 1 to 10 Minutes.
OFF
11 WIRELESS To create a radio link with the receiver or to view the RF signal qualit y Pre-bound
12 (BIND Press ) key to start connecting to the receiver.
NB. “binding” must also be activated on the receiver, see Step 6 Commissioning
BINDING An RF connection to the receiver will be created. If successful, the SIGNAL level will be displayed.
If unsuccessful, FAILED will be displayed.
13 SIG-LEVEL Indicates the quality of the RF transmission
VERY GOOD, GOOD, POOR, NO SIGNAL
DONE To exit WIRELESS sub menu
15 PROD-INFO View the product details, e.g. Part number, Firmware revision etc. Use ( ) key to show the details
16 RESET Will reset all set tings to factory pre-sets OFF
DONE Exit from the set tings menu to INST-S
INSTALLATION Guide Step 3: Signal Strength
→
The MiStat Room thermostat is prebound to the
MiStat receiver in the factory so they just need
to be positioned in the best place for wireless
communication. To help with this there is a built in
Signal strength indicator, available in the Installer
settings menu on the MiStat thermostat, as shown.
It is recommended that the signal strength is Good
or Very Good to ensure ongoing communication is
maintained.
To enter signal strength menu (see step 5 for more detail))
• Press + & - for approx. 5 secs, then scroll (+/-) to show
INST-S,
• press ( ) to enter the installer menu,
• Press +/- until 11 WIRELESS is shown,
• press to enter, ( )
• press +/- to show 13 SIG-LEVEL as shown,
• press to see the current signal strength.( )
Step 4: Mounting Options Step 5: Installer Settings →
Once the best position has been identified, the MiStat N
should be fixed to the wall using the wall bracket as
shown.
Customize the MiStat according to application needs.
NB. MiStat can also be positioned using the table
stand included.
Care should be taken to mount the thermostat in a
position which is not subject to direct sunlight or
draughts. Preferably it should be mounted on an inside
wall about 1.2m (4ft) above the floor in a position where
it can respond to room temperature but away from the
direct influence of radiators or other appliances giving
off heat.
MiStat
Step 1: Mounting the Wall-plate Step 2: Wiring
! IMPORTANT:
Installation must only be carried out by a
qualified electrician or heating engineer.
Make sure mains input has a 3 amp fuse.
! CAUTION! Before installation, make sure the
mains supply is switched off!
Option 2: Using an existing wall-plate
Loosen the securing screws on the old receiver
and unplug it. Check that there’s 20mm
clearance to the right of the wall-plate and 25mm
above it. Check the wiring diagram for your
product model to compare terminals and, if
necessary, change the wiring of the wall-plate to
suit. Now plug the MiStat R unit into the
wall-plate and tighten the securing screws.
Check the 3A fuse, and switch on the mains.
Option 1: Fitting a new wall-plate
The ideal location is close to the boiler or central
heating system. For the best performance install
in an open space, at least 30cm distance from any
metal objects including wall boxes and the boiler
housing. It is recommended that the MiStat R is
mounted on the wall nearest the final location of
the MiStat N room unit and not less than 30cm
from the boiler side panel.
Loosen the securing screws, remove the wallplate
and, if surface wiring is to be used, snap out
the cable entry strip on the bottom edge of the
wallplate with a pair of pliers. Fix the wallplate,
terminals at the top, either direct onto the flat
wall using wall plugs and no 6 x1” wood screws
or on a plastic flush mounting single conduit box
using M3.5 x 14 screws. Check that there’s 20mm
clearance to the right of the wall-plate and 25mm
above it. Complete the wiring to the MiStat R
wallplate in accordance with the wiring diagram
in step 2, to comply with current IEE regulations.
Place the MiStat R onto the wallplate and tighten
the securing screws.
Check the 3A fuse, and switch on the mains.
Warning: Installing the MiStat R too close to the
metal side panel or mains cables may interfere
with the radio signal.
→ →
Applications
The electronic room thermostat MiStat N can be used
for temperature control together with:
• Boilers
• Oil and gas warm water heating
• Actuators of floor heating systems or radiators
• Circulating pumps
• Heat pumps
A MiSat R receiver is required for operation.
→
Note: To ensure a properly working heating
system, the menu items in the Installer settings
have to be set according to the needs of the
heating system, see step 5.
Note: To ensure a properly working heating system,
the menu items in Installer settings have to be set
according to the needs of the heating system.
There can be gaps in the ID numbering.
! DO NOT
use a surface
mounting box
This product is double insulated and
does not require an earth connection.
The MiStat R should be wired to the
boiler or central heating wiring using the
correct type of cable or flex. The MiStat
R should be wired to replace hard wired
room or programmable thermostats,
as shown on the system or boiler wiring
diagrams.
Always check other manufacturers
instructions for compatibility.
N L 1 2 3
230V AC 50Hz
Fused 3A
Common heating
satisfied
or call for
cooling
Call for
heat
Volt free contacts
Combi boiler basic wiring layout
Zone control basic wiring layout
Note: If not bound, the bind screen will be visible.
For commissioning see Step 6
Note: Only needed if not already bound, ie if
replacing either the MiStat thermostat or the
MiStat receiver.
To exit Installer Settings
Press +/- until ‘DONE’ is shown, then press ‘Select’ or
press + & – keys for approx. 5 seconds to exit. If there
is no key pressed for 2 Minutes, the system will exit the
menu, any changes will be saved. 1. Turn on power for the receiver. The red lamp will
come on. (if green lamp is visible, the device is
already bound, no further action needed here)
(If a separate programmer/Timer is fitted, ensure
that it is switched on)
2. Push the button for >5 Seconds and the LED will
flash red – yellow – green --- -red – yellow - green…
3. Enter binding mode on the corresponding
MiStat room unit, see Step 5: Installer settings ,
item 11
Important: It is essential, that the binding is
carried out between the corresponding room
unit and the receiver
4. If binding is successful, the signal strength will
be indicated on both the MiStat room unit and
the MiStat receiver as follows. If unsuccessful,
FAILED will be displayed. If POOR SIGNAL
is displayed, look for a better location. If NO
SIGNAL is displayed, try connecting again with
the room unit in a different position.
MiStat Room Unit
MiStat Receiver
Immediately after binding, these signals will indicate
the signal quality for 1 minute.
• three green flashes = Very good signal
• double amber flashes = Good signal
• single red flashes = Poor signal
• steady red = No signal
To check the wireless connection
A green lamp on the receiver will indicate a good RF
connection.
→
To enter Installer Settings
Press + & – keys for approx. 5 Seconds to enter the
settings menu as shown.
Note: If not bound, the bind screen will be visible.
For commisioning see Step 6
Technical DataStep 6: Commissioning
MiStat N110R & MiStat R111M
Supply voltage MiStat N: 2 x A A 1,5V alkaline
bat teries
MiStat R: 230V
Switch rating MiStat R: 2(1)A 230V a.c.
Ambient
temperature
Operating: 0°C to 45°C;
Storage: –20°C to 55°C;
Battery life MiStat N: 2 years (typically)
Temperature
range
5°C to 30°C
Temperature
resolution
0.5 °C, display and setting
Control accuracy <0.6°C at 4°/hour
Wiring Mistat R: Fixed wiring only, to comply
with current IEE regulations (BS7671)
MiStat N: No wiring required
Mounting MiStat R: Industr y standard wallplate
MiStat N: Wall bracket or table stand
Radio frequency 868.3 (Bi-directional communication)
Radio signal range 30m typically. The range may be
affected by the composition / density
and number of walls between the
MiStatN and MiStatR
Pollution degree 2
Software class A
Rated impulse
voltage
MiStat R: 2.5kV
Ball pressure test
temperature
MiStat R: 75°C
Relevant EC
Directives:
2006/95/EC Low Voltage Directive
2004/108/EC Electromagnetic
Compatibility Directive
1995/5/EC R&TTE Directive
2006/66/EC Battery Directive
2011/65/EU RoHS Directive
Applied
Standards:
EN60730-1; EN60730-2-9
ETSI EN 300 220-3; ETSI EN 301 489-3
eg. eg.
eg. eg.
→
User Code:
MiStat R
N L 1 2 3
L -
N -
Radio signals
to MiStat R - no wiring
Sw
i
tched
230V AC
fused 3A,
Internal
boiler
electronics
External
controls
connections
N L 1 2 3
L
MiStat R
Switched live
from wiring
centre
Motorised valve
N
To boiler
and/or
pump
Radio signals
to MiStat R - no wiring
230V AC
fused 3A
If POOR is displayed, look for a better location.
If NO SIGNAL is displayed, try connecting again with
the room unit in a different position.
Caution!
The radio receiver may be installed only by a competent
electrician in compliance with the circuit diagram
enclosed in the top housing cover or in compliance
with these instructions. The current safety regulations
must be observed.
In order to achieve protection class II, adequate
installation measures must be taken.
This radio receiver, which can be installed separately,
is designed exclusively for temperature control in dry
and closed rooms and standard environments. This
electronic device was created according EN60730-1, it
operates according working principle 1C.
It has to be placed in a location where it will be able to
control the room temperature.
6444 Invensys MiStat N 06490191001 IssE.indd 2 27/09/2013 09:26
Produktspecifikationer
| Varumärke: | Drayton |
| Kategori: | Termostat |
| Modell: | MiStat N |
Behöver du hjälp?
Om du behöver hjälp med Drayton MiStat N ställ en fråga nedan och andra användare kommer att svara dig
Termostat Drayton Manualer
17 Oktober 2024
17 Oktober 2024
17 Oktober 2024
17 Oktober 2024
17 Oktober 2024
5 Oktober 2024
25 September 2024
25 September 2024
25 September 2024
25 September 2024
Termostat Manualer
- Termostat ATAG
- Termostat Bosch
- Termostat AEG
- Termostat Panasonic
- Termostat Honeywell
- Termostat Junkers
- Termostat Nefit
- Termostat Remeha
- Termostat Siemens
- Termostat Vaillant
- Termostat Ambiano
- Termostat Amfra
- Termostat Google
- Termostat Silvercrest
- Termostat Renkforce
- Termostat Itho
- Termostat De Dietrich
- Termostat TP Link
- Termostat Elro
- Termostat EMOS
- Termostat Truma
- Termostat Energenie
- Termostat Schneider
- Termostat Hama
- Termostat Fenix
- Termostat Theben
- Termostat Elektrobock
- Termostat Devi
- Termostat Stiebel Eltron
- Termostat Buderus
- Termostat Dimplex
- Termostat Emerson
- Termostat Vemer
- Termostat Ferroli
- Termostat Magnum
- Termostat Horstmann
- Termostat Salus
- Termostat Perel
- Termostat Tylö
- Termostat Somfy
- Termostat Corberó
- Termostat Oventrop
- Termostat King
- Termostat Arnold Rak
- Termostat Cotech
- Termostat Heatmiser
- Termostat Viessmann
- Termostat Carrier
- Termostat Nest
- Termostat Itho-Daalderop
- Termostat Danfoss
- Termostat Saunier Duval
- Termostat Netatmo
- Termostat Seitron
- Termostat Bticino
- Termostat Sygonix
- Termostat Tado
- Termostat Hunter
- Termostat Plieger
- Termostat Aube
- Termostat Busch-Jaeger
- Termostat UPM
- Termostat Optima
- Termostat AWB
- Termostat Finder
- Termostat Fantini Cosmi
- Termostat Delta Dore
- Termostat Orbis
- Termostat EBERLE
- Termostat Grasslin
- Termostat Gira
- Termostat Jung
- Termostat Basetech
- Termostat HQ
- Termostat Eneco
- Termostat Frico
- Termostat Vasco
- Termostat Nobo
- Termostat Baxi
- Termostat Fibaro
- Termostat EQ3
- Termostat Homematic IP
- Termostat Go Green
- Termostat Landis Gyr
- Termostat Weishaupt
- Termostat ICY
- Termostat Computherm
- Termostat Avidsen
- Termostat Heimeier
- Termostat Crestron
- Termostat ORNO
- Termostat Cepra
- Termostat Heatit
- Termostat 2Heat
- Termostat Watts
- Termostat Etherma
- Termostat Emmeti
- Termostat Thermy
- Termostat Eurotronic
- Termostat Oregon Scientific
- Termostat Muller
- Termostat Econo-Heat
- Termostat Vimar
- Termostat PECO
- Termostat H-Tronic
- Termostat Intertechno
- Termostat Schwaiger
- Termostat EQ-3
- Termostat Tru Components
- Termostat Emko
- Termostat IMIT
- Termostat Innogy
- Termostat Maico
- Termostat HomePilot
- Termostat Ouellet
- Termostat Techno Line
- Termostat THERMAFLEX
- Termostat Wachendorff
- Termostat Yokis
- Termostat Eliwell
- Termostat Plugwise
- Termostat Johnson Control
- Termostat Drayton Erie
- Termostat Tellur
- Termostat Lowes
- Termostat Jumo
- Termostat Warmup
- Termostat Qubino
- Termostat STI
- Termostat ELKO
- Termostat TrickleStar
- Termostat Gewiss
- Termostat Sinustec
- Termostat Rose LM
- Termostat Otio
- Termostat MundoControl
- Termostat Enda
- Termostat Bearware
- Termostat GENERAL Life
- Termostat Oreg
Nyaste Termostat Manualer
27 Oktober 2024
27 Oktober 2024
26 Oktober 2024
26 Oktober 2024
26 Oktober 2024
26 Oktober 2024
26 Oktober 2024
26 Oktober 2024
26 Oktober 2024
26 Oktober 2024
