Sida 1/9

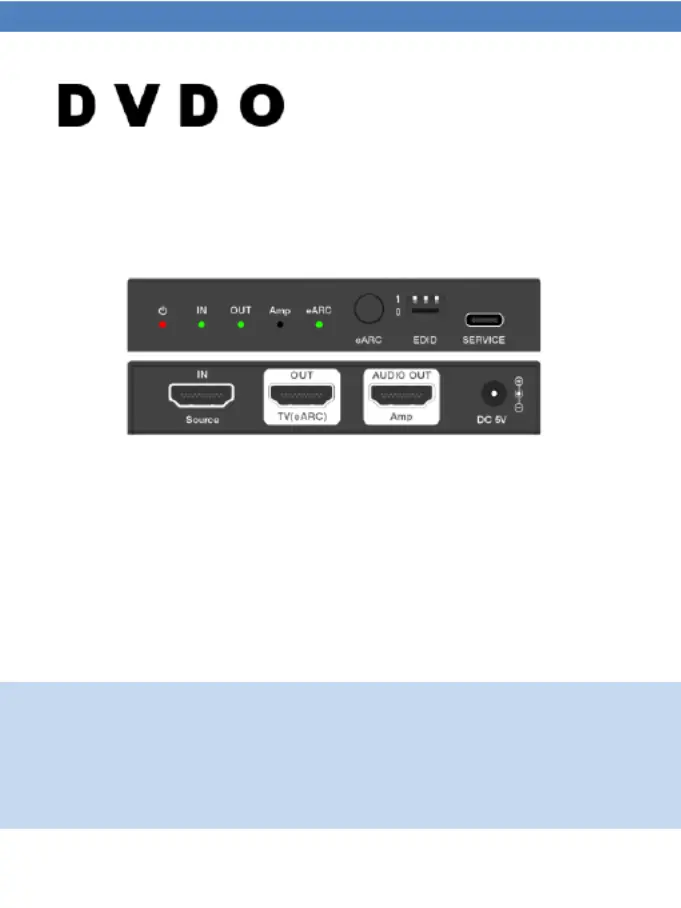

DVDO +1.408.213.6680 │ │ support@dvdo.com │www.dvdo.com
DVDO-AudioE-2
8K HDMI Audio Extractor with eARC for AV Receivers
User Manual
Version 1.0
Thank for purchasing -AudioE-2 you DVDO
For optimum performance and safety, please read these instructions
carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shock, lighting strikes,
etc. Use of surge protection systems is highly recommended in order
to protect and extend the life your equipment.of
Table Contents of
1. Introduction. .............................................................................. 1
2. Features. .................................................................................... 1
3. Package Contents. ................................................................... 2
4. Specifications. ........................................................................... 2
5. Operation Controls and Functions. ........................................... 4
6. Application Example. ............................................................... 6
1 / 6
1. Introduction
This HDMI eARC Audio Amplier Adapter designed forto is
de-embedding audio signals from an HDMI source or TV with ARC/eARC to
output HDMI audio to AV Receiver. It supports data rates up to 48Gbps
complying with HDMI 2.1 and HDCP 2.3 requirements. It is compatible with
UHDTV 8K@60Hz. It includes several features for ease of integration, such
as EDID management and cable equalization. It provides an easy solution
for HDMI installations to send audio signals to an old audio amplier. CEC
control from TV to the source and amplier also supported.is
2. Features
☆ HDCP 2.3 compliant
☆ Support 48Gbps FRL and 18Gbps TMDS video bandwidth as specied ,
in HDMI 2.1
☆
Support video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
☆ Support VRR, ALLM, QMS, QFT, SBTM, as specied in HDMI 2.1
☆ HDR, HDR 10, 10+, Dolby Vision, HLG pass-throughHDR
☆ LPCM 7.1CH, Dolby TrueHD, Atmos DTS- Master, DTS:X Audioand HD
pass-through
☆ HDMI input audio or TV ARC/eARC audio de-embedded to HDMI
audio output
☆ Support CEC control from the source TV to and amplier
☆ Support CEC volume control from the amplier sound systemTV to
☆ Advanced EDID management
☆ Compact design for easy and exible installation
