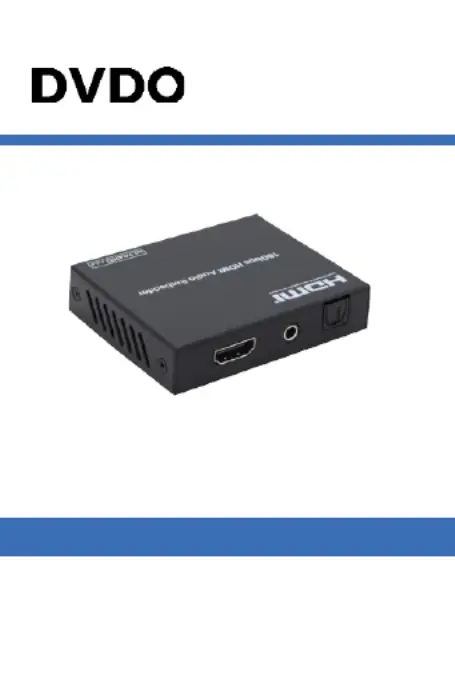

DVDO-AudioEMB-1
HDMI 18Gbps Audio Embedder
with HDCP 2.2
Version 1.0.0
User Manual
Thank you for purchasing this product
For optimum performance and safety, please read these
instructions carefully before connecting, operating or
adjusting this product. Please keep this manual for future
reference.
Surge protection device recommended
This product contains sensitive electrical components that
may be damaged by electrical spikes, surges, electric shock,
lighting strikes, etc. Use of surge protection systems is highly
recommended in order to protect and extend the life of your
equipment.
Table of Contents
1. Introduction. ........................................................ 1
2. Features................................................................ 1
3. Package Contents. ............................................. 1
4. Specification. ....................................................... 2
5. Operation Controls and Functions. ................... 3
5.1. Front Panel. ................................................. 3
5.2. Rear Panel. .................................................. 4
6. Application Example. ......................................... 5
-1-
1. Introduction
The HDMI 18Gbps Audio Embedder embeds audio
signals from digital optical analog stereo line audio or to
HDMI output. Both HDMI input output support and
video resolutions 4K2K@50/60Hz (YUV444). up to
t supports 10-bit HDR pass through and HDMI high
resolution digital audio formats bypass, LPCM 2ch, Dolby
TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD
Master Audio, audio sampling rates up to 192 kHz.
HDCP 2 2 and CEC bypass are supported.
2. Features
☆ Embeds multi-channel optical (SPD F) or line analog
audio to HDMI output
☆ Optical audio supports LPCM 2ch, Dobly Digital
2/5.1ch, DTS 2/5.1ch
☆ Analog audio supports PCM2.0
☆ HDMI 2.0b (18Gbps), HDCP 2 2 and DVI 1.0 compliant
☆ Video resolutions up to 4K2K@50/60Hz (YUV444)
☆ Supports HDMI High Bit Rate (HBR) audio pass through
☆ 10-bit HDR pass through
☆ Supports CEC bypass
3. Package Contents
① 1 x HDMI 18Gbps Audio Embedder
② 1 x 5V/1A Power Adapter
③ 1 x User Manual
