2.4: Weight (optional)

The adjustable beater weight can be positioned on the beater shaft to increase the power

of the stroke. Experiment to ﬁ nd the optimum feel and secure the weight using the

standard drum key set screw.

Section 3: Slotted Stroke Adjustment

To modify the distance the beater travels during the course of each stroke:

1. Hold the beater ball with one hand and align the hex head of the stroke adjustment

screw with the access hole in the right upright post.

2. Using the other hand, place the long hex of the 3-way drum key through the hole in

the upright post and into the beater adjusting screw.

3. Loosen the screw and move the beater ball to the desired position while keeping the

key in the screw, then retighten, remove key and release.

Section 4: Spring Tension Adjustment

DW Drum Pedal Springs feature an internal noise reduction damper as well as a tension

locking mechanism. To increase or decrease the spring tension:

1. Loosen the round knurled nut at the base of the spring assembly.

2. Push down on the spring to release the self-locking hex nut.

3. Tighten or loosen the lock nut to the create the desired tension, then release the hex

nut and retighten knurled nut to lock-in the adjustment.

Section 5: Hoop Clamp Adjustments

The DW Tri-Pivot Toe clamp is designed to ﬁ t a wide variety of manufacturer’s bass drum

hoops. To set the space of the hoop clamp for your bass drum:

1. Rotate the wing screw on your hoop clamp adjustment to narrow or widen the gap.

2. Position the pedal on the center of the hoop and tighten the wing screw.

Use the provided rubber hoop protector to avoid damage to your bass drum hoop.

Section 6: Toe Stop, Non-Skid Spurs and Non-Skid Rubber Grip™

To install the optional toe stop:

1. Remove the screw and nut at the front end of the footboard using a phillips-head

screwdriver and a wrench.

2. Align the hole in the toe stop with the hole in the footboard and replace and tighten

the connecting screw and nut.

9000 DW Bass Drum Pedals include built-in adjustable spurs and non-skid Rubber Grip™ on

the bottom of the pedal plates to prevent bass drum crawl. To adjust the spurs, simply

turn the knurled portion clockwise for more skid control or counter-clockwise for less.

Be careful when you use the spurs as the may damage the oor.

Note: Some of the screws on the pedal have been treated with a chemical lock to prevent

unwanted loosening during playing. In order to loosen the chemical lock holding these screws,

you may ﬁ rst need to heat them with a hair dryer for 2-3 minutes.

Section 1: Drive System Adjustments

Note: For a more relaxed, “f loating pedal feel, replace the standard Double

Chain Drive with the optional Nylon Strap Drive (included).

1. Remove the chain assembly by loosening the Footboard Angle

Adjustment Screw on the top of Rotor (using the drum key end of the

9000 3-Way key) and the connecting screw and nut at the front end of

the footboard (using a Phillips-head screw driver and a wrench).

2. Attach the nylon strap to the footboard by aligning the end of the strap

that has a single hole with the screw hole in the footboard and then

replacing and tightening the connecting screw and nut.

3. Connect the three-hole end of the strap to the captive nut in the

adjustment channel on the Rotor using the drum key screw (provided).

1.1: Torque

Your pedal is factory set to the most popular settings, including the standard eccentric

(Accelerator) torque position. However, the 9000 Drive can be adjusted to a variety of

torque positions. Choosing

an eccentric setting creates an

in-direct relationship between

the beater and footboard—

increasing the velocity of

the pedal by shortening the

length of the stroke— and is

recommended for situations

that require increased speed

and sensitivity. A more

concentric (Turbo) setting maintains a direct relationship between the sprocket and

the footboard to provide a solid, powerful, consistent feel and is suggested for general-

purpose playing situations. To adjust the torque to achieve your desired feel:

1. Locate the EZ adjust innite cam adjustment key screw.

2. Using a drum key, turn the EZ adjust key screw. With this adjustment, you will change

the shape of the CAM to represent a range from accelerator to turbo settings.

1.2: Footboard Angle

To change the footboard height and angle, loosen the adjusting key screw on the top

of the Rotor and slide the chain or strap forward or backward to achieve the desired

footboard height. Then tighten the adjusting key screw. This adjustment can be used to

compensate for changes made by adjusting the torque or to independently modify the

footboard angle to a more comfortable position.

Section 2: Beater Ball Adjustments

2.1: Height

The length of the beater rod can be adjusted to achieve the desired feel and impact

position. Loosen the beater position screw and raise or lower the beater rod to the

desired position and then tighten the screw. Generally, the beater should hit the center of

the drum or an area 1-2 inches above the center.

2.2: Memory Lock

1. Place the beater memory lock loosely on the beater shaft and place the beater shaft

in a normal playing position in the beater hub.

2. Slide the memory lock down the shaft so that it ﬁ ts into the notches on the beater

hub.

3. Adjust the beater to the desired playing position and tighten the drum key screw

on the beater hub as well as the set screw on the memory lock with the small allen

wrench (provided). The beater ball should be positioned at a right angle to the memory

lock so that the beater can be reversed from the soft felt to the hard plastic side by

slightly raising the beater and rotating it 180 degrees.

2.3: Playing Surface

The 101 Two-Way Beater (standard) has both a curved, medium felt side for a rounder,

warmer attack and a ﬂ at, hard plastic side for a sharper, brighter attack, much like wood

but lighter in weight.

Torque position adjustments from eccentric (far left) to concentric (far right).

Remove the pedal, accessories and all packing materials from the box and/or case, then follow these instructions to set-up and adjust your pedal to ﬁ t the way you play.

Double Pedal Linkage Adjustment

Use the provided 3-Way key or any standard drum key to secure the linkage to the primary pedal

by tightening the key screw. Rotate the beater, casting and hex shaft on the auxiliary pedal to the

correct playing position, attach the linkage and tighten the auxiliary side key screw. Loosen the

two sets of key screws on the middle section of the linkage and adjust the length and angle of

the linkage to the desired position, then retighten the set screws. Set the linkage memory lock to

maintain the desired distance every time you set-up.

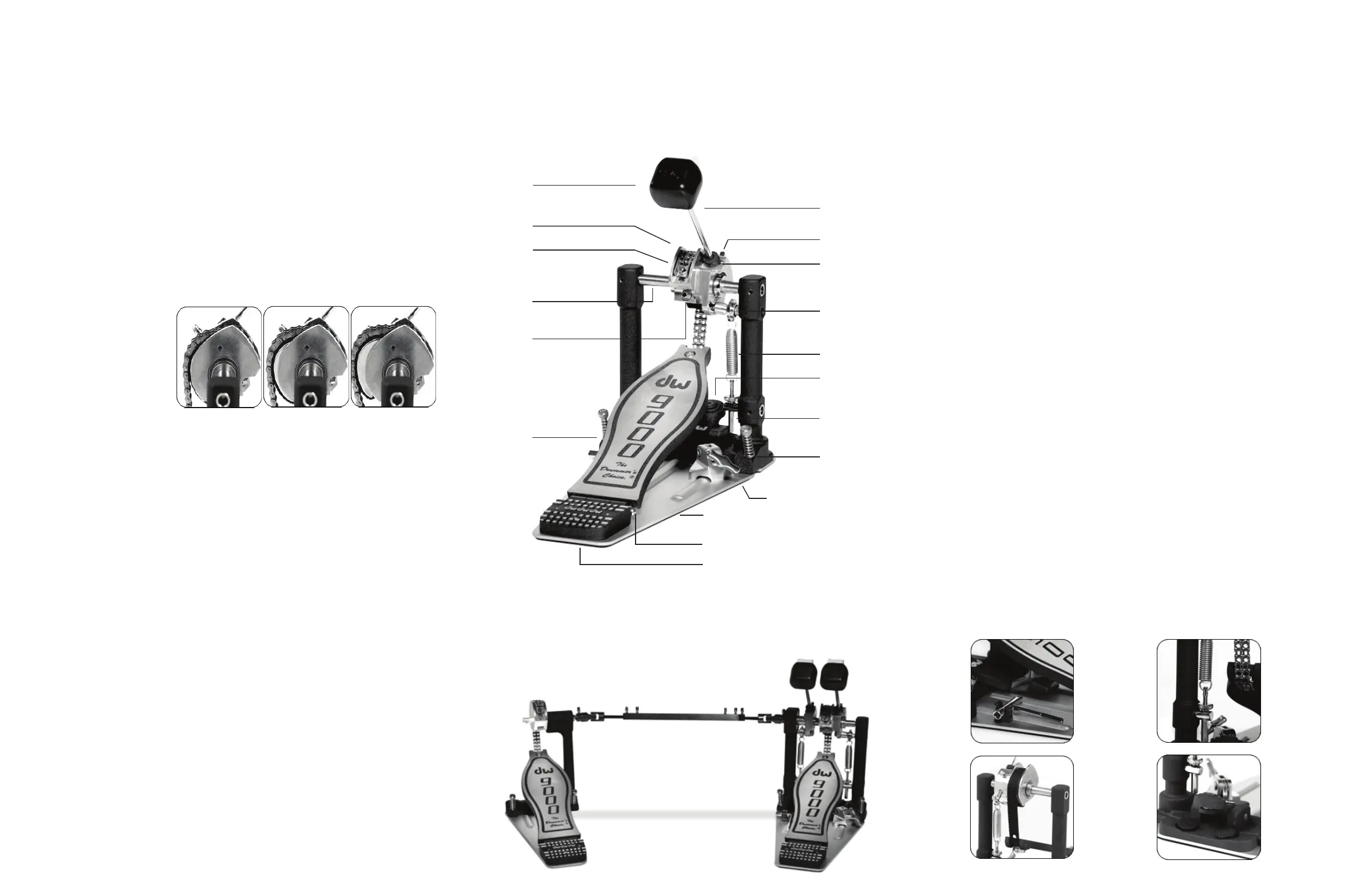

DW 9000 SERIES BASS DRUM PEDALS

Two-Way Beater

Floating Rotor

(Double Chain Drive)

Footboard Angle

Adjustment Screw

Floating Drive Shaft

Footboard

Delta Heel Casting

Delta II Bearing Hinge

Non-Skid Rubber Grip

Hoop Clamp

Adjustment

Spur

Spring Tension

Adjustment

Tri-Pivot Toe Clamp

EZ Adjust Infinite Cam

Spring

Delta Plus

Rocker/Stroke

Adjustment

Beater Position Screw

Beater Memory Lock

Beater Shaft

Double Pedal Linkage

Auxiliary Pedal Primary Pedal

DRUM WORKSHOP, INC

3450 Lunar Cour ard, CA 93030 USAt • Oxn

www.dwdrums.com

speciﬁ cations subject to change without notice

Thanks for purchasing this DW product. It has been designed and

manufactured to provide a lifetime of trouble-free service. Please

take a moment to familiarize yourself with the exclusive features

and operating suggestions contained in this manual in order to

ensure its optimum performance. Should you have any further ques-

tions, feel free to contact your local authorized DW dealer.

— Don Lombardi

Founder, Drum Workshop, Inc.

DW 9000 SERIES BASS DRUM PEDAL ACCESSORIES

SM101 Two-Way Bass Drum Beater

SM102 Large Felt Bass Drum Beater

SM103 Medium Felt Bass Drum Beater

SM104 Solid Maple Wood Bass Drum Beater

SM105 NEW! HardCore Bass Drum Beater

SM808 5-Key pack (includes standard, large, keychain, drill bit and speed keys)5-Key pack (includes standard, large, keychain, drill bit and speed keys)

SM809 9000 Pedal 3-Way Key

SM1207 Delta Hinge

SMSVKIT Drummer’s Survival Kit (includes plastic case)

Contact your authorized DW dealer

for additional accessories and replacement parts.

SMSVKIT

DWSM808

The Drummer’s Choice

103, 104, 101, 102, 105

DW PEDALS

5-YEAR LIMITED WARRANTY

For a period of ve years from the date of purchase,
