Operating manual
3314 NN
Product type, manufacturing date (calendar week/year of construction)
and if required, conformity mark can be found on the nameplate on the
product.
Please provide us with the contents of the nameplate when making
enquiries about the product.
ebm-papst St.Georgen GmbH & Co. KG
Hermann-Papst-Straße 1
D - 78112 St.Georgen
Phone: +49 (0) 7724 / 81-0
Fax: +49 (0) 7724 / 81- 1309
info2@de.ebmpapst.com
www.ebmpapst.com
As per: 01.03.2023
Version: 1 5
Article number: 9293510105
Original operating manual
INDEX
1 SAFETY REGULATIONS AND INFORMATION 1
2 INTENDED USE 3
3 TECHNICAL DATA 3
4 CONNECTION AND COMMISSIONING 4
5 FAULTS, POSSIBLE CAUSES AND REMEDIES 5
6 COMPLIANCE 5
1 SAFETY REGULATIONS AND INFORMATION
Read the operating manual carefully before commencing work at the
product. Pay attention to the following warnings to avoid risk to
persons or malfunctioning.
This operating manual is an integral part of the product.
In the event of resale or change of ownership the operating manual
must accompany the product. This operating manual may be copied
and provided as information on potential risks and their avoidance.
Hazard classication of warning notices
The following risk ratings are used in this operating manual to denote
potential risk situations and important safety instructions:
DANGER
This is a potentially dangerous situation
and warns of an impending health risk
or risk of fatal injury if this warning is
not observed. Observe this warning.
WARNING
The dangerous situation can occur and
can result in major or fatal injuries if the
warning is not observed. Work with
extreme care.
CAUTION
The dangerous situation can occur and
can result in minor injuries or damage
to property if the warning is not
observed.
NOTE
A potentially dangerous situation can
occur and results in damage to
property if not avoided.
Qualication of personnel
Only skilled electricians are permitted to install the product, to carry out
the test run and to work at the electrical unit.
Only instructed and authorized skilled personnel are permitted to
transport, unpack, operate and service the product.
Basic safety regulations
Safety risks related to the product must be reassessed after installing
in the nal device.
The operating manual was developed in accordance with European
market requirements and may need adapting to the market
requirements of the country in question.
When working at the product, observe the following:
Do not make any changes to the product.
WARNING
Impermissible high load
Stop the product immediately after
impermissible loading (e.g. impact,
heat, overvoltage).
page of 2 6

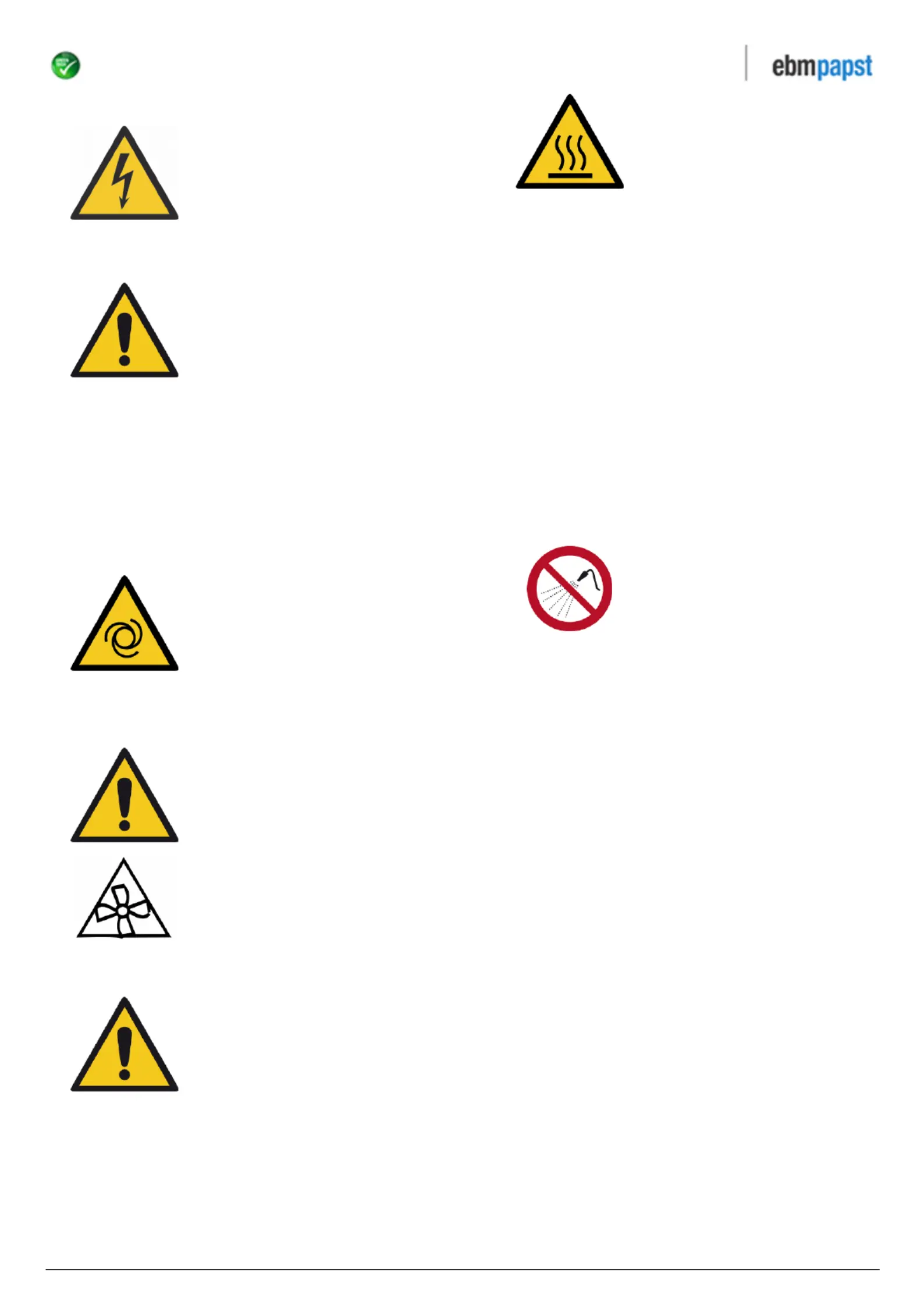

Electrical voltage and current
DANGER
Electrical voltage
Regularly check the electrical
equipment of the product.
Eliminate immediately loose
connections and defective cables.
Safety and protective functions
DANGER
Missing safety device and faulty
protective equipment.
Without protective equipment severe
injuries can occur, e.g. by taking hold of
the rotating equipment.
Operate the product with protection
guards only.
Electromagnetic radiation
Electromagnetic compatibility (EMC) may aect the system integration
of the product due to interaction.
Ensure the electromagnetic compatibility of the entire system.
Moving parts
DANGER
Self-starting product
If voltage is applied, the motor
automatically restarts after a mains
failure or when blocking has been
eliminated.
Do not stand in the danger zone of
the product.
Switch o the mains voltage when
working on the product and secure
against switching on again.
DANGER
Rotating impeller
Contact with the impeller may result in
injuries. Long hair, loose-tting
garments and jewellery can be caught
and pulled into the product. Risk of
injury.
Before starting the product, ensure
that it is securely xed and that the
guards are in place.
Do not wear loose-tting garments
or jewellery when working on
moving parts.
Protect long hair by wearing a hair
net.
CAUTION
High risk of re spreading
Can cause re to spread.
Never direct the airow
(intake/exhaust side) at a potential
source of re.
Hot surface
CAUTION
High temperature at motor housing.
Risk of burns
Provide adequate protection against
accidental contact.
Transport
Only transport the product in its original packaging. Secure during
transpor t.
The vibration values, temperature and climate ranges should not
be exceeded during transport.
Storage
Store the device, partially or fully assembled, in a dry place,
protected against the weather and free from vibration, in the
original packaging in a clean environment.
Protect the device against environmental eects and dirt until nal
installation.
To guarantee trouble-free operation and the longest possible
service life do not store the device for more than one year.
Even devices explicitly intended for outdoor use are to be stored as
described prior to commissioning.
Maintain the storage temperature, see Chapter 3, Technical Data
Cleaning
NOTE
Product damaged during cleaning
Clean the product carefully with a
moist cloth without applying
pressure to the rotor. Do not use
cleaning agents that contain acids,
caustic solutions or solvents.
Disposal
When disposing of the product, observe all requirements and
regulations that are relevant in your country.
page of 3 6
2 INTENDED USE
The product is designed exclusively as a built-in device for conveying
air according to the technical data.
Every use that is not in accordance with the intended purpose, is
regarded as misuse of the product.
On-site installations must comply with the mechanical, thermal and
service life requirements, see Chapter 3, Technical Data.
Intended use includes:
- Operating the product with all protective equipment
- Do not put the product into operation before it has been installed in
the customer's application
- Observation of the operating manual
Use for other than the intended purpose
Using the product for the purposes mentioned below is prohibited and
can be dangerous:
- Conveyance of air that contains abrasive particles.
- Conveyance of air that has a highly corrosive eect.
- Conveyance of air that has a high dust load, e.g. vacuuming
sawdust.
- Conveyance of inammable gases/particles.
- Contact with materials that can damage the product, e.g. acids,
caustic solutions, solvents.
- Exposure to radiation that can damage product components, e.g.
strong UV rays or thermal radiation.
- Operating during external vibration.
- Operating the product close to inammable materials or
components.
- Operating the product in an explosive atmosphere
- Use of the prouct as a safety component or for performing safety-
relevant functions.
- Operating in medical devices with life-sustaining or life-saving
function if not validated together with ebm-papst.
- Operating in non-stationary systems, e.g. railway vehicles, aircraft
and spacecraft if not validated together with ebm-papst.
- Operating with fully or partially dismantled or manipulated protective
equipment.
- Operating the product under conditions other than those mentioned
in the technical data.
- Furthermore, all fields of application not mentioned under intended
use.
An in situ assessment must be conducted of the heating behavior
(appropriate and inappropriate operation), the protection against
contact, electrical shocks, impact of foreign objects or water and the
usage at altitudes higher than 2000 meters.
Contact ebm-papst if you have specic queries regarding the product.
3 TECHNICAL DATA
Drawing, see annex
Technical description
Air outlet over struts
Clockwise
24 V
65 mA
1,6 W
2.650 1/min
80,0 m3/h
0,19 kg
III
Wire outlet corner 80 Ncm :
Remaining corners: 80 Ncm
ISO 4762 - degreased, M4
without an additional brace and
without washer
The product is intended for use in sheltered rooms with controlled
temperature and controlled humidity. Directly exposure to water must
be avoided.
Pollution degree 1 (according DIN EN 60664- 1)
There is either no pollution or it occurs only dry, non-conductive
pollution. The pollution has no negative impact.
Ambient conditions
Permitted ambient temperature
Transport and storage
Operation
-40 °C ... 80 °C
-20 °C ... 75 °C
Vibration and shock load
The mechanical Vibration and Shock data for the product is available.
If the operation of the product should take place in a sinusoidal
vibration containing environment or xing the product on sinusoidal
vibrating surface, please contact our technical support.
Do not operate your product in the resonance range.
