All disclosures, noces and warranty condions are being wrien on the EKWB website. Please read terms of use. Released on 2 nd April, 2014. Revision 1.0 of
Installation and mounting manual for EK-FC780 GTX water block WF3
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at for updates. Before www.ekwb.com
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
Before you start using this product please follow these basic guidelines:
1. Please carefully read the manual before through before beginning with the installation process!
2. Please remove your motherboard from the computer to assure safest mounting process in order to prevent any possible damages to your CPU and/or motherboard’s circuit board (PCB).
3. The EK High Flow and EK-PSC type fittings require only a small amount of force to screw them firmly place since the liquid seal is ensured by the rubber O-ring gaskets.in
4. The use of corrosion inhibiting coolants is always recommended for any liquid cooling system.

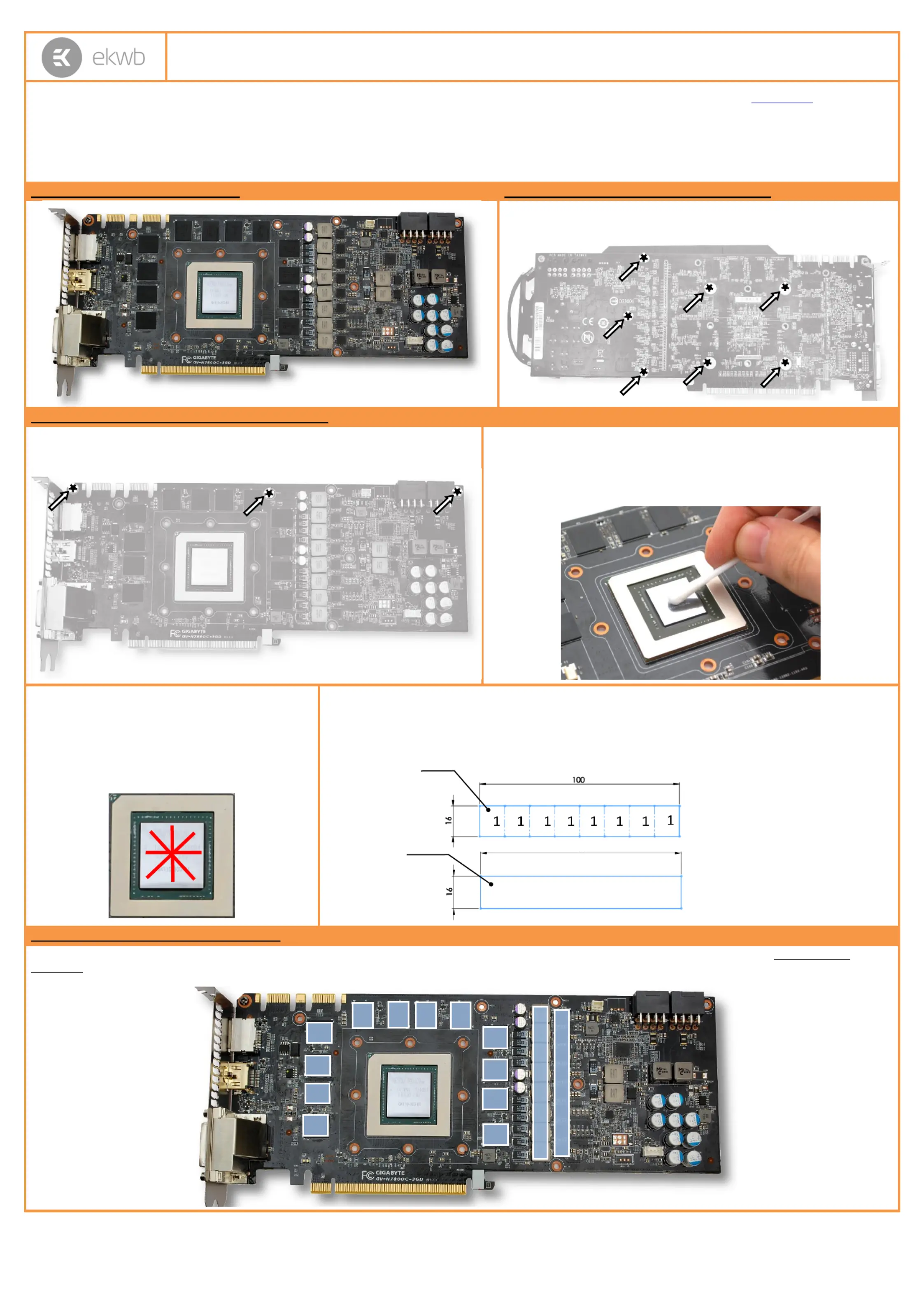

STEP 1: GENERAL INFORMATION. Sample picture of Gigabyte GeForce GTX 780 WF3 series
STEP 2 : PREPARING YOUR GRAPHIC CARD
REMOVING STOCK COOLER: Remove the stock GPU HSF assembly. Remove all
encircled screws attaching VRM and VRAM heatsink to the circuit board. There
are 7 (seven) screws on the back of the graphics card.
STEP 2 cont.: PREPARING YOUR GRAPHIC CARD
2 cont.: REMOVING FACTORY PROVIDED SIDE BRACKET. Remove 3 encircled screws on .
the front of circuit board. Simply remove the side bracket.
2. CLEANING THE PCB. Carefully detach the original stock cooler after removing all
screws securing it to the board. Wipe off the remains (by using non abrasive cloth –
or
qtip
, as shown on sample photo) of the original thermal compound until the
components and circuit board are completely clean. EKWB recommends the use of
denatured alcohol for removing TIM leftovers.
3. APPLYING THERMAL COMPOUND. Wipe off the
remains (by using non abrasive cloth or –
qtip
) of the
original thermal compound until the components and
circuit board are completely clean. Apply thermal
compound: lightly coat
NVIDIA
GPU chip with enclosed
EK-TIM Ectotherm thermal grease. EKWB recommends to
apply thermal grease in cross form for best performance
(see sample picture).
4. CUTTING THERMAL PADS. Your block comes with thermal pads, some of which are already pre-cut. Others
have to be cut to smaller chunks in order to cover all the VRM components such as MOSFETs and drivers. PLEASE
REMOVE THE PROTECTIVE FOIL FROM BOTH SIDES OF THE THERMAL PADS PRIOR TO INSTALLATION.
Replacement thermal pads: Thermal Pad D 0.5mm (RAM 8x), Thermal Pad A 0.5mm. – –
STEP 3: INSTALLING THE WATER BLOCK
1. PLACING THERMAL PADS ON PCB. Place thermal pads on chips so that numbers on chips match size of thermal pads You may use small drops of electrically non-.
conductive (for example: -TIM Ectotherm, Arctic Cooling MX-2 -EK ™ or GELID GC Extreme™) thermal grease on each phase regulator (that is being covered with thermal
pad) in order to even further improve the thermal performance of the EK-FC780 GTX WF3 series water block.
1
1
2
1
1
1
1
1
1
1
1
1
2: Thermal pad A – 0.5mm
(for VRM/MOSFET):
1: Thermal pad D –0.5mm
(for memory IC):
2
1
2
All disclosures, noces and warranty condions are being wrien on the EKWB website. Please read terms of use. Released on 2 nd April, 2014. Revision 1.0 of

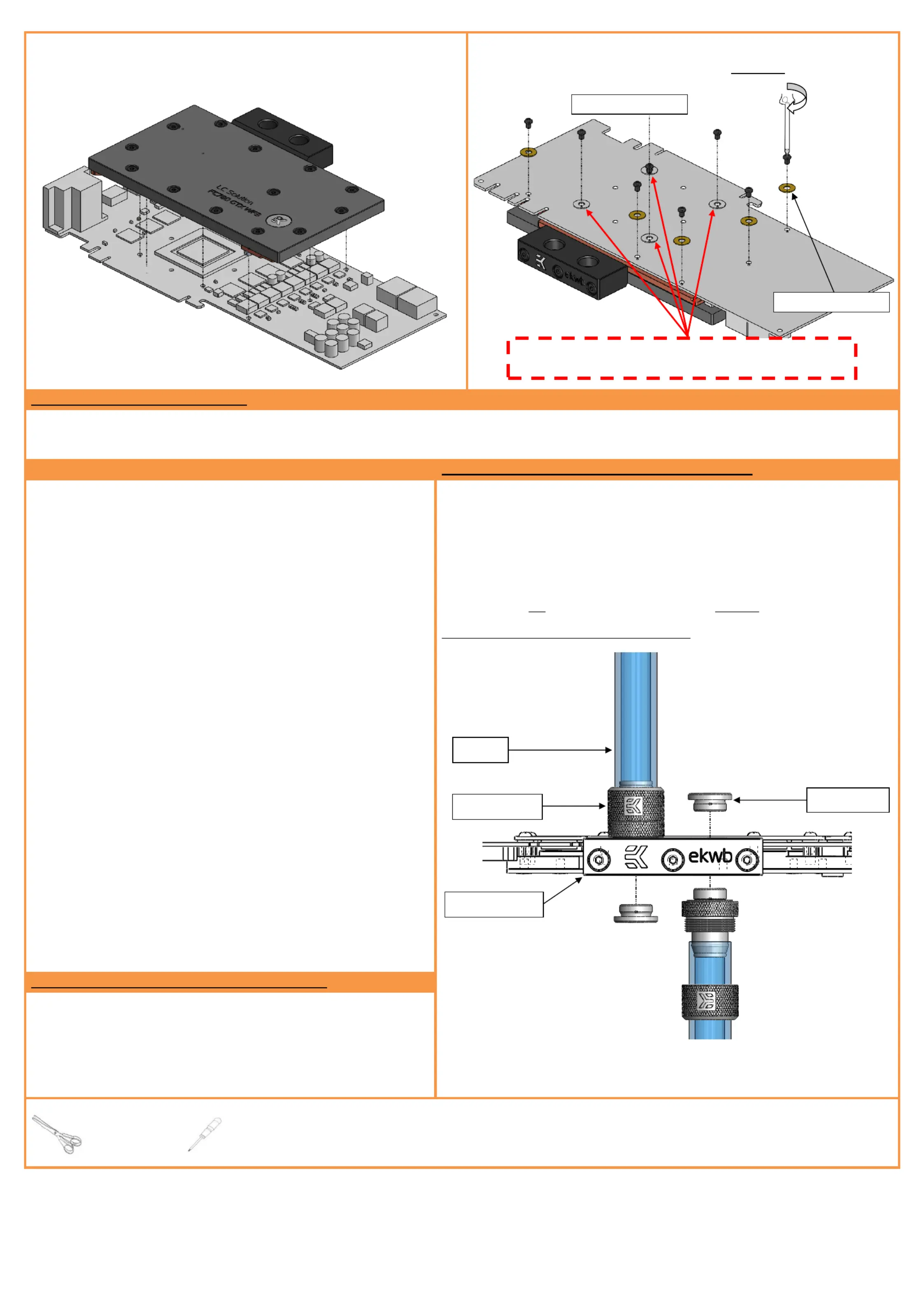

2. PLACING BLOCK TO GRAPHIC CARD. Carefully position the water block with
preinstalled 2.5 mm standoffs on to the graphics card. During this process please make
sure you align mounting holes on PCB with holes on the water block. Also pay attention
not to use too much force by pressing block down to PCB. Chip dies are prone to
cracking.
3. ATTACHING BLOCK TO GRAPHIC CARD. By using Philips screwdriver screw in
enclosed M3x4 DIN7985 screws EKWB recommends users to art tightening the . st
screws around the GPU core and continue outwards. Always use a plastic washer
under each and every screw!
STEP 4: CHECKING FOR CONTACTS
If necessary temporarily r
emove the water block to check for uniform surface contact between the block and the components, pay special attention to the VRM section of the
graphics card. Check whether the water block makes contact with the intended integrated cirucit. Then repeat sub-steps in previous section to re-attach the block. In case you
fail to obtain good contact, please check again your thermal pad thickness or contact our support service at http://www.ekwb.com/support.
STEP 5: INSTALLATION OF FITTINGS AND TUBING
This page is intenonally le blank
Screw in the two G1/4 threaded male fittings. Attach the liquid cooling tubes and connect
the water-block(s) into the cooling circuit. EKWB recommends using EK-PSC fittings
with the EK-FC780 GTX WF3 series water blocks. To ensure that the tubes are
securely attached to the barb/fittings, please use hose clamps or an appropriate substitute.
You can use any opening as an inlet/outlet port.
CAUTION: In case of using connectors other than EK-PSC series compression fittings take
special attention to the length of the fittings’ male G1/4” thread. In case the thread is longer
than 5mm please use the enclosed 1.8mm nickel plated distancer!
5mm is the maximum allowed G1/4” thread length!
STEP 7: INSERTING CARD IN YOUR PC CHASSIS
Carefully lift your graphics card with installed block and insert it in your PC’s
motherboard PCI-express expansion slot Please bear in mind that your graphics .
card is probably heavier than when it was equipped with original heat sink fan
assembly. One needs to be very careful when handling the graphics card. Avoid
all un-needed manipulation of the VGA/water block assembly that might damage
your card or water block during final installation.
REQUIRED TOOLS:
scissors Philips screwdriver
EK-PSC Fing
Tubing
EK-Plug G1/4
Acetal Terminal
Screw M3x4 DIN7985
EK Plasc washer
If white washers are factory glued on circuit board do NOT remove them.
Simply use them instead of EK enclosed plasc washers where present.
