Sida 1/16

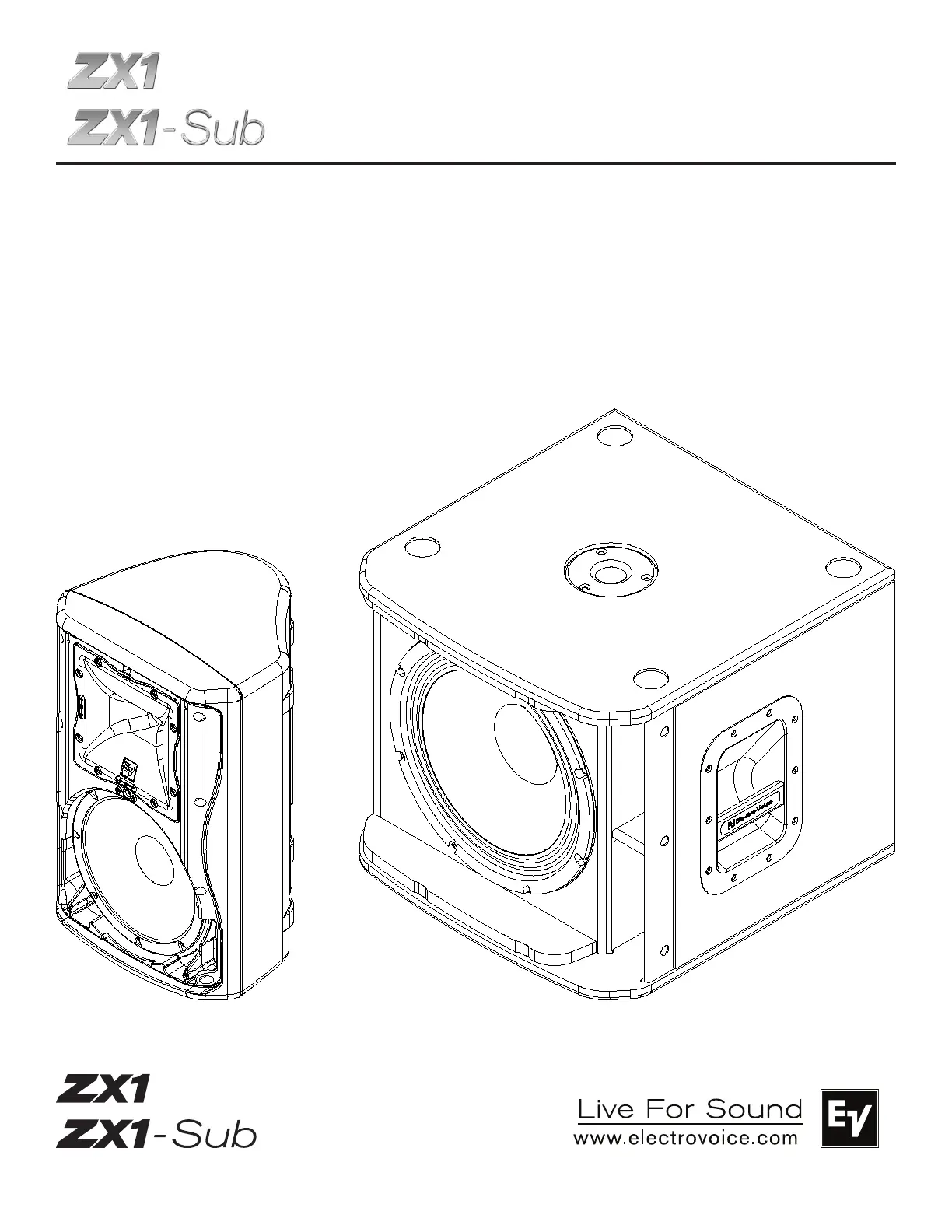

Zx1 Series
Loudspeaker
Owner’s Manual
Electro-Voice Zx1 Series Owners Manual
2
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.
8. Only use attachments/accessories specified by the manufacturer.
9. Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are
placed on this apparatus.
Management of WEEE (waste electrical and electronic equipment) (applicable in Member States of the European
Union and other European countries with individual national policies on the management of WEEE) The symbol on the
product or on its packaging indicates that this product may not be treated as regular household waste, but has to be
disposed through returning it at an Electro-Voice dealer.
The lightning flash with arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the appliance.
The asterisk within an equilateral triangle is intended to inform
the user to necessary installation or removal instructions
regarding equipment or hardware use relating to the system.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
AVIS: RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR.
WARNING: CONNECT ONLY TO MAINS SOCKET WITH
PROTECTIVE EARTHING CONNECTION.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Electro-Voice Zx1 Series Owner’s Manual 3
Precautions
Table Of Contents
Description 4 ..............................................................................................................................................................
System Features..................................................................................................................................................... 4
Specifications 5 .........................................................................................................................................................
Tripod and Floor Monitor Operation 6 ..................................................................................................................
Suspending Zx1 Loudspeakers 8 ..........................................................................................................................
Rotating the 90° Horn 9 ..........................................................................................................................................
Rotating the Logo 9 ..................................................................................................................................................
Recommended Configurations ......................................................................................................................... 10
Dimensions 12 ............................................................................................................................................................
Frequency Response Graphs 13 ...........................................................................................................................
Zx1 Model Reference Table 13 ...............................................................................................................................
Troubleshooting 14 ....................................................................................................................................................
Do not use Zx1 loudspeakers in an environment where temperatures exceed +40°C (104°F).
Never expose a Zx1 loudspeaker to rain, water, or high moisture.
Electro-Voice Zx1 loudspeakers are easily capable of generating sound pressure levels sufficient
to cause permanent hearing damage to anyone within normal coverage distance. Caution
should be taken to avoid prolonged exposure to sound pressure levels exceeding 90 dB.
