Wireless actuator

Universal dimmer switch

FUD71L/1200 W-230 V

30 100 846 - 3

Universal dimmer switch, power MOSFET up

to 1200 W. Automatic lamp detection. With

adjustable minimum brightness and dimming

speed. With switching operation for light

alarm clocks, children's rooms and snooze

function as well as constant light regulation

and master-slave mode. Also with light scene

control by PC or wireless pushbuttons. Enc-

rypted wireless, bidirectional wireless and

repeater function are switchable. Only 0.7

watt standby loss.

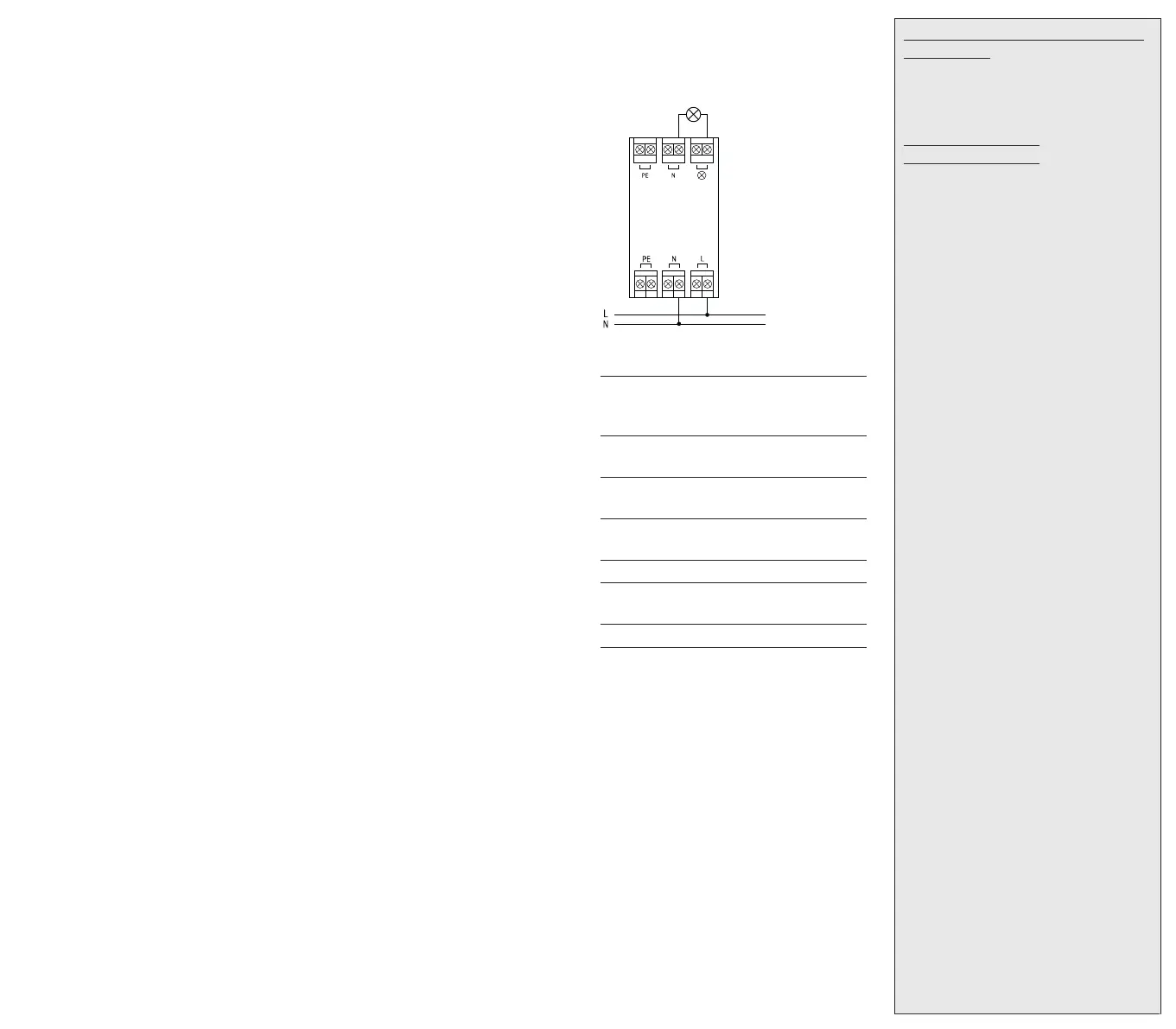

Mounting in the 230 V power supply cord, e.g.

in false ceilings and lamps. 252 mm long,

46 mm wide und 31 mm high.

Universal dimmer switch for lamps up to

1200 W, depending on ventilation conditions.

Dimmable energy saving lamps ESL and

dimmable 230 V LED lamps, additionally de-

pending on the lamps electronics.

Zero passage switching with soft ON and

soft OFF to protect lamps.

The brightness level is stored on switch-off

(memory).

In case of a power failure the switch position

and the brightness stage are stored and may be

switched on when the power supply is restored.

Automatic electronic overload protection

and overtemperature switch-off.

Encrypted sensors can be taught in.

You can switch on bidirectional wireless

and/or a repeater function.

Temperature at mounting location:

-20°C up to +50°C.

Storage temperature: -25°C up to +70°C.

Relative humidity:

annual average value <75%.

Only skilled electricians may install this

electrical equipment otherwise there is

the risk of re or electric shock!

valid for devices from production week

50/16 (see bottom side of housing)

Every change in state and incoming central

command telegrams are conrmed by a wi-

reless telegram. This wireless tele gram can

be taught-in in other actuators, in universal

displays FUA55 and in the GFVS software.

The current dimming value is also displayed

in % in the GFVS-Software.

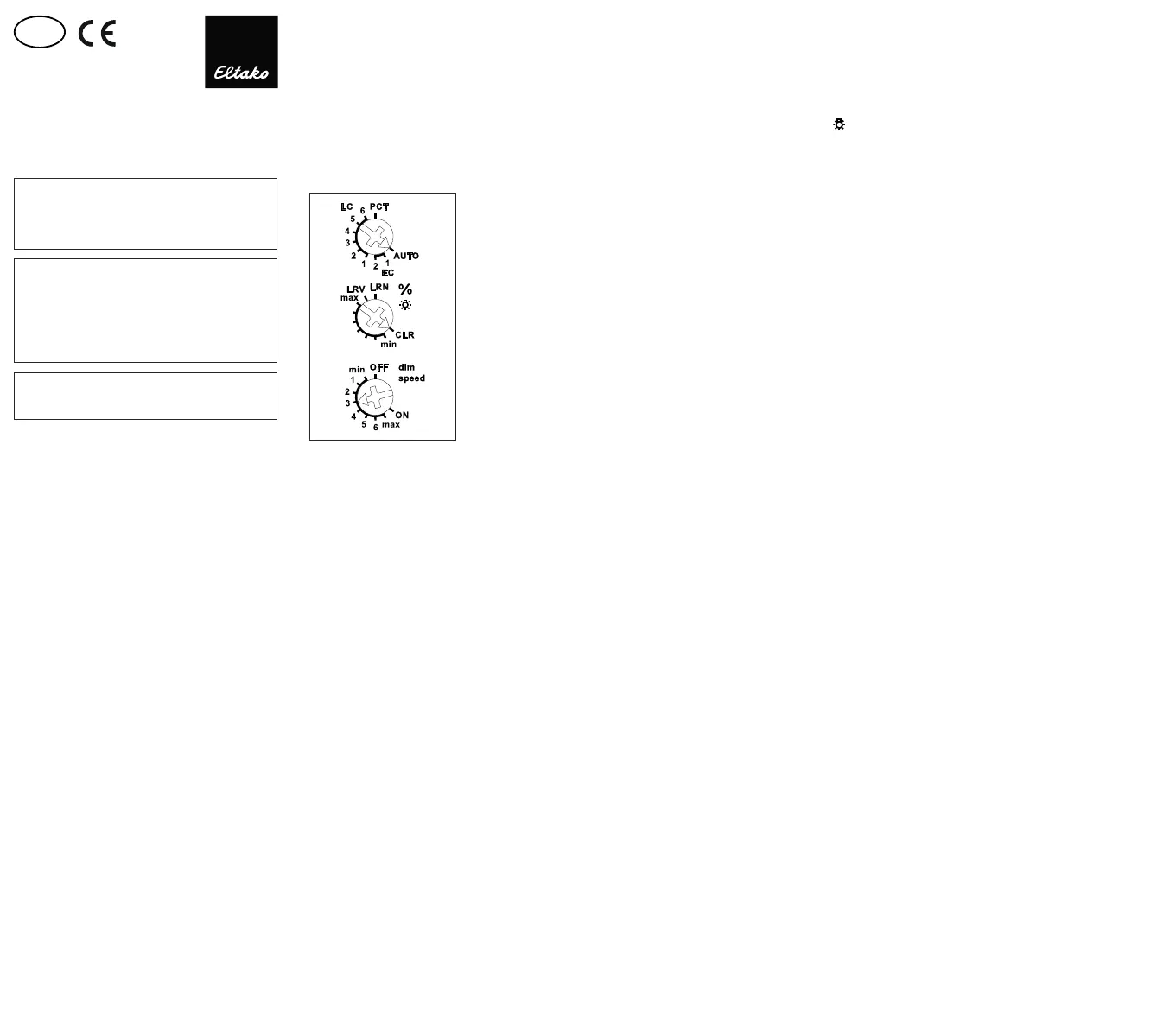

Function rotary switches

The upper rotary switch determines the

operation, whether automatic lamp detection

or special comfort positions should work:

AUTO allows the dimming of all lamp types.

EC1 is a comfort position for energy saving

lamps, which which by design must be tur-

ned on with an increased voltage so that

they switch on again in cold state when

dimmed down.

EC2 is a comfort position for energy saving

lamps, which by design won't switch on

again when dimmed down. Therefore Me-

mory is switched off in this position.

LC1 is a comfort position for dimmable 230 V

LED lamps, which by design won't be dimmed

down enough in the AUTO position (trailing

phase angle) and therefore has to be forced

to leading phase angle.

LC2 and LC3 are comfort positions for dim-

mable 230 V LED lamps like LC1 but with dif-

ferent dimming curves.

In positions EC1, EC2, LC1, LC2 and LC3 in-

ductive (wound) transformers may not be

used. In addition, the maximum number of

dimmable LED lamps may be lower by design

than in the AUTO position.

LC4, LC5 and are comfort positions for LC6

LED lamps like AUTO but with different dim-

ming curves.

PCT is a position for special functions which

were set up using the PCT14 PC Tool. The

PCT14 link is hooked up using the data

transformer DAT71.

The minimum brightness (fully dimmed

down) is adjustable with the middle %

rotary switch.

The dimming speed is adjustable using the

lower dimming speed rotary switch.

The pushbuttons can be either taught-in

as direction pushbuttons or universal

pushbuttons: As direction pushbutton

'switch on and dim up' is on one side and

'switch off and dim down' on the other side.

A double-click on the switch on side triggers

the automatic dimming up to full brightness

with dim speed time. A double-click on the

switch off side triggers the snooze function.

The children's room function is triggered on

the switch on side. As a universal push-

button the direction change is made by

briey releasing the push button.

Switching for light alarm clocks: An ap-

propriately taught-in timer wireless signal

starts the wake-up function by switching on

the lighting at lowest brightness and slowly

dimming up to maximum brightness over a

period of 30 minutes. The dimming process

is stopped by tapping briey, e.g. on the

hand-held transmitter. In the settings EC no

switching for light alarm clocks is possible.

Switching operation for children's rooms

(universal switch or direction switch on the

switch-on side): If the light is switched on

by holding down the pushbutton, it starts at

the lowest brightness level after approx. 1

second and dims up slowly as long as the

pushbutton is held down without modifying

the last stored brightness level.

Snooze function (universal switch or

direction switch on the switch-off side):

With a double impulse the lighting is dim-

med down from the current dimming positi-

on to the minimum brightness level and

switched off. The current dimming position

as well as the adjustable minimum brightness

level determine the dimming time (max. = 60

minutes) which can be reduced as required.

It can be switched off at any time by short-

time control commands during the lighting is

dimmed down.

Light scenes on the PC are set and

retrieved using the Wireless Visualisation

and Control Software GFVS. One or several

FUD71 devices must be taught in on the PC

as dimming switches with percentage

brightness values.

A resettable staircase time switch function

with RV = 2 minutes can be called by a push-

button taught-in as a staircase pushbutton.

Brightness level settings can be called during

teach-in with single light scene pushbuttons.

A twilight pushbutton can be implemented

using a taught-in FAH. Switch-on can be

performed dependent on motion and bright-

ness with up to 4 FBH devices.

Wireless pushbutton Central ON:

The impulse length is not important. The push-

button switches on with the memory value.

Wireless pushbutton Central OFF:

The impulse length is not important. The

pushbutton switches off.

Staircase light pushbutton:

The staircase light pushbutton switches on

with a memory value and starts an RV time

of 2 minutes at the end of which the device

switches off. Press the pushbutton again to

restart.

FTK as NO contact:

When the window is opened, the light is

switched on. When the window is closed,

the light is switched off.

FTK as NC contact:

When the window is opened, the light is

switched off. When the window is closed,

the light is switched on.

Either a FBH or a FHD60 can be taught-in

as master:

FBH as Master: (automatic brightness con-

trol) When a wireless motion/brightness

sensor FBH is taught-in, the switching

threshold is dened by the lower rotary

switch during teach-in.

The switching threshold switches on the

lighting with memory value depending on

the brightness (in addition to motion) (from

approx. 30 Lux in OFF position to approx.

300 Lux in ON position). When the FBH in

taught-in in the ON position, it is only evalu-

ated as a motion detector.

A return delay of 2 minutes is preset in the

FUD71.

By switching-off or dimming with pushbut-

ton, the FBH is deactivated. Central push-

button, scene pusbhbutton and 'dimming

value' by PC also lead to deactivation. A

short press on the switch-on side of the di-

rection pushbutton, the FBH is reactivated.

FBH as Slave: The FBH is only evaluated as

motion detector.

Semi-automatic motion detection with

taught-in FB65B wireless motion sensor

(factory setting): After switching on via

pushbutton, the 5 minutes delay time

starts, within this time the delay will

restart

after each detected motion. 5 minutes

after

the last detected motion it will switch off. If

a motion is detected 5 minutes after swit-

ching off, it will automatically switch on

again. After this time only a pushbutton can

switch on. The pushbutton is allowed to

switch off at any time, then the motions are

no more evaluated.

Fully automatic motion detection with

FB65B taught-in wireless motion sensor:

If the actuator should switch on automatically

when motion is detected, e.g. in rooms

without daylight, replug the jumper to 'active'

on the FB65B device. When motion is no

longer detected, the device switches off

automatically after the 5 minutes release

delay time expires. Press the pushbutton at

any time to switch the device on or off.

When motion is detected, the device switches

on again automatically.

FHD60 as Master: (automatic brightness

control off) When a wireless brightness and

twilight sensor FHD60 is taught-in, the swit-

ching threshold is dened by the lower

rotary button during teach-in. The swit-

ching threshold switches the lighting off

depending on the brightness. Switch-on is

only possible by pressing the push button.

FHD60 as twilight switch: (automatic

brightness control off) When a wireless

brightness and twilight sensor FHD60 is

taught-in, the switching threshold is de-

ned by the lower rotary switch during

teach-in. The switching threshold switches

the lighting on or off depending on the

brightness (from approx. 0 Lux in OFF posi-

tion to approx. 50 Lux in ON position). If the

brightness threshold is under shot, switch-on

uses the memory value. Switch-off takes

place at a brightness of > 200 Lux.

FHD60 as twilight dimmer: (automatic

brightness control off) When a wireless

brightness and twilight sensor FHD60 is

taught-in, the minimum dimming value is

dened in % by the lower rotary switch. The

switching threshold is the value to which

the lighting is dimmed down in darkness

(OFF = minimum dimming value to ON = ma-

ximum dimming value). If the brightness

undershoots a xed limit, switch-on takes

place at maximum dimming value. If the

brightness drops, the dimming value is also

reduced. When the brightness rises again,

the dimming value also increases. If the

brightness exceeds the xed limit, the ligh-

ting is switched off.

Constant light control with FHD65:

(The automatic brightness control automa-

tically switches on when teaching-in of the

FHD65) The required brightness is adjusted

by a pushbutton, then the rst received

brightness value of the FHD65 is the target

brightness, it is maintained constant auto-

matically by the FUD71 by incoming bright-

ness values of the FHD65. After each

change in brightness (dimming) with push-

button, the subsequently received bright-

ness value of FHD65 will be the new target

brightness. If the target brightness is

adjusted with a 'direction pushbutton for

target brightness', this is xed, a change in

brightness with the pushbutton is then

overruled by the xed target brightness. If

additionally a FBH is taught-in as a slave, it

is switched on when motion and target

brightness are fallen short and switched off

when not in motion or target brightness is

exceeded. By switching off with pushbut-

ton, the automatic control by FBH or FHD65

is disabled. Central pushbutton, scene

pushbutton

and 'dimming value' by PC also lead to

deactivation. The automatic control is

reactivead by w short press on the switch-

on side of the direction button.

Storing of target brightness:

Press 'direction pushbutton for target

brightness' above. The current brightness

that has been sent from the FHD65 is

stored.

Deletion of target brightness:

Press 'direction pushbutton for target

brighntess' below.

The red LED accompanies the teach-in

process and indicates control commands in

operation by ashing briey.

The green LED ashes briey when a con-

rmation telegram is sent.

Typical connection

Technical data

Incandescent and up to 1200 W

halogen lamps1)

230 V (R)

Inductive up to 1200 W 2)3)

transformers (L)

Electronic up to 1200 W 2)3))

transformers (C)

Dimmable energy up to 1200 W 5)

saving lamps ESL

Dimmable LEDs up to 1200 W 5)

Max./min. temperature +50°C/-20°C 4)

at mounting location

Standby loss (activ power) 0.7 W

1) For lamps with a maximum of 150 W.

2) Per dimmer it is only allowed to use max. 2 inductive

(wound) transformers of the same type, furthermore

no-load operation on the secondary part is not

permitted. Possibly the dimmer switch will be dest-

royed! No load-switching-off on the secondary part is

allowed. The parallel operation of inductive (wound) and

capacitive (electronic) transformers is not allowed!

3) When calculating the load 20% loss has to be consi-

dered for inductive (wound) transformers and 5%

loss in addition to the lamp load

4) Affects the maximum switching power.

Usually applies for dimmable energy saving lamps and

dimmable 230 V LEDs. Due to differences in the lamps

electronics, there may be limited dimming range, switch

on and off problems dependent on the manufacturer

and a restriction on the maximum number of lamps;

especially if the connected load is very low (for 5W-LEDs).

The comfort positions EC1, EC2, LC1, LC2 and LC3 opti-

mize the dimming range, which, however, only gives a

maximum power up to 300W. No inductive (wound)

transformers may be dimmed in these comfort positions.

Teaching-in wireless sensors in wirel-

ess actuators

All sensors must be taught-in in the ac-

tuators so that they can detect and

execute commands.

Teaching-in actuator

FUD71L/1200 W-230 V

The teach-in memory is empty on delive-

ry from the factory. If you are unsure

whether the teach-in memory contains

something or not, you must rst clear

the memory contents completely: Set

the middle rotary switch to CLR. The LED

ashes at a high rate. Within the next 10

seconds, turn the upper rotary switch

three times to the right stop (turn clock

wise) and then turn back away from the

stop. The LED stops ashing and goes

out after 2 seconds. All taught-in sen-

sors are cleared. Clear individual

taught-in sensors in the same way as in

the teach-in procedure, except that you

set the middle rotary switch to CLR

instead of LRN, and operate the sensor.

The LED previously ashing at a high ra-

te goes out.

Clear device conguration: Set the

middle rotary switch to CLR. The red LED

ashes at a high rate. Within the next 10

seconds, turn the upper rotary switch six

times to the left stop (turn anticlockwise)

and away again. The red LED goes out.

The factory settings are restored.

Teaching-in sensors:

A total of 120 memory locations are

available.

1. Set the top rotary switch to the required

teach-in function:

AUTO = timer as wake-up light;

Teach-in FHD65, FHD60 or FBH as master.

EC1 = 'central off';

Teach-in second FBH, FB65B as slave.

EC2 = universal switch;

Teach-in third FBH, FB65B as slave.

LC1 = 'central on';

Teach-in fourth FBH, FB65B as slave.

LC2 = Teach in direction pushbutton,

direction pushbutton are automatically

taught-in fully when pressed. Depen-

ding on where the button is pressed,

the functions for switch-on and dim-up

are dened on one side and switch-off

and dim-down on the other side. Teach

in FTK and Hoppe window handle as NO

contact;

LC3 = teach in sequential light scene

push button, a pushbutton or half of a

double pushbutton is assigned automa-

tically. Teach in FTK and Hoppe window

handle as NC contact.

LC4 = Teach in 4-way direct light scene

pushbuttons, a complete pushbutton

with double rocker is assigned automa-

tically.

LC5 = Teach-in single light scene push-

buttons. Teach in FHD60 as twilight

switch.

LC6 = Teach in staircase light switch;

Teach in FHD60 as twilight dimmer

PCT = Teach-in rotary switch and GFVS,

this automatically switches on and

sends conrmation telegrams. Teach-

in dimming values of FFD; Teach-in 'di-

rection pushbutton for target brightness.

2. Set the middle rotary switch to LRN.

The LED ashes at a low rate.

3. Operate the sensor to be taught-in. The

LED goes out.

To prevent unintentional teach-in, turn

the rotary switch back to LRN for every

teach-in process. The LED ashes at a

slow rate.

You can teach in unencrypted and enc-

rypted sensors.

Teach in encrypted sensors:

1. Set the middle rotary switch to LRV.

The red LED ashes at a high rate.

2. Within 120 seconds, enable sensor enc-

ryption. The red LED goes out. Caution:

Do not switch off the power supply.

3. Then teach in the encrypted sensor as

described in 'Teaching-in sensors'.

To teach in other encrypted sensors,

turn the middle rotary switch briey

away from position LRV and then turn it

to 1. With encrypted sensors, use the

'rolling code', i.e. the code changes in

each telegram, both in the transmitter

and in the receiver.

If a sensor sends more than 50 tele-

grams when the actuator is not enabled,

the sensor is no longer recognised by the

enabled actuator and you must repeat

teach-in as 'encrypted sensor'. It is not

necessary to repeat the function teach-in.

Saving light scenes

Up to four brightness values retrievable with

a direct light scene pushbutton can be saved.

1. Turn he upper rotary switch to the appro-

priate operating mode AUTO, EC or LC.

2. Adjust the required brightness level with

a previously taught-in universal or direc-

tion switch.

3. Within 60 seconds, press one of the four

rocker ends of the previously taught-in

direct light scene pushbutton for longer

than 3 seconds but less than 10 seconds

to save the brightness value.

4. Repeat from point 2 to save further di-

rectly retrievable light scenes.

Retrieving light scenes

Up to four brightness values are retrievable

using a direct light scene pushbutton (push-

button with double rocker, top left = light

scene 1, top right = light scene 2, bottom left

= light scene 3 and bottom right = light scene

4) and/or using a sequential light scene push-

button (pushbutton or one half of a double

push - button, press top = next light scene,

press bottom = previous light scene).

Switch on repeater: The repeater is swit-

ched off in the factory setting. In deenergi-

sed state turn the middle rotary switch to

CLR and the lower rotary switch to ON.

Switch on the power supply. The red LED

lights up to two seconds. The repeater is

switched on.

Switch off repeater: In deenergised state

turn the middle rotary switch to CLR and the

lower rotary switch to OFF. Switch on the

power supply. The red LED lights up to 0.5

seconds. The repeater is switched off.

Switch-on conrmation telegrams:

For deliveries ex-works the conrmation te-

legrams are switched-off. Set the middle

rotary switch to CLR. The red LED ashes

nervously. Now within 10 seconds turn the

upper rotary switch 3 times to the left (an-

ticlockwise) and then back away. The red

LED goes out and the green LED lights up

for 2 seconds. The conrmation telegrams

are switched-on.

Switch-off conrmation telegrams:

Set the middle rotary switch to CLR. The

LED ashes nervously. Now within 10 se-

conds turn the upper rotary switch 3 times

to the left (anticlockwise) and then back

away. The red LED goes out immediately.

The conrmation telegrams are switched-off.

Master-slave mode:

Activate FUD71 as master and teach in all

FUD71 slaves simultaneously:

1. Switch off the power supply to all FUD71

devices (masters and slaves).

2. On the FUD71 master, turn the upper ro-

tary switch to AUTO, the middle rotary

switch to LRN and the lower rotary

switch to ON.

3. On all FUD71 slaves, turn the upper rotary

switch to AUTO, the middle rotary switch

to min and the lower rotary switch to

max.

4. Switch on the power supply to all FUD71

devices (masters and slaves) simultane-

ously. The red LED lights up for 0.5 se-

conds and the lamp of the FUD71 master

switches to maximum brightness. After

approx. 2 seconds, the green LED on the

FUD71 master lights up briey and a

teach-in telegram is sent After the teach

in lights up briey and a teach in tele-

gram is sent. After the teach-in telegram

is received by FUD71 slave, the lamp on

the FUD71 slave switches on at maximum

brightness.

5. Set all FUD71 devices (masters and sla-

ves) to the same operating mode mini-

mum brightness and dim speed.

Deactivate FUD71 as master:

In deenergised state turn the middle rotary

switch to LRN and the lower rotary switch to

OFF. Switch on the power supply. The red

LED lights up to 0.5 seconds. The Master-te-

legrams and conrmation telegrams are

switched off.

Teach in direction pushbutton in FUD71

slave (only if required):

Turn the upper rotary switch to LC2. Turn

the middle rotary switch to LRN. The LED

ashes at a low rate. Press the push - but-

ton. The LED goes out.

When pressed, a rocker is completely

taught-in automatically. Where you press

rst is then dened as switch-on. The other

side automatically becomes switch-off.

Function of slave direction pushbutton:

Quit slave mode as follows: Press long on

the switch-on side to dim up to the required

value. Press long on the switch-off side to

dim down to the required value. Double-

click on the switch-on side to dim automati-

cally to maximum brightness. Press briey

on the switch-off side to switch off. Press

briey on the switch-on side to change back

to slave mode.

If the FUD71 master was activated by a cen-

tral command, the FUD71 slave changes im-

mediately to slave mode.

Use the data transformer DAT71 to create a

link to a PC running the PCT14 software.

Congure FUD71:

The following points can be congured

using the PC PCT14 tool:

Teach in buttons with single or double

click

Behaviour after power failure

Minimum and maximum brightness

Memory

Dimming speeds

Send dimming value in %: ON or OFF

Send pushbutton telegram ON (0x70)

and OFF (0x50): OFF or ON

Switch-on/off speed

Acknowledgement telegrams

Parameters for the operation with

FHD60, FHD65 and FBH

Parameters for operating as clock

Parameters for operating as staircase

time pushbutton

Add or change sensors

Saving light scenes:

Use the PCT14 PC Tool to congure the fol-

lowing parameters:

Conrmation ash when scenes are saved:

ON or OFF.

Light alarm circuit:

Use the PCT14 PC Tool to congure the fol-

lowing parameters: Maximum brightness:

50 to 100%.

Runtime: 1 to 255 minutes (factory setting

30 minutes).

Children's room circuit:

Use the PCT14 PC Tool to congure the fol-

lowing parameters: Save memory value:

OFF or ON.

Dimming speed: 0 (slow) to 255 (fast).

Produktspecifikationer

Varumärke:	Eltako
Kategori:	Inte kategoriserad
Modell:	FUD71L

Behöver du hjälp?

Om du behöver hjälp med Eltako FUD71L ställ en fråga nedan och andra användare kommer att svara dig

Ditt namn*

Din e-post*

Skriv din fråga här

Inte kategoriserad Eltako Manualer

Eltako MS Bruksanvisning

20 September 2024

Eltako FUD61NP-230V Bruksanvisning

19 September 2024

Eltako FT4F-rw Bruksanvisning

19 September 2024

Eltako FT4F-wg Bruksanvisning

19 September 2024

Eltako DL-PD-300W-RLC-HS Bruksanvisning

19 September 2024

Eltako DSZ15DM-3x80A Bruksanvisning

19 September 2024

Eltako FTN14 Bruksanvisning

19 September 2024

Eltako FT55R Bruksanvisning

19 September 2024

Eltako FUD71L Bruksanvisning

19 September 2024

Eltako FTS14EM T Bruksanvisning

19 September 2024

Inte kategoriserad Manualer

Nyaste Inte kategoriserad Manualer

Philips 43PUL7672 Bruksanvisning

27 Oktober 2024

Manhattan 461504 Bruksanvisning

27 Oktober 2024

Sungrow SG125HV Bruksanvisning

27 Oktober 2024

Schneider CCT724319 Bruksanvisning

27 Oktober 2024

Technoline WS 250 Bruksanvisning

27 Oktober 2024

Livarno IAN 354423 Bruksanvisning

27 Oktober 2024

Kupper 12152 Bruksanvisning

27 Oktober 2024

JennAir CARBON24L Bruksanvisning

27 Oktober 2024

Medion Life E74001 (MD 81035) Bruksanvisning

27 Oktober 2024

POLARIS Sportsman Touring 850 SP (2015) Bruksanvisning

27 Oktober 2024
