A S S E M B LY I N S T R U C T I O N S
Anthro Corporation | 10450 SW Manhasset Dr. | Tualatin, OR 97062
Toll-free: 800.325.3841 | Fax: 800.325.0045 | email: sales@anthro.com | anthro.com
Outside the U.S. | Tel: 503.691.2556 | Fax: 503.691.2409
Ergotron Dock Locker
for Microsoft Surface Pro 3
and Docking Station
NOTE: Shown with Microsoft Surface Pro 3 and Docking Station, not included.
Product Part#
Dock Locker MLDKYCG
Anthro Corporation is a wholly owned subsidiary of Ergotron Inc., and Ergotron Inc. is a Nortek Company
Revision: January 2015
WELC O ME
Thank you for purchasing the Dock
Locker for Microsoft Surface Pro 3
Docking Station.
If you have any questions or if we can
help you in any way, please contact us
at 800.325.3841.
TOOL S
A power drill and drill bit (either 1/4"
or 1/8" depending on your installation
method) may be required for this
assembly.
A Phillips screwdriver and 3/8" socket or
nut driver may also be required.
These tools are included with your
shipment:
5/32" hex driver bit
5/32" hex Anthro driver
3-way wrench
PAR TS LIST
Before beginning installation of your Dock Locker, please
review the parts list to verify that your shipment is complete.
The fastener quantities listed are the minimum required to
complete the installation. Your shipment may have included
extras.
2
Product Quantity Part Number

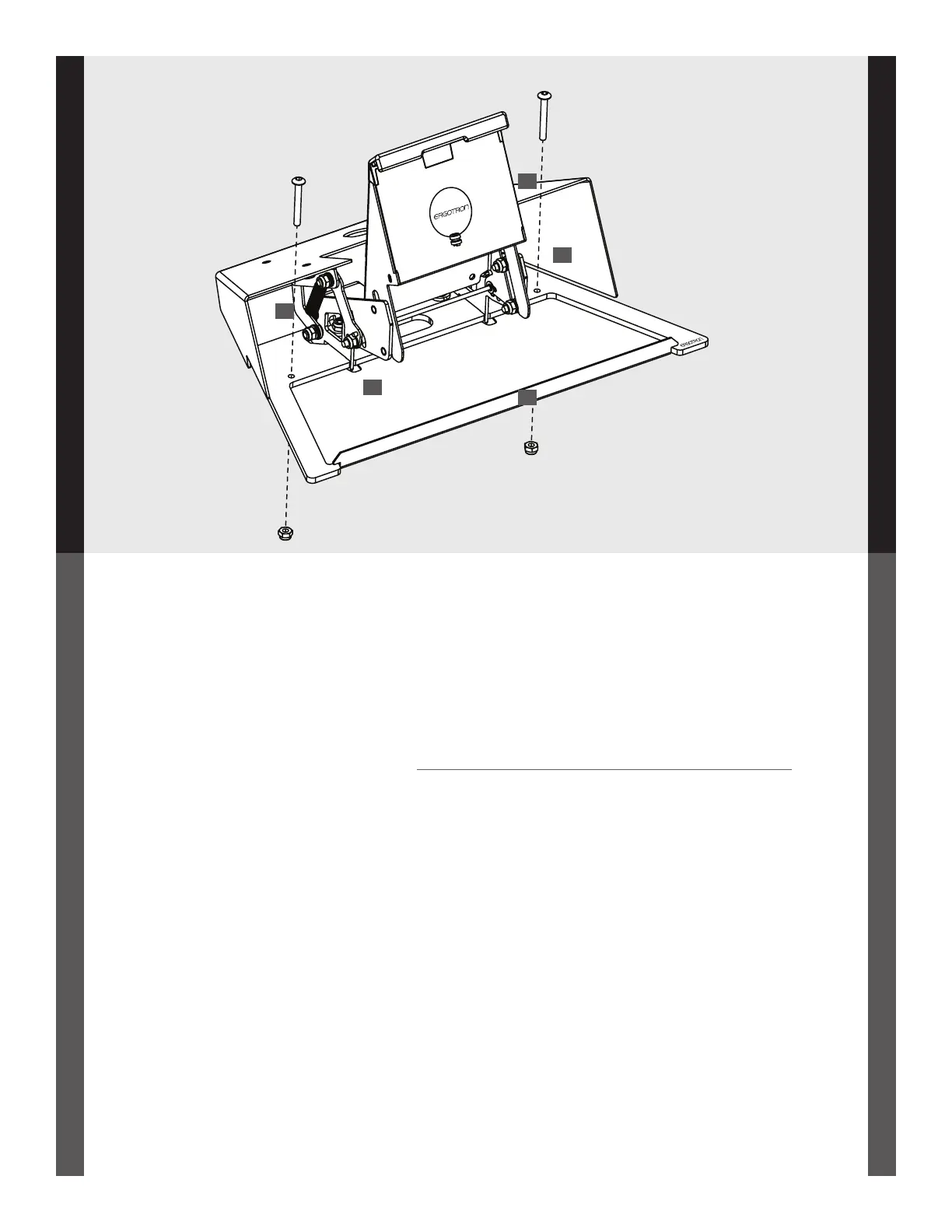

01 Locker Assembly 1 835-MLD
A. Top Cap 1 225-4931-00
B. Bottom Plate 1 225-4957-00
02 #10-24 x 2.5" Bolt 2 325-5747-00
03 #10-24 Nylock Nut 2 325-5186-00
04 #10-9 x1" PB Screw (not shown) 2 325-5580-00
KEYS
For replacement keys, order part number
979KY.
01
02
03
A
B
Ergotron Dock Locker Assembly Instructions 3

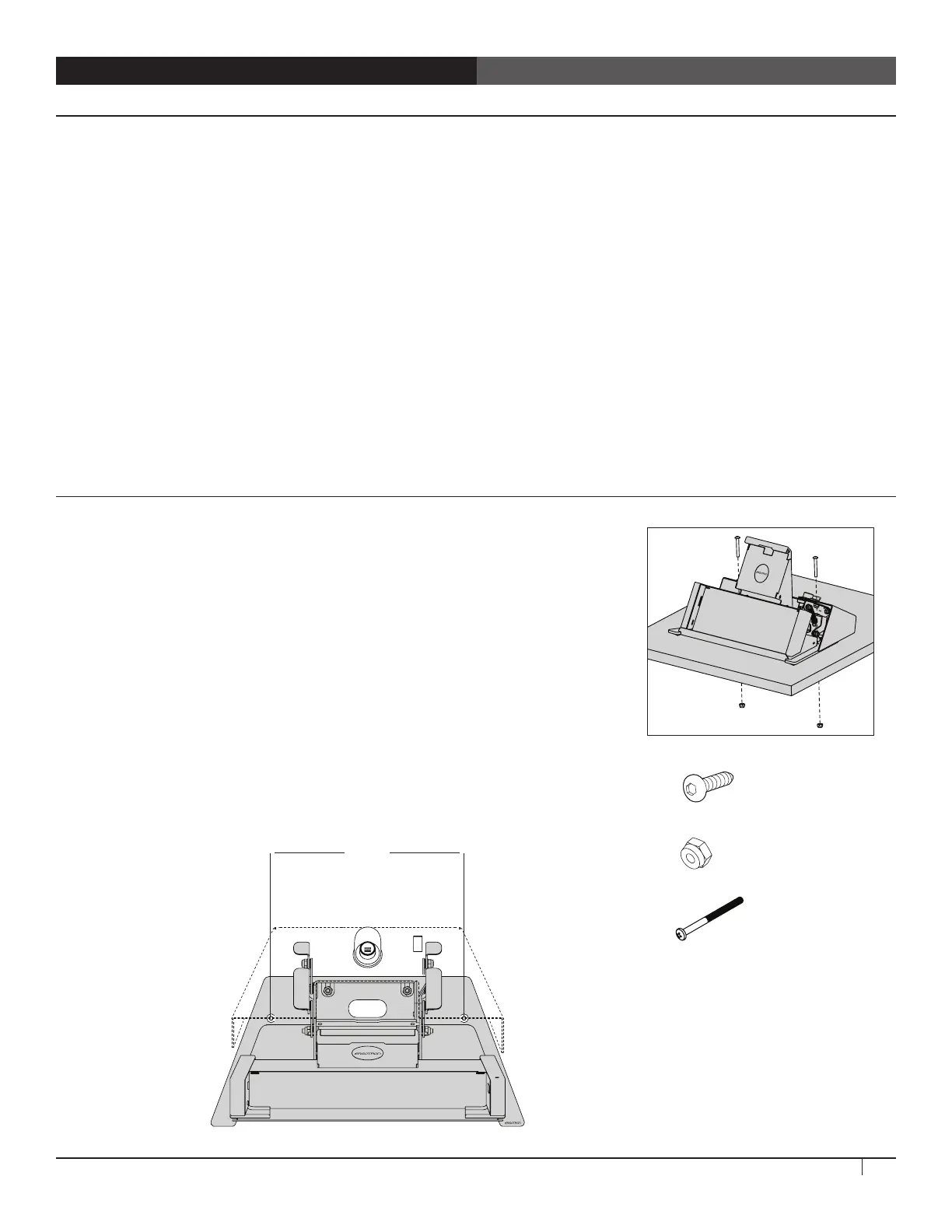

STEP 1 - SET TH E DOCK LOCKER IN PLACE AND OPEN IT
Select the installation location for your locker. Provide at least 5" of clearance behind the unit.
Place the unit in its spot and open it. To unlock the unit, insert the key and turn. To open the unit, push the button on
the lock and lift the cover back.
IF YOU WILL SECURE YOUR LOCKER TO THE WORKSURFACE USING A
BOLT-THROUGH OR SCREW-MOUNT METHOD, GO TO STEP 2.
IF YOU WILL SECURE YOUR LOCKER TO THE WORKSURFACE WITH
A SECURITY CABLE, OR IF YOU WILL NOT SECURE YOUR LOCKER, GO TO STEP 3.
STEP 2 - SECURE YOUR DOCK LOCKER WITH
SCREW -MOUN T OR BOLT-THR O U G H METHOD.
Locate the two round installation holes near the back of the bottom plate.
Mark the holes. Set aside the unit.
Pre-drill the holes. For screw-mount installation, use a 1/8" drill bit to drill
1/2" into the worksurface. For bolt-through installation, use a 1/4" drill bit to
drill all the way through the worksurface. For added security for your cords and
cables, you can route them through the cord pass-through opening in the base
plate. To use that pass-through, mark and drill an opening in your worksurface
now.
Attach the unit to the worksurface. For screw-mount installation, fasten the
unit to the worksurface with two 1" PB screws (325-5580-00) using your drill
and the Anthro driver bit provided. For bolt-through installation, slide one
bolt (325-5747-00) through each hole in the bottom plate and through the
worksurface. Capture with the #10-24 Nylock Nut (325-5186-00).
9-1/8"
1” Button Hd PB Screw
325-5580-00
Nylock Nuts
325-5186-00
10-24x2.5” Bolt
325-5747-00
