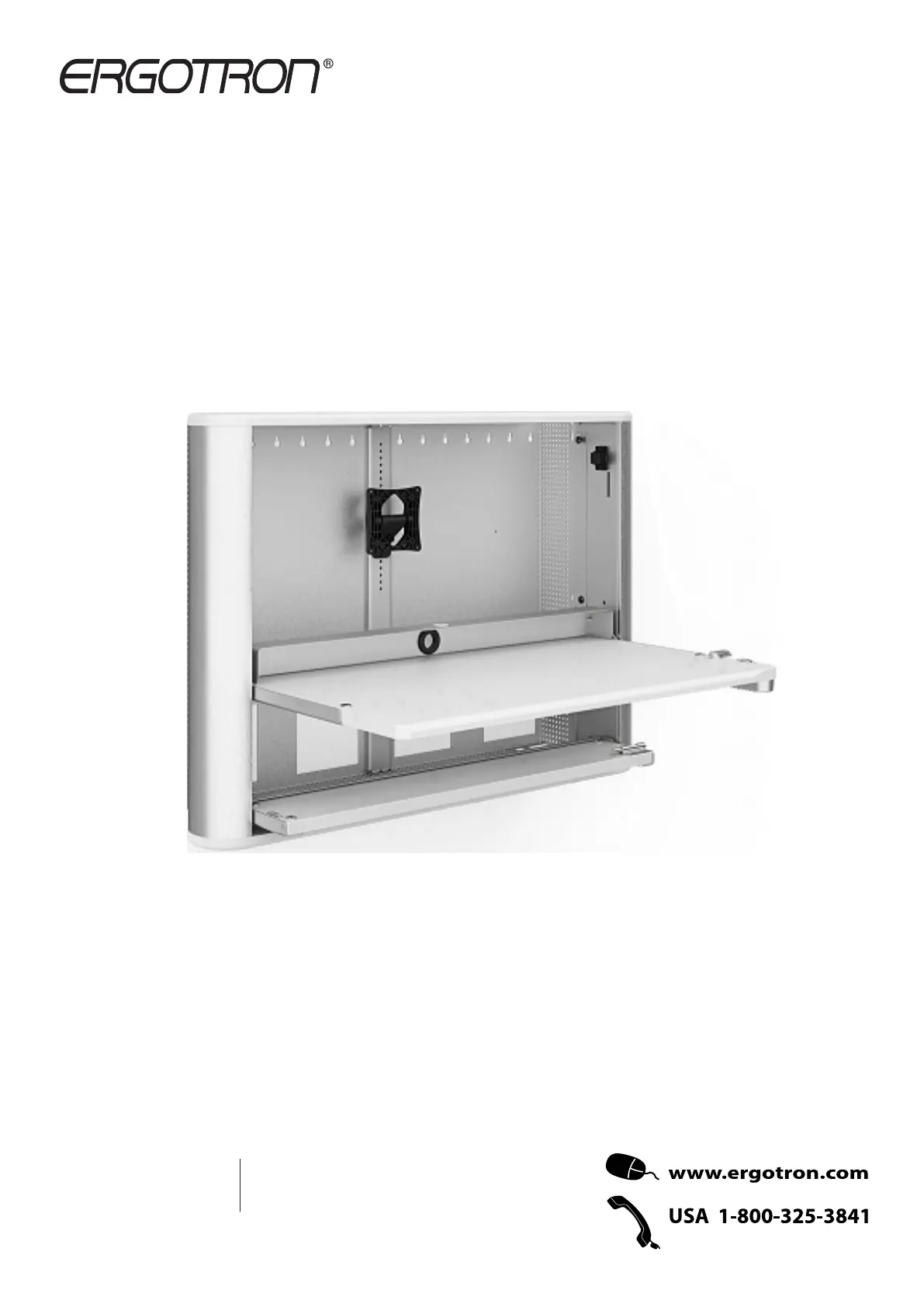

eNook® Pro
Product Part#
eNook Pro for Monitors, 36w EPM3616zz/xx
For the latest User Installation Guide please visit: www.ergotron.com
User's Guide
2 of 7
300-5455-00 rev. F • 06/16
01
02
05
04
06
07
10
09
11
12
08
10
05
Product Quantity Part Number
01 Back Frame 1 225-2802-23
02 Main Unit 1 835-5258-00
03 1-5/8" Screw (Not Shown) 4 325-5086-00
04 1-1/2" Screw 4 325-5358-00
05 Workstation Screw 6 325-5092-00
06 Cable Clips 6 175-5217-00
07 Toggle Bolt Anchor 4 325-5394-00
08 Keyboard & Mouse Keeper 1 225-2823-00
09 Monitor Bracket 1 225-2808-00
10 3/8" Phillips Screw 4 325-5150-00
11 Rubber Grommet 1 175-5237-00
12 Monitor Mount Assembly 1 835-5696-00
PA R T S L I S T
These instructions are for Anthro’s eNook® Pro. Before beginning assembly, please take a moment to review
the parts list below to verify that your shipment is complete.
3 of 7
300-5455-00 rev. F • 06/16
14.75"
23"
1-1/2" Screw
325-5358-00
Drill
Wall Stud Prole
1½" Tape ¼"
Screw
S T E P 1
Select the Mounting Location
¡ When choosing the right place to install your eNook, be sure to check the location of your power source so you
can power equipment used inside.
¡ Your eNook can be mounted to drywall or to wood wall studs. If you’re installing to wood wall studs, go to Step
2.
¡ If you’re installing into drywall, go to Step 7.
S T E P 2
Find Wall Studs
¡ Using a stud nder, locate the studs to which you'll attach your eNook.
S T E P 4
Attach Screws to Wall Studs
¡ Using a 1/8" drill bit, drill one hole into a stud
about
1-1/2" deep. How do you make sure that hole
is
1-1/2" deep? Measure that length on your drill
bit and mark it with a piece of masking tape.
Stop drilling when you reach the masking tape.
¡ Using a Phillips driver (or a power driver with
a Phillips bit), attach the rst 1-1/2" long screw
at that mounting point, but don’t tighten all
the way to the wall. Stop tightening when the
screw head is about 1/4" away from wall.
S T E P 3
Determine Mounting Point
¡ Determine the optimal desk height for your
eNook. Typical sitting height is about 29" high;
typical standing height is about 42" high.
¡ Measure up 14-3/4" from the shelf location and
mark that point on one stud.
