ETC Installation Guide
ColorSource ™ PAR
ColorSource PAR Page 1 of 4 Electronic Theatre Controls, Inc.
Corporate Headquarters
Middleton, WI, USA
Tel +608 831 4116
Service: (Americas)
service@etcconnect.com
London, UK
Tel +44 (0)20 8896 1000
Service: (UK)
service@etceurope.com
Rome, IT
Tel +39 (06) 32 111 683
Service: (UK)
service@etceurope.com
Holzkirchen, DE
Tel +49 (80 24) 47 00-0
Service: (DE)
techserv-hoki@etcconnect.com
Hong Kong
Tel +852 2799 1220
Service: (Asia)
service@etcasia.com
Web: www.etcconnect.com
© 2015 ETC. All Rights Reserved.
Product information and specifications subject to change.
7412M2100
Rev C
Released 2015-04
ETC intends this document to be provided in its entirety.
Overview
The ColorSource PAR is an affordable LED wash fixture that uses the RGB-L (red, green, blue, and
lime) color system to provide a rich, bright light.
Environment
The ColorSource PAR operates in ambient temperatures of 0°- 40°C and it comes with a variable-
speed fan.
Electrical
• Operates between 100V and 240VAC at a frequency of 50/60Hz.
• Up to 9 luminaires (15A max) may be linked via power thru connector (10 luminaires total
per circuit) when used with an R20 relay module or Unison Echo Relay Panel. Consult breaker
trip curves when used with other equipment. Requires power from a non-dimmable source.
Installation
Mounting hardware
The ColorSource PAR ships with a standard yoke. An
expandable floor stand yoke is available as an optional
accessory. Contact your local dealer for more information.
CAUTION:
• Risk of eye injury. Do not stare directly into the light.
• Do not operate in proximity to flammable materials.
Note:
The ColorSource PAR is for indoor use only.
WARNING:
Disconnect the fixture from power and DMX and allow it to cool before
performing any cleaning and maintenance.

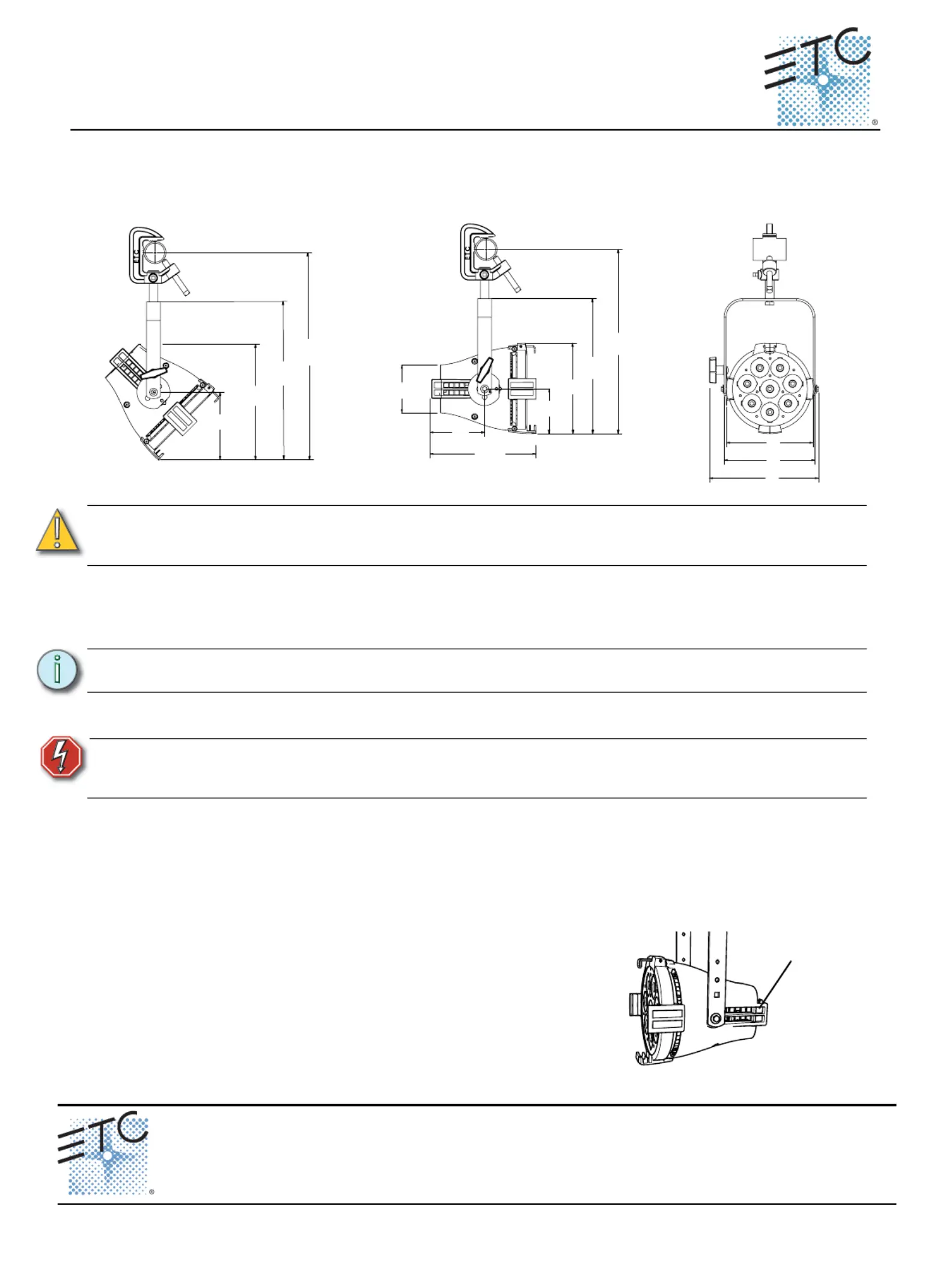

9.9"
251mm
8.2"
209mm
7.8"
199mm
9.5"
241mm
4.8"
121.8mm
4.3"
110mm
4.0"
102.5mm
8.2"
207.7mm
12.2"
309.8mm
16.6"
422.8mm
14.3"
362.2mm
10.4"
265mm
18.7"
475.2mm
6.1"
154.9mm
Safety cable
attachment
loop
ETC Installation Guide
ColorSource PAR
ColorSource PAR Page 2 of 4 Electronic Theatre Controls, Inc.
Safety cable
The safety cable (or other approved safety device) must be attached to the fixture. Attachment
loops are provided on the fixture housing. Take care to leave as little slack as possible in the safety
cable to avoid catching the yoke of the fixture.
Connectors
•Power in and thru - two PowerCON connectors for power in and thru
• Data in and Thru: DMX512/RDM
• two five pin XLR connectors OR
• two RJ45 connectors
Conversion cables are available from ETC. Please call your ETC customer service
representative and reference part number W6538 for RJ45 to female XLR, and part number
W6539 for RJ45 to male XLR.
Fixture setup
Step 1: Plug power cord into the PowerCON in connector on the rear of the fixture.
Step 2: Make any power-thru cable connections prior to applying a power source.
Step 3: Plug power cord into power source.
Power up
Step 1: Press the Mode button once to wake the display. The first screen you see displays the
DMX address.
Step 2: Press the Mode button a second time to access the Presets/Sequences screen.
Adjusting the tilt
The fixture can be tilted up and down and rotated (panned) as needed.
Step 1: Loosen, but do not remove the yoke locking knob.
Step 2: Tilt the fixture to the desired angle.
Step 3: Tighten the yoke locking knob.
User interface
The user interface allows you to set the start address of the fixture, and access the stand-alone
presets and sequences.
Note:
This fixture is not Ethernet/data network compatible.
Note:
The ColorSource PAR is not self terminating. You must terminate the last fixture
in line with a 120 ohm resistor. XLR terminators are not available from ETC.
To purchase an RJ45 terminator, please contact your ETC customer service
representative and request part number N4086.

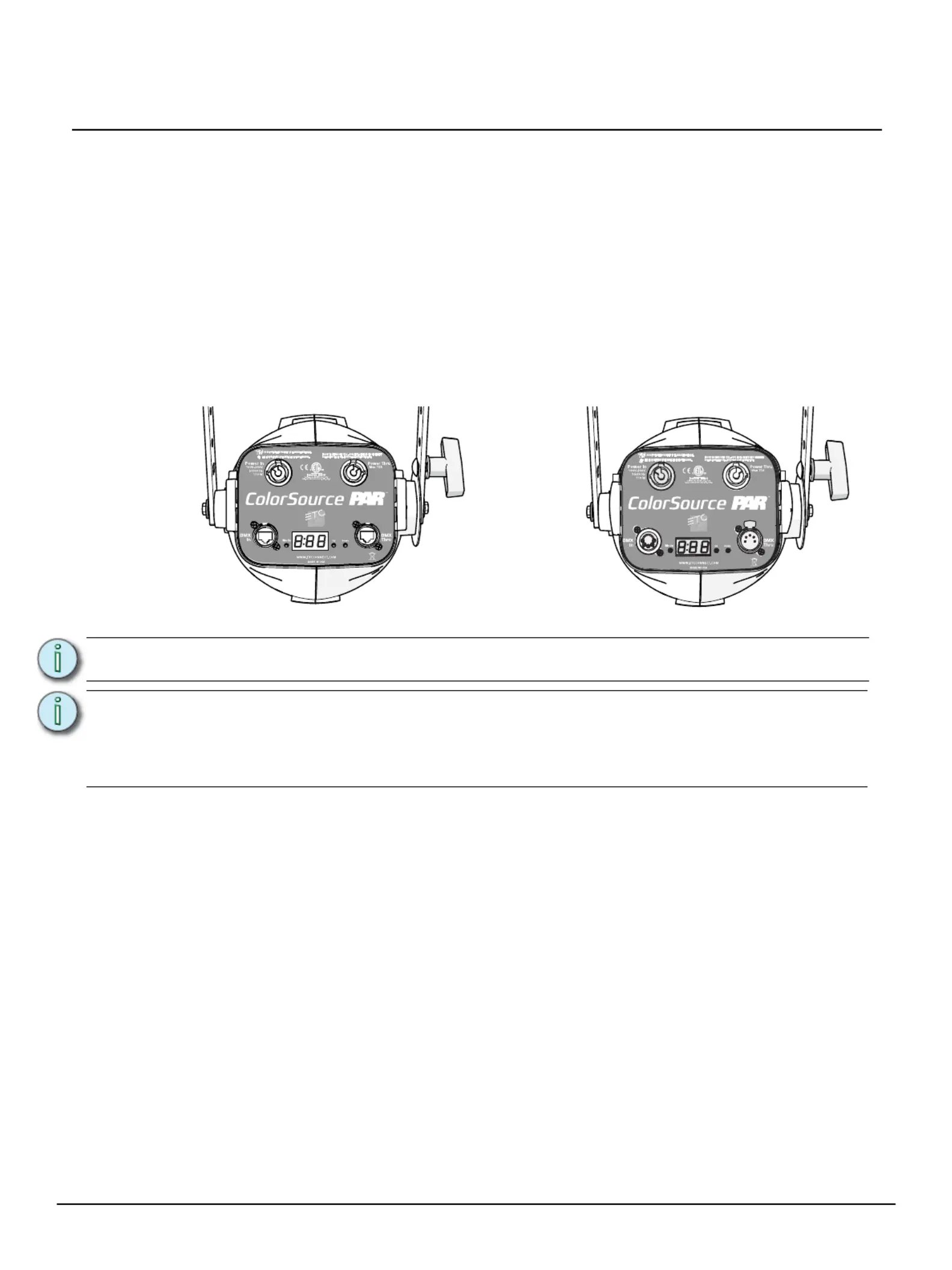

Rear view of
PAR with
RJ45 DMX
connectors
Rear view of
PAR with XLR
connectors
ETC Installation Guide
ColorSource PAR
ColorSource PAR Page 3 of 4 Electronic Theatre Controls, Inc.
• The DMX address will blink when no DMX is present and a preset or sequence is not active.
The inactivity time-out is disabled while in a data loss state.
• After five seconds of inactivity when DMX is present, the display goes dark.
Mode button
Pressing the Mode button activates the Preset/Sequence selection screen; the last active preset or
sequence plays automatically. Pressing the Mode button a second time, deactivates the selected
preset or sequence. The display will revert to show the DMX start address.
• If DMX data is present, the current preset or sequence plays in the background and DMX
data continues to take priority.
• If DMX data is lost and a preset is active in the background, the last selected preset or
sequences automatically plays.
DMX addressing
Step 1: Press the Mode button until the DMX address is displayed.
Step 2: Use the Up and Down buttons to select the DMX address for the fixture.
Preset and sequence selection
There are twelve factory-configured presets followed by five factory-configured sequences built
into the fixture. From the Preset and Sequences menu, use the Up and Down buttons to scroll
through the list. The sequence or preset plays immediately upon selection. All presets and
sequences can be re-recorded through an RDM device.
To re-record presets:
Step 1: Using DMX or RDM, set the desired RGB levels.
Step 2: Navigate to the Preset and Sequences menu.
Step 3: Using the Up and Down buttons on the PAR, navigate to the preset number you
want to re-record.
Step 4: Hold the Mode button for three seconds to confirm the preset selection. The user
interface will show a three second count-down. The preset number will then blink
once to confirm the preset has been recorded.
It is possible to activate a known preset or sequence from a connected fixture, when DMX is not
present. If a connected fixture activates a preset or sequence that is not recognized by the PAR,
the PAR will hold its last look. When DMX is restored, it will take priority.

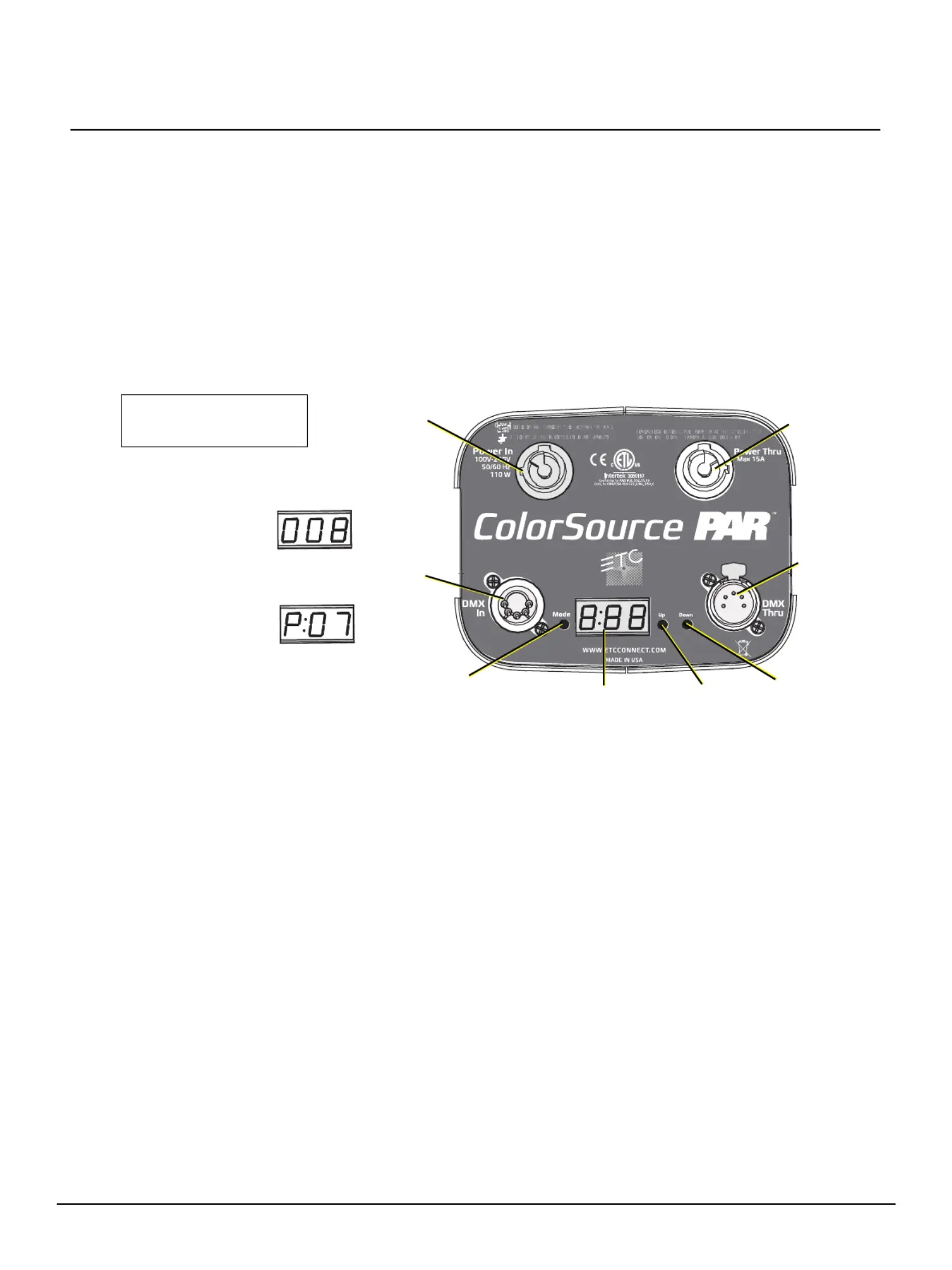

Up
Power in
Data in:
XLR
version
shown
Down
Data thru:
XLR
version
shown
Power thru
User interface
Mode button
DMX address
screen
PAR with XLR
connectors shown
Preset/Sequence
screen:
Scroll through
presets 1-12,
followed by
sequences 1-5
