ETC Installation Guide

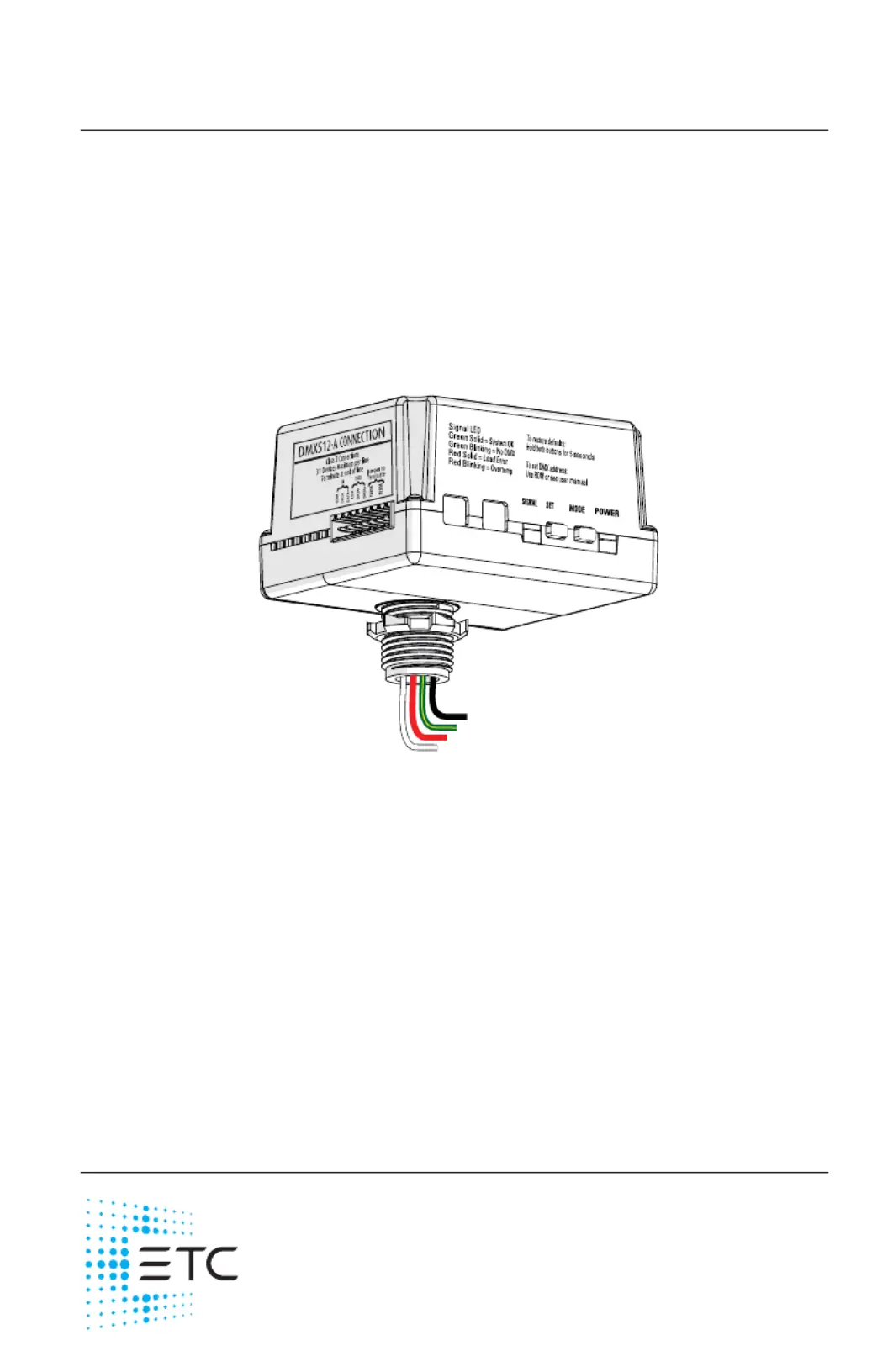

Unison Foundry Phase-Adaptive Dimmer
Corporate Headquarters
Corporate Headquarters
Corporate Headquarters
Corporate HeadquartersCorporate Headquarters Middleton, WI, USA +1 608 831 4116
London, UK
London, UK
London, UK
London, UKLondon, UK +44 (0)20 8896 1000 Holzkirchen, DE
Holzkirchen, DE
Holzkirchen, DE
Holzkirchen, DEHolzkirchen, DE +49 (80 24) 47 00-0
Rome, IT
Rome, IT
Rome, IT
Rome, IT Rome, IT +39 (06) 32 111 683 Hong Kong
Hong Kong
Hong Kong
Hong Kong Hong Kong +852 2799 1220 Paris, FR
Paris, FR
Paris, FR
Paris, FRParis, FR +33 1 4243 3535
Web
Web
Web
WebWeb
etcconnect.com Support
Support
Support
Support Support support.etcconnect.com
Contact
Contact
Contact
Contact Contact etcconnect.com/contactETC © 2019 Electronic Theatre Controls, Inc.
Product information and specifications subject to change. ETC intends this document to
be provided in its entirety. Trademark and patent info: etcconnect.com/ip
7179M2100
7179M2100
7179M2100
7179M21007179M2100 Rev G Released 2019-12
Overview
Overview
Overview
OverviewOverview
The Unison Foundry Phase-Adaptive Dimmer provides control for 120 V and
277 V line voltage loads that require forward-phase or reverse-phase
dimming, up to 600 watts.
The Phase-Adaptive Dimmer can be wired to individual fixtures or used for
zone control, and automatically provides reverse-phase or forward-phase
dimming based on the connected load type.
Control connected loads from any DMX control device. Configure the
Phase-Adaptive Dimmer either remotely via RDM (using a tool like ETC
Concert) or locally on the controller. See
Configure the Phase-Adaptive
Configure the Phase-Adaptive
Configure the Phase-Adaptive
Configure the Phase-Adaptive Configure the Phase-Adaptive
Dimmer
Dimmer
Dimmer
DimmerDimmer
on
page
page
page
pagepage 6
6
6
66
.
Specifications
Specifications
Specifications
SpecificationsSpecifications
Ambient Environment
Ambient Environment
Ambient Environment
Ambient EnvironmentAmbient Environment
For indoor use only. Rated for plenum use.
• 0°C to 50°C (32°F to 122°F) operating temperatures in 5%–95%
non-condensing humidity.
120
120
120
120120 VAC model
VAC model
VAC model
VAC modelVAC model
shown
shown
shown
shownshown
ETC Installation Guide
Phase-Adaptive Dimmer
Phase-Adaptive Dimmer Page 2 of 16 ETC
Electrical Specificatio
Electrical Specificatio
Electrical Specificatio
Electrical SpecificatioElectrical Specification
n
n
nn
Two models are available:
• 120 VAC, +/- 10% at 47–63 Hz, maximum load 600 W
• 277 VAC, +/- 10% at 47–63 Hz, maximum load 600 W
Supported load types:
• Tungsten
• 2-wire Fluorescent
• LED
• Electronic low voltage transformer
Compliance
Compliance
Compliance
ComplianceCompliance
• cULus listed
• Conforms to UL 508 (Industrial Control Equipment), UL 916 (Energy
Management Equipment) and UL 2043 (Plenum rated)
• Certified to CSA C22.2 No. 14 (Industrial Control Equipment) and No.
205 (Signal Equipment)
Note:
Note:
Note:
Note:Note:
ETC does not support the use of the Phase-Adaptive
Dimmer with magnetic loads.
ETC Installation Guide
Phase-Adaptive Dimmer
Phase-Adaptive Dimmer Page 3 of 16 ETC
Prepare for Installati
Prepare for Installati
Prepare for Installati
Prepare for InstallatiPrepare for Installation
on
on
onon
The Phase-Adaptive Dimmer is designed for mounting directly to an
electrical junction box or panel (provided by others) at the electrical lighting
load, upstream of the load in the circuit.
DMX Control Wiring
DMX Control Wiring
DMX Control Wiring
DMX Control WiringDMX Control Wiring
The Phase-Adaptive Dimmer connects to a DMX512-A source (provided by
others) for control.
DMX wiring runs can be daisy chains of up to 32 devices with no Y’s or
loops. Each DMX daisy chain must be terminated for proper control
performance (see
Terminate DMX
Terminate DMX
Terminate DMX
Terminate DMXTerminate DMX
on
page
page
page
pagepage 5
5
5
55
).
ETC recommends using Belden 9729 (or approved equivalent) Class 2 wire.
Belden 1583A or equivalent Cat5, Cat5e, or Cat 6 UTP wire is also acceptable
when properly shielded or installed in grounded metal conduit and connected
using the Cat5 IDC termination kit (ETC part number 4100A1013). This
termination kit is not provided with the Phase-Adaptive Dimmer.
A voltage barrier installation box (part number 7187A1000) is available for
installations where DMX control wiring is installed in grounded metal
conduit. Contact ETC to purchase termination kits or voltage barrier
installation boxes if required.
The total combined length of a DMX wire run (using Belden 9729 or
equivalent) may not exceed 300 m (1,000 ft).
Note:
Note:
Note:
Note:Note:
If your installation requires Class 2 wiring to be
installed in separate conduit, a voltage barrier
installation box is available from ETC. Order ETC part
number 7187A1000.
Note:
Note:
Note:
Note:Note:
All control wiring should be installed and terminated
by a qualified installer and should follow standard
wiring installation practices.
Leave approximately 20 cm (8 in) of wiring available for
connection and to allow slack for future service needs
.
Note:
Note:
Note:
Note:Note:
For more information on DMX control wiring
requirements, see these and other Support Articles at
etcconnect.com:
• support.etcconnect.com/ETC/FAQ/DMX-512-Info
• support.etcconnect.com/ETC/FAQ/DMX_Over_Cat5
