Fantec MR-35HDC Bruksanvisning
Läs nedan 📖 manual på svenska för Fantec MR-35HDC (24 sidor) i kategorin Diskarray. Denna guide var användbar för 5 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/24
FANTEC
MR-35HDC
HARD DISK
COPYSTATION
USER MANUAL
Red=RAID
Blue=Dup
PO WE R
Co py
Co mpa re
Pr esc an
Er ase
RA ID0
RA ID1
BI G
JB OG
St art
Mu te
Re set
RA ID
DU P
MENU
1
MENU ............................................................................................................................ 1
1. Product Introduction .............................................................................................................. 2
2. Operation in RAID function ........................................................................................................ 3
3. NOTE 14
4. Features ............................................................................................................................... 14
5
6
7
8
9. Package contents ................................................................................................................... 22
2.1.1 JBOD MODE ...................................................................................................................... 6
2.1.2 BIG MODE .......................................................................................................................... 7
2.1.3 RAID0/FAST MODE ........................................................................................................... 8
2.1.4 RAID1/SAFE MODE ........................................................................................................... 9
2.1.5 Partitioning Volumes ......................................................................................................... 10
....................................................................................................................................
4.1 High speed external storage solution, USB2.0 480Mbps.................................................... 14
4.2 Serial ATA HDD .................................................................................................................... 15
4.3 Four Working Mode ......................................................................................................... 15
4.4 Support system Windows 2000/XP/VISTA & Mac os 9.0 or above version .............................. 17
4.5 System Expansion for Windows............................................................................................... 17
. Quick Start Operation in RAID Mode ....................................................................................... 19
. RAID1 Rebuild (data recovery ................................................................................................. 20
. Operation in DUP function ....................................................................................................... 21
. Quick Start Operation in Copy Mode....................................................................................... 22
22
8. Quick Start Operation in Copy Mode
9. Package contens

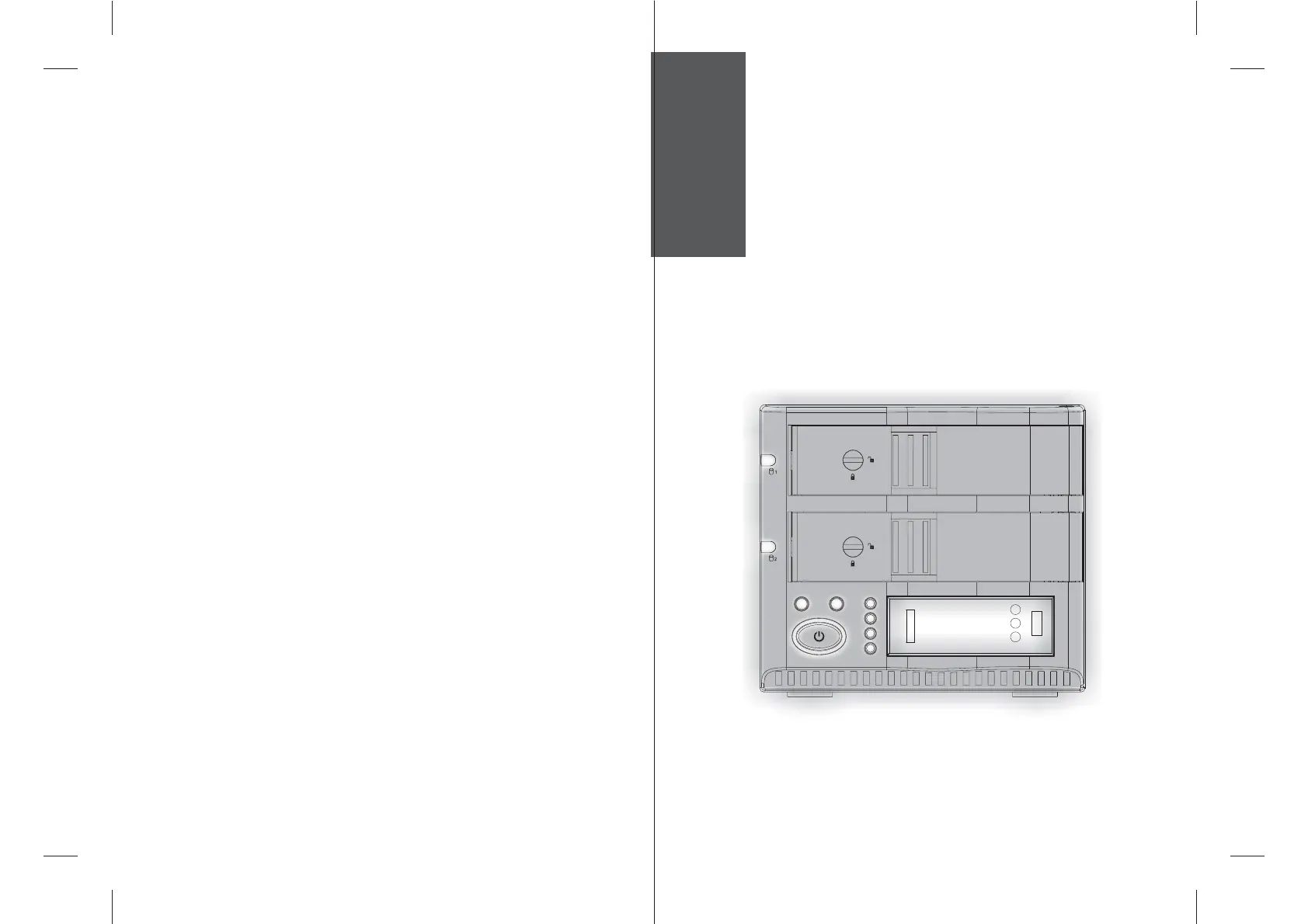

FANTEC MR-35HDC
User manual
AC Cable
USB 2.0 Cable
(1) Insert the Source-HDD in slot and2 Target-HDD into slot .1
The size of the “Target-HDD” be must equal or larger than the “Source-HDD”.
(2) Set the function switch to “DUP” (Duplicate) operation and mode switch to “Copy”.
(3) Connect the power cord.
(4) Push down the Power button.
(5) The front panel will display: Power LED On: Blue
Operation LED On: Blue
(6) The unit will detect HDD automatically and HDD status LED will red twinkle during this time. After the
detection has finished, the HDD status LED will become blue and mode LED will stay in green color.
The modes LED flashes according to your selected DUP mode.
For example, if you select “Copy”, LED next to “100%” will flash.
(7) Press the “Start” button for more than 2 seconds and a buzzer will beep for two times. Now the
system will start to run the selected mode. The progress will be displayed by the percent LEDs from 25%
to 100% and the HDD status LED will twinkle in purple color.
(8) When the work has finished, the percent LED will stay green at 100% and the buzzer will beep 2
times/sec for about 5-6 seconds. The HDD status LED will stay in blue color.
During DUP operation the USB interface of the unit is deactivated. Even if the USB cable is connected to
PCs USB interface, the unit will not be detected by PC.
Note:
Note:
Note:
