Finder 1C.71-7 Bruksanvisning
Läs nedan 📖 manual på svenska för Finder 1C.71-7 (6 sidor) i kategorin Termostat. Denna guide var användbar för 3 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/6
IB1C71 - 08/11
1C.71
www.findernet.com
TECHNICAL DATA
. . . . . . . . . . . . 1
DISPLAY LEGEND
. . . . . . . . . . . . 2
BASIC SETTINGS
. . . . . . . . .
. 3/4
MANUAL TEMPERATURE
SETTING
. . . . . . . . . . . . . . . . . . . . 5
SETTING THE 3
TEMPERATURE LEVELS
. . . . . . 6
PROGRAMMING
. . . . . . . . . . . . . 7
PARTY FUNCTION
. . . . . . . . . . . . 8
VACATION PROGRAM
. . . . . . . . 9
PROGRAM REVIEW AND
COPY PROGRAMMING
. . . . . . 10
FROST PROTECTION
FUNCTION . . . . . . . . . .
. . . . . . . 11
ADVANCED SETTINGS . . . . .
12/13
DISPLAY LOCK
. . . . . . . . . . . . . . 14
BATTERY
. . . . . . . . . . . . . . . . . . 15
fig. 1
fig. 2
N
L
fig. 3
Í
TOUCH SCREEN
WEEKLY PROGRAMMABLE
CHRONOTHERMOSTAT
IB1C71 - 08/11
Summer setting (cooling)
Winter setting (heating)
Heating ON
Cooling ON
Frost protection ON
Low battery
Unit of measurement
Temperature differential
Time display
Day of the week
24 hour time/temperature profile
21 3
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 2 3
1
2
3
4
5
6
7
T
T
88:88
ΔT PRG
PRG
OK
OFF
OFF
OK
°C
ΔT
Exit programming / step back
Lock or unlock the display
Manual over-ride / holiday program
Display / Setting the three temperature levels
Programming / setting time and date
Confirm
Off
Increase
Decrease
TECHNICAL DATA
POWER SUPPLY: 2 ALKALINE BATTERIES 1.5 V AAA
TEMPERATURE RANGE: (+5…+37)°C
FROST PROTECTION TEMPERATURE RANGE: (+2…+8)°C
TEMPERATURE DIFFERENTIAL: (0.1...0.9)°C selectable
MINIMUM PROGRAMMING INTERVAL: 1 hour
DEGREE OF PROTECTION: IP20
OUTPUT: RELAY
CONTACT RATING: 5 A 250 V AC
MOUNTING: TO THE WALL
INSTALLATION AND CONNECTIONS
SAFETY REQUIREMENTS: before connecting to this programmable
thermostat, makesure that the load (heater, pump, etc.) is not connected to
the supply and that the load is within the ratings shown inside the thermostat.
POSITIONING : install the programmable thermostat away from sources
of heat (heaters, direct sunlight, kitchens) and from doors/windows, at a
height of about 1.5 m above the floor.
ATTENTION
During the installation do not tighten the screws too strongly, or the
base may distort.
This could impair the functionality of the touch screen.
INSTALLATION
- Press to release the small catch with the aid of a screwdriver (fig.1).
- Fix the base to the wall.
- Connect the load to the terminals following the wiring diagram (fig.2).
ELECTRICAL CONNECTIONS (fig.2)
U= equipment load
C= common terminal
NO = normally open terminal
NC = normally closed terminal
ADDITIONAL NOTES
On inserting the batteries, the display briefly shows the installed
version of the software. When the display is locked, or when showing
the main screen, touching the touch screen will display the current time.
There are 3 audible alerts:
- : confirmation that key is pressedShort beep
- : confirmation that the information is saved3 long beeps
- Trill: error
CLEANING
For cleaning - use only a damp cloth.

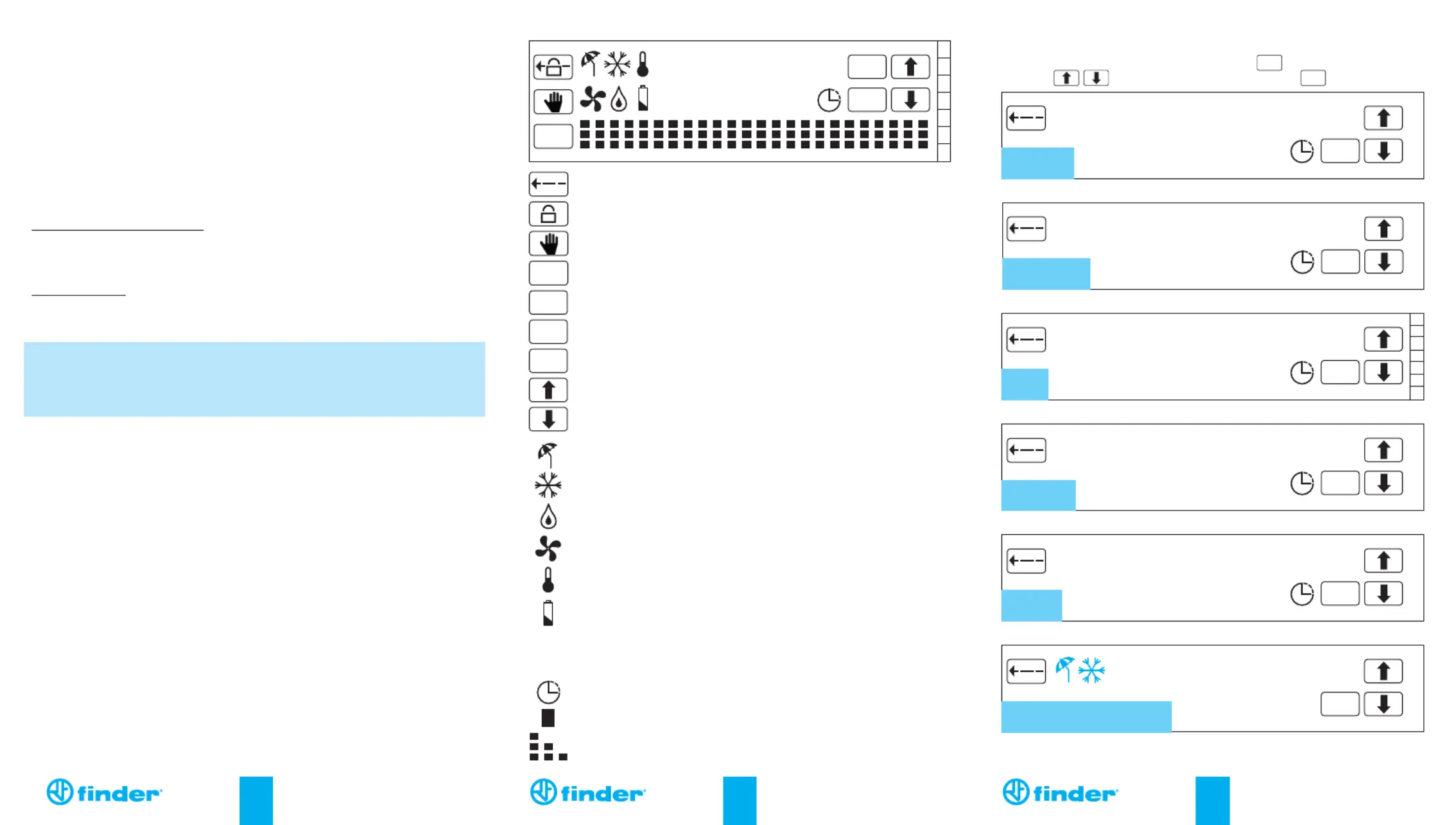

DISPLAY LEGEND
1
°C
012
BASIC SETTINGS
It is possible to set or change the parameters below, following the
insertion of the batteries, or after pressing key for >2 sec.
Use the keys to modify each value and to confirm.
PRG
OK
00:h
OK
10:00 OK
OK
10: y OK
12:AA OK
3 1: 8 OK 5
HOURS
MINUTES
DAY
MONTH
YEAR
SUMMER / WINTER
IB1C71 - 08/11
00:h
OK
Press , and the first level of temperature will flash. Set the desired
temperature using the keys. Touch again to confirm and
to pass to next level of temperature.
Modify and confirm in the same way to set the second and third level
temperatures.
NOTE: Level 1 will be the lowest temperature of the 3 levels (minimum
setting possible is 5C) - levels 2 and 3 being progressively higher.
T
T
Successive presses to the key toggles the thermostat between
Timed mode and Manual mode. On entering Manual mode the display
initially shows the manual set-temperature which, if required, can
be modified using the keys. If the keys are not
pressed, or 2 seconds after being pressed, the display will change
to the actual room temperature and the thermostat remains in the
manual mode.
NOTE
When the Manual mode is operational the screen does not display
the time/temperature profile and other icons associated with it.
54 6
20.8 °C
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
T
18.8
°C
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
T
20.3 °C
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
T
23.6 °C
MANUAL TEMPERATURE SETTING SETTING THE 3 TEMPERATURE LEVELS
10:00 OK
OK
If DAT 0 ADVENCED SETTINGS selected on menu, the display will
show the screens below:
Press finally to return to the main screen.
T
HOURS
MINUTES
SUMMER / WINTER
OK
DAY NUMBER
NOTE
In the Dat 0 mode the DAY/MONTH/YEAR settings are replaced by a
single setting (DAY SETTING) which allows the number assigned to
the current day to be changed, using the keys.
This allows for example, day 1 to refer to Sunday, and not Monday.
3
