USER MANUAL

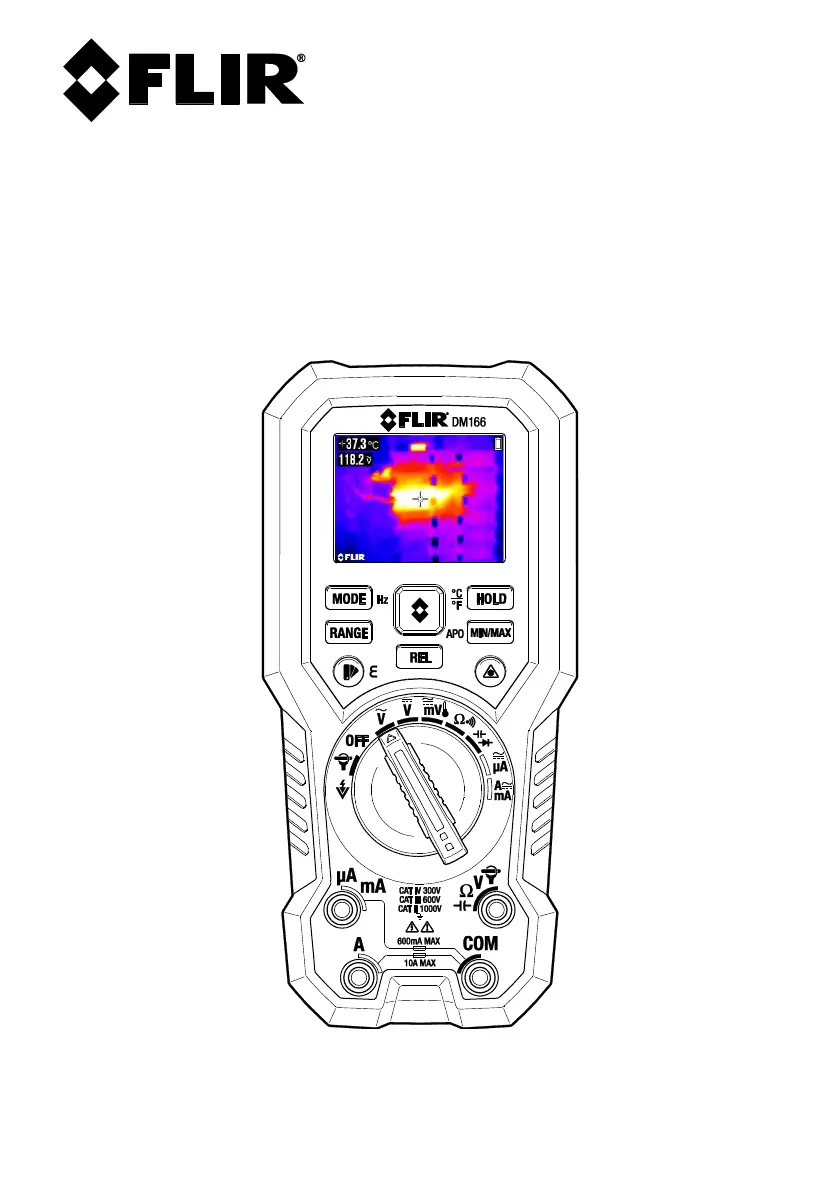

FLIR MODEL DM 166
Thermal Imaging Digital MulMeter with IGMTM
FLIR DM166 USER MANUAL Document Identier: DM166- - _AA en US
2
Table of Contents
1. ADVISORIES 4
1.1 Copyright 4
1.2 Quality Assurance 4
1.3 Documentaon 4
1.4 Disposal of Electronic Waste 4
2. SAFETY 5
3. INTRODUCTION 7
3.1 Key Features 7
4. METER DESCRIPTION AND REFERENCE GUIDE 8
4.1 Front and Back Meter Descripons 8
4.2 Funcon Switch Posions 9
4.3 Funcon Buons 10
4.3.1 MODE/Hz Buon Sequence of Operaons 10
4.4 Display Icons and Status Indicators 11
5. METER POWER 12
5.1 Powering the Meter 12
5.2 Intelligent Auto Power OFF (APO) 12
6. MULTIMETER OPERATION 13
6.1 Auto/Manual Range Modes 13
6.2 Probe Connecon Alert 13
6.3 Out of Range Warning (OL) 14
6.4 Data (Display) Hold 14
6.5 MIN-MAX-AVG Mode 14
6.6 Relave Mode 14
6.7 Test Lead Holder Accessory 14
6.8 Voltage (AC/DC), VFD, and Frequency (Hz) Measurements 15
6.9 Non-Contact Voltage Detector 16
6.10 Resistance Measurements 17
6.11 Connuity Test 18
6.12 Diode Test 18
6.13 Capacitance Measurements 19
6.14 Type K Temperature Measurements 20
6.15 Current and Frequency Measurements (A, mA, µA) 20
6.15.1 Test Lead Current Measurements (A, mA, and µA) 20
FLIR DM166 USER MANUAL Document Identier: DM166- - _AA en US
3
6.15.2 FLEX Clamp Adaptor Current and Frequency Measurements 22
7. IGMTM THERMAL IMAGER OPERATION 23
7.1 IGMTM (Infrared Guided Measurements) Basics 23
7.1.1 Thermal Image Display Descripon (refer to Fig. 7-1 for the list below) 23
7.1.2 Thermal Imager Operaon 23
7.2 Using the Mulmeter in the IGMTM mode 25
7.3 Emissivity Factors for Common Materials 25
7.4 Infrared Energy and Thermal Imaging Overview 26
8. MAINTENANCE 27
8.1 Cleaning and Storage 27
8.2 Baery Replacement 27
8.3 Fuse Replacement 27
8.4 Disposal of Electronic Waste 27
9. SPECIFICATIONS 28
9.1 General specicaons 28
9.2 Thermal Imaging Specicaons 30
9.3 Electrical Specicaons 30
10. TECHNICAL SUPPORT 34
11. WARRANTIES 35
