Sida 1/32

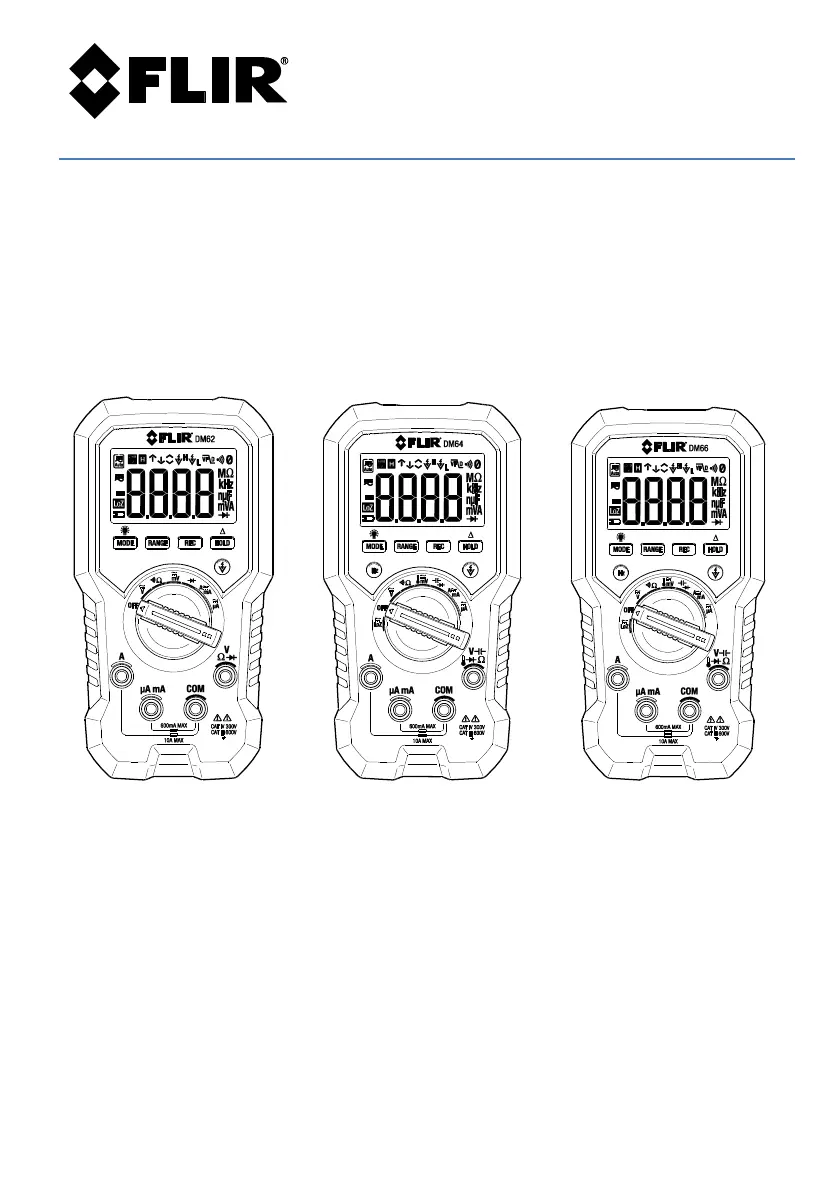

USER MANUAL
True RMS Digital MulMeter Series
Models DM62, DM64, and DM66
FLIR DM6x USER MANUAL cument Idener: DM6x- - _AB Do en US
2
Table of Contents
1. ADVISORIES 4
1.1 Copyright 4
1.2 Quality Assurance 4
1.3 Documentaon 4
1.4 Disposal of Electronic Waste 4
2. SAFETY 5
3. INTRODUCTION 7
4. METER AND DISPLAY DESCRIPTIONS 8
4.1 Front and Back Meter Descripons 8
4.2 Rotary Funcon Selector 9
4.3 Control Buons 9
4.4 Display Descripon 10
5. BASIC OPERATION AND FEATURES 11
5.1 Powering the Meter 11
5.2 Intelligent Auto Power OFF (APO) 11
5.3 LCD Backlight 11
5.4 Auto/Manual Range Mode 11
5.5 True RMS Response 11
5.6 Crest Factor 11
5.7 Out- -range Warning (O.L) of 11
5.8 Data Hold 12
5.9 Relave Zero Mode 12
5.10 VFD Mode (Low Pass Filter) Models DM64/DM66 only 12
5.11 MAX- -AVG Record Mode MIN 12
5.12 Test Lead Input Warning 12
5.13 Auto Voltage AC/DC Detecon in ‘Lo Z’ mode (DM64/DM66 only) 12
6. MEASUREMENTS 13
6.1 AC/DC Voltage Measurements (VFD and Frequency on DM64/DM66) 13
6.2 Low Impedance (Lo Z) Auto-Voltage Measurements (DM64/66 only) 14
6.3 Line Frequency Measurements (DM64/DM66 only) 15
6.4 Resistance and Connuity Measurements 16
6.5 Capacitance (DM64/DM66) and Diode Measurements 17
6.6 AC/DC mV and Temperature (DM64/DM66) Measurements 19
FLIR DM6x USER MANUAL cument Idener: DM6x- - _AB Do en US
3
6.7 A, mA, A Current Measurements with Frequency (DM64/DM66) 21
6.8 NCV (Non-Contact Voltage) Detecon 22
7. MAINTENANCE 23
7.1 Cleaning and Storage 23
7.2 Baery and Fuse Replacement 23
7.3 Disposal of Electronic Waste 23
8. SPECIFICATIONS 24
8.1 General specicaons 24
8.2 Electrical Specicaons 25
9. TECHNICAL SUPPORT 29
10. THREE-YEAR LIMITED WARRANTY 30
