BC500
Universal Mains-Power Adapter
Instruction Sheet
Introduction

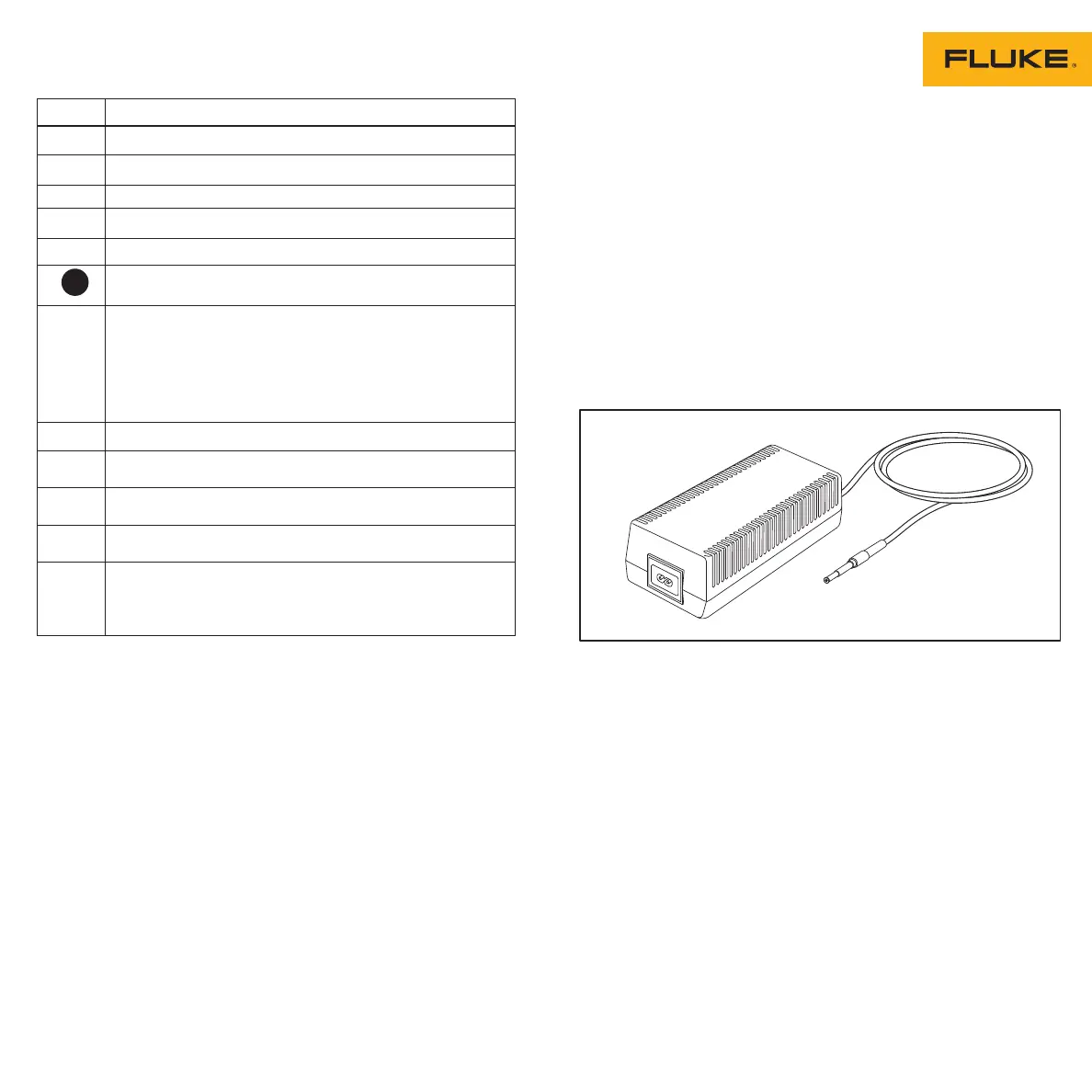

The BC500 is a universal mains-power adapter (the Adapter or Product)
for measurement, control, and laboratory equipment. The Adapter is
intended for operating and charging the Fluke BT500-Series Battery
Testers. The Adapter is based on the switched-mode concept for high
efciency and low stand-by power consumption, and complies with
level-VI requirements. It operates in a wide range of input voltages from
100 Vac up to 240 Vac nominal.
A mains cord is included to make the Adapter suitable for most types of
mains outlet.
How to Contact Fluke
To contact Fluke, call one of the following telephone numbers:
• Technical Support USA: 1-800-44-FLUKE (1-800-443-5853)
• Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-5853)
• Canada: 1-800-36-FLUKE (1-800-363-5853)
• Europe: +31 402-675-200
• Japan: +81-3-6714-3114
• Singapore: +65-6799-5566
• China: 400 921 0835
• Anywhere in the world: +1-425-446-5500
Or, visit Fluke’s website at www.uke.com.
To register your product, visit http://register.uke.com.
To view, print, or download the latest manual supplement, visit
http://us.uke.com/usen/support/manuals.
PN 4862400
January 2017
© 2017 Fluke Corporation. All rights reserved. Product
specications are subject to change without notice.
Symbols
International electrical symbols used on the Product and in this document
are explained below.
Symbol Description
WARNING - RISK OF DANGER. Consult user documentation.
WARNING. HAZARDOUS VOLTAGE. Risk of electric shock.
DC (Direct Current)
Double Insulated
Conforms to European Union directives.
VI
Energy Efciency Level VI
This product complies with the WEEE Directive marking
requirements. The afxed label indicates that you must not discard
this electrical/electronic product in domestic household waste.
Product Category: With reference to the equipment types in the
WEEE Directive Annex I, this product is classed as category 9
“Monitoring and Control Instrumentation” product. Do not dispose of
this product as unsorted municipal waste.
Conforms to relevant South Korean EMC Standards.
Certied by ETL Intertek to North American safety standards.
Conforms to relevant Australian Safety and EMC standards.
Conforms to relevant Safety standards in Japan
10 year Environment Friendly Use Period (EFUP) under China
Regulation - Administrative Measure on the Control of Pollution
Caused by Electronic Information Products. This is the period of time
before any of the identied hazardous substances are likely to leak
out, causing possible harm to health and the environment.
LIMITED WARRANTY AND LIMITATION OF LIABILITY
This Fluke product will be free from defects in material and workmanship
for one year from the date of purchase. This warranty does not cover
fuses, disposable batteries, or damage from accident, neglect, misuse,
alteration, contamination, or abnormal conditions of operation or
handling. Resellers are not authorized to extend any other warranty on
Fluke’s behalf. To obtain service during the warranty period, contact your
nearest Fluke authorized service center to obtain return authorization
information, then send the product to that Service Center with a
description of the problem.
THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER
WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR PURPOSE,
ARE EXPRESSED OR IMPLIED. FLUKE IS NOT LIABLE FOR ANY
SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES
OR LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some
states or countries do not allow the exclusion or limitation of an implied
warranty or of incidental or consequential damages, this limitation of
liability may not apply to you.
Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
U.S.A.
Fluke Europe B.V
P.O. Box 1186
5602 BD Eindhoven
The Netherlands
11/99
Safety Information
A Warning identies conditions and procedures that are dangerous to the
user.
 Warning
To prevent electrical shock, re, or personal injury:
• Read these instructions carefully before using the Product.
• Use the Product only with Fluke test tools that have the type
number ‘BC500’ specied for charge and operation.
• Use this Product only as specied.
• Do not open the Product, it has no user-serviceable parts inside.
• Do not use the Product around explosive gas, vapor, or in damp or
wet environments.
• Use this Product indoors only.
• Examine the case before you use the Product. Look for cracks or
missing plastic. Carefully look at the cable jacket and insulation
around the terminals.
• Use only the mains power cord and connector approved for the
voltage and plug conguration in your country and rated for the
Product.
• Replace the mains power cord if the insulation is damaged or if the
insulation shows signs of wear.
• Do not use the Product if it is altered or damaged.
Unpack
The Adapter includes these items:
• BC500 Switch Mode Power Adapter (main unit) with dc cable
• 2-wire mains cords with male and female connector
At delivery of the Adapter, make sure that the shipment is complete and all
items are undamaged. Contact your supplier if you see any damage.
Operation
The power cord connects the Adapter to the mains system. Do not block
access to the power cord and power plug, these must remain accessible to
the user at all times.
The Adapter is not equipped with a power switch. Disconnect the mains
plug from the mains system when not in use.
In case the Adapter is damaged or any damage is suspected, disconnect
from the mains system and have qualied service personnel inspect the
Adapter before reconnecting to the mains system again.
To use:
1. Connect the mains cord to the Adapter.
2. Connect the power plug to the mains system.
3. Connect the dc plug to the test tool.
For continuous operation and recording with the test tool, keep the power
adapter connected.
Note
Always fully charge the test tool battery before storage.
Specications
Input
Nominal input voltage 100 Vac to 240 Vac, ±10 %
................
Input current 0.35 A at max. load
...............................
Nominal input frequency ............50 Hz to 60 Hz ±5 %
Mains inlet IEC 60320-1 type C8
..................................
Input power, no load................... <0.1 W (@ 115 / 230 Vac)
Output
Output voltage............................ 18 Vdc ±5 %
Output current 0 mA to 840 mA
............................
Output cable length 2 m (6.5 ft)
....................
Output connector 5.5 mm outer diameter, per DIN45232
.......................
Output polarity............................ Inner contact positive, outer contact negative
Physical characteristics
Dimensions of main unit............. 79 mm x 149 mm x 49 mm
Housing material ........................
Heat resistant ABS
Color (housing and cable) Black
..........
Weight 0.35 kg
........................................
Ingress Protection IEC 60529, IP40
......................
Environmental
Operating temperature 0 °C to 50 °C, up to 90 % rel. humidity, no
...............
condensation
Storage temperature -40 °C to +70 °C, 10 % to 95 % rel. humidity
..................
Max. altitude............................... 2000 m (6562 ft) above sea-level
Included accessories
Power cord 2-wire cord, with female connector acc.
.................................
IEC60320 style C7
Mains cord length....................... 1.8 m (6 ft), male to female
Safety .............................................
IEC 61010-1, IEC 61010-2-030: CAT IV 600 V,
Pollution Degree 2
Electromagnetic
Compatibility (EMC) .....................
IEC 61326-1: Industrial Electromagnetic
Environment
CISPR 11: Group 1, Class A
Group 1: Equipment has intentionally generated and/or use conductively
coupled radio-frequency energy which is necessary for the internal
functioning of the equipment itself.
Class A: Equipment is suitable for use in all establishments other than
domestic and those directly connected to a low voltage power supply
network which supplies buildings used for domestic purposes. There may
be potential difculties in ensuring electromagnetic compatibility in other
environments, due to conducted and radiated disturbances.
Caution: This equipment is not intended for use in residential environments
and may not provide adequate protection to radio reception in such
environments.
Korea (KCC) Class A Equipment (Industrial Broadcasting &
..........................
Communication Equipment)
Class A: Equipment meets requirements for industrial electromagnetic
wave equipment and the seller or user should take notice of it. This
equipment is intended for use in business environments and not to be used
in homes.
