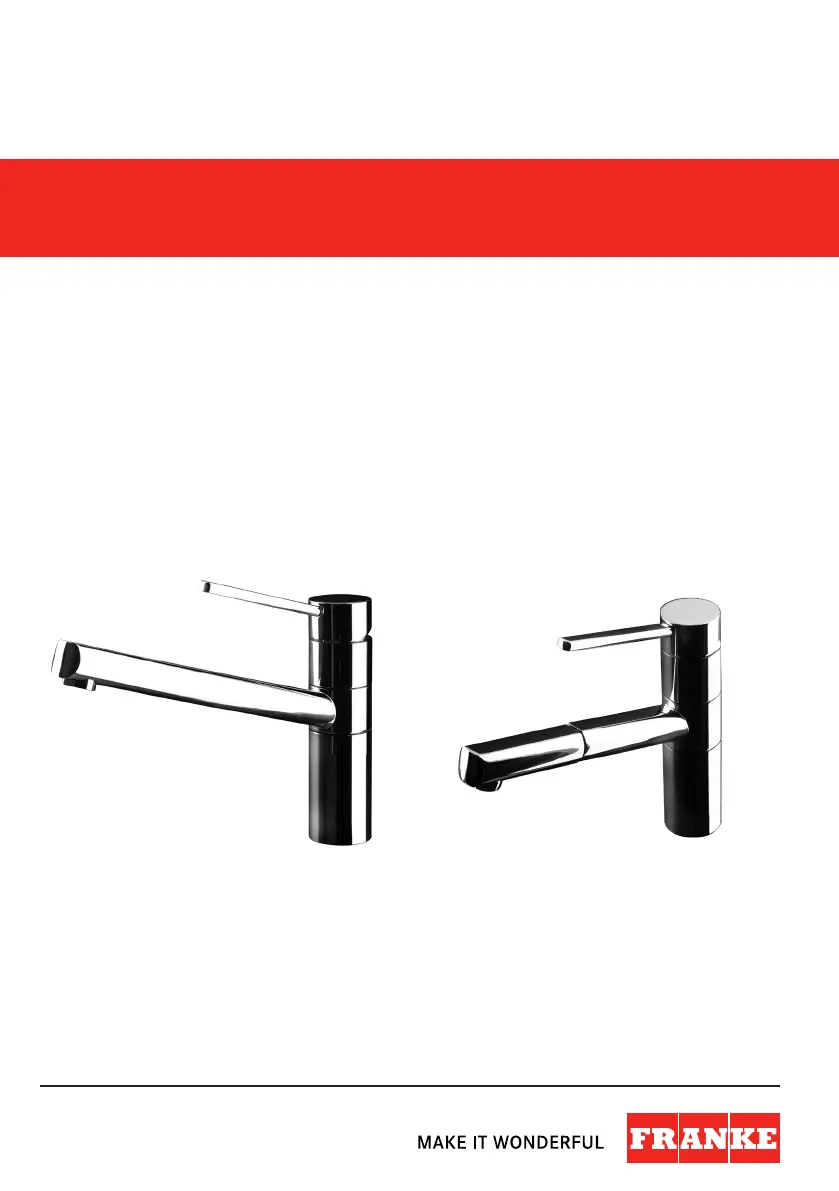

FRANKE OZONE
TA 6850 (Swivel) Chrome Tap & TA 6851 (Pull-Out) Chrome Tap
FRANKE USER INSTRUCTION AND GUARANTEE FOR MIXERS
PRE-INSTALLATION INFORMATION
BEFORE INSTALLATION AND SETTING TO WORK
Attention! The feeding pipes have to be rinsed thoroughly before the installation of the mixer, so that no
shavings, welding or hemp residual or other dirt can be found in the pipes. Foreign bodies can enter the
mixer through the rinsed pipes or the general water plant and could damage the washers/ring washers.
In order to guarantee a long use of the product, install the angle valve equipped with filter and clean them
regularly. Before the setting to work, unscrew the aerator and rinse it very well.
TECHNICAL DATA
-Minimum working pressure 0,5 bar
-Maximum working pressure 5 bar
- Recommended working pressure 3 bar (in case of water pressure higher than 5 bar it is recommended to
install pressure reducers)
7
DIRECTIONS FOR ASSEMBLY, USE AND MAINTENANCE
Assembling instructions for the single-lever mixer (Fig 1-2-3)
Before inserting the single lever group in the hole of the sink, make sure that the base gasket is properly positioned
in its seat and that the exible hoses are well tightened to the body of the tap.
Place the single lever group in the hole of the sink, orienting the spout toward the sink tank. Insert the fixing kit with
the indicated sequence, and respectively:
· the shaped gasket and ange in case the single lever group is installed on a sink having thickness of 3-4 cm;
· the shaped gasket, the triangular plastic ange and the ange in case of a stainless steel sink having thickness
of 1-2 mm.
Tighten well the tie rod or the threaded nut. In case the tap is a single lever group with extractable shower, connect
the exible hose to the outlet pipe interposing the gasket. Fix the lead counterweight to the exible hose at a
distance of approx. 400 mm from the connection to the outlet pipe, tighten the shower to the hose interposing the
gasket and confirm the hose can slide smoothly through the passage hole. Proceed connecting the exible hoses
to the plumbing.
Cartridge replacement (Fig 4)
Before carrying out this operation make sure that water supply is turned off.
Unscrew the fastening screw (A) using an Allen key, remove the handle (B) from the cartridge (F). Lift the finishing
ring nut (C) using the reference notch (as shown in the figure). Remove the indicator ring (D), unscrew the fixing
ring nut (E) and take the cartridge (F) out from the mixer body (G). Put the new cartridge into the body checking
that the two centering pins enter into the respective seats and that gaskets are well positioned.
