Sida 1/8

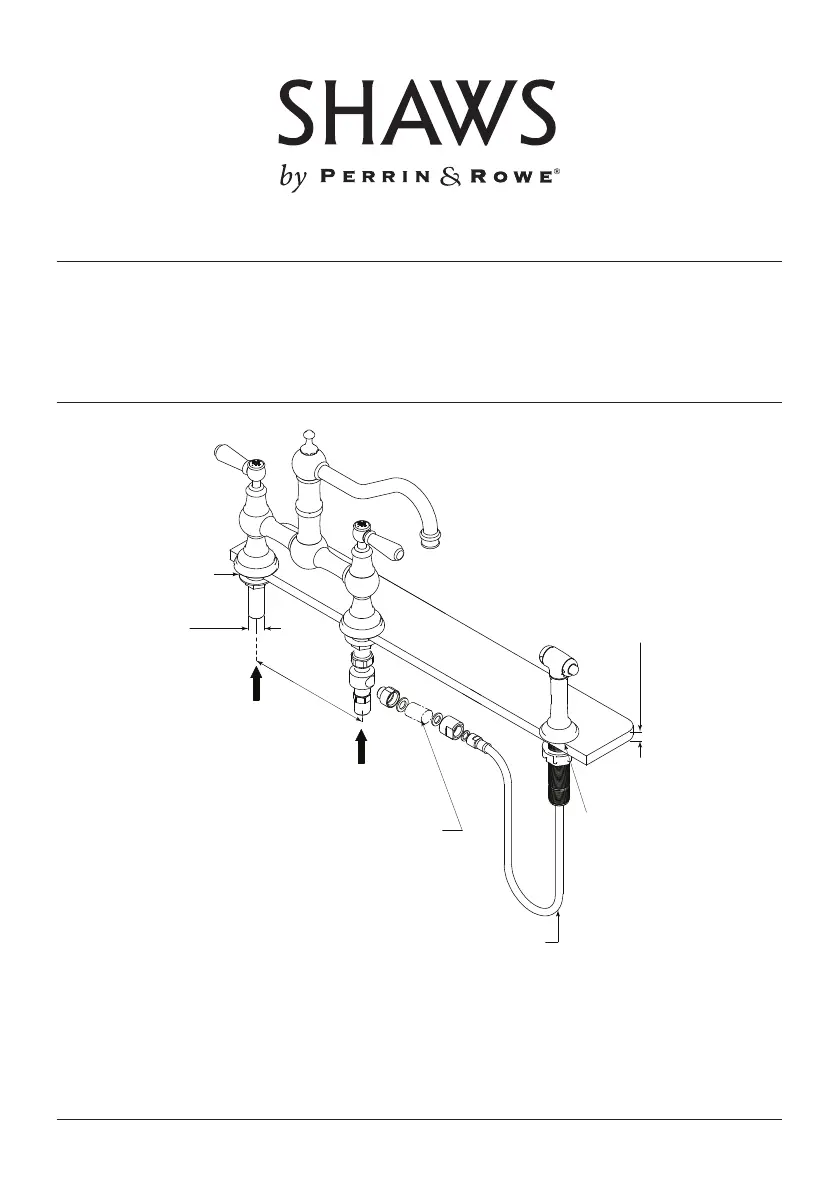

COLD
IN
HOT
IN
mm
hole
G 1/2”
centres
G 1/2” to suit
dual check valve
Con-Serv DCCFF
Hose Length mm
mm
Hole
mm max
Hambleton
AUSH.4751 - BRIDGE MIXER
AUSH.4756 - BRIDGE MIXER WITH SPRAY RINSE
Please Note: This model does not suit incoming water pressure
below 100kPa or higher than 500kPa. The spray rinse model requires
a minimum inlet pressure of 100kPa to successfully divert the water
flow from the main tap to the spray rinse. The stop cocks provided
with this tap contain gauze filters. Please ensure your plumber is
advised of the minimum and maximum water pressure, and to install
the stop cocks as failure to do so voids the tap warranty.
Temperature Range Min 1°C. Max 70°C
Working Pressure Min 100kPa (14.5psi). Max 500kPa (72.5psi)
Flow Rates AUSH.4751
Bar: L/min
Bar: L/min
Bar: L/min
AUSH.4756
Bar: L/min
Bar: L/min
Bar: L/min
Ideal performance obtained with equal hot & cold pressures.
I M P OR T E R S & D I S T RI B UT OR S O F F I N E K I T C H E N A ND B AT H R O O M WA R E
6 | French Avenue, Brendale QLD 4500 | aftersales@luxebydesign.com.au | www.luxebydesign.com.au
Rinse
Black rubber
washer
Rinse unit
socket
Shank
Brass tube
Rinse connector
G 1/2”
Dual check valve
Con-Serv DC055CFF
Flexible
hose
Hambleton | INSTALLATION AND USER GUIDE
1
Ensure the mixer is oriented correctly, levers should
rotate to point forward and the hot index should be
situated on the left.
x mm holes with 200mm hole centres are
required to mount the bridge mixer. For spray rinse
models, an additional mm hole, located to the right
hand side of the tap is also required for the spray rinse
unit. Maximum counter top thickness is 40mm.
Secure the mixer with a suitable tap wrench or a 26 AF
spanner.
The kitchen tap with rinse is supplied with a brass tube
protruding out of the bottom of the shank. Please
be careful not to damage the end of this tube during
installation.
If your mixer has a rinse, please follow steps 2, 3 & 4 to
install correctly, otherwise please connect the hot &
cold water supplies to the shanks.
Ensure all connections are firmly tightened.
3Ensure the black rubber washers are situated inside positions A,
B, C, F and E on the rinse connector, including the double check
non-return valve as shown in the diagram.
Screw the rinse connector onto the end of the flexible hose.
Ensure the connection is firmly tightened.
4IMPORTANT: Do not cut brass tube.
Carefully feed the rinse connector over the protruding
brass tube and secure tightly onto the shank.
Ensure the black rubber washer is in place before securing
the rinse to the flexible hose.
Holding the rinse, screw the flexible hose onto the end of
the rinse and place the rinse into the rinse unit socket. Make
sure the orientation of the rinse is correct.
Connect hot & cold water supplies to the shanks.
Ensure all connections are firmly tightened.
Please note: Ceramic disc valves are fitted as standard
to this mixer. Flow from fully off to fully on is achieved by
rotating the handles a quarter turn.
2
Secure the rinse unit socket in a suitable position using a tap
wrench of a 36 AF spanner.
Place the flexible hose through the top of the rinse unit socket as
shown in the diagram.
LUXEBYDESIGN.COM.AU
ø30mm
Hole
WORK SURFACE
Base seal
Rinse unit
socket
Fibre washer
Backnut
Flexible hose
WORK SURFACE
Rinse
connector
Dual
check
valve
A
E
B
C
D
G 3/8”
BEFORE USE Carefully check the installation for leaks
If further building work is being carried out in the vicinity, cover the product to avoid damaging the finish.
Please ensure the installation complies with the water supply by-laws.
Base ring
WORK SURFACE
ømm
hole
Base seal
Fibre washer
Backnut
G 1/2”G 1/2”
Congratulations on the purchase of your Shaws by Perrin & Rowe kitchen product. Correctly installed and with sensible care,
this product will give you many years of trouble-free service.
INSTALLATION REQUIREMENTS
Perrin & Rowe tapware must be installed by a Licensed Plumber in accordance with the installation instructions provided, best
trade practices and must comply to local plumbing regulations in your area. Incorrect installation may damage your tap and
could invalidate your warranty.
Where the inlet water pressure exceeds 500kpa, pressure limiting valves must be installed.
In-line gauze filters must be fitted in the incoming water supply lines.
Prior to installation, it is important to flush all incoming water lines thoroughly. Failure to do so may result in issues caused
by debris in the water supply such as bits of metal or plastic, dirt, sand, rust, silt, and other unwanted materials. Any
problems that arise as a result of inadequate flushing may not be covered by the warranty.
Please take care of this product before, during and after installation as accidental damage to the tap finish is not covered
by the warranty. Please wear gloves when handling 'living finish' models. If further work is to be carried out in the vicinity of
the product, please cover it to protect from paint, plaster, adhesives, sealants and cleaning products.
For ease of possible future servicing, we recommend the fitting of conveniently placed isolating valves.
Once unpacked, remove fixing nuts, clamp plate, fibre washer and plastic backnut from tap assembly, ready for installation.
DISTRIBUTED IN AUSTRALIA BY LUXE BY DESIGN AFTERSALES@LUXEBYDESIGNCOMAU
