INSTALLATION INSTRUCTIONS
FRONT CONTROL FREESTANDING ELECTRIC RANGE
IMPORTANT SAFETY INSTRUCTIONS
If the information in this manual is not followed
exactly, a re or electrical shock may result causing property
damage, personal injury or death.
Important Notes to the Installer:
Read all instructions contained in these installation
instructions before installing range.
Remove all packing material from the oven
compartments before connecting the gas & electrical
supply to the range.
Observe all governing codes and ordinances.
Be sure to leave these instructions with the consumer.
Important Notes to the Consumer:
Keep these instructions with your owner’s guide for future
reference.
As when using any appliance generating heat, there
are certain safety precautions you should follow. These
are listed in the Use & Care Guide, read it carefully.
Be sure your range is installed and grounded properly
by a qualied installer or service technician.
Make sure the wall coverings around the range can
withstand the heat generated by the range.
To eliminate the need to reach over the surface
elements, cabinet storage space above the elements
should be avoided.

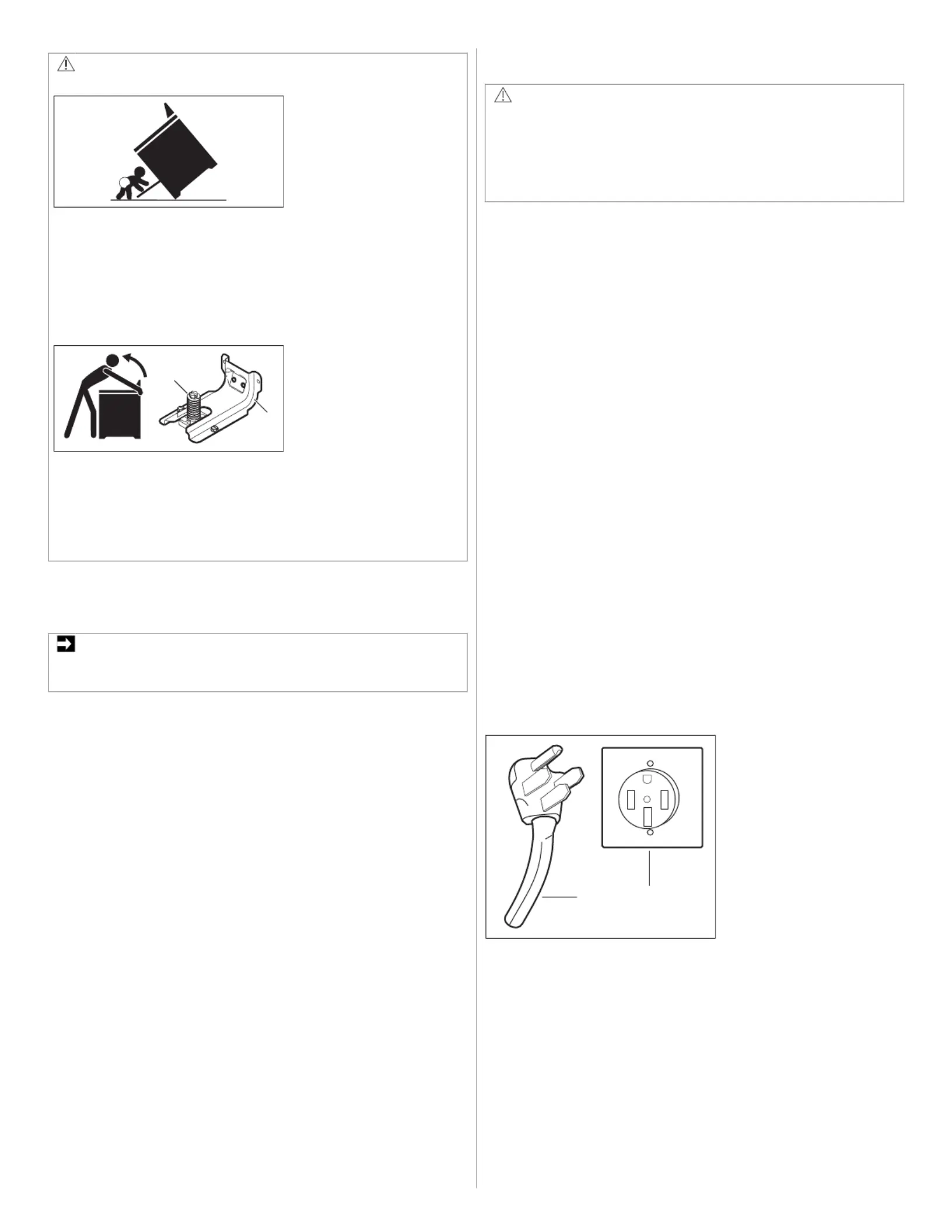

Tip Over Hazard
Range
leveling leg Anti-tip
br tacke
• A child or adult can tip the
range and be killed.
• Verify the anti-tip device has
been installed to floor or wall.
• Ensure the anti-tip device is re-engaged to floor
or wall when the range is moved.
• Do not operate the range without the anti-tip
device in place and engaged.
• Failure to follow these instructions can result in
death or serious burns to children and adults.
To check if the anti-tip bracket is installed properly, use
both arms to grasp the rear edge of the range back.
Carefully attempt to tilt range forward. When properly
installed, the range should not tilt forward.
Refer to the anti-tip br acket installation instructions
supplied with your range for proper installation.
809127106 REV B (10/2023)
English - 1-8
Español - 9-16
Français - 17-24
INSTALLATION AND SERVICE MUST BE
PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not
store or use gasoline or other ammable
vapors and liquids in the vicinity of this or
any other appliance.
United States Canada
Printed in USA
Impreso en EE. UU.
Imprimé aux États-Unis
2
30” ELECTRIC FRONT CONTROL FREESTANDING INSTALLATION INSTRUCTIONS
1. Clearances and Dimensions
a. Provide adequate clearances between the range and adjacent combustible surfaces.
b. Location—Check location where the range will be installed. Check for proper electrical supply and the stability of oor.
c. Dimensions that are shown must be used. Given dimensions provide minimum clearance. Contact surface must be
solid and level.
*30" (762 mm) MINIMUM CLEARANCE BETWEEN THE
TOP OF THE COOKING SURFACE AND THE BOTTOM
OF AN UNPROTECTED WOOD OR METAL CABINET;
OR 24" (610 mm) MINIMUM WHEN BOTTOM OF WOOD
OR METAL CABINET IS PROTECTED BY NOT LESS
THAN 1/4" (6 mm) FLAME RETARDANT MILLBOARD
COVERED WITH NOT LESS THAN NO. 28 MSG SHEET
STEEL, 0.015" (0.4 mm) STAINLESS STEEL, 0.024"
(0.6 mm) ALUMINUM OR 0.020" (0.5 mm) COPPER.
0" (0 mm) CLEARANCE IS THE MINIMUM FOR THE
REAR OF THE RANGE. FOLLOW ALL DIMENSION
REQUIREMENTS PROVIDED ABOVE TO PREVENT
PROPERTY DAMAGE, POTENTIAL FIRE HAZARD, AND
INCORRECT COUNTERTOP AND CABINET CUTS.
TO ELIMINATE THE RISK OF BURNS OR FIRE BY
REACHING OVER HEATED SURFACE UNITS, CABINET
STORAGE SPACE LOCATED ABOVE THE SURFACE
UNITS SHOULD BE AVOIDED. IF CABINET STORAGE
IS TO BE PROVIDED, THE RISK CAN BE REDUCED
BY INSTALLING A RANGE HOOD THAT PROJECTS
HORIZONTALLY A MINIMUM OF 5" (127 mm) BEYOND
THE BOTTOM OF THE CABINETS.
Fig. 2
F
Fig. 3
1” 30” Minimum*
Minimum to
wall on either
side of range
above 36” height.
36”
18”
Minimum to
cabinets on
either side
of range
25” Max.
13”
Maximum depth
for cabinets
above range top.
0” clearance below cooking top and at rear of ran
ge
Typical cabinet installationFront
view
Side
view
30”
Minimum
30” Minimum
26"
Door Open -
47
5/16”
35 ± 3/8” Min
36 ± 3/8” Max
30"
Fig. 1
30"
11"
71/2"
4"
6"
2
1/2"
3"18"
10"
6"9"
4"
11"
3
30” ELECTRIC FRONT CONTROL FREESTANDING INSTALLATION INSTRUCTIONS
2. Tools You Will Need
3. Anti-Tip Bracket Installation
Instructions
To reduce the risk of tipping of the range,
the range should be secured to the oor by properly
installed anti-tip bracket and screws packed with the
range. Failure to install the anti-tip bracket will allow the
range to tip over if excessive weight is placed on an open
door or if a child climbs upon it. Serious injury might result
from spilled hot liquids or from the range itself.
If range is ever moved to a di󰀨erent location, the anti-tip
brackets must also be moved and installed with the range.
Instructions are provided for installation in wood or cement
fastened to either the oor or wall. When installed to the
wall, make sure that screws completely penetrate dry wall
and are secured in wood or metal. When fastening to the
oor or wall, be sure that screws do not penetrate electrical
wiring or plumbing.
A. Locate the Bracket Using the Template - (Bracket may
be located on either the left or right side of the range.
Use the information below to locate the bracket if
template is not available). Mark the oor or wall where
left or right side of the range will be located. If rear of
range is against the wall or no further than 1-13/16"
(46 mm) from wall when installed, you may use the
wall or oor mount method. If molding is installed and
does not allow the bracket to t ush against the wall,
remove molding or mount bracket to the oor. For wall
mount, locate the bracket by placing the back edge of
the template against the rear wall and the side edge
of template on the mark made referencing the side of
the range. Place bracket on top of template and mark
location of the screw holes in wall.
For leveling legs and Anti-Tip Bracket:
• Adjustable wrench or channel lock
pliers
• 5/16" Nutdriver or Flat Head
Screwdriver
• Electric Drill & 1/8" Diameter
Drill Bit (Masonry Drill Bit if
installing in concrete)
• Level & Measuring Tape
For electrical supply connection:
• 1/4" & 3/8" Socket driver or Nutdriver
Additional Materials You Will Need:
• Power Supply Cord or
• Copper Electrical Wiring & Metal
Conduit (for hard wiring)
If rear of range is further than 1-13/16” (46 mm) from
the wall when installed, attach bracket to the oor. For
oor mount, locate the bracket by placing back edge
of the template where the rear of the range will be
located. Mark the location of the screw holes, shown
in template.
B. Drill Pilot Holes and Fasten Bracket - Drill a 1/8”
(3 mm) pilot hole where screws are to be located. If
bracket is to be mounted to the wall, drill pilot hole at
an approximate 20° downward angle. If bracket is to
be mounted to masonry or ceramic oors, drill a 5/32”
(4 mm) pilot hole 1-3/4” (44 mm) deep. The screws
provided may be used in wood or concrete material.
Use a 5/16” (8 mm) nut-driver or at head screwdriver
to secure the bracket in place.
Fig. 4
Fig. 5
Fig. 6
(45.6 mm)
1-13/16” Max.
(45.6 mm)
More than
1-13/16”
