Sida 1/5
Installation
Instructions
Built-in Trim Kit
Models # FMTK3027AS FMTK3027AD FMTK3027AB
FMTK3027AW FMTK2727AS FMTK2727AB
BEFORE YOU BEGIN
• IMPORTANT – Save these instructions
for local inspector's use.
• IMPORTANT – Observe all governing
codes and coordinates.
• Note to Installer – Be sure to leave
these instructions with the Consumer.
• Note to Consumer – Keep these
instructions for future reference.
• Skill level - Installation of this appliance
requires basic mechanical and electrical
skills
Read these instructions completely and carefully.
• Proper installation is the responsibility of the
installer.
• Product failure due to improper installation is
not covered under the Warranty.
• Unplug the microwave oven before
attempting installation of this kit.
• Because the kit includes metal parts, caution
should be used in handling and installation to
avoid the possibility of injury.
• Do not remove permanently affixed labels,
warnings, or plates from the product. This
may void the warranty.
FOR YOUR SAFETY:
WARNING – Before beginning the installation,
switch power off at service panel and lock the
service disconnecting means to prevent power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag, to
the service panel.
IMPORTANT - PLEASE READ
AND FOLLOW
THIS BUILT-IN KIT IS DESIGNED FOR USE
ONLY WITH MICROWAVE
OVENS SPECIFYING BUILT-IN KIT

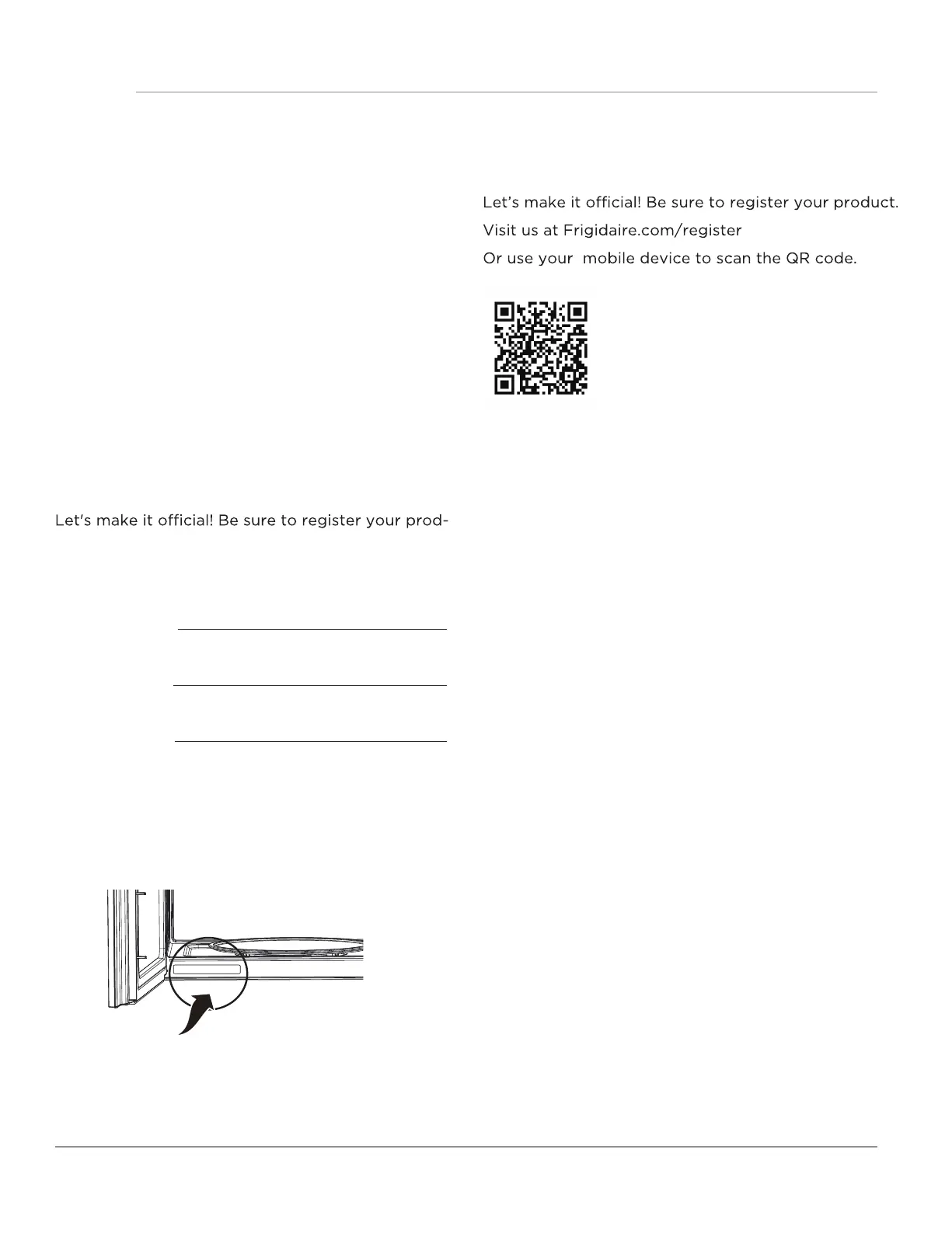

FMTK3027AS D B/W/ / OR
FMTK2727AS B W/ / ON THE RATING LABEL ON THE
LEFT SIDE WALL OF THE MICROWAVE OVEN
CAVITY.
QUESTIONS?
For customers in the United States call:1-1800-944-9044
For customers in Canada call: 1-800-265-8352 (English)
1-800-668-4606 ext.8199 (French)
Visit our Website at: www.frigidaire.com
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
PN: A06823523
EN-1
April 2024
FMTK2727AW
FRIGIDAIRE
IMPORTANT:
Before installing the exhaust duct, confirm the floor is level.
The level bubble should be equal distance from level guide
lines.
16170000A84905
Installation Instructions
PARTS INCLUDED IN THE KIT
1. Front Frame Assembly- QTY 1
2. Exhaust Duct - QTY 1
Mounting
Rail – QTY 2
3. Screw A - QTY 11
4. Screw B - QTY 4
CHOOSING A LOCATION FOR
YOUR MICROWAVE OVEN IF
BUILT-IN
Built-In Trim Kit allows for the installation of microwaves
listed below to be built into a cabinet or wall by itself or
over an electric wall oven*.
See Illustration 2 for proper location and when building
above a wall oven. Carefully follow both the wall oven
installation instructions and Electrolux’s Built-in Kit
instructions. If building over a wall oven, be sure the
clearance between the wall oven and the microwave
oven is a minimum of 3 inches.
*NOTE: Trim Kit and microwave can only be built-in
over an electric self-clean or non-self-cleaning
single cavity wall oven.
CABINET OR WALL CUTOUT
Cutout Dimensions
Illustration 1
Bottom Mounting
Rail
Front Frame Assembly
Exhaust Duct
EN-2
Bottom
27”
Height 18 1/8 (460 mm)
W thid 26 15/16 (684 mm)
Depth
Trim Kit Overall Dimensions
30”
1 9/16 (40 mm)
18 1/8 (460 mm)
29 15/16 (759 mm)
1 9/16 (40 mm)
Illustration 2
3"Min
Heigh (A) t
Minimum
x um Ma im
17 (432 m)” m
171/4” (438 mm)
Width (B)
Minimum
x um Ma im
24 3/4” (6 mm) 29
25 (635 m) ” m
Depth (C)
Minimum 20 (508 m)” m
(3.9X8.0 mm)
(4.0X20 mm)
Model Number Color Descripon
FMBS2227AB/FMBS227BB Black Microwave
FMTK3027AS 30'' trim kitSS
FMTK3027AD
FMTK3027AB 30'' trim kit
FMTK3027AW 30'' trim kit
FMTK2727AS 27'' trim kitSS
FMTK2727AB 27'' trim kit
FMTK2727AW 27'' trim kit
Black SS 30'' trim kit
Black
White
Black
White
EN-3
Installation Instructions
Illustration
ELECTRICAL OUTLET LOCATION
Outlet should NOT be in the shaded area as indicated
on Illustration 3
NOTE 1:
The floor of the opening should be constructed of
plywood strong enough to support the weight of the
oven and floor load (approximately 100 pounds). The
floor should be level for proper operation of the oven. Be
sure to check the local building code as it may require
that the opening be enclosed with side, ceiling and rear
partition. The proper functioning of the oven does not
require the enclosure.
Illustration
EXHAUST DUCT ASSEMBLY
1. Draw a Central Line on floor. Place the Exhaust
Duct in the opening When the Exhaust Duct
Assembly is in the opening correctly, the Center
Line is in the middle of the Exhaust Duct
Assembly. See Illustration 4.
2. Secure the Exhaust Duct Assembly with the
three screws A.
IMPORTANT: Secure screws in outer hole.
3 screws are needed for exhaust duct assembly
Screw A
Center Line
IMPORTANT:
Before installing the exhaust duct, confirm the floor is level.
The level bubble should be equal distance from level guide
lines.
3 4
,
