INSTALLATION INSTRUCTIONS
30" ELECTRIC DROP-IN RANGE
P/N 318201627 (1202) Rev. A
English – pages 1-10
Español – páginas 11-20Printed in Canada
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Table of Contents
Important Safety Instructions ........................................... 2
Cutout Dimensions ....................................................... 3-4
Electrical Requirements .................................................... 5
Electrical Connection .................................................... 5-6
Serial Plate Location ......................................................... 6
Range Installation ............................................................ 7
Anti-tip Bracket Installation ........................................... 8-9
Check Operation ............................................................ 10
Model and Serial Number Location ................................ 10
Before you call for Service .............................................. 10
Important Notes to the Installer
1. Read all instructions contained in these installation
instructions before installing range.
2. Remove all packing material from the oven and the
drawer compartments before connecting the electrical
supply to the range.
3. Observe all governing codes and ordinances.
4. Be sure to leave these instructions with the consumer.
Important Note to the Consumer
Keep these instructions with your owner's guide for future
reference.
FOR YOUR SAFETY: Do not store or use gasoline
or other flammable vapors and liquids in the vicinity of this or
any other appliance.
United States
2

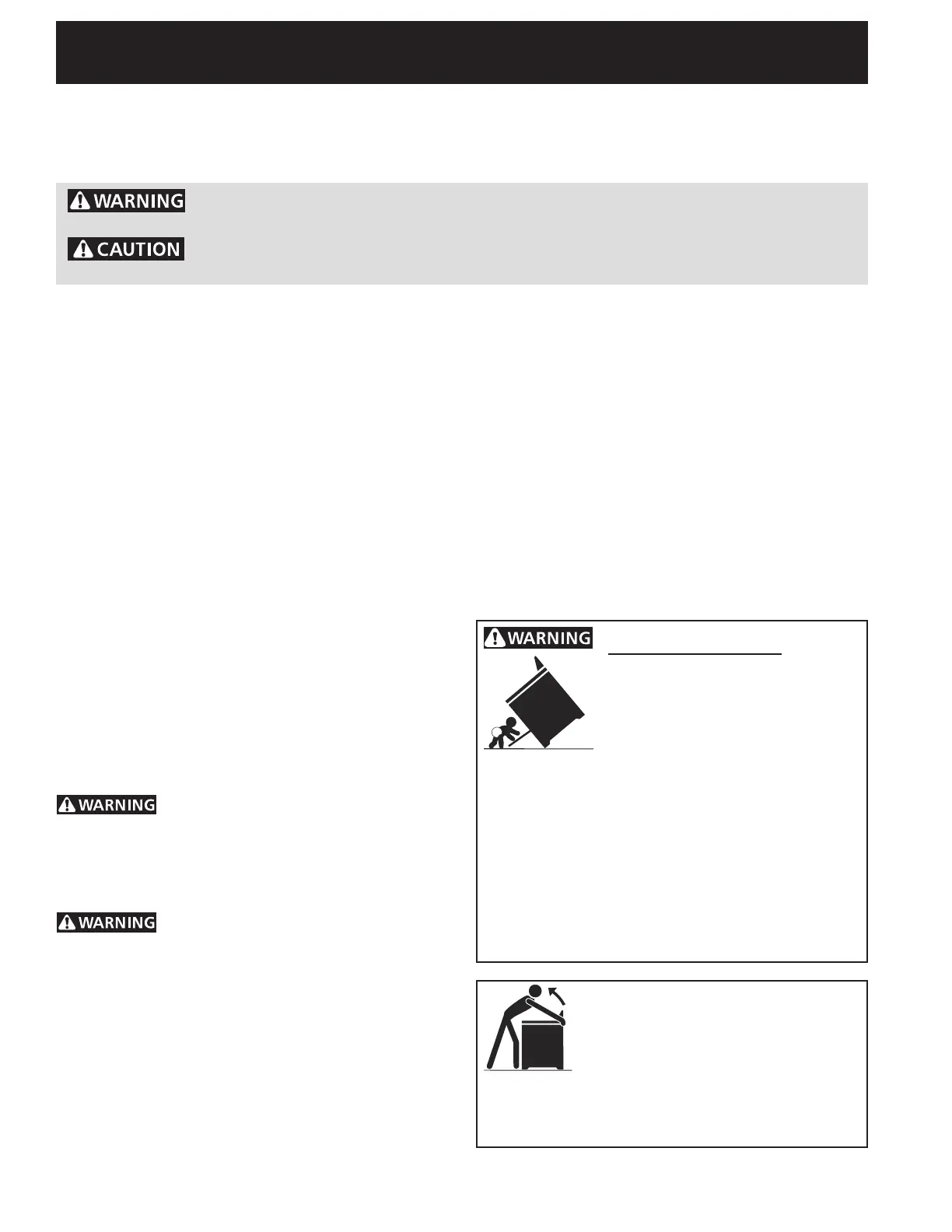

30" ELECTRIC DROP-IN RANGE INSTALLATION INSTRUCTIONS
This manual contains important safety symbols and instructions. Please pay attention to these
symbols and follow all instructions given.
This symbol will help alert you to situations that may cause serious bodily harm,
death or property damage.
This symbol will help alert you to situations that may cause bodily injury or
property damage.
IMPORTANT SAFETY INSTRUCTIONS
• Be sure your range is installed and grounded properly
by a qualified installer or service technician.
•This range must be electrically grounded in
accordance with local codes or, in their absence,
with the National Electrical Code ANSI/NFPA No.
70—latest edition.
•Theinstallationofappliancesdesignedfor
manufactured (mobile) home installation must conform
with Manufactured Home Construction and Safety
Standard, title 24CFR, part 3280 [Formerly the Federal
Standard for Mobile Home Construction and Safety,
title 24, HUD (part 280)] or when such standard
is not applicable, the Standard for Manufactured
Home Installation 1982 (Manufactured Home Sites,
Communities and Setups), ANSI Z225.1/NFPA 501A-
latest edition, or with local codes.
•Make sure the wall coverings around the range
can withstand the heat generated by the range.
•Before installing the range in an area covered
with linoleum or any other synthetic floor
covering, make sure the floor covering can
withstand heat at least 90°F above room
temperature without shrinking, warping or
discoloring. Do not install the range over carpeting
unless you place an insulating pad or sheet of 1/4"
thick plywood between the range and carpeting.
Never leave children alone or
unattended in the area where an appliance is in
use. As children grow, teach them the proper, safe use
of all appliances. Never leave the oven door open when
the range is unattended.
Stepping, leaning or sitting on the
door of this range can result in serious injuries and
can also cause damage to the range.
•Do not store items of interest to children in
the cabinets above the range. Children could be
seriously burned climbing on the range to reach items.
•To eliminate the risk of burns or fire by reaching
over heated surface units, cabinet storage
space above the surface unit should be avoided.
If cabinet storage is to be provided the risk can
be reduce by installing a range hood that project
horizontally a minimum of 5 inches beyond the bottom
of the cabinet.
• ThisDo not use the oven as a storage space.
creates a potentially hazardous situation.
•Never use your range for warming or heating the
room. Prolonged use of the range without adequate
ventilation can be dangerous.
•Do not store or use gasoline or other flammable
vapors and liquids near this or any other
appliance. Explosions or fires could result.
•Reset all controls to the "off" position after using
a programmable timing operation.
FOR MODELS WITH SELF-CLEAN FEATURE:
• Remove broiler pan, food and other utensils before
self-cleaning the oven. Wipe up excess spillage. Follow
the pre cleaning instructions in the Use and Care Guide.
A child or adult can tip the •
range and be killed.
Verify the rear bracket is •
engaged with countertop or
the anti-tip device has been
installed to the walls of the
Tip Over Hazard
cabinet as per installation instructions.
Ensure the anti-tip bracket is re-engaged with •
the countertop or to the cabinet side walls as
per the installation instructions when the range
is moved.
Do not operate the range without the anti-tip •
device in place and engaged.
Failure to follow these instructions can result in •
death or serious burns to children and adults.
To check if the anti-tip bracket is
installed properly, use both arms
and grasp the rear edge of range
back. Carefully attempt to tilt range
forward. When properly installed, the
range should not tilt forward.
Refer to the anti-tip bracket installation instructions
supplied with your range for proper installation.
3

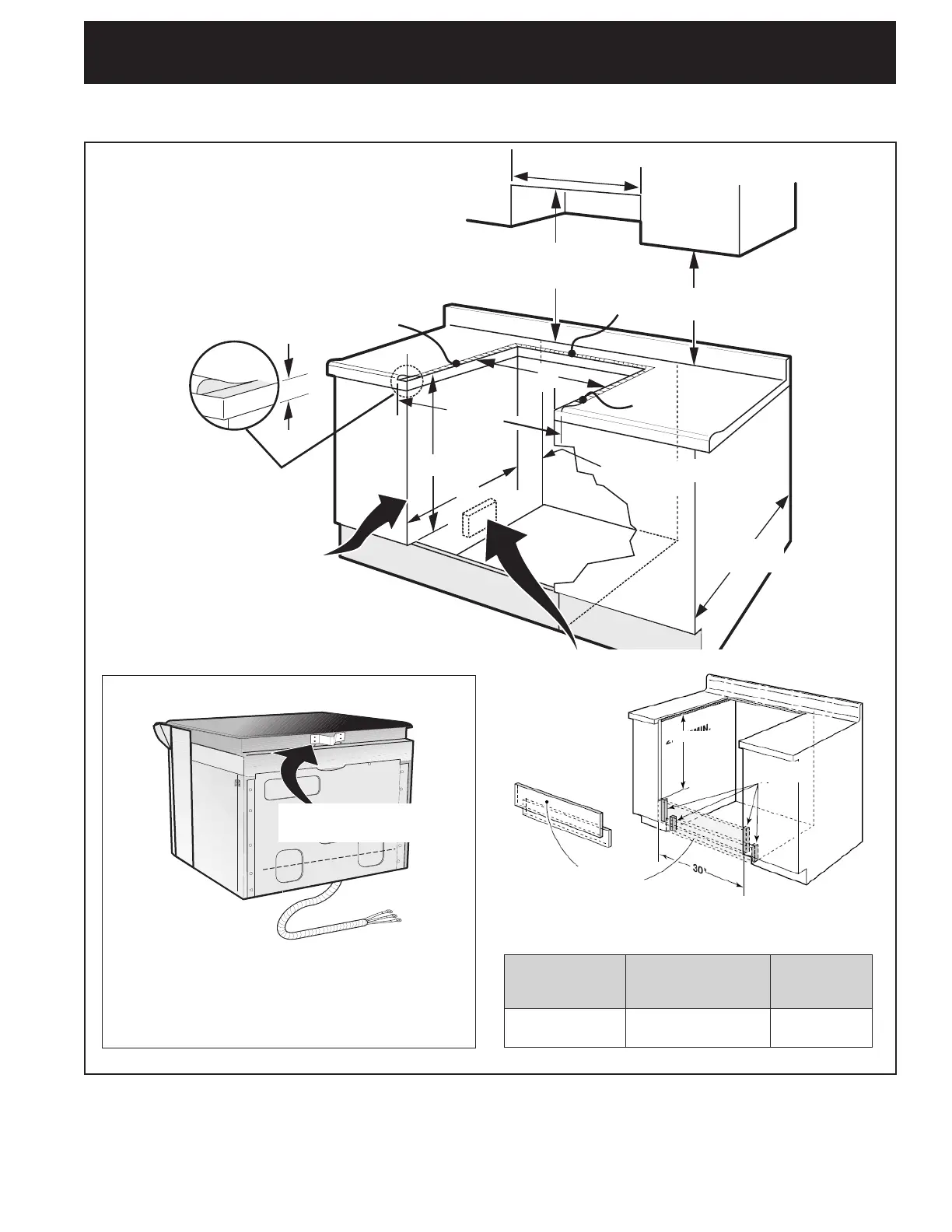

30" ELECTRIC DROP-IN RANGE INSTALLATION INSTRUCTIONS
A
C
B
1/2” min.
1/2” min.
1/4” min.
24" Min.
(61 cm Min.)
18" Min.
(45.7 cm Min.)
30" Min.
(76.2 cm Min.)
See Note 3
30"
(76.2cm)
Locate Cabinet Doors
1" (2.5 cm) Min.
from Cutout Opening
Shave Raised Edge
to Clear Space for a
31½" (81 cm) Wide
Cooktop Rim.
1½" Max.
(3.8 cm) Max.
31½"
(81 cm)
Exact
App. 1-7/8"
(4.8 cm)
These surfaces should be flat &
leveled (hatched area).
Smoothtop Models
NOTE:Twosetsofholesareprovidedunderanti-
tip bracket. Bracket is attached in the upper hole
position at the factory. Refer also to page 6, item 9
for additional details.
48" (122 cm)
Armored Cable
ANTI-TIP BRACKET
AT REAR OF RANGE
A. Cutout Width
(Countertop and
cabinet)
B. Cutout Depth
(According to front of
cabinet)
C. Height of
Cutout
30 ± 1/16"
(76.2 ± 0.15 cm)
21 3/4" (55.2 cm) min
22 1/8" (56.2 cm) max
29" (73.7 cm)
27½" Min.
Front Filler
Support
Front Cabinet Filler
(If required)
Grounded Junction Box in
adjoining Cabinet
Cutout Dimensions
