RGB LED Fresnel with 6.5 in. Lens
LF-RGB-65
RGB LED Fresnel with 6.5 In. Lens - USER MANUAL
1
THANK YOU FOR CHOOSING GENARAY
The Genaray LF-RGB-65 boasts a large 6.5-inch Fresnel lens
to focus its spot-to-flood beam from 25° to 60° for ideal key,
fill, and accent light applications. With a peak intensity of nearly
20,000 lux, this light is perfect for photos, videos, theaters, and
houses of worship. It offers a full-spectrum RGB light and a color
temperature range of 2800 to 6500 K. Accurate color temperature
and green/magenta shift adjustment allows this fixture to
conform to natural or artificial ambient lighting conditions as
well as other light fixtures on the set. Multiple operating modes
help you get the most out of this versatile light, and programmed
effects add realistic and dramatic looks to any scene.
The LF-RGB-65 runs on AC power and is operated by its
simple control panel. It can also be operated via DMX 512
protocols, and DMX input and output ports allow for daisy-
chaining and using this light with a DMX universe.
· Please read and follow these instructions, and keep this manual in a safe place.
· Keep this unit away from water and any flammable gases or liquids.
· Make sure the unit is powered off when plugging it into a power source.
· Use only the correct, recommended voltage.
· Do not attempt to disassemble or repair the equipment—doing so will void the
warranty, and Genaray will not be responsible for any damage.
· Handle the unit with care.
· Do not stare directly at the lights when they are powered on.
· Always use a steel safety cable (not included) when suspending a light fixture or
other assembly.
· Clean the unit with only a soft, dry cloth.
· Images are for illustrative purposes only.
PRECAUTIONS

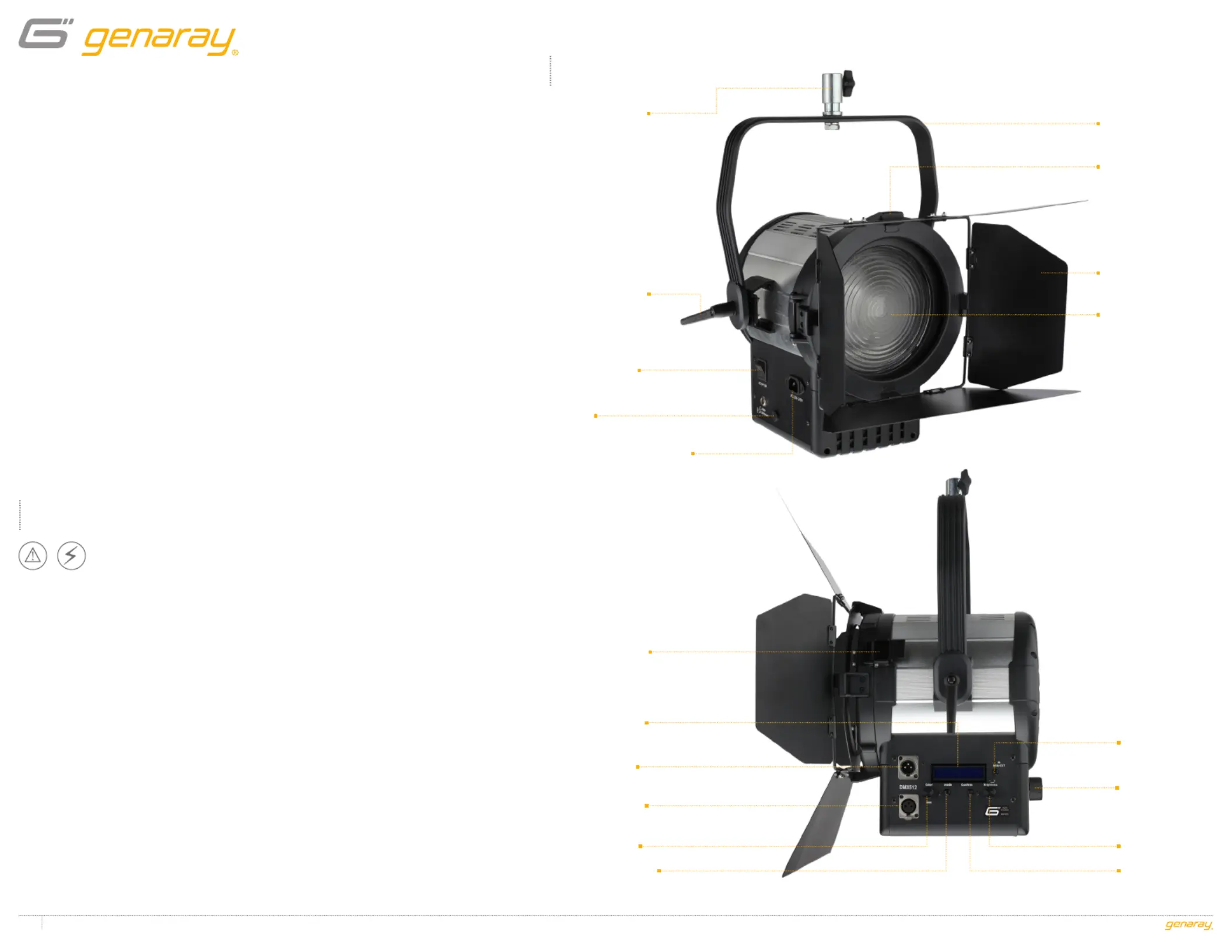

OVERVIEW
Color knob
Mode selector Confirm button
Dimmer knob
RGB/CCT selector
DMX output
DMX input
Fresnel lock
Locking handle
LCD display
Yoke
4-way barndoors
6.5 in. Fresnel lens
Focusing knob
5/8 in. receiver
3-prong AC power input
Fuse
Power switch
Barndoor clip
RGB LED Fresnel with 6.5 In. Lens - USER MANUAL
2

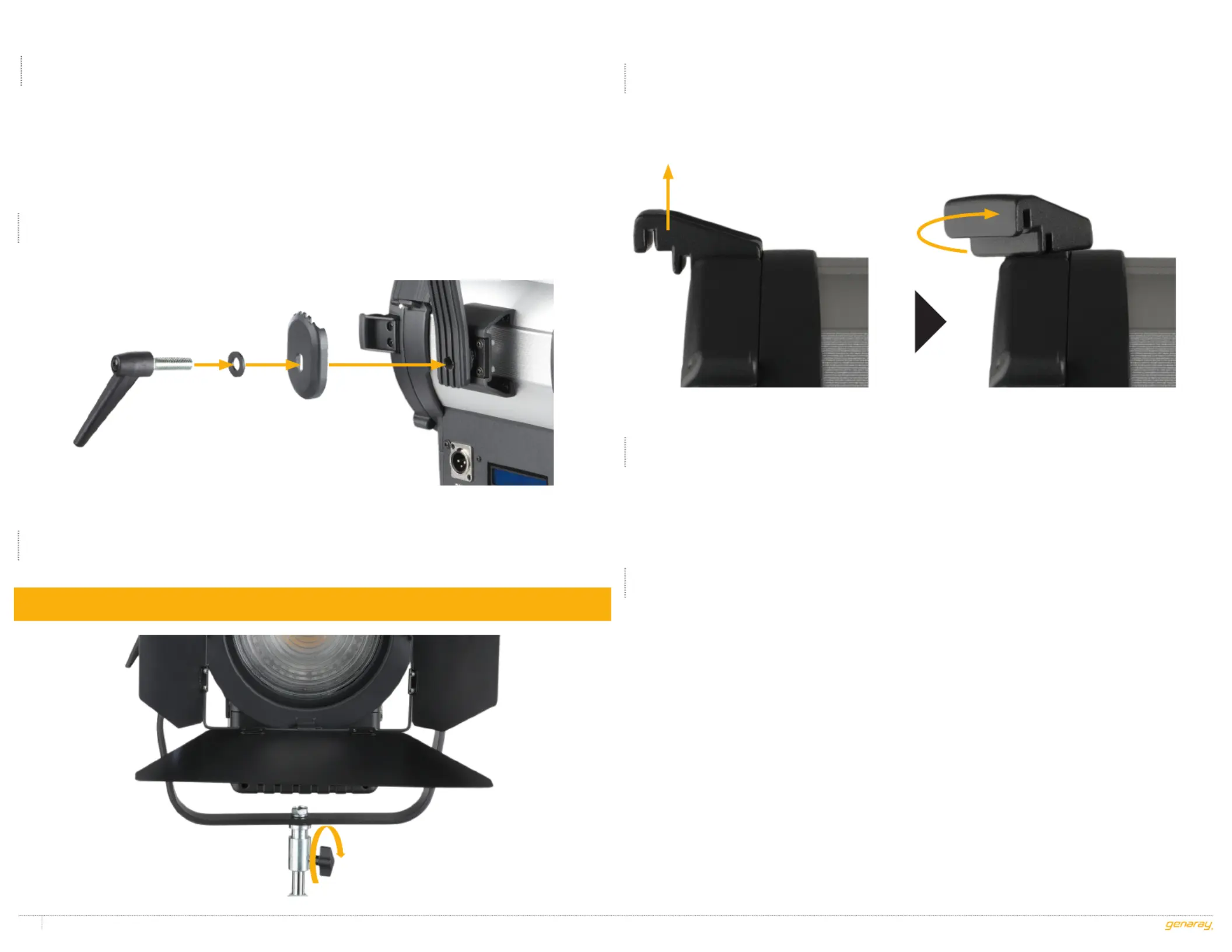

MOUNTING THE LF-RGB-65
ATTACHING THE YOKE
ATTACHING THE BARNDOORS
POWERING THE LF-RGB-65
Mount the LF-RBG-65 on any heavy-duty light stand with a 5/8-inch baby pin, and turn the locking knob until secure.
Important!
When suspending the fixture from a ceiling mount or boom arm, using a safety cable is recommended.
Use the brake plates, washers, and locking handles to attach the yoke to the LF-RBG-65
Lift the barndoor clip and turn it to the side. Then slide the barndoors into the outer slots.
Raise the barndoor clip and turn it so the slot fits onto the barndoors, and press it down to lock the barndoors in place.
Once the barndoors are attached, rotate them to the desired orientation.
The LF-RGB-65 runs only on AC power. Connect the power cable to the power input socket and a power source, such as a
wall outlet.
The LF-RGB-65 is a multivoltage fixture capable of running on 110–240 V, 50/60 Hz. The included cable has a 120 V, 50 Hz
(North American) plug. To use this fixture with other voltages, you must use a plug adapter (sold separately).
FOCUSING THE FRESNEL
Turn the Focusing knob on the back panel of the light to lengthen or shorten the focal length between the LED display and
the lens.
The light has a focusing range of 25° to 65°.
CONTENTS INCLUDE
· RGB LED Fresnel
· 4-way Barndoors
· Yoke
· Brake plate (×2)
· Washers (×2)
· Ratchet handles (×2)
· AC power cord
· QuickStart guide
RGB LED Fresnel with 6.5 In. Lens - USER MANUAL
3

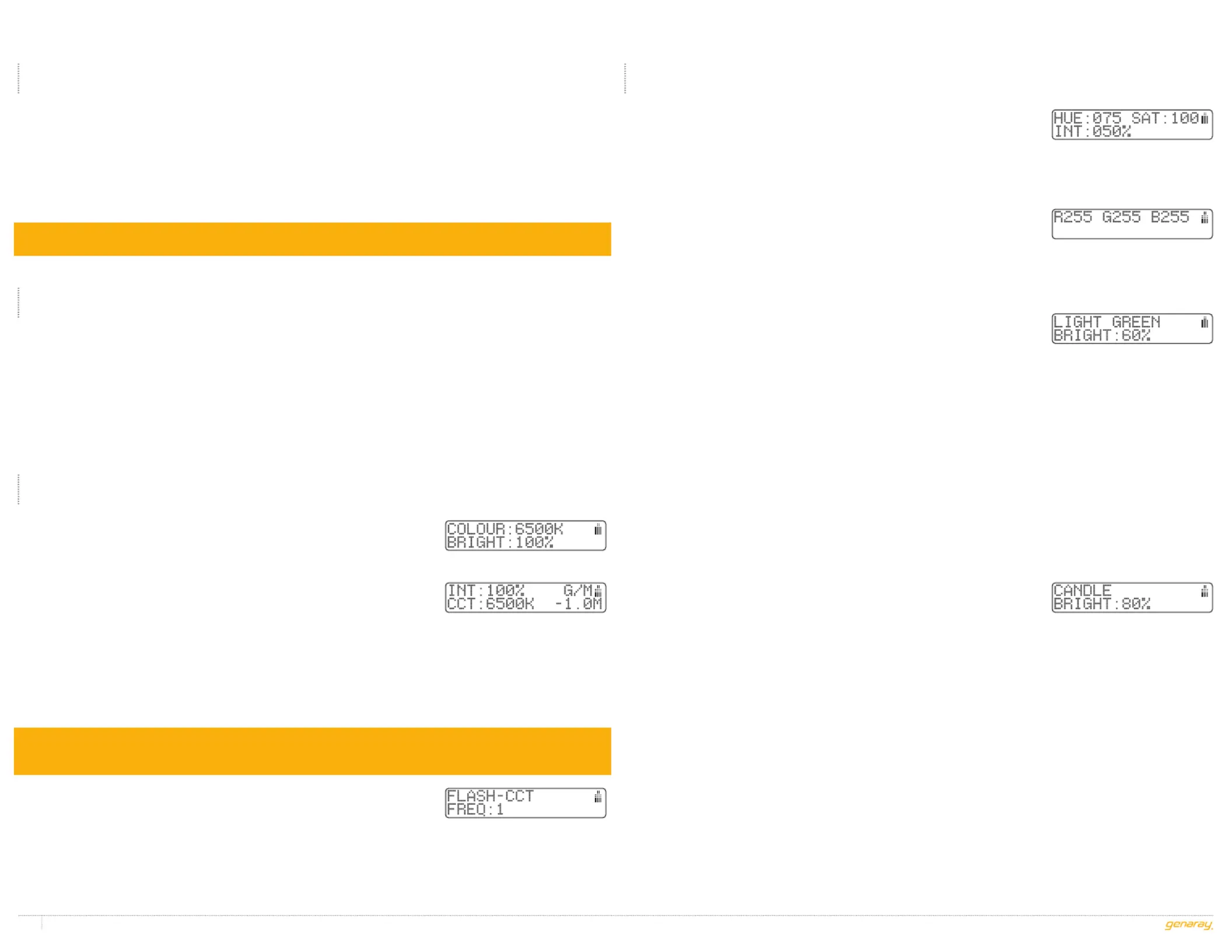

CCT OPERATING MODES
RGB OPERATING MODES
CCT MODE
Color knob: Adjusts the color temperature from 2800 to 6500 K in 100 K increments.
Brightness knob: Adjusts the intensity from 0% to 100% in 5% increments.
CCT HUE SHIFT MODE
Similar to CCT Mode with an additional Green/Magenta tint function.
The Green/Magenta function lets you match the light’s color to an existing light
source by adjusting the green/magenta saturation level. This is useful when shooting
under fluorescent lights.
Color knob: Select Intensity, CCT (color temperature), or G/M tint.
Brightness knob: Adjusts intensity from 0% to 100%.
Adjusts CCT from 2800 to 6500 K.
Adjusts Tint from −1.0 to +1.0 (full green to full magenta) in 0.1 increments.
Note:
The color temperature that’s set in CCT mode will be the color temperature in CCT Shift mode. Changing the color
temperature in CCT Shift mode will change the color temperature in CCT mode.
CCT FLASH
Creates a strobing effect with the color temperature and brightness set in CCT
mode.
Color knob: No function.
Brightness knob: Adjust the blinking frequency from 1 (slowest) to 9 (fastest).
Press Confirm to set the new frequency.
HSI MODE
HSI (Hue, Saturation, Intensity) mode lets you scroll through the entire color wheel
and adjust the saturation and intensity level.
Color knob: Select Hue, Saturation, or Intensity.
Brightness knob: Adjust the values, and press Confirm to accept the settings.
List of Gels
1. Medium Rose
2. Lale Brilliant
3. Pale Purple
4. Medium Golden
5. Light Golden
6. Pink
7. Medium Green
8. Bright Green
9. Pea Green
10. Light Green
11. Apple Green
12. Pale Green
13. Green Blue
14. Westlake Blue
15. Lightsky Blue
16. Sky Blue
17. Purple Blue
18. Grey Blue
19. Blue
20. Lemon
21. Pale Straw
22. Fluorescent
SFX MODE
Twelve programmed effects are built into the LF-RGB-65.
Color knob: Scrolls through the fourteen effects. Press Confirm to select the desired
effect. Once it’s selected, the effect will begin to play.
Brightness knob: Adjusts the intensity from 20% to 100%.
List of Effects
USER INTERFACE
SELECTING AN OPERATING MODE
CCT/RGB Selector: Press repeatedly to select CCT or RGB mode.
Mode button: Press repeatedly to cycle through the RGB and CCT operating modes.
Confirm button: Press the Confirm button to select whatever operating mode or setting is blinking.
Color knob: Turn the Color knob to select the setting to adjust. When the setting blinks, adjust the value with the
Brightness knob.
Brightness knob: When the setting blinks, change the value with the Dimmer knob. Press the Confirm button to accept
the new value.
Note
If the Confirm button is not pressed, the light reverts to the previous operating mode after approximately 10 seconds.
Pressing the RGB/CCT button accesses two sets of operating modes.
When CCT is selected, press the mode selector repeatedly to cycle through CCT Mode, CCT Hue Shift, CCT Flash, and DMX
Address.
When RGB is selected, press the mode selector repeatedly to cycle through HSI Mode, RGB Mode, GEL Mode, SFX Mode,
and DMX Address.
As you cycle though the modes, each mode will blink when it appears onscreen. Press the Confirm button to activate that
operating mode.
1. Candle: Simulates the warm light of a flickering candle
with varying yellow and orange hues.
2. Police 1: Simulates the flashing lights of an emergency
vehicle with alternating rapid flashes of red and blue
light.
3. Police 2: Alternating double flashes of red and blue
with a short pause between cycles.
4. Police 3: Alternating triple flashes of red and blue with
a short pause between cycles.
5. Lighting 1: Two short white bursts repeated at
5-second intervals.
6. Lightning 2: Short and long white bursts repeated at
4-second intervals.
7. Watch TV: Simulates the flickering glow from a
television.
8. Scene Yellow: Loops through the yellow RGB settings.
9. Scene Blue: Loops through the blue RGB settings.
10. Scene Green: Loops through the green RGB settings.
11. Scene Pink: Loops through the pink RGB settings.
12. SOS: Repeated short and long white bursts in an SOS
(– – – — — — – – –) pattern.
13. Cycle 1: Cycles repeatedly through the hues in Scene
Blue and Scene Green.
14. Cycle 2: Cycles repeatedly through the hues in Scene
Yellow and Scene Pink.
15. Flash: Rapid flashes of the hue that’s set in RGB mode.
RGB MODE
Select a color by manually setting the RGB levels.
Color knob: Select the R, G, and B values.
Brightness knob: Adjust the R, G, and B value from 0 to 255.
Press Confirm to set the new values. The light will display the new color.
GEL MODE
GEL mode lets you set a white balance color temperature, and modify it with one of
22 preset gels.
Color knob: Selects a gel from 1 to 22. Select a gel, and press Confirm.
Brightness knob: Adjusts the intensity from 20% to 100%.
CCT Mode
SFX ModeCCT Hue Shift Mode
CCT Flash Mode
HSI Mode
RGB Mode
Gel Mode
