Operating Instructions
AutoISO-5000
Test Adapter for METRISO PRIME 10 3-447-007-03
2/2.20
1 GMC-I Messtechnik GmbH
Applications
In order to be able to detect faults in electri-
cal systems which are caused by defective
insulation, insulation resistance must be
measured between each active conductor
and the protective earth conductor. The
AutoISO-5000 test adapter makes it possi-
ble to run an automated test sequence for
installation measurements at multi-core
cables (3, 4 or 5) with the METRISO PRIME
10 test instrument. Use for other purposes is
impermissible.
Safety Precautions
The test adapter has been manufactured
and tested in accordance with the following
safety regulations: IEC/EN 61010-1/
VDE 0411-1.
Safety of the operator, as well as that of the
test adapter, is only assured when it’s used
for its intended purpose.
Read the operating instructions carefully and
completely before placing your test adapter into
service. Follow all instructions contained therein.
Make sure that the operating instructions are
available to all users of the device. Read the oper-
ating instructions for the METRISO PRIME 10 test
instrument too.
Tests may only be performed by a qualified elec-
trician or under the supervision and direction of a
qualified electrician. Wear a suitable and appro-
priate personal protective equipment (PPE) when-
ever working with the device.
Opening the Device / Repairs
The device may only be opened by authorized,
trained personnel in order to ensure flawless
operation and to assure that the guarantee
isn’t rendered null and void.
Even original replacement parts may only be
installed by authorized, trained personnel.
If it can be ascertained that the device has
been opened by unauthorized personnel, no
guarantee claims can be honored by the
manufacturer with regard to personal safety,
measuring accuracy, compliance with appli-
cable safety measures or any consequential
damages. If a guarantee seal is included and
it has been damaged or removed, all guar-
antee claims are rendered null and void.
Observe the following safety precautions:
• Make sure that the connector cables are
not damaged, e.g. damaged insulation,
interruption etc.
Attention!
!
Insulation resistance can only be
measured at voltage-free objects.
• Do not touch the tips of the test probes.
• Do not use the test adapter in electrical
systems or for devices in potentially
explosive atmospheres, or in environ-
ments where the risk of fire exists.
The test adapter may not be used:
• If external damage is apparent, for exam-
ple if parts which conduct dangerous
touch voltage are freely accessible
• With damaged connector and/or mea-
surement cables, e.g. interrupted insula-
tion or kinked cable
• If it no longer functions flawlessly
• If it has been stored under unfavorable
conditions for a lengthy period of time
(e.g. extremely high atmospheric humid-
ity) – after moving the adapter from a
cold to a warm environment with high

2 GMC-I Messtechnik GmbH
atmospheric humidity, do not start mea-
surement until the device has warmed
up to the new ambient temperature
(approx. 30 minutes).
In such cases, the test adapter must be
removed from operation and secured
against unintentional use.

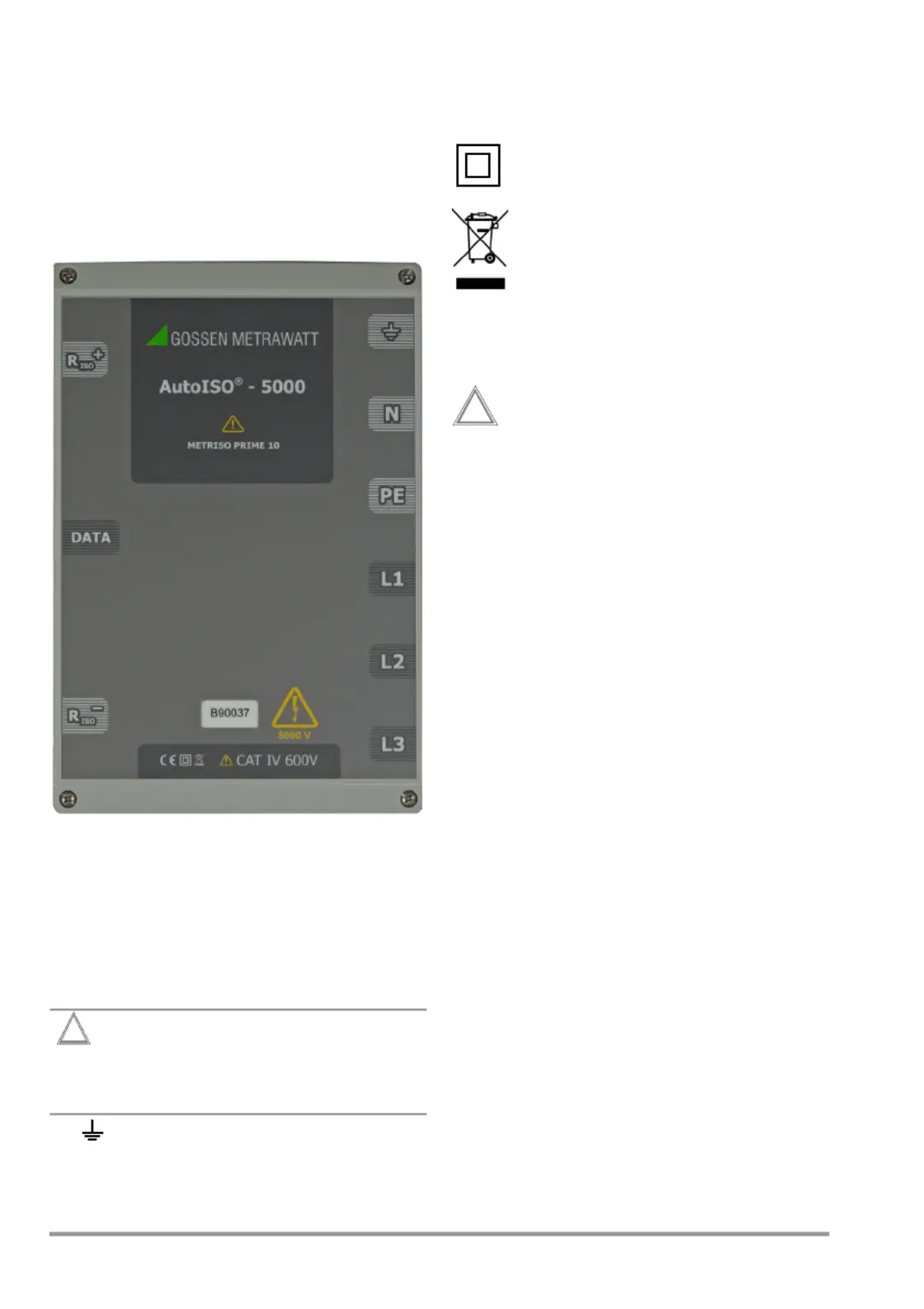

Connections
1) DATA: Data cable for connection to the
METRISO PRIME 10 test instrument
2) RISO+ R/ISO–: Connector cable for the test
voltage output at the METRISO PRIME
10 test instrument
3) L1, L2, L3, N, PE: Sockets for connecting
the included test cable and alligator clips
Attention!
!
The test adapter may not be con-
nected to voltages of greater than
600 V!
4) Socket for connecting the test
adapter to ground
Meanings of Symbols on the Device
European conformity marking
The device is equipped with double
insulation or reinforced insulation.
The device may not be disposed
of with household trash.
Further information regarding the
WEEE mark can be accessed on
the Internet at www.gossenme-
trawatt.com by entering the
search term “WEEE”.
Warning concerning a point of
danger (attention: observe docu-
mentation!)
CAT IV 600V
Maximum permissible voltage and
measuring category between con-
nections and ground
!

GMC-I Messtechnik GmbH 3
Connecting the AutoISO-5000 test adapter:
the test instrument automatically detects the
adapter and changes the display corre-
spondingly.
Technical Data
Type of insulation Double-insulated per
EN 61010-1
Measuring category CAT IV 600 V per
EN 61010-1
Protection IP 40
Dimensions approx. 235 x 155 x
80 mm
Weight (incl. cable) Approx. 1.7 kg
Storage temperature -20 °C ... +60 °C
Operating temperature-5 °C ... +50 °C
Humidity 20% ... 80%,
no condensation
allowed
Elevation ≤ 3000 m
Scope of Delivery
1 AutoISO-5000 test adapter (Z555Z)
4 Black measurement cables with safety
plugs for connection to , L1, L2 and L3,
1.2 m, 5 kV
1 Blue measurement cable with safety plug
for connection to N, 1.2 m, 5 kV
1 Yellow measurement cable with safety
plug for connection to PE, 1.2 m, 5 kV
4 Black alligator clips, 5.5 kV
1 Blue alligator clip, 5.5 kV
1 Yellow alligator clip, 5.5 kV
Cleaning and Maintenance
No special maintenance is required. The
adapter must never be immersed in liquid,
for example during cleaning.
Keep outside surfaces clean. Use a slightly
dampened cloth for cleaning. Avoid the use
of cleansers, abrasives and solvents.
Storage
Make sure that the test adapter is dry before
placing it into storage.
Return and Environmentally Sound Disposal
The device is a category 9 product (monitor-
ing and control instrument) in accordance
with ElektroG.
This device is subject to the WEEE directive.
We also make reference to the fact that in
this regard, the current status can be found
on the Internet at www.gossenme-
trawatt.com by entering the search term
WEEE.
We identify our electrical and elec-
tronic devices in accordance with
WEEE 2012/19/EU and ElektroG
using the symbol shown at the right
per DIN EN 50419. These devices
may not be disposed of with household
trash.
Please contact our service department
regarding the return of old devices (see
address below).
DATA
