Sida 1/72

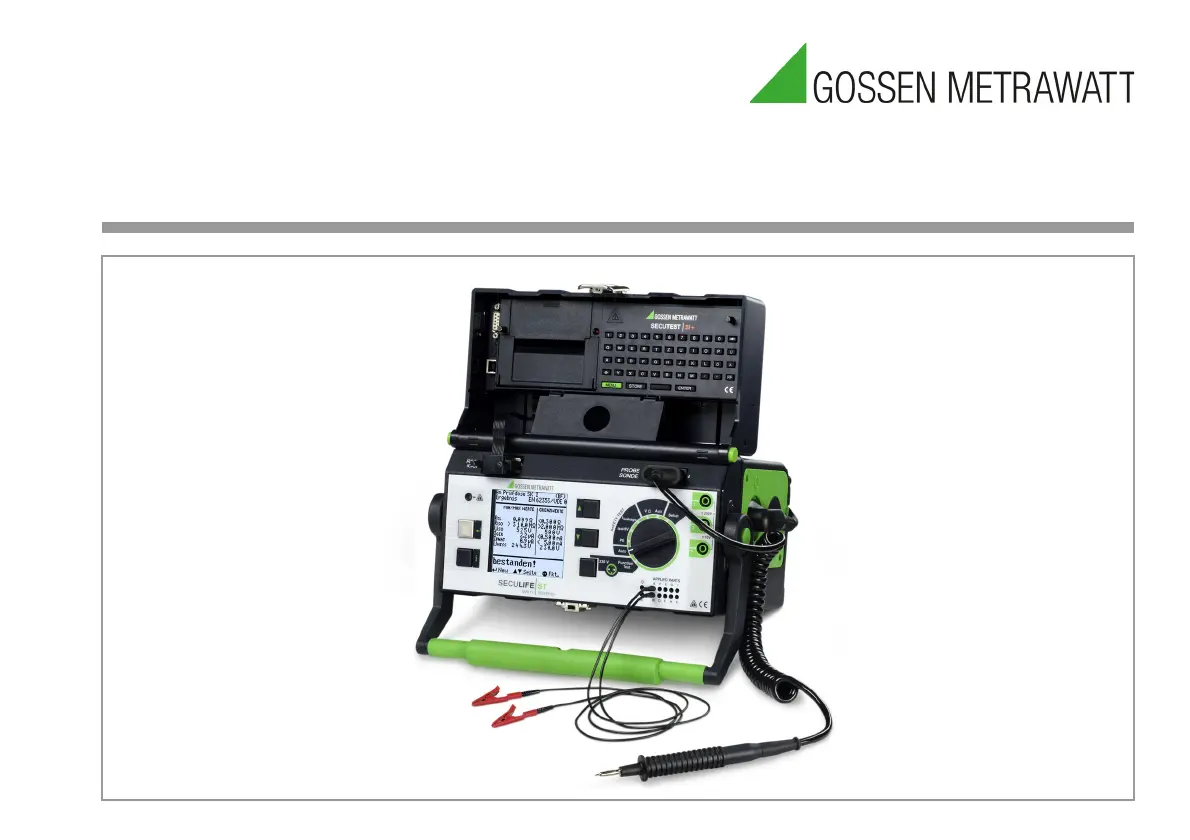

SECU SECULIFEST and LIFEST HV
Test Instruments for Portable Appliance Testing according to Health and Safety Policy
and in Accordance with the Medical Product Law as well as for Routine Testing
3-349-448-03
27/2.21
Operating Instructions

2 Gossen Metrawatt GmbH
PROBE 5 4
SONDE
Auto
PE
3
2
HV
Function
Test
VAux Setup
Iso/
I leakage
B D F H K
A C E G I
Applied Parts
1
!
45678910
11
12
13
14 15 1816 17
Probe connection
Insert the double plug of the probe into sockets 4 and
5 such that the plug with the white ring contacts
socket 5 (vertical bar).
Note: Contact problems with exposed conductive parts
when using the standard probe with test tip
In order to assure good contact, surface coatings must be
removed from devices under test with special tools at a suit-
able location so that the surface has a metallic shine. The tip
of the test probe is not suitable for scratching away paint, be-
cause this may impair its coating and/or mechanical
strength. The brush probe (Z745G) may be more suitable
than the test probe in certain individual cases.
Measurements at jacks 1 – 2 – 3
Always start with the measurement before contacting
the measuring point. Between jacks 1 and 2, a maxi-
mum of 10 V may be applied. Between jacks 2 and 3,
up to 253 V may be applied.
Attention: Jacks (2) and (3) are short-circuited
during all measurements at the test socket!
(Exception: see chapter 12.2)
Standard equipment
1
Test instrument with 10 + 2 connectors for application parts
1 Probe cable with test probe
1 Clip-on alligator clip for test probes
3 Clip-on quick-clamp terminals
10 conductor patient connection cable 2 mm
10 Clip-on alligator clip 2 mm
1 Calibration certificate per DAkkS
1 Operating instructions
1 Carrying strap
Up-to-date PC software (free start-up programs or
demo software for data management, report and list
generation) is available on our website for download.
!
An up-to-date version of the operating instructions
covering the latest firmware update is available for
download on the internet.
RS232
IOIOI
24
23
22
21
25
22
26
27
20
19
max. 10 V
max. 253 V
SL
N
L
1
2
3

Gossen Metrawatt GmbH 3
1 Jack for protective conductor at device under test
2 Jack for neutral conductor at device under test
3 Jack for phase conductor at device under test
4 Jack for connecting the probe
5 Jack for connecting the probe
6 Function selector switch
– Function Test: Function test
– Auto: Automatic test sequence according to selected standard
– PE: Protective conductor test
– Iso/HV: Insulation test / high-voltage test
– I leakage: Leakage current measurement
– V : Multimeter functions
– Aux: Auxiliary multimeter functions
– Setup: Device configuration
7 scroll key for menu and parameter selection
8 scroll key for menu and parameter selection
9 LCD window
10 Socket connector interface RS232 for (P)SI module SECUTEST PSI/SI+, storage
adapter
SECUSTORE
(no longer available)
, barcode or RFID scanner
11 Signal lamp for mains connection error
12 key for entry and for starting test sequences and finger contact
13 help key (context sensitive)
14 Key next to the symbol for switching test voltage to
the test socket (only possible if symbol LED is blinking)
15 Signal lamp for the functions test
16 Functional earth (equipotential bonding)
17 Operational earth
18 Connector jacks for application parts
19 Push-buttons (left and right) for releasing the handle from its snap-in position
20 Earthing contact socket for service purposes (Feature B01),
e.g. for connecting a notebook or an A4 format printer, Terminal Data see page 63
21 Standard outlet socket (test socket) for connecting the device under test
22 Push-buttons (left and right) for releasing the lid
23 Lid
24 Compartment for probe and accessories
25 Cover or (P)SI module (accessory
SECUTEST PSI
or SECUTEST SI+)
26 Carrying handle and tilt stand
27 Test probe (accessory probe with coil-cable SK2W (Z745N))
Overview of Available Probe Types
1) Accessory
Note
when using other probes than those specified above
The cables plugged into the sockets (4 and 5) must be short
circuited for testing with the probe, i.e. by plugging the ends of
the cable together, or via a conductive surface at the device
under test (4-wire measurement).
Remove any corrosion from the device under test.
Data Security
Measurement data, report data and user entries are stored to RAM at the
(P)SI module (accessory), as long as the respective battery supplies the
required amount of voltage.
Save your data to a PC on a regular basis in order to prevent any loss of data
at the (P)SI module. We assume no liability for data loss. We recommend the
PC program
IZYTRONIQ
for data processing and data management;
Refer to
PC DOC.IQ
or
NEXON.IQ
for the appropriate data converter.
i
Probe Type Application Special Features
Standard probe (test probe with
coil-cable and alligator clip)
Max. test current: 25 A Probe with cable
(no coil-cable)
SK2 1) Max. test current: 25 A Probe with cable (no coil-cable),
2 meters long
SK2W 1) Max. test current: 25 A Probe with cable (coil-cable),
2 meters long
Feature KD01 with probe SK5 Restriction with
Feature G01 (IK> 25 A):
short-circuit current < 25 A
Special probe in combination with
“automatic recognition of measur-
ing point change” function (see
chapter 17)
Brush probe
1)
Can be plugged onto all above
listed probes and test probes
Leakage current,
protective conductor resistance
For contacting devices under test
with rotating, vibrating, exposed
conductive parts
!
