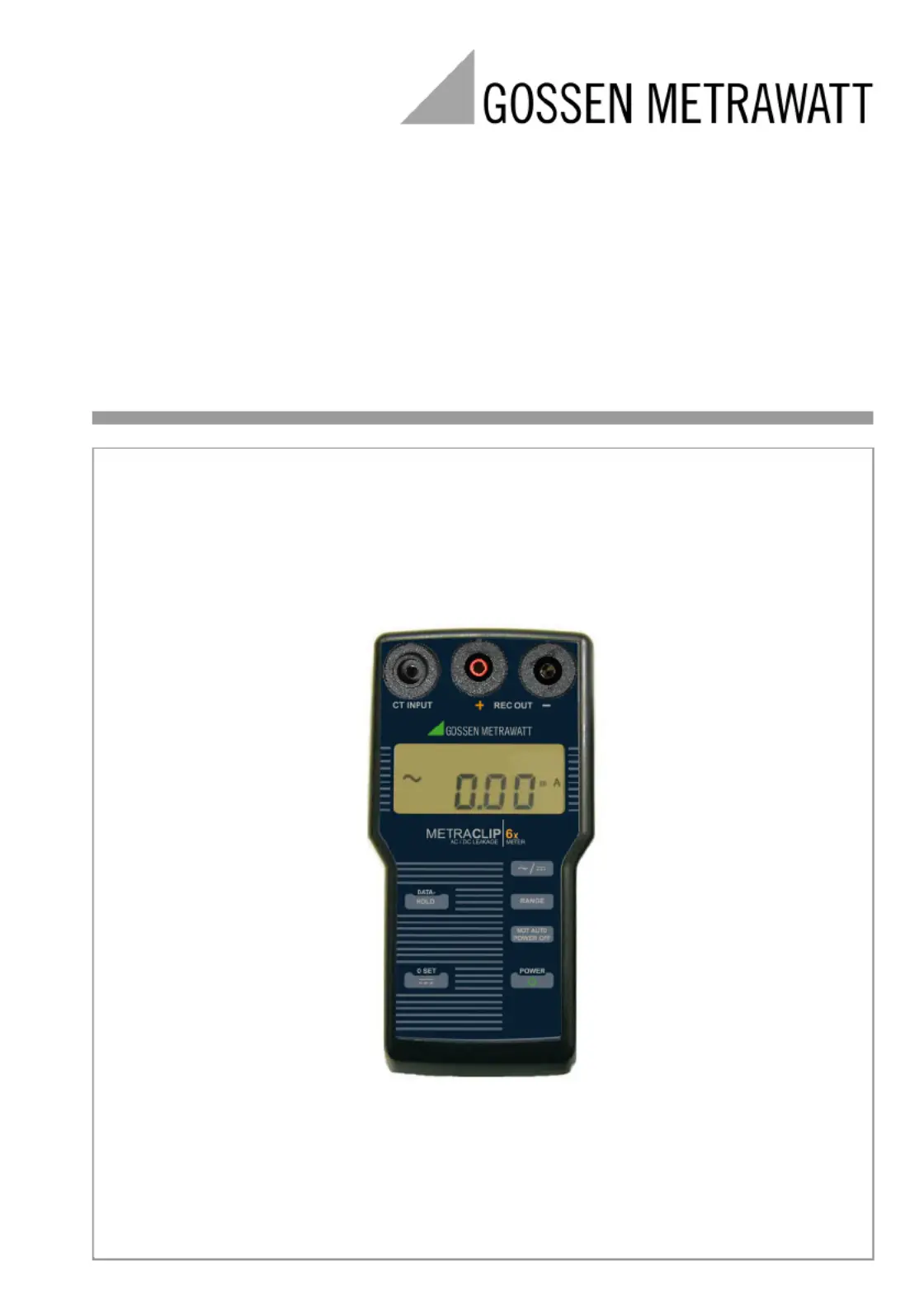

Operating Instructions
METRACLIP63 / 64
Milliampere Current Clamp
for Measuring Fault, Leakage and Stray Current 3-349-488-03
1/11.20
2 Gossen Metrawatt GmbH
1CT INPUT: Current clamp connector socket
2REC OUT: Connector sockets for data logger
3LCD panel
4AC / DC: Selector key for direct or
alternating current
5Range: Measuring range selector key
6
NOT AUTO
POWER OFF
: Key for deactivating auto-shutdown
7POWER: On/off key
80 SET: Zero balancing key
9DATA HOLD: Key for saving measured values
Scope of Delivery
1 measuring instrument
4 LR6 batteries (AA)
1 current clamp
1 carrying pouch
1 set of operating instructions
1
2
3
4
5
6
7
8
9
Measuring Instrument
1
Current Clamp
METRACLIP63
Current Clamp
METRACLIP64
1 Arrow must point
in direction of cur-
rent flow
2 Safety collar
3 Locking lever
4 Slider for opening
the clamp
Description in
section 4.1
1 Arrow must point
in direction of
current flow
2 Safety collar
3 Key for opening
the clamp
2
3
4
3
1
2
Gossen Metrawatt GmbH 3
Table of contents
1 Safety Precautions .............................3
1.1 General .......................................................3
1.1.1 Meaning of Symbols on the Instrument ..........4
2 Applications ........................................4
3 Initial Start-Up ....................................4
4 Operation ............................................5
4.1 Using the METRACLIP 63 Current Clamp .....5
4.2 Direct Current Measurement .........................5
4.3 Alternating Current Measurement .................6
4.4 Measuring Leakage and Stray Current ...........6
4.5 Using a Data Logger .....................................7
5 Characteristic Values ..........................8
6 Maintenance .....................................10
6.1 Housing .....................................................10
7 Repair and Replacement Parts Service,
DKD Calibration Laboratory and Rental
Instrument Service
.................................10
8 Product Support ................................11
1 Safety Precautions
1.1 General
You have selected an instrument which
provides you with high levels of safety.
This instrument fulfills all requirements of
applicable European and national EC
guidelines. We confirm this with the CE mark.
The relevant declaration of conformity can be
obtained from Gossen Metrawatt GmbH.
The METRACLIP 63 / 64 current clamp is
manufactured and tested in accordance with
safety regulations
IEC 61010-1/EN 61010-1/VDE 0411-1 and
IEC 61010-2-032/EN 61010-2-032/
VDE 0411-2-032. When used for its intended
purpose, safety of the operator, as well as that
of the instrument, is assured. Their safety is
however not guaranteed, if the instrument is
used improperly or handled carelessly.
In order to maintain flawless technical safety
conditions, and to assure safe use, it is impera-
tive that you read the operating instructions
thoroughly and carefully before placing your
instrument into service, and that you follow all
instructions contained therein.
Observe the following safety precautions:
• Avoid excessive mechanical stress such as
impact and vibration, as well as high tem-
peratures and humidity, because this may
result in damage to the instrument.
• Do not use this instrument in close
proximity to acids, alkaline salts, organic
solutions, corrosive gases etc.
• Do not use this instrument in proximity to
devices which generate strong magnetic
and/or electrical fields, because this may
result in malfunctioning.
• Do not use this instrument in operating
environments where dust or splash water
occur.
Attention!
!
Do not perform measurements at
cables with voltages of greater
than 600 V AC.
Before using the instrument, test the
voltage of the electrical circuit to be
measured.
Do not perform measurements on bare
wires!
Do not subject the input and output
sockets to voltages of greater than
10 V AC.
The current clamp may not be used:
• If the device, the housing or the cable is
damaged
• If the battery compartment lid has been
removed
• For current values which are
impermissible high for the current clamp
• In the rain, with wet hands, in the
presence of splashing water or in moist
environments
