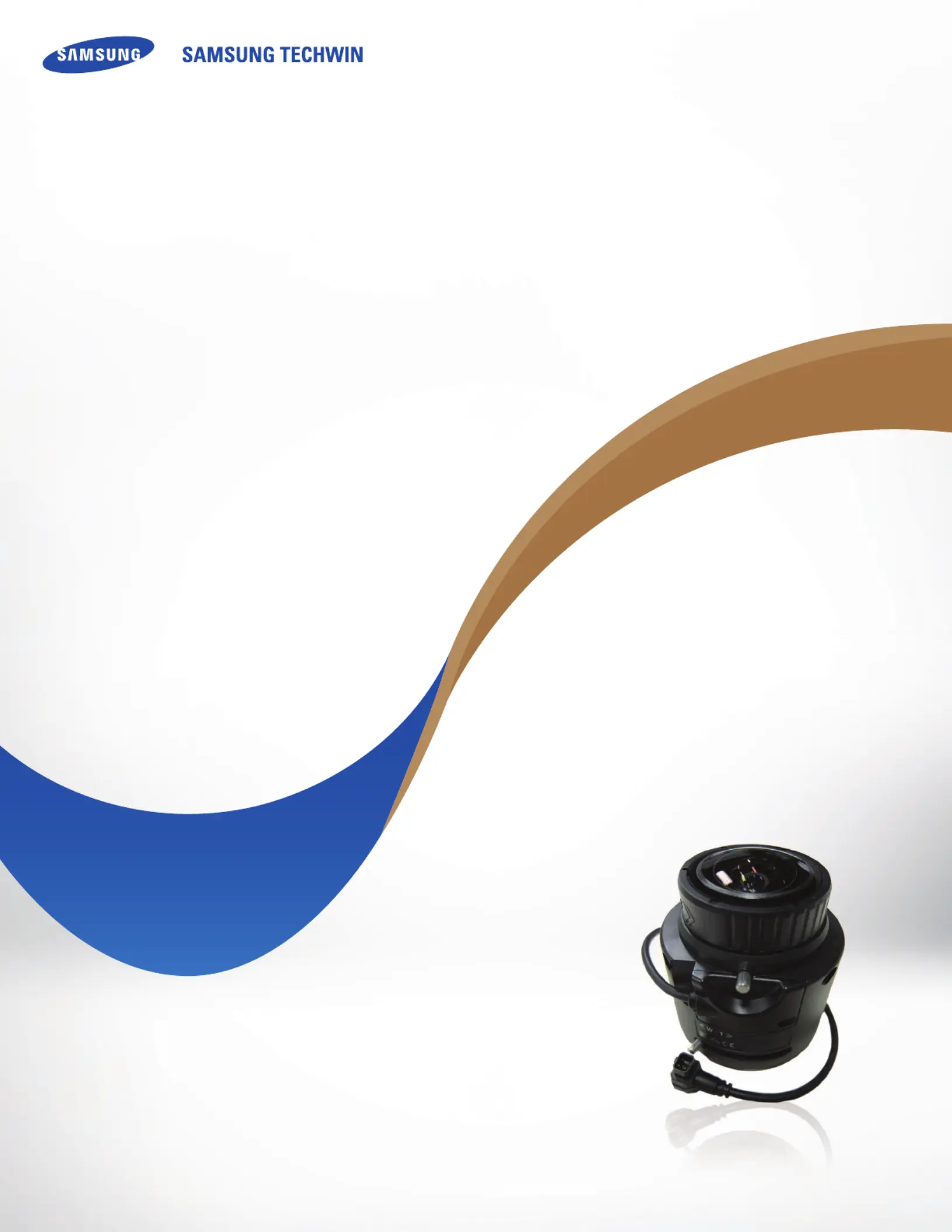

High image-quality monitoring with optical performance supporting 6 megapixels. Advanced
design engineering and special optic glass adopted, best suited for color, Black & White, and Day
and Night cameras. With F1.6 stop SLA-F-M419DN provides exceptional low light performance
up to 100 ° horizontal view angle at widest focus, making multi-megapixel cameras the best use
for 24/7 security job.
• Design for 6MP CS mount surveillance box camera
• Superior low light performance
• 4.1-9mm /F1.6
• IR Corrected
• DC Auto Iris
High Image Quality Monitoring
SLA-F-M419DN
6 Megapixel Day/Night Varifocal 1/1.8"
I.E-1309
DISTRIBUTED BY
Design and specifications are subject to change without notice.
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660
Toll Free : +1-877-213-1222 Direct : +1-201-325-6920
Fax : +1-201-373-0124
Specifications
SLA-F-M419DN
Description 6 Megapixel Resolution
1/1.8" Format Day/Night Camera
Focal length 4.1mm ~ 9mm
Max. Relative Aperture 1 : 1.6
Iris Range F1.6 - T360 (Equivalent to F360)
Image Size 8.9mm (7.1mm x 5.3mm)
Back Focal Length 12.72mm (w) - 19.94mm (t) (in air)
Flnage Focal Length 12.5mm (in air)
Focus Range ∞ - 0.3mm (from Front of Lens)
FIELD ANGLE
Horizontal Wide: 100° 1' , Tele: 45°17'
Vertical Wide: 74° 21' , Tele: 33°59'
Diagonal Wide: 126°31' , Tele: 56°31'
FIELD ANGLE at M.O.D
Horizontal Wide: 752mm , Tele: 263mm
Vertical Wide: 478mm , Tele: 193mm
CLEAR APERTURE
Front ø 31.4mm
Rear ø9.5
Exit Pupil Position -70.16mm (w) -34.36mm (t) (from image plane)
CONTROL
Zoom Manual (Op. Angle 60°)
Focus Manual (Op. Angle 180°)
Mount CS-Mount
Mass Approx. 135g
6 Megapixel Day/Night Varifocal 1/1.8"
SLA-F-M419DN
Dimensions Unit : mm ( inch )
Produktspecifikationer
| Varumärke: | Hanwha |
| Kategori: | Lins |
| Modell: | SLA-F-M419DN |
