HKTS 20/HKTS 30
Designed to Entertain.
™
User Guide
English
Home Theater Speaker System
2
Harman Kardon® HKTS 20 / HKTS 30
Typographical Conventions
We have employed certain conventions to help you use this manual:
– (number in a circle) – Indicates a rear-panel control or connection on the illustration of the HKTS200SUB subwoofer
Example (bold type) – Indicates the name of a specific control or rear-panel connection on the HKTS200SUB subwoofer
EXAMPLE (OCR type) – Indicates a control or switch setting on the HKTS200SUB subwoofer
Important Safety Instructions
Please read the following precautions before use:
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding-type plug has two blades
and a third grounding prong. The wide blade or the third prong is provided for your safety. If
the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket or table specified by
the manufacturer or sold with the apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
15. Do not expose this apparatus to dripping or splashing and ensure that no objects filled
with liquids, such as vases, are placed on the apparatus.
16. To completely disconnect this apparatus from the AC Mains, disconnect the power
supply cord plug from the AC receptacle.
17. The mains plug of the power supply cord shall remain readily operable.
18. Do not expose batteries to excessive heat such as sunshine, fire or the like.
The lightning flash with arrowhead symbol, within an equilateral triangle,
is intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the product.
WARNING:
To reduce the risk of fire or electric shock,
do not expose this apparatus to rain or moisture.
Declaration of Conformity
We, Harman Consumer, Consumer Division
8500 Balboa Blvd.
Nort hridge, CA 91329
USA
As the manufact urer and through our represent ative
within the EU
Harman Consumer, Consumer Division
2, route de Tours
72500 Chat eau du Loir
France
Do declare under our sole responsibilit y that the product li sted
below conforms to t he requirements of the Direct ive(s) and
Standards list ed here in.
Model(s): HKTS20 and HKT S30
Directives to which Conformity is declared:
2004/108/EC – EMC Di rect ive, as amended.
1999/5EC – R&TT E Direct ive, as amended.
2006/95/EC – Low Voltage Direct ive, as ame nded
2005/32/EC – Energy Using Products Di rect ive, as amended
Harmonized Standards Applied t o show Conformity:
EN 55013:2001+A1:2003+A2:2006
EN 55020:2007
EN 61000-3-2:2006
EN 61000-3-3:1995+A1:2001+A2:2005
EN 60065:2002+A11:2008
EN 60825-1:2007
ETSI EN 300 328 V1.7.1 (2006-10)
ETSI EN 301 489-1 V1.8.1 (2008-04)
Laurent Rault
Harman Consume r Group, Inc.
Chât eau du Loir, France 10/09
Pb
Instructions for users on removal and disposal of used batteries.
Specification of included battery types.
These symbols shown on the product, the packaging or in the manual or separate informa-
tion sheet mean that the product itself, as well as the batteries included or built into the
product, should never be thrown away with general household waste. Take them to appli-
cable collection points, where proper treatment, recycling and recovery takes place, in accor-
dance with national or local legislation, or European Directives 2002/96/EC and 2006/66/EC.
Correct handling of the product and batteries to be disposed helps save resources and pre-
vents possible negative effects on the environment or human health.
The batteries included with your equipment may be Alkaline, Carbon Zinc/Manganese or
Lithium (button cells) type. All types should be disposed of according to the above instruc-
tions.
To remove the batteries from your equipment or remote control, reverse the procedure
described for inserting batteries in the Owners Manual.
For products with a built-in battery that lasts for the lifetime of the product, removal may not
be possible for the user. In this case, recycling or recovery centers handle the dismantling of
the product and the removal of the battery. If, for any reason, it becomes necessary to replace
such a battery, this procedure must be performed by authorized service centers.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
THE LIGHTNING
FLASH AND
ARROWHEAD WITHIN
THE TRIANGLE IS
A WARNING SIGN
ALERTING YOU TO
DANGEROUS VOLTAGE
INSIDE THE PRODUCT.
THE EXCLAMATION
POINT WITHIN
THE TRIANGLE IS
A WARNING SIGN
ALERTING YOU
TO IMPORTANT
INSTRUCTIONS
ACCOMPANY ING THE
PRODUCT.
CAUTION: TO REDU CE THE RISK OF
SHOCK, DO NOT REMOV E COVER.
NO USERSERVICEABLE PARTS
INSIDE. R EFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
SEE MARKING ON BACK OF PRODUCT.
Important Note for All Electronic Products:
Before inserting or unplugging audio cables from the source device’s
headphones or line-level output jacks, it is good practice to turn off the device
first. This will prolong the life of your unit, help protect your device from static
electricity and prevent potential damage.
WARNING: TO PREVENT FIRE OR ELECTRICAL SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE.
WARNING: THE APPARATUS SHOULD NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO
OBJECTS FILLED WITH LIQUID, SUCH AS VASES, SHOULD BE PLACED ON THE APPARATUS.
ATTENTION!
It is considered good practice to always connect the power
supply to your Harman Kardon unit before plugging
the device into the wall or AC power outlet.
3
ENGLISH
Introduction
Thank you for purchasing the Harman Kardon® HKTS20/HKTS30 speaker system, with
which you’re about to begin many years of listening enjoyment. The HKTS20/HKTS30 has
been custom designed to provide all the excitement and power of the cinema experience
in your own living room.
While sophisticated electronics and state-of-the-art speaker components are hard at work
within the HKTS20 and HKTS30, hookup and operation are simple. Color-keyed cables and
connections, and simple controls make the HKTS20/HKTS30 easy to use.
To obtain maximum enjoyment from your new home theater speaker system, we urge
you to take a few minutes to read through this manual. This will help ensure that the
connections you make to your receiver (or preamp/processor), amplifier and other devices
are correct. In addition, a few minutes spent learning the functions of the various controls
will enable you to take advantage of all the power and refinement the HKTS20/HKTS30 is
able to deliver.
If you have any questions about this product, its installation or its operation, please
contact your dealer, the best local source of information.
Description and Features
The HKTS20/HKTS30 is a complete six-piece home theater speaker system that includes:
An 8-inch, 200-watt powered subwoofer
•
Four identical two-way video-shielded satellite speakers (the HKTS30 satellite
•
speakers feature dual drivers) for the left and right front, and left and right rear
(surround) speaker positions
A dedicated, voice-matched, video-shielded, dual-driver center speaker
•
Removable bases and wall-mount brackets for the satellite speakers and a wall-
•
mount bracket for the center speaker
All of the cables you need to connect all of the speakers to your receiver or preamp/
•
processor and amplifier.
The speaker cables all use a color-coding system to conform to the Consumer Electronics
Association (CEA) standard. This color-coding system minimizes confusion when
connecting the speakers, especially when you are connecting them to a Harman Kardon
receiver.
The HKTS200SUB subwoofer is equipped with a special LFE input that simplifies
connection to receivers and preamp/processors with dedicated subwoofer outputs that
carry low-frequency signals. Other conveniences include a level control, a phase switch for
fine-tuning bass response to suit your listening environment and taste, and an efficient
switching system that senses the presence of an audio signal and automatically switches
the subwoofer from standby mode to on.
Wall-mount brackets are included for the satellite and center speakers, and shelf stands
are included for the satellite speakers. Optional HKFS3 floorstands are available separately
from your Harman Kardon dealer. Harman Kardon invented the high-fidelity receiver fifty
years ago. With state-of-the-art features and time-honored circuit designs, the HKTS20/
HKTS30 is a perfect complement to a Harman Kardon receiver, or any home theater
system.
Four satellite speakers for front left/right and surround left/right

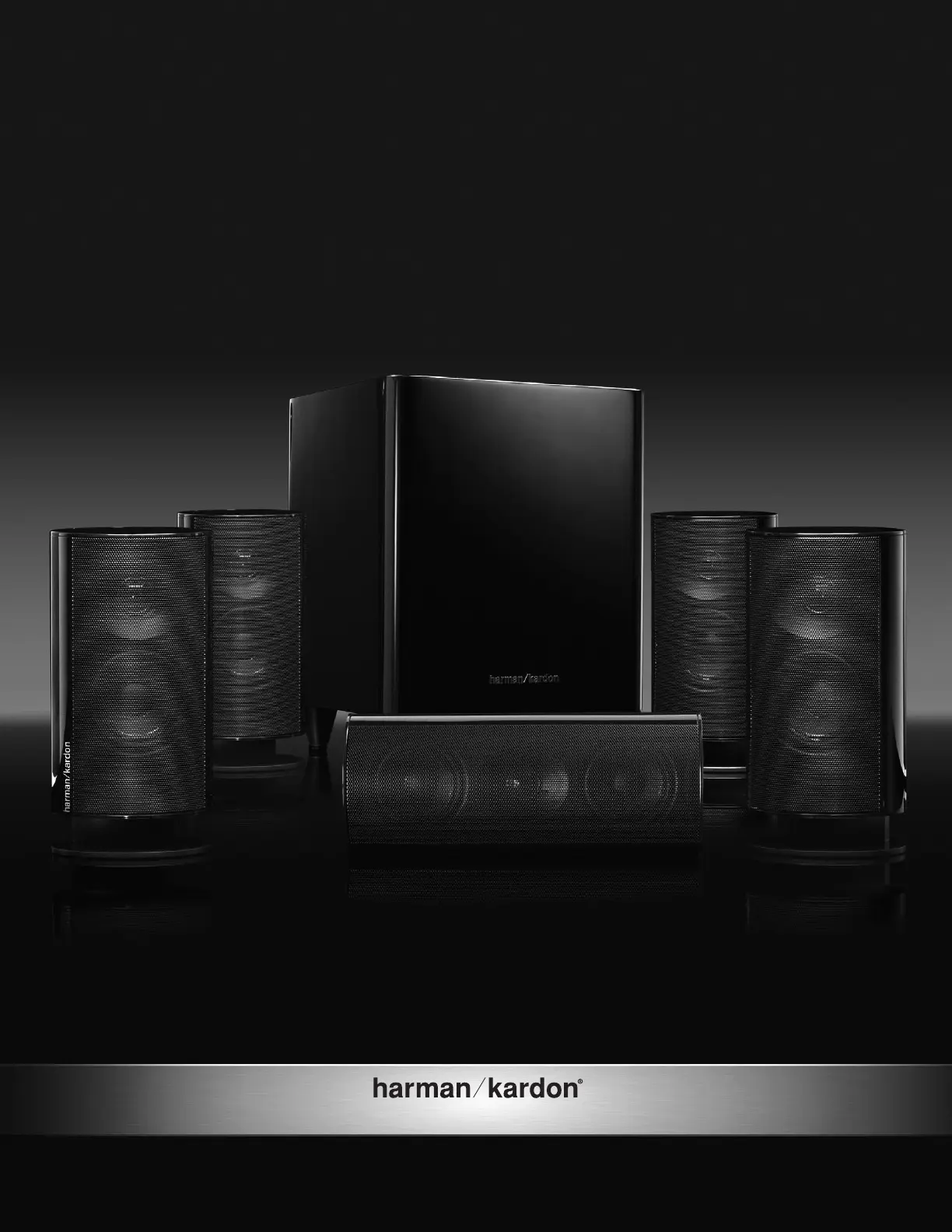

(HKTS30 satellites shown)
One powered subwoofer
Four wall-mount brackets for satellite
speakers
One wall-mount bracket for
center speaker
Four metal stop plates and screws
(for satellite speaker wall-mount brackets)
One combination LFE and trigger cable for
connection to the subwoofer
(LFE cable has purple connectors)
One 4-meter (13.1-foot) speaker cable for
center speaker (green color bands)
Two 5-meter (16.4-foot) speaker cables for
front satellites (red and white color bands)
Two 10-meter (32.8-foot) speaker cables for
rear satellites
(gray and blue color bands)
Harman Kardon®
HKTS 20 / HKTS 30
