Sida 1/14

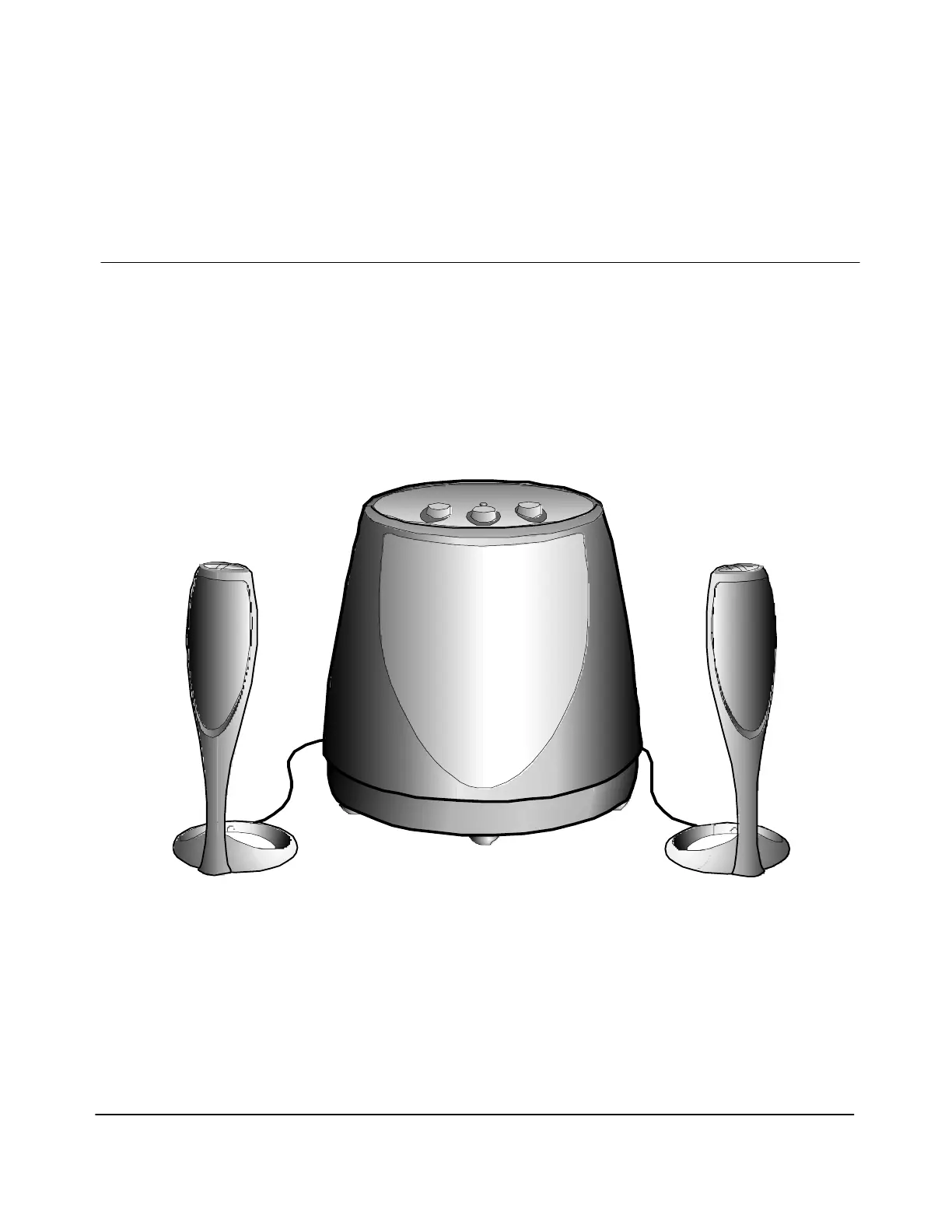

Page 1

User’s Guide

harman/kardon

Champagne

950-0010

English

French

German

Italian

anish

Page 2

Safety Instructions

Please read the following operation precautions before use:

Introduction

The HK 695 is the latest innovation from harman/kardon, a long time leader in the manufacture of

high-end component and computer audio systems. harman/kardon’s audio heritage combined with

continual research has provided the unique technologies included in the HK 695.

These technologies include Vmax, a Harman International audio image-processing algorithm that

seamlessly supports both two and four channel sound cards. This audio hologram creates a four

speaker sound field from two speakers through the use of a head related transfer function when used

with a four channel sound card. In addition, the algorithm provides enhanced stereo when used with

a two channel sound card.

The Harman Multimedia Odyssey I transducer is another technology critical to the HK 695. This

unique full range transducer was designed specifically for extremely small speaker enclosures while

providing significant mid bass. In addition to the bass, the small, rigid and light inverted aluminum

cone provides performance that will rival any tweeter used in multimedia speakers today. The result

is a small and elegant satellite speaker that perfectly integrates with the subwoofer while providing

superior midrange and highs.

The Magnum series subwoofer transducer provides deep bass. This Magnum series of woofers are

designed specifically to match with the Harman Multimedia Odyssey I transducers. The same

approach of providing solid bass from a small enclosure guided the development of these Magnum

transducers.

As described in the Using the speaker system section of the user’s guide, the top of the control/right

speaker features - and + buttons. Briefly pressing the appropriate button will cause a small step

increase or decrease in the system volume. Holding down the appropriate button for more than 0.5

seconds will cause the volume to decrease or decrease rapidly while that button is held down.

Treble, Bass and Surround level adjust knobs are located on top of the subwoofer unit. A system

on/off switch is also provided on the rear of the subwoofer unit. The system includes two desktop

speakers and a subwoofer that can be placed either on the floor or on your desk. Both satellite

speakers and the subwoofer are magnetically shielded to provide the greatest protection against

computer monitor image distortion.

• Read instructions ---All the safety and operating instructions should be read thoroughly before attempting to operate this audio

system.

• Retain instructions for future refer ence.

• Heed warnings --- All warnings on this audio system and in the operating instructions should be adhered to.

• Follow instructions --- All operating and use instructions should be followed.

• TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). THERE ARE NO USER

SERVICEABLE PARTS INSIDE THIS UNIT, PLEASE REFER SERVICING TO QUALIFIED HARMAN/KARDON

CORPORATION SERVICE PERSONNEL.

• Do not expose the speakers to liquid or solvent.

• Never remove grille covers in order to service the speaker system. The speaker system does not contain any user serviceable

parts. Refer all servicing to the Harman/Kardon Technical Support Group.

• Do not expose the speaker system to temperature or humidity extremes, direct sunlight, excessive dust, or vibrations.

• Place the speaker system on a stable, level surface. Do not drop, apply excessive force to the controls, or put heavy objects on

top of the speaker.

• If cleaning is required, use a soft dry cloth. If necessary, use a damp cloth without any solvents.

• In order to protect the speaker system, avoid microphone feedback, continuous output from electronic musical instruments, or

distorted output from any signal source.

• Do not place the speakers close to fluorescent light sources, or neon light fixtures.

• Although the speakers are magnetically shielded, keep magnetic storage media (disks and tapes) at least four inches from the

speaker system in order to avoid data loss.

• WARNING: To reduce the risk of fire or electric shock, do not expose this speaker system to rain or moisture.

Page 3

Setup

Carefully unpack your speaker system and identify all components:

• Control/Right Satellite speaker

• Auxiliary/Left Satellite speaker

• Subwoofer with attached power and audio input cables

Connect the speaker system as shown in the Connecting the speaker system to sound card

illustrations. Once the speaker system is properly connected, turn on the power switch located on the

rear of the subwoofer.

Step 1 Connecting the speaker system to the computer. If you have an integrated sound solution or

a stereo sound card (as shown on page 4 and 5); connect the green connector from the subwoofer

into the green jack on the computer, the black connector is not used, leave the rubber cap on the

black connector to prevent static from the pin grounding on the system. If you have a multi-channel

sound card (as shown on page 6); connect the green connector from the subwoofer into the green

jack on the computer and connect the black connector from the speaker into the black jack on the

computer. If you have a portable computer (as shown on page 7); connect the green connector from

the subwoofer into the headphone jack on the computer, the black connector is not used, leave the

rubber cap on the black connector to prevent static from the pin grounding on the system.

Step 2 Plug the orange connector from the right/control satellite into the orange jack on the

subwoofer.

Step 3 Plug the brown connector from the left satellite into the brown jack on the subwoofer.

Step 4 Plug the AC plug into the wall outlet.

Step 5 Turn on the speaker set and adjust the volume accordingly.
