Sida 1/20

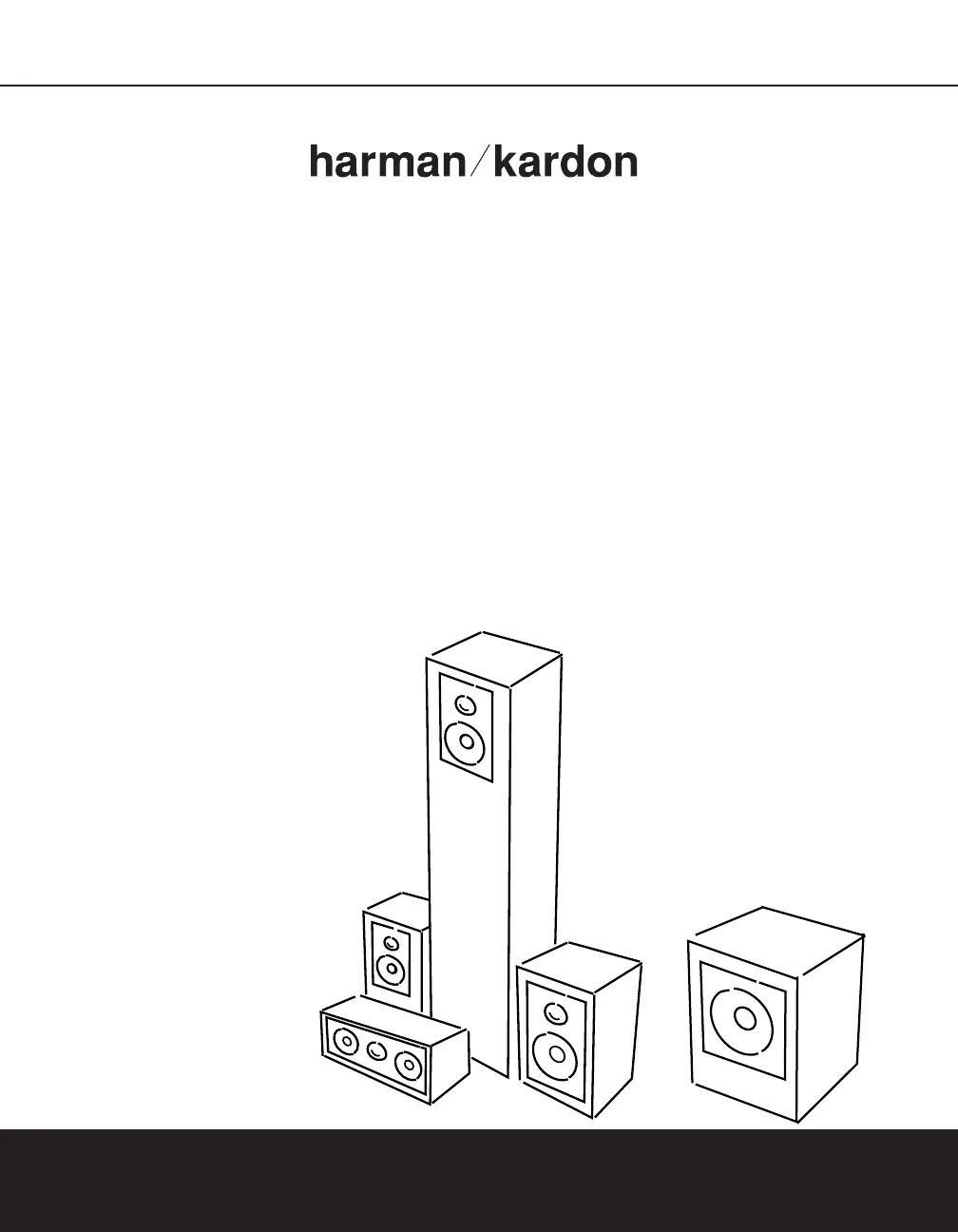

HKL Series
COMPONENT LOUDSPEAKERS
OWNER’S MANUAL
Power for the Digital Revolution.
®
®
2 TABLE OF CONTENTS
HKL COMPONENT LOUDSPEAKERS
3 Safety Informatioin
5 Introduction
5 Description and Features
6 Speaker Models
7 HKSUB 12 Amplifier Panel Controls and Connections
9 Speaker Placement
9 Front Speakers (HKB 4, HKB 6, HKTW 6)
9 Center Channel Speaker (HKC)
9 Surround Speakers (HKB 4, HKB 6)
10 Subwoofer (HKSUB 12)
11 Mounting Options
12 Speaker Connection Guide
12 Speaker-Level Connection Guide
12 Connection Options
13 Analog Receiver/Processor – Speaker-Level Connections to HKSUB 12
14 Analog Receiver/Processor – Line-Level Connections to HKSUB 12
15 Connection of HKSUB 12 to Digital Receiver/Processor
16 Configuring Your Receiver or Processor
17 Operating the HKSUB 12 Subwoofer
17 Power
17 Volume
17 Additional Bass Adjustments
18 Troubleshooting
19 Specifications
Typographical Conventions
In order to help you use this manual, certain conventions have been used.
EXAMPLE – (bold type) indicates a specific control or rear-panel connection on the HKSUB 12 subwoofer
EXAMPLE – (OCR type) indicates a control or switch position on the HKSUB 12 subwoofer
¡– (number in a circle) indicates a rear-panel control or connection on the HKSUB 12 subwoofer
See trademark acknowledgements on page 20.
SAFETY INFORMATION 3
SAFETY INFORMATION
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polar-
ized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A
grounding-type plug has two blades and a third
grounding prong. The wide blade or the third
prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an elec-
trician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on
or pinched, particularly at plugs, convenience
receptacles and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified
by the manufacturer.
12. Use only with the cart, stand, tri-
pod, bracket or table specified by the
manufacturer or sold with the apparatus. When a
cart is used, use caution when moving the
cart/apparatus combination to avoid injury from
tip-over.
13. Unplug this apparatus during lightning storms
or when unused for long periods of time.
14. Refer all servicing to qualified service person-
nel. Servicing is required when the apparatus has
been damaged in any way, such as when the
power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the appa-
ratus, the apparatus has been exposed to rain or
moisture, does not operate normally or has been
dropped.
15. Do not use attachments not recommended
by the product manufacturer, as they may cause
hazards.
16. This product should be operated only from
the type of power source indicated on the marking
label. If you are not sure of the type of power
supply to your home, consult your product dealer
or local power company. For products intended to
operate from battery power or other sources, refer
to the operating instructions.
17. If an outside antenna or cable system is con-
nected to the product, be sure the antenna or
cable system is grounded so as to provide some
protection against voltage surges and built-up sta-
tic charges. Article 810 of the National Electrical
Code, ANSI/NFPA 70, provides information with
regard to proper grounding of the mast and sup-
porting structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding con-
ductors, location of antenna-discharge unit, con-
nection to grounding electrodes, and requirements
for the grounding electrode. See Figure A.
18. An outside antenna system should not be
located in the vicinity of overhead power lines or
other electric light or power circuits, or where it
can fall into such power lines or circuits. When
installing an outside antenna system, extreme care
should be taken to keep from touching such power
lines or circuits, as contact with them might be
fatal.
19. Do not overload wall outlets, extension cords
or integral convenience receptacles, as this can
result in a risk of fire or electric shock.
20. Never push objects of any kind into this prod-
uct through openings, as they may touch danger-
ous voltage points or short-out parts that could
result in a fire or electric shock. Never spill liquid
of any kind on the product.
21. Do not attempt to service this product your-
self, as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer
all servicing to qualified service personnel.
22. When replacement parts are required, be sure
the service technician has used replacement parts
specified by the manufacturer or that have the
same characteristics as the original part.
Unauthorized substitutions may result in fire,
electric shock or other hazards.
23. Upon completion of any service or repairs to
this product, ask the service technician to perform
safety checks to determine that the product is in
proper operating condition.
24. The product should be mounted to a wall or
ceiling only as recommended by the manufacturer.
Read First! Important Safety Precautions!
Antenna Lead-In Wire
Ground Clamp
Antenna Discharge Unit (NEC Section 810-20)
Grounding Conductors (NEC Section 810-21)
Electric Service Equipment
Ground Clamps
Power Service Grounding Electrode System
(NEC Art. 250, Part H)
Figure A.
Example of Antenna Grounding as per
National ElectricalCode ANSI/NFPA 70
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To prevent electric shock,
do not use this (polarized)
plug with an extension cord,
receptacle or other outlet
unless the blades can
be fully inserted to
prevent blade exposure.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
SAFETY INFORMATION
