HKS 9
LOUDSPEAKERS
OWNER’S MANUAL
2 INTRODUCTION
INTRODUCTION
2Introduction
3Speaker Placement
3Color-Coding System
4Mounting Options
5Speaker Connections
5Connection Guide
5Configuring Your Receiver
or Processor
6Troubleshooting
7Specifications
Introduction
Thank you for purchasing the Harman Kardon ®
HKS 9 loudspeakers, with which you are about
to begin many years of listening enjoyment.
The HKS 9 has been custom-designed to
provide high-fidelity audio reproduction of
your favorite music and movie selections. The
HKS 9 loudspeakers are suitable for upgrading
almost any 5.1 home theater system to 7.1
channels when used with a 7.1-channel
receiver or processor and any necessary
additional amplifiers.
To obtain maximum enjoyment from your new
speakers, we urge you to take a few minutes
to read through this manual. This will ensure
that connections to your receiver or amplifier
are made properly. In addition, a few minutes
spent understanding the setup options will
enable you to take advantage of all the power
and refinement the HKS 9 is able to deliver.
If you have any questions about this product,
its installation or operation, please contact
your dealer, the best local source of information.
Features
The HKS 9 is a pair of two-way satellite
speakers for use in a home theater system.
The HKS 9 speakers are identical to the
satellites in the Harman Kardon HKTS 18
system, and are designed to be used with
the HKTS 18 in a complete 7.1-channel
home theater. Color-coded speaker cables
are included to facilitate installing the
speakers in the surround back left and
right positions.
Harman Kardon invented the high-fidelity
receiver more than 50 years ago. The
HKS 9 is a perfect complement to a
Harman Kardon receiver or any home
theater system.
Matched Pair of Loudspeakers for
Use in Multichannel Applications
Speakers Are Magnetically Shielded
for Flexible Placement Near Video
Monitors
Dual Three-Inch Drivers
3/4-Inch Dome Tweeter
Metal-Wire-Mesh Grille
Elegant Cabinet With Black-Lacquer
Finish Includes Shelf Stands
Includes Wall-Mount Brackets and
Color-Coded Speaker Cables
May Be Used With Optional Floor
Stands

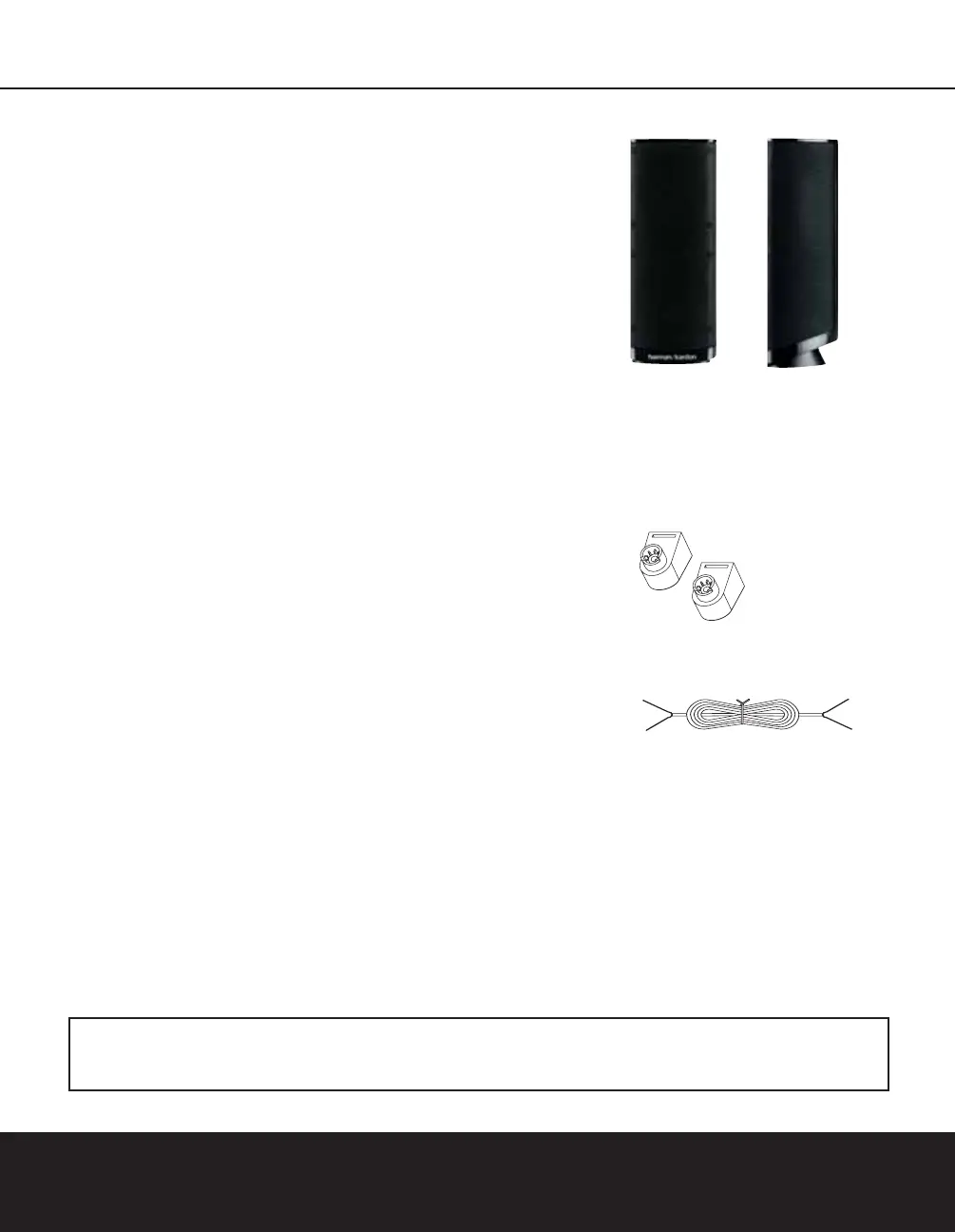

Included
• Two satellites for left/right front, surround,
or surround back channels, shown with
included shelf stands
• Two leatherette coasters
Two 40' speaker cables for connection
from receiver or amplifier to speakers
Two wall-mount brackets
Please register your product on our Web site at www.harmankardon.com. Note: You’ll need the serial number of your new
speakers. At the same time, you can choose to be notified about our new products and/or special promotions.
SPEAKER PLACEMENT 3
SPEAKER PLACEMENT
Color-Coding System
The HKS 9 and the HKTS 18 use the
channel color-coding system established
by the Consumer Electronics Association to
make setting up your home theater speaker
system as easy as possible. Your system
includes a set of colored stickers that may
be placed near the speaker terminals of
each of the
satellite speakers. In addition, the
included speaker wires have colored bands
at each end to assist you in connecting them
correctly. Use the brown sticker and cable for
the Surround Back Left speaker, and the tan
sticker and cable for the Surround Back Right
speaker. Although the wires included with
your HKS 9 speakers are color-coded for the
Surround Back Left and Right channels, they
are interchangeable with the wires supplied
with the HKTS 18 system.
It doesn’t matter
which satellite speaker is used for any of the
front or rear positions. (The center speaker
and powered subwoofer of the HKTS 18
are already color-coded.)
Before you begin to connect cables, it is
important to set up your speakers in their
correct locations in the room.
Optimally, the speakers should be placed
in a circle with the listening position at its
center. The distance from the listening
position to the video display forms the radius
of the circle.
The speakers should be angled so that they
directly face the listening position.
The front left and right speakers are placed
along the circle, about 30 degrees from
the center speaker (or video display) and
angled toward the listener.
When used as a stereo pair, the speakers
should be placed the same distance from
each other as they are from the listener.
It is best to place the front left/right and
center speakers as close to the same height
as possible, preferably about the same
height as the listener’s ears. In any event, the
center speaker should be no more than two
feet above or below the left/right speakers.
When the HKS 9 speakers are used
to upgrade an HKTS 18 system to a 7.1-
channel system, the side surround speakers
should be placed even with and facing the
listening position, 90 degrees from the
center speaker. The HKS 9 speakers are
then placed in the left and right surround
back speaker positions, 150 degrees from
the center speaker.

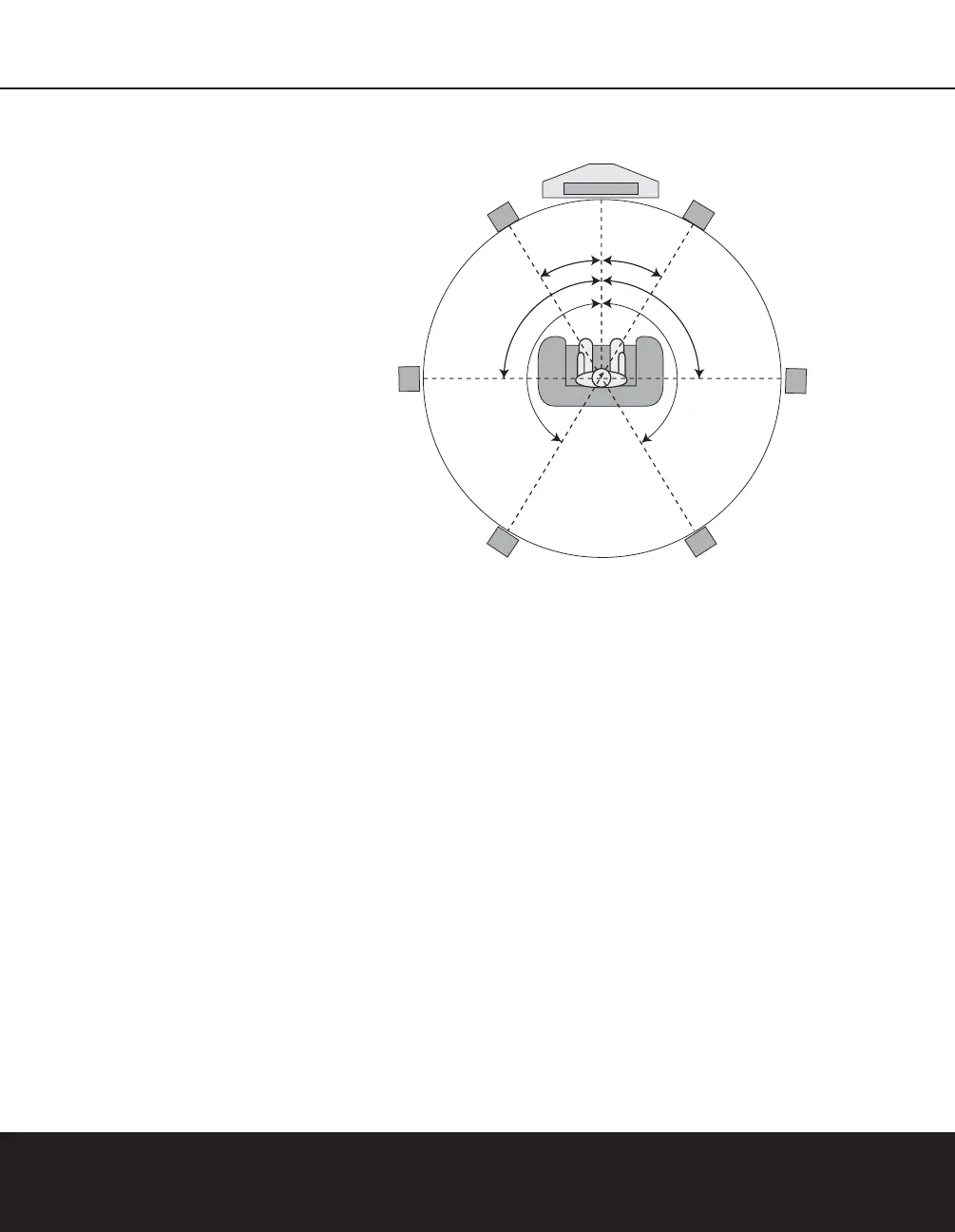

When setting up your system, refer to the
diagram above instead of the diagram in the
HKTS 18 owner’s guide.
The subwoofer’s location is less critical, since
low-frequency sounds are omnidirectional.
Placing the subwoofer close to a wall or in
a corner will reinforce the low fre
quencies,
and may create a “boomy” sound.
You may
wish to experiment over time by placing
the subwoofer where the listener normally
sits and then walking around the room until
the low frequencies sound best. Place the
subwoofer in that spot.
Center Speaker
Video Screen
Front Right
Speaker
Front Left
Speaker
Side Surround
Left Speaker
Back Surround
Left Speaker
Side Surround
Right Speaker
Back Surround
Right Speaker
90°
150°
90°
150°
30° 30°
