©2016 Hestan Commercial Corporation
1
EN
INSULATED JACKET
Installation Instructions
AGIJ30 / AGIJ36 / AGIJ42
IMPORTANT - READ ALL INSTRUCTIONS BEFORE YOU BEGIN
INSTALLER SHOULD LEAVE THESE INSTRUCTIONS WITH THE HOMEOWNER
Some parts have sharp edges. Care must be taken when handling the various components to avoid
personal injury. Wear gloves when handling.
TOOLS REQUIRED:
Work gloves
Safety glasses
Electric drill with assorted bits for mounting hardware, masonry anchors, etc. where needed
Phillips screwdriver
Flat-blade screwdriver
Level
Tape measure
Inspect the product to verify that there is no shipping damage. If any damage is detected, call the shipper
and initiate a damage claim. Hestan Commercial Corp. is not responsible for shipping damage. DO NOT
discard any packing material (box, pallet, straps) until the unit has been inspected.
Remove all exterior packaging materials, banding, tape, etc. Remove all protective film from the inside of
your cabinets. You may leave any exterior protective film on until after installation is complete.
ATTENTION
THIS APPLIANCE SHOULD NOT BE INSTALLED OVER, UNDER, OR NEXT TO UNPROTECTED
COMBUSTIBLE CONSTRUCTION. An Insulation Jacket is required when installing your Hestan grill
in an enclosure (island) made of combustible materials (such as wood). Hestan does not recommend
construction of your island using such materials. If your island is constructed of these materails, see the
INSTALLATION section of your Hestan Use & Care manual for cutout dimensions and allowances in your
island. A minimum clearance to vertical combustible material is 12” (30 cm) on the sides and the rear of the
grill is also required.
The minimum vertical clearance to combustible materials means that ALL combustible materials must be
outside this 12” (30 cm) zone. As an example, if you have an island with a stucco or tiled surface and wood-
frame construction beneath, the wood is considered combustible, even though the grill is touching the stucco
or tile surface, which is non-combustible. In extreme circumstances, the wood could potentially get hot
enough to burn. In this case, an Insulation Jacket is required.
VENTILATION OPENINGS
A minimum of three 10 in² (65 cm²) of ventilation openings must be provided for both left and right sides of
your enclosure (island), as well as the back. These openings are required to safely dissipate gas vapors if there
is a leak in your enclosure.
©2016 Hestan Commercial Corporation
2
EN
1. Please ensure your island meets the cutout dimensions shown in the Hestan grill manual for proper
fitment of the Insulation Jacket and Grill. The installer will have to build up any internal structural
elements or supports in the island in order to secure the jacket in place.
INSULATED JACKET INSTALLATION
)
2. Slide in the Insulation Jacket as per the image below. The front face of the jacket should be flush to the
face of your island.
©2016 Hestan Commercial Corporation
3
EN
INSULATED JACKET INSTALLATION
(continued)
3. Remove all loose items inside the grill (grates, warming racks, radiant trays, rotisserie rod, etc.) Remove
the drip pan and control knobs from the grill.

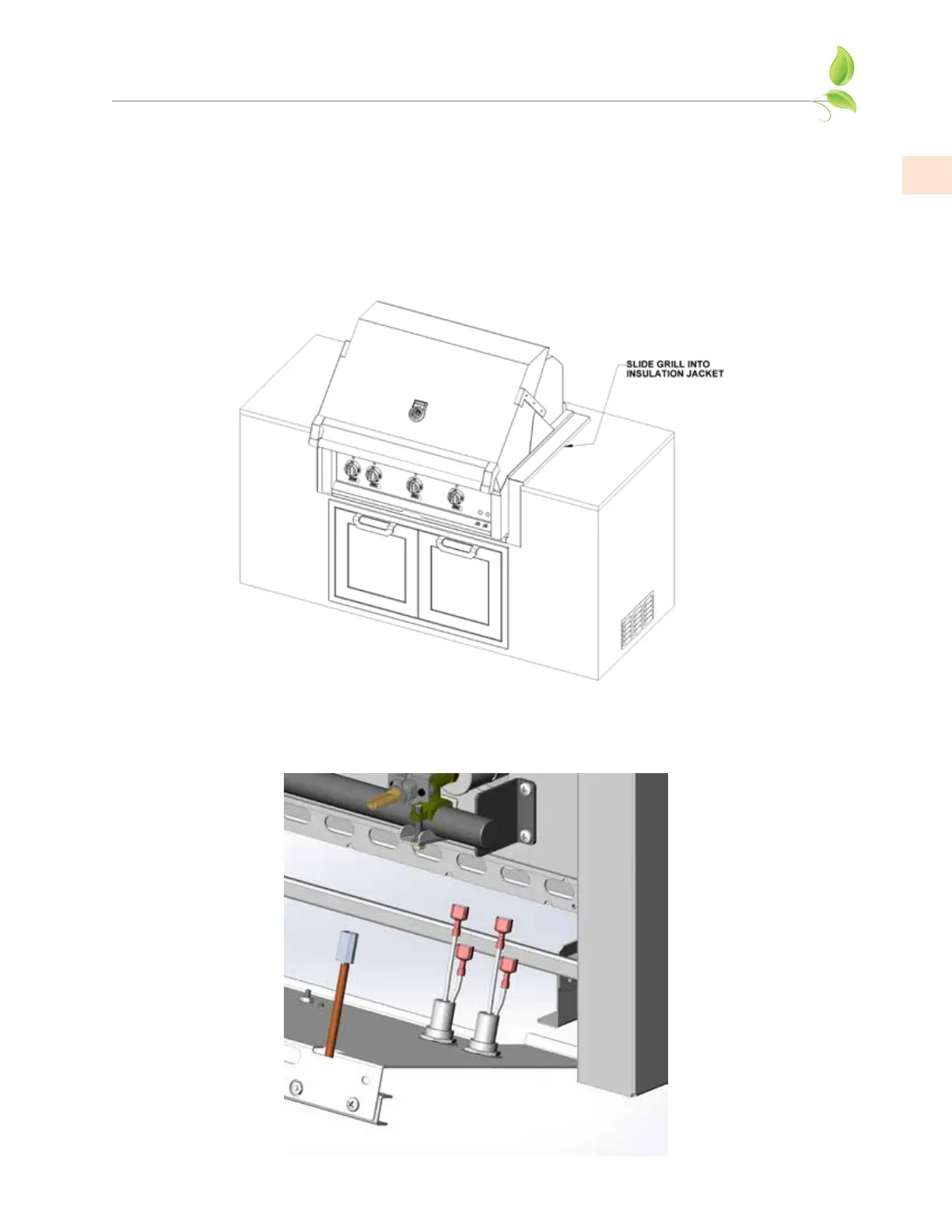

4. Two persons are required to lift the grill head into the jacket, as it is very heavy. Before lifting, be sure
any wires are tucked out of the way and taped to the grill firebox so they don’t dangle and get caught
on anything as you lower the grill into the jacket. Slide the grill in and leave a few inches in the back
open to route the electrical harness and gas connections to the area underneath the Insulation Jacket and
island. This would be a good time to perform electrical tests, etc. before pushing the grill fully into the
jacket and proceeding to the next step.
4. Remove the screws securing the control panel to the front of the grill. Carefully tilt down the control
panel being careful not to damage the wires to the switches and LED light bar. Pull off the connectors to
the 2 switches and the LED light bar at this time. Remove the control panel from the grill and set aside.
