Sida 1/8
701 S. RIDGE AVENUE
TROY, OHIO 45374-0001
937 332-3000
www.hobartcorp.com FORM 34468 (Apr. 2000)OEM PART 10433

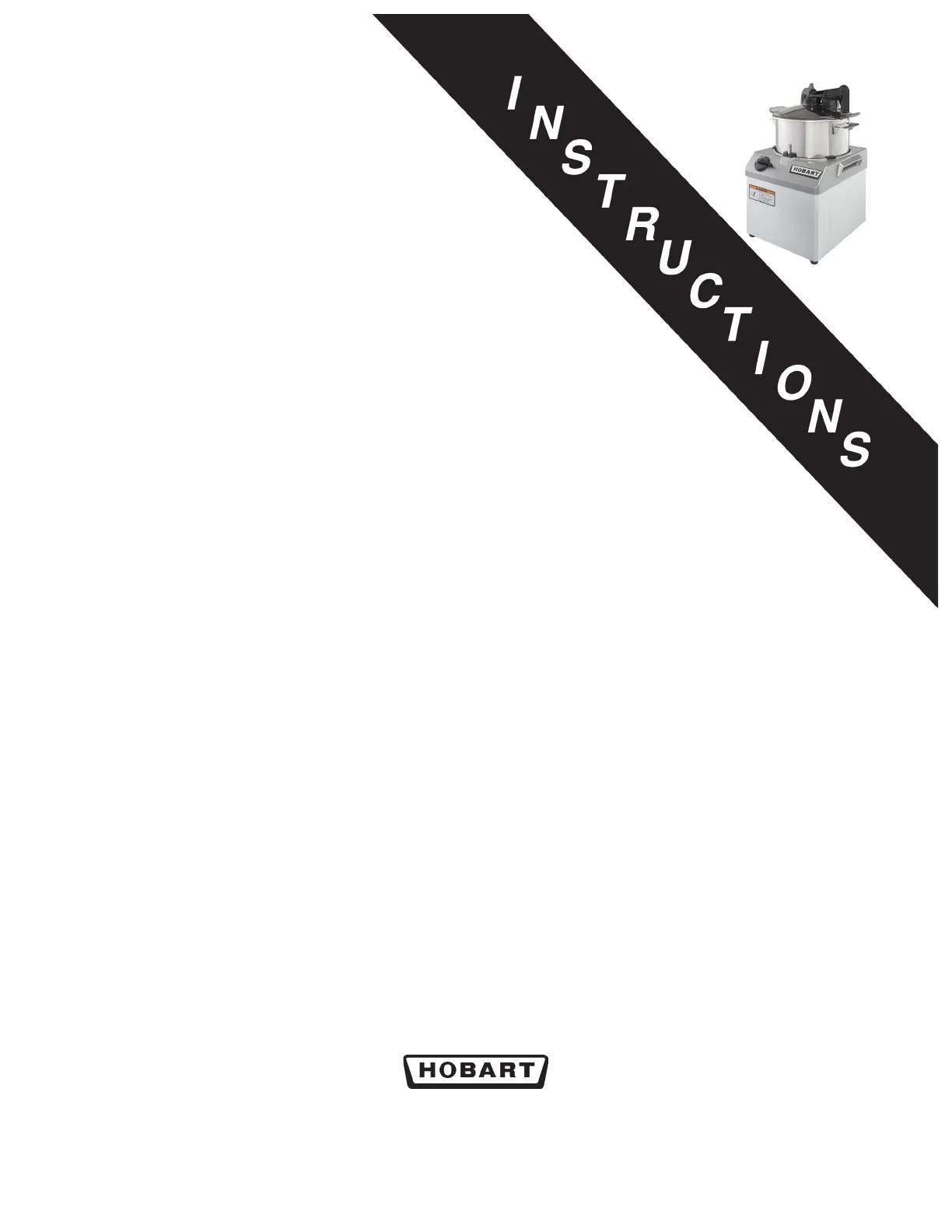

HCM61 & HCM62 FOOD PROCESSORS
MODELS
HCM61 ML-134017
HCM62 ML-134018
– 2 –
Installation, Operation, and Care of
HCM61 & HCM62 Food Processors
SAVE THESE INSTRUCTIONS
GENERAL
The model HCM61 and HCM62 Food Processors are used for
chopping meat, fish, fruits, vegetables, nuts, or dry bread, for
mixing various sauces, mayonnaise, or soups, or for blending or
pureeing various products, such as thickening or desserts. Refer
to Capacity Recommendations, page 6.
The HCM61 has a 1.5 HP motor, is provided with 120 Volt cord and
plug, and requires a 20 Amp. electrical service and receptacle. The
machine operates at 1700 rpm with single speed or pulse control.
The HCM62 has a 2.0 HP motor, is provided with 208 - 240 Volt three
phase cord and plug, and requires a 20 Amp. electrical service and
receptacle. The machine operates at 1700 or 3400 rpm with two
speed or pulse control.
INSTALLATION
UNPACKING
Immediately after unpacking the food processor, check for possible shipping damage. If this machine
is found to be damaged after unpacking, save the packaging material and contact the carrier within 15
days of delivery.
Prior to installation, test the electrical service to assure that it agrees with the specifications on the
machine data plate.
Lift or move the machine only by using the two handles on the sides of the base.
LOCATION
Place the food processor on a suitable sturdy worktop or table. There should be adequate space
around the machine for the user to operate the controls and install and remove the bowl and knife.
©HOBART CORPORATION, 2000
Model HCM61 or HCM62
Food Processor
– 3 –
ELECTRICAL CONNECTIONS (Cord Connected Machines)
WARNING: THE ELECTRICAL CORD ON THIS MACHINE IS EQUIPPED WITH A GROUNDING TYPE
PLUG WHICH MUST BE CONNECTED TO A PROPERLY GROUNDED RECEPTACLE. IF THE
RECEPTACLE IS NOT THE PROPER GROUNDING TYPE, CONTACT AN ELECTRICIAN. DO NOT
REMOVE THE GROUNDING PRONG FROM THE PLUG.
Refer to the machine data plate and Electrical Data, below.
CHECK MOTOR ROTATION (Three-Phase Machines Only)
On model HCM62, check the rotation. With all parts in their normal operating positions (pages 4 – 5),
turn the switch to the Pulse position for two seconds and release. The direction of rotation of the knife
should be counterclockwise as viewed from the top.
If the knife rotates clockwise, correct the rotation using the following procedure:
DISCONNECT THE ELECTRICAL POWER SUPPLY. Interchange any two of the incoming power
supply leads in the plug. Reconnect the power supply and turn the switch to the Pulse position to
verify that the knife rotates counterclockwise as viewed from the top.
PRESTART CHECK
With the machine fully assembled (pages 4 – 5), make sure the cutting blades stop within 4 seconds
after the arm is swung back away from the center of the bowl cover.
Make sure the machine cannot be started with the bowl and cover removed but with the arm swung into
position above the center of the drive shaft.
If the machine fails to work properly, contact Service; do not allow the machine to be operated.
ATADLACIRTCELE ATADLACIRTCELE ATADLACIRTCELE ATADLACIRTCELE ATADLACIRTCELE
ledoM ledoM ledoM ledoM ledoM esahP/ztreH/stloV esahP/ztreH/stloV esahP/ztreH/stloV esahP/ztreH/stloV esahP/ztreH/stloV
yticapmAtiucriCmuminiM yticapmAtiucriCmuminiM yticapmAtiucriCmuminiM yticapmAtiucriCmuminiM yticapmAtiucriCmuminiM
eciveDevitcetorPmumixaM eciveDevitcetorPmumixaM eciveDevitcetorPmumixaM eciveDevitcetorPmumixaM eciveDevitcetorPmumixaM
SPMA SPMA SPMA SPMA SPMA
elcatpeceR elcatpeceR elcatpeceR elcatpeceR elcatpeceR gulP gulP gulP gulP gulP
16MCH 1/06/021 02
R02-5
P02-5:gulP
26MCH 3/06/042-802 02
R02-51L
P02-51L:gulP
.noitidetsetal,07APFN,edoClacirtcelElanoitaNehthtiwecnadroccanidelipmoC
G
W
X
G
Z
Y
