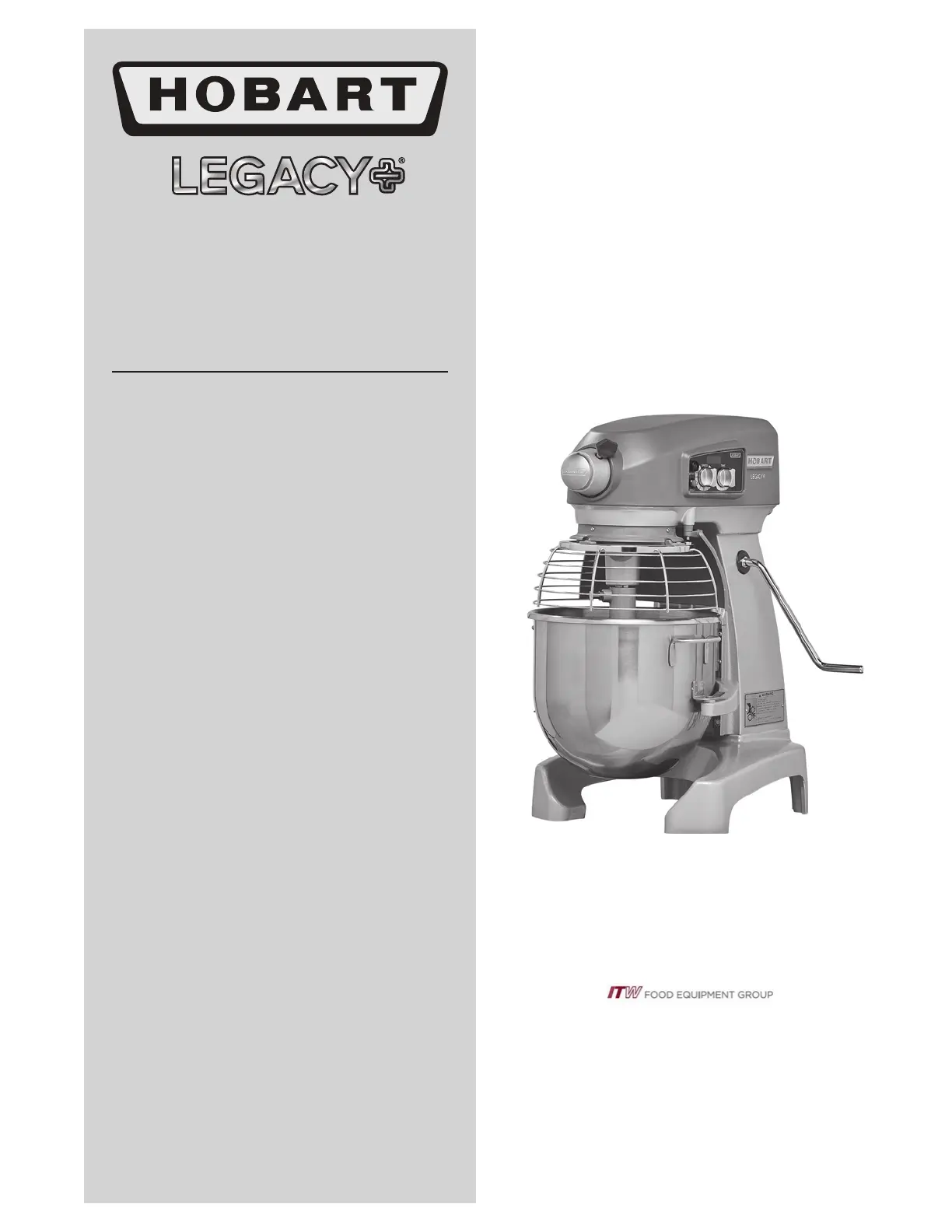

INSTRUCTIONS

MANUAL

MODELS

HL120, HL200,

HL200C, HL300,

HL300C, HL400, &

HL400C

Page 1 - English

Page 21 - Spanish

Page 41 - French F48153 (May 2021)

– 2 –

ITW Food Equipment Group © HOBART 2021

TABLE OF CONTENTS

GENERAL .................................................................................................................................................................3

Safety Guidelines ................................................................................................................................................4

Operation Guidelines ..........................................................................................................................................4

Dust Hazard ........................................................................................................................................................5

Warning Symbol ..................................................................................................................................................5

Warranty Disclaimer ............................................................................................................................................5

General Information ............................................................................................................................................5

INSTALLATION ........................................................................................................................................................6

Unpacking ...........................................................................................................................................................6

Location ..............................................................................................................................................................6

Lubrication ..........................................................................................................................................................6

Electrical Connections ........................................................................................................................................7

OPERATION ............................................................................................................................................................7

Initial Checks .......................................................................................................................................................7

Mixer Components ..............................................................................................................................................8

Controls .............................................................................................................................................................10

Bowl Placement ................................................................................................................................................11

Agitator ..............................................................................................................................................................11

Bowl Lift ............................................................................................................................................................11

Prepare For Mixing ...........................................................................................................................................12

Timer Operation (SmartTimer™).......................................................................................................................12

Operating Notes ................................................................................................................................................13

Unloading ..........................................................................................................................................................14

Wire Cage (Fig. 11) ...........................................................................................................................................14

CLEANING .............................................................................................................................................................16

MAINTENANCE .....................................................................................................................................................17

Lubrication ........................................................................................................................................................17

Adjustments ......................................................................................................................................................18

TROUBLESHOOTING ..........................................................................................................................................19

Troubleshooting Guide ......................................................................................................................................19

Service ..............................................................................................................................................................19

AGITATORS AND ATTACHMENTS ......................................................................................................................20

Available Agitators and Attachments .................................................................................................................20

– 3 –

INSTALLATION, OPERATION AND CARE OF

LEGACY+® MIXERS

12-QUART through 40-QUART

SAVE THESE INSTRUCTIONS

GENERAL

This Operation Manual is for the Hobart Legacy+ ® 12-Qt through 40-Qt Bench Style and Floor Style mixers

ZKLFKDUHDYDLODEOHLQIRXUGLႇHUHQWERZOVL]HV9LVLWWKHZHEVLWHZZZKREDUWFRUSFRPWRVHHDGGLWLRQDO

mixer sizes available from Hobart.

Device Bowl Size (Qt) Style Motor Horsepower

HL120 12-Qt Bench 0.5 HP Motor

HL200 20-Qt Both 0.5 HP Motor

HL200C 20-Qt Bench 0.5 HP Motor

HL300 30-Qt Floor 0.75 HP Motor

HL300C 30-Qt Floor 0.75 HP Motor

HL400 40-Qt Floor 1.5 HP Motor

HL400C 40-Qt Floor 1.5 HP Motor

All mixers feature a SmartTimer™ equipped with STIR, plus three mixing speeds, a manual bowl lift, and

a #12 attachment hub as standard equipment.

A variety of attachments, agitators and accessories are available. These are described in a separate

Use and Applications Handbook available on our website at www.hobartcorp.com.

Step down bowl sizes and agitators are available for the 20-Qt, 30-Qt, and 40-Qt mixers (e.g. 12-Qt bowl for

a 20-Qt mixer). Please see the website or contact your authorized Hobart Distributor for more information.
