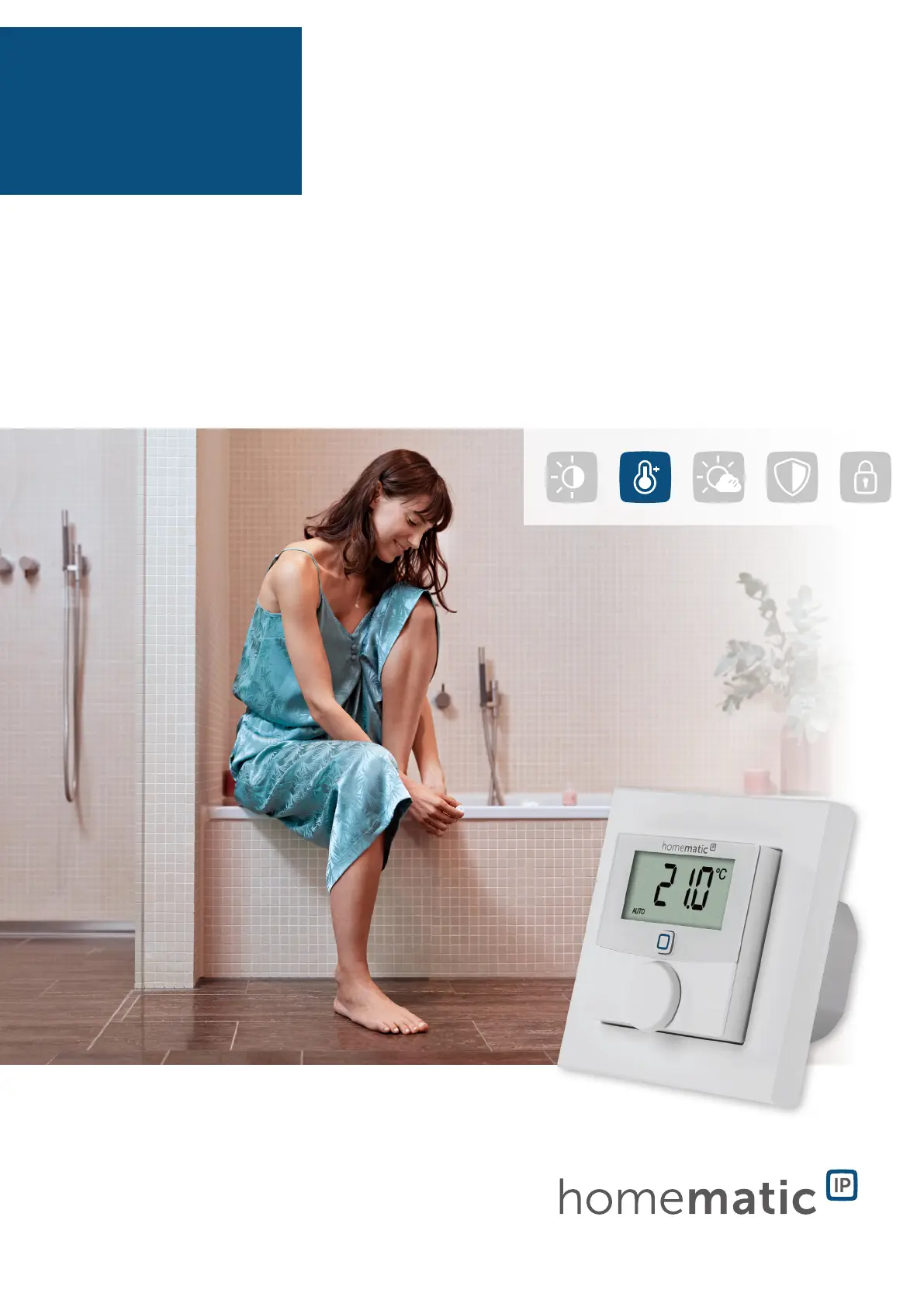

Wall Thermostat with switching
output – for brand switches
HmIP-BWTH | HmIP-BWTH24
The wall thermostat provides for intelligent control of the temperature in
a room – via the control wheel or smartphone app. Several floor heating
circuits or radiator thermostats can be controlled in one room. The current
temperature and humidity are displayed via the illuminated LC display.
Smart Living, Simply Exciting.
UPGRADE YOUR
FLOOR
HEATING SYSTEM
Available for 230 V and 24 V
Homematic IP is a brand of eQ-3 AG Subject to modifications. www.homematic-ip.com Version 2.1 EN
EASY AND SMART RETROFITTING
Conventional wall thermostats in an existing installa-
tion can easily be replaced by the Homematic IP Wall
Thermostat. The Homematic IP Wall Thermostat is in-
stalled on a free flush-mounted box and controls con-
ventional 230 V or 24 V valve drives of the floor heat-
ing system. In this way, your floor heating becomes
smart in no time and can be individually controlled via
the Homematic IP app.
Alternatively, the wall thermostat can also be used to
control the room temperature in combination with
Homematic IP Radiator Thermostats, Floor Heating
Actuators or Switch Actuators (for electric radiators).
COMFORT TEMPERATURE AT ALL TIMES
The room temperature is controlled according to the
individual needs of the user: directly on the device us-
ing the control wheel, via app, whether at home or on
the road, or even via voice control (with Amazon Alexa
or Google Assistant).
Operation requires connection to one of the
following solutions:
Stand-alone in connection with a wireless
floor heating actuator (without Access Point,
configuration directly via wall thermostat)
Homematic IP Access Point with free
smartphone app and free cloud service
Third-party solutions of partners
PACKAGE CONTENTS
Homematic IP Wall Thermostat with switching output – for brand switches
Clip-on frame and voltage supply unit
Mounting accessories
User manual
LOGISTICAL DATA
Version 230 V 24 V
Product reference 150628A0 150697A0
EAN code 4047976506286 4047976506972
Short description HmIP-BWTH HmIP-BWTH24
Packing unit 60 60
Packing dimensions 122 x 112 x 73 mm 122 x 112 x 73 mm
Weight incl. packaging 241.2 g 226.6 g
TECHNICAL SPECIFICATIONS
Supply voltage 230 V/50 Hz | 24 V/50 Hz
Max. switching capacity 1 A | 24 W
Degree of protection IP20
Load type ohmic load
Cable type and cross section rigid and flexible cable,
0.75 - 1.50 mm²
Installation
only in normal commercial switch
boxes (device boxes) in accord-
ance with DIN 49073-1
Ambient temperature 0 to 50 °C
Dimensions (W x H x D)
Without frame:
Including frame:
55 x 55 x 54 mm
86 x 86 x 54 mm
Weight 136 g
Radio frequency band 868.0-868.6 MHz
869.4-869.65 MHz
Typ. open area RF range 130 m | 160 m
INTELLIGENT CONTROL
Individual temperature profiles can easily be created
via the app – with up to 3 configurable heating profiles
and 13 changes per day. The temperature is regulated
automatically and heating is only carried out if neces-
sary.
The temperature can be precisely adjusted in steps of
0.5°C using the control wheel. With the boost func-
tion, the room can be heated up quickly at the push
of a button.
ALWAYS HAVE THE TEMPERATURE IN SIGHT
Measures the temperature and humidity and constant-
ly transmits the data to the radiator thermostats in the
room as well as to the Homematic IP app. That way,
the actual temperature and humidity in each room are
visible via the app at any time.
MODULAR DESIGN FOR HIGH FLEXIBILITY
Thanks to its design, which can be flexibly combined,
the wall thermostat can be integrated into existing
switch series (with 55 mm frame size) of the most
common manufacturers (an overview of compatible
manufacturers is available at www.homematic-ip.com).
cloud operation as an option
cloud
server
Transmits the
temperature /
humidity values of
the rooms
Regulates the room
temperature via
floor heating circuits
Example: wall thermostat controls standard valves
NC
NC
NC
NC
NC
NC
NC
NC
NC
