Prophet™ Precept™ 80W LCD AC/DC Multi-Chemistry Battery Charger

InstructIon Manual | BedIenungsanleItung | Manuel d’utIlIsatIon | Manuale dI IstruzIonI (dYnc2015)

NOTICE

All instructions, warranties and other collateral documents are subject to change

at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit

horizonhobby.com and click on the support tab for this product.

Meaning of Special Language

The following terms are used throughout the product literature to indicate various

levels of potential harm when operating this product:

NOTICE: Procedures, which if not properly followed, create a possibility of physical

property damage AND a little or no possibility of injury.

CAUTION: Procedures, which if not properly followed, create the probability of

physical property damage AND a possibility of serious injury.

WARNING: Procedures, which if not properly followed, create the probability of

property damage, collateral damage, and serious injury OR create a high probability

of superﬁcial injury.

WARNING: Read the ENTIRE instruction manual to become familiar with

the features of the product before operating. Failure to operate the product

correctly can result in damage to the product, personal property and cause

serious injury.

This is a sophisticated hobby product. It must be operated with caution and

common sense and requires some basic mechanical ability. Failure to operate

this Product in a safe and responsible manner could result in injury or damage

to the product or other property. This product is not intended for use by

children without direct adult supervision. Do not attempt disassembly, use with

incompatible components or augment product in any way without the approval of

Horizon Hobby, LLC. This manual contains instructions for safety, operation and

maintenance. It is essential to read and follow all the instructions and warnings in

the manual, prior to assembly, setup or use, in order to operate correctly and avoid

damage or serious injury.

Age Recommendation: Not for children under 14 years. This is not a toy.

This appliance is not intended for use by persons with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have

been given supervision or instruction concerning use of the appliance by a person

responsible for their safety.

SAFETY PRECAUTIONS AND WARNINGS

WARNING: Failure to exercise caution while using this product and comply

with the following warnings could result in product malfunction, electrical

issues, excessive heat, FIRE, and ultimately injury and property damage.

 

 

 

 

 

 

 

 -

ning.

 

 

 

 

 

 

 

 



 

to avoid short circuit between the charge leads. Reverse the sequence when

disconnecting.

 

 

charges.

 

 

WARNING: Never leave charger unattended, exceed maximum charge rate,

charge with non-approved batteries or charge batteries in the wrong mode.

Failure to comply may result in excessive heat, ﬁre and serious injury.

CAUTION: Always ensure the battery you are charging meets the

speciﬁcations of this charger and that the charger settings are correct. Not

doing so can result in excessive heat and other related product

malfunctions, which can lead to user injury or property damage. Please

contact Horizon Hobby or an authorized retailer with compatibility questions.

Included Items:

JST_XH Balance adapter

Banana plug to EC3™ battery connector



OPTIONAL ACCESSORIES

DYN4012 - DC Power Cord

DYN5006 - Charge Adapter Banana to Deans Male

DYN5014 - Charge Adapter: Banana to Traxxas® Male

DYN5033 - Temperature Sensor

SPECIFICATIONS

 

 

Charge Current 

Discharge Current 

Operating Temperature 

Balance Current Drain 

Charging Mode 

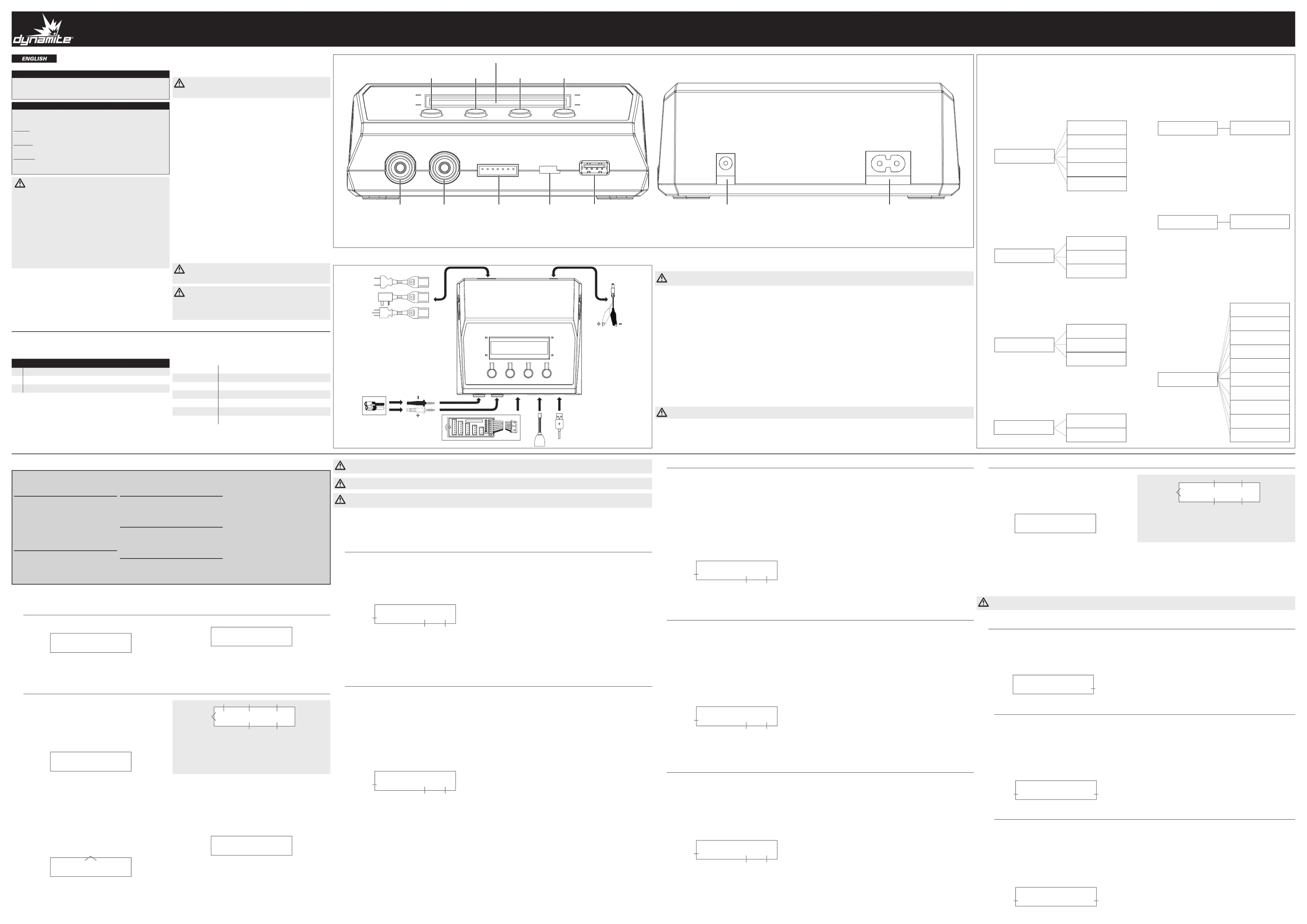

GETTING STARTED

CAUTION: Never connect the AC and DC input cords to an active power source at the same time. This will void the warranty, cause product damage and possibly

injure the user.

H. I. J. K.

F. G.B. C. D. E.

 

 

C. Balance Circuit Adapter Board Connector

D. Temperature Sensor Port

 

F. DC Power Input Port

G. AC Power Input Port

 

 

 

 

L. LCD Screen

PROGRAM SELECT

LiPo BATT

LiPo CHARGE

4.6V 22.2V(6S)

LiPo STORAGE

2.5A 19.8V(6S)

LiPo DISCHARGE

5.0A 18.0V(6S)

LiPo BALANCE

5.5A 22.2V(6S)

LiPo FAST CHG

0.1A 7.4V(2S)

PROGRAM SELECT

NiMH BATT

NiMH CHARGE Man

CURRENT 0.1A

NiMH DISCHARGE

0.1A AUTO

NiMH CYCLE

DCHG>CHG 5

PROGRAM SELECT

NiCd BATT

NiCd CHARGE Man

CURRENT 0.1A

NiCd DISCHARGE

0.1A AUTO

NiCd CYCLE

DCHG>CHG 1

PROGRAM SELECT

Pb BATT

Pb CHARGE

0.1A 2.0V (1P)

Pb DISCHARGE

0.1A 2.0V (1P)

PROGRAM SELECT

SAVE DATA

SAVE [01] Pb

2.0V 5000mAh

PROGRAM SELECT

LOAD DATA

LOAD [01] Pb

2.0V 5000mAh

USER SET

PROGRAM->

Key Beep ON

Buzzer ON

Input Power Low

Cut-Off 11.0V

Waste Time

CHG>DCHG 1min

Capacity Cut-Off

ON 5000mAh

Saftey Timer

ON 180min

Temp Select

Temp Cut-Off 80C

NiMH Sensitivity

D. Peak Default

NiCd Sensitivity

D. Peak Default

LiPo/LiIo/LiFe

LiPo

V. Type 3.7V

CHK Time 10min

PROGRAMMING QUICK GUIDE

Press the Battery Type/Memory Button (H) to change among main menu screens or to get to these main menu screens from a submenu screen.

Press the to get to submenus for adjusting operating parameters, to save value changes, or to start chosen battery charging actions.Select/Start Button (K)

Press the or Decrease (I) Up (+) Buttons (J)

JST _XH ADAPTER

2S 3S 4S 6S5S

Not to scale.

Not all wiring shown.

Not all connectors shown.

LITHIUM BATTERIES (LI-PO)

Ni-MH BATTERIES

Pb BATTERIES

Ni-Cd BATTERIES

SAVE DATA

LOAD DATA

USER SET

OPERATING YOUR CHARGER

1 SELF TEST AND PROGRAM SELECT SCREENS

LITHIUM

2 

3 

4 

5 

6 

7 

Ni-MH

8 

9 NI-MH CHARGING

10 NI-MH DISCHARGING

11 

12 

Ni-Cd

13 NI-CD CHARGING

14 NI-CD DISCHARGING

15 

16 

17 PB CHARGING

18 PB DISCHARGING

USER SETTINGS

19 

20 LOAD DATA

21 

a 

b 

c 

d 

e 

f 

g 

h 

i 

j 

22 

23 

TABLE OF CONTENTS

1 SELF TEST AND PROGRAM SELECT SCREENS

arger is powered ON, there is a series of self tests and the screen will

show the charger brand name and model number.

DYNAMITE

DYNC2015



PROGRAM SELECT

LiPo BATT

From any screen, press the Battery Type/Memory Button (H) to go back to the

main menu.

2 LITHIUM BATTERIES

Press the Battery Type/Memory Button (H) to change among the 7 main menu screens

and go to the PROGRAM SELECT Lithium BATT screen. Press the Select/Start Button (K)

to enter this menu. This is the menu in which you set the standard Lithium battery charge

parameters.







 section.

LiPo CHARGE

4.6A 22.2V(6S)

Press the or to go to one of the control screens Down (–) Button (I) Up (+) Button (J)





Select/Start Button (K) and adjust charging parameters

as needed. Press and hold the Select/Start Button



the charger compares the battery to charger settings. The screen will show battery and your

settings information.

(A) does not match, press the

Battery Type/Memory Button and change the lithium battery charging parameters

as needed. If the R: information matches S:, press the to conﬁrm. Select/Start Button

After conﬁrmation, charging starts and information will show on the LCD screen.

R: 3SER S:3SER

CONFIRM (ENTER)

Li3S 2.0A 12.59V

BAL 022:43 01082

B C D

A. A Li-Po battery pack is balance charging

B. Battery pack has 3 cells in series

C. 

D.

E. 

F.

During charging, the can be pressed to show several parameter Down (–) Button





Up (+) Button Down (–) Button to see charge voltages for each cell and the to return

to the Charge Monitor screen. To change the charging rate during charging, press the

Select/Start Button, then increase or decrease the rate using the Down (–) Button

and Up (+) Button



Press the Battery Type/Memory Button

4.20 4.20 4.20

0.00 0.00 0.00

3 LITHIUM CHARGING

Press the Battery Type/Memory Button (H) until you reach the 7 main menus.

Then press the Battery Type/Memory Button until you reach the PROGRAM

SELECT Lithium BATT screen. Press the to enter this menu.Select/Start Button (K)

Press the or to reach the CHARGE screen Down (–) Button (I) Up (+) Button (J)

and set charging parameters. The charging amperage (A)

(C) (B) is dependent on the number of cells in series and Lithium

battery type.

LiPo CHARGE

4.6A 22.2V(6S)

To select values other than the existing parameters:

 Select/Start Button (A) so the charge current value ﬂashes

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the

charge current value

 Select/Start Button (C) again to save the value and the voltage value

ﬂashes

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the

 (B)

 Select/Start Button again to save the voltage value

If no parameters are ﬂashing, you can press the or to Down (–) Button Up (+) Button

select another program such as BALANCE, FAST CHG, STORAGE or DISCHARGE.

To start charging, press and hold the for 3 seconds.Select/Start Button

CAUTION:

process as batteries can cause ﬁre, collateral damage and injuries.

CAUTION:

CAUTION:

the Lithium charge programs will damage the battery or the charger.

4 LITHIUM BALANCING CHARGING

This program menu is speciﬁcally designed for the balanced charging of Lithium

batteries, including Li-Po, Li-Fe and Li-Ion battery packs. In balance charging, each

cell in the battery pack is monitored and charged to the same capacity and voltage

levels, ensuring the optimum performance of the pack. Balance charging requires a

battery with a balance adapter connector and a balance adapter board that has been

designed for your charger and your battery.

Press the Battery Type/Memory Button (H) until you reach the 7 main menus.

Then press the Battery Type/Memory Button until you reach the PROGRAM

SELECT Lithium BATT screen. Press the to enter this menu.Select/Start Button (K)

Press the or to reach the BALANCE screen and Down (–) Button (I) Up (+) Button (J)

set charging parameters. The charging amperage (A) 

(C) (B) is dependent on the number of cells in series .

LiPo BALANCE

5.5A 22.2V(6S)

To select values other than the existing parameters:

 Select/Start Button (A) so the charge current value ﬂashes

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the

charge current value

 Select/Start Button (C) again to save the value and the voltage value

ﬂashes

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the

 (B)

 Select/Start Button again to save the voltage value

If no parameters are ﬂashing, you can press the or Down (–) Button Up (+) Button

to select another program such as CHARGE, FAST CHG, STORAGE or DISCHARGE.

To start charging, press and hold the for 3 seconds.Select/Start Button

5 LITHIUM FAST CHARGING

Near the end of a standard charging cycle the charger switches from Constant



the battery pack as close as possible to the maximum capacity. In Fast Charge, the



ﬁnal capacity of the battery will be less than what you would get using the standard

charge method.

Press the Battery Type/Memory Button (H) until you reach the 7 main menus.

Then press the Battery Type/Memory Button until you reach the PROGRAM

SELECT Lithium BATT screen. Press the to enter this menu.Select/Start Button (K)

Press the or to reach the FAST CHG screen Down (–) Button (I) Up (+) Button (J)

and set charging parameters.

The charging amperage (A)(C) is

dependent on the number of cells in series .(B)

LiPo FAST CHG

0.1A 7.4V(2S)

To select values other than the existing parameters:

 Select/Start Button (A) so the charge current value ﬂashes

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the

charge current value

 Select/Start Button (C) again to save the value and the voltage value

ﬂashes

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the

 (B)

 Select/Start Button again to save the voltage value

If no parameters are ﬂashing, you can press the or Down (–) Button Increase

Button to select another program such as CHARGE, BALANCE, STORAGE or

DISCHARGE.

To start charging, press and hold the for 3 seconds.Select/Start Button

6 LITHIUM STORAGE CHARGING







-



Press the Battery Type/Memory Button (H) until you reach the 7 main menus.

Then press the Battery Type/Memory Button until you reach the PROGRAM

SELECT Lithium BATT screen. Press the to enter this menu.Select/Start Button (K)

Press the or to reach the STORAGE screen Down (–) Button (I) Up (+) Button (J)

and set charging parameters.

The charging amperage (A)(C) is

dependent on the number of cells in series .(B)

LiPo STORAGE

2.5A 11.1V(3S)

To select values other than the existing parameters:

 Select/Start Button (A) so the charge current value ﬂashes

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the

charge current value

 Select/Start Button (C) again to save the value and the voltage value

ﬂashes

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the

 (B)

 Select/Start Button again to save the voltage value

If no parameters are ﬂashing, you can press the or Down (–) Button Up (+) Button

to select another program such as CHARGE, BALANCE, FAST CHG or DISCHARGE.

To start charging, press and hold the for 3 seconds.Select/Start Button

7 LITHIUM DISCHARGING

A battery pack’s capacity can be veriﬁed by discharging the pack to its minimum

voltage level and measuring the current as the pack is discharged.

Press the Battery Type/Memory Button (H) until you reach the 7 main menus.

Then press the Battery Type/Memory Button until you reach the PROGRAM

SELECT Lithium BATT screen. Press the to enter this menu.Select/Start Button (K)

Press the or to reach the DISCHARGE Down (–) Button (I) Up (+) Button (J)

screen and set discharging parameters.

The discharging amperage (A)(C) is

dependent on the number of cells in series .(B)

LiPo DISCHARGE

5.0A 18.0V(3S)

To select values other than the existing parameters:

 Select/Start Button (A) so the discharge current value ﬂashes

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the

discharge current value

 Select/Start Button (C) again to save the value and the voltage value

ﬂashes

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the

 (B)

 Select/Start Button again to save the voltage value

If no parameters are ﬂashing, you can press the or to Down (–) Button Up (+) Button

select another program such as CHARGE, BALANCE, FAST CHG or STORAGE.

To start discharging, press and hold the for 3 seconds.Select/Start Button

8 NICKEL-METAL HYDRIDE (NI-MH) BATTERIES

Press the Battery Type/Memory Button (H) to change among the 7 main menu

screens and go to PROGRAM SELECT Ni-MH BATT screen. Press the Select/Start

Button (K) to enter this menu. This is the menu in which you set the standard Ni-MH

battery charge parameters.



 section.

PROGRAM SELECT

NiMH BATT

Press the or to go to one of the control Down (–) Button (I) Up (+) Button (J)



connect your Ni-MH battery to the charger. Press the and Select/Start Button (K)

adjust charging parameters as needed. Press and hold the Select/Start Button



sequence. After conﬁrmation, charging starts and information will show on the LCD

screen.

NiMH 2.0A 7.59V

CHG 022:43 01082

B C

A. A Ni-MH battery pack is charging

B. 

C. 

D.

E. 

During charging, the or can be pressed to show Down (–) Button Up (+) Button

several parameter messages on the LCD screen including: Ni-MH Sensitivity, Capacity

Cut-off, Safety Timer setting, Temperature Cut-off, External Temperature and Input





Press the Battery Type/Memory Button

CAUTION:

Ni-MH charge programs will damage the battery or the charger.

9 NI-MH CHARGING

Press the Battery Type/Memory Button (H) until you reach the 7 main menus.

Then press the Battery Type/Memory Button until you reach the PROGRAM

SELECT NiMH BATT screen. Press the to enter this menu.Select/Start Button (K)

Press the or to reach the NiMH CHARGE Down (–) Button (I) Up (+) Button (J)

screen and set charging parameters. The charging amperage can be set between (A)



NiMH CHARGE Man

CURRENT 0.1A A

To select a value other than the existing parameter:

 Select/Start Button (A) so the charge current value ﬂashes

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the

charge current value

 Select/Start Button again to save the value

If no parameters are ﬂashing, you can press the or Down (–) Button Increase

Button

To start charging, press and hold the for 3 seconds.Select/Start Button

10 NI-MH DISCHARGING

A battery pack’s capacity can be veriﬁed by discharging the pack to its minimum

voltage level and measuring the current as the pack is discharged.

Press the Battery Type/Memory Button (H) until you reach the 7 main menus.

Then press the Battery Type/Memory Button until you reach the PROGRAM

SELECT NiMH BATT screen. Press the to enter this menu.Select/Start Button (K)

Press the or to reach the NiMH Down (–) Button (I) Up (+) Button (J)

DISCHARGE screen and set discharging parameters. The discharging amperage (A)

 (B)



NiMH DISCHARGE

0.1A AUTO BA

To select values other than the existing parameters:

 Select/Start Button (A) so the discharge current value ﬂashes

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the

discharge current value

 Select/Start Button (B) again to save the value and the voltage value

ﬂashes

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the voltage

 Select/Start Button again to save the voltage value

If no parameters are ﬂashing, you can press the or Down (–) Button Increase

Button

To start discharging, press and hold the for 3 seconds.Select/Start Button

11 NI-MH CYCLE CHARGING



program. Cycling Ni-MH batteries can increase capacity and rejuvenate neglected

batteries. Discharge capacity and average battery voltage help you compare batteries

for the best run time and power.

Press the Battery Type/Memory Button (H) until you reach the 7 main menus.

Then press the Battery Type/Memory Button until you reach the PROGRAM

SELECT NiMH BATT screen. Press the to enter this menu.Select/Start Button (K)

Press the or Down (–) Button (I) Up (+) Button (J)



NiMH CYCLE

DCHG>CHG 5 BA

To select values other than the existing parameters:

 Select/Start Button (A) so the cycle type ﬂashes

 Down (–) Button Up (+) Button or to set the cycle type as

CHG>DCHG or DCHG>CHG

 Select/Start Button again to save your choice and the number of

cycles ﬂashes(B)

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the



 Select/Start Button again to save the cycle count value

If no parameters are ﬂashing, you can press the or Down (–) Button Increase

Button to select another program such as CHARGE or DISCHARGE.

To start cycling, press and hold the for 3 seconds.Select/Start Button

When Using an External DC Power Source:

 DC Power Input Port (F).

 

 LCD Screen (L).

NOTICE: Always connect cable polarities correctly.

NOTICE:

using with sources other than a standard AC wall outlet.

When Using an External AC Power Source:

 AC Power Input Port (G).

 

CAUTION: Always power ON the charger before connecting a battery, or damage to the charger and the battery can result.

 

 

 

 

17 PB CHARGING

Press the Battery Type/Memory Button (H) until you reach the 7 main menus.

Then press the Battery Type/Memory Button until you reach the PROGRAM

SELECT Pb BATT screen. Press the to enter this menu.Select/Start Button (K)

Press the or to reach the Pb CHARGE Down (–) Button (I) Up (+) Button (J)

screen and set charging parameters. The charging amperage can be set between (A)

(C) (B) is dependent on the number of cells in series and can



Pb CHARGE

0.1A 2.0V(1P) B

To select values other than the existing parameters:

 Select/Start Button (A) so the charge current value ﬂashes

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the

charge current value

 Select/Start Button (C) again to save the value and the voltage value

ﬂashes

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the

 (B)

 Select/Start Button again to save the voltage value

If no parameters are ﬂashing, you can press the or Down (–) Button Increase

Button to select another program such as DISCHARGE.

To start charging, press and hold the for 3 seconds.Select/Start Button

CAUTION:

charge programs will damage the battery or the charger.

PB DISCHARGING

A battery pack’s capacity can be veriﬁed by discharging the pack to its minimum

voltage level and measuring the current as the pack is discharged.

Press the Battery Type/Memory Button (H) until you reach the 7 main menus.

Then press the Battery Type/Memory Button until you reach the PROGRAM

SELECT Pb BATT screen. Press the to enter this menu.Select/Start Button (K)

Press the or to reach the Pb DISCHARGE Down (–) Button (I) Up (+) Button (J)

screen and set discharging parameters. The discharging amperage can be set (A)

(C) (B) is dependent on the number of cells in series



Pb DISCHARGE

0.1A 2.0V(1P) B

To select values other than the existing parameters:

 Select/Start Button (A) so the discharge current value ﬂashes

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the

discharge current value

 Select/Start Button (C) again to save the value and the voltage value

ﬂashes

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the

 (B)

 Select/Start Button again to save the voltage value

If no parameters are ﬂashing, you can press the or Down (–) Button Increase

Button to select another program such as CHARGE.

To start discharging, press and hold the for 3 seconds.Select/Start Button

19 SAVE DATA

PROGRAM SELECT

SAVE DATA

Press the Battery Type/Memory Button (H) to change among the 7 main menu



battery proﬁle. To reduce the time required to initiate a charging or discharging cycle on a

battery you regularly use, this charger has been designed with the capability of storing up



SAVE [01] Pb

2.0V 5000mAh C

  Select/Start Button (K) to enter this menu

 Down (–) Button (I) Up (+) Button (J) or to select a battery proﬁle

(A) 

 Select/Start Button to save the battery proﬁle value so the battery

type ﬂashes(B)

 Down (–) Button Up (+) Button or to select a battery type

 Select/Start Button to save the battery type and the voltage value (D) ﬂashes

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the voltage

 Select/Start Button to save the value and the battery capacity (C) ﬂashes

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the

battery capacity

 Select/Start Button to save the value and the battery proﬁle value ﬂashes

 Select/Start Button for at 3 seconds until the screen

changes to the CHARGE menu

 Select/Start Button to set the CHARGE parameters. Refer to the bat-

tery type parameter setting instructions

 Down (–) Button Up (+) Button or to go to and set other



After setting all parameters, press and hold the for 3 seconds Select/Start Button

until the screen changes.

SAVE...

After the battery proﬁle has been saved, the charger will return to the PROGRAM



Enter the Save Data menu and create more battery proﬁles or press the Battery

Type/Memory Button to go to other options.

20 LOAD DATA

PROGRAM SELECT

LOAD DATA

Press the Battery Type/Memory Button (H) to change among the 7 main menu



a saved battery proﬁle.

LOAD [01] LiPo

11.1V 5000mAh

 Select/Start Button (K) (A) and the battery proﬁle value ﬂashes

 Down (–) Button (I) Up (+) Button (J) or to DECREASE or INCREASE

the battery proﬁle value

 Select/Start Button until the battery charging function

screen shows

 Down (–) Button Up (+) Button or to go to the charging function you

need

 Select/Start Button to start the chosen charging function

21 PROGRAM SELECT USER SET

USER SET

PROGRAM–>

Press the Battery Type/Memory Button (H)-



Select/Start Button (K) to enter the menu. Press the or to change between Down (–) Button (I) Up (+) Button (J)

sub-menu screens. Press the Battery Type/Memory Button to return to the main menu screen.

a LITHIUM BATTERY TYPE



other Lithium battery screens.

LiPo

V. Type 3.7V

Select/Start Button (A)so the voltage value ﬂashes

Down (–) Button Up (+) Button or to change the voltage value





Select/Start Button to save your selection

b LITHIUM BATTERY CHECK TIME

LiPo/LiIo/LiFe

CHK Time 10min A



automatically identify the number of series cells in a lithium battery pack. Normally









To select a value other than the default parameter:

Select/Start Button (A)so the time value ﬂashes

Down (–) Button Up (+) Buttonor to DECREASE or INCREASE the

time value

Select/Start Button again to save this value

c NI-MH SENSITIVITY (PEAK VOLTAGE)

NiMH Sensitivity

D.Peak Default A









low, the charger will not charge a battery to full capacity.

To select a value other than the default parameter:

Select/Start Button (A) so the D.Peak value ﬂashes

Down (–) Button Up (+) Button or to DECREASE or INCREASE the

D.peak value

Select/Start Button again to save this value

d NI-CD SENSITIVITY (PEAK VOLTAGE)

NiCd Sensitivity

D.Peak Default A









too low, the charger will not charge a battery to full capacity.

To select a value other than the default parameter:

Select/Start Button (A) so the D.Peak value ﬂashes

Down (–) Button Up (+) Button or to DECREASE or INCREASE the

D.Peak value

Select/Start Button again to save this value

e BATTERY CUTOFF TEMPERATURE

Temp Select

Temp Cut-Off 80C A



by stopping the charging process if the battery temperature reaches that limit.

The charger can be used in conjunction with a battery mounted temperature

Temperature Sensor Port

(D) to monitor the temperature of the battery during the charging process. The



To select a value other than the default parameter:

Select/Start Button (K) (A) so the temperature value ﬂashes

Down (–) Button Up (+) Button or to DECREASE or INCREASE the

temperature value

Select/Start Button again to save this value

f WASTE (BATTERY COOL-DOWN) TIME

Waste Time

CHG>DCHG 1min A





necessary to set a waste time interval during each step of the process to make sure

the battery and charger are completely cooled before moving on to the next part of the



To select a value other than the default parameter:

Select/Start Button (A) so the time value ﬂashes

Down (–) Button Up (+) Button or to DECREASE or INCREASE the

time value

Select/Start Button again to save this value

SAFETY TIMER

Safety Timer

ON 180min BA



started, a clock inside the charger will begin recording the elapsed charge time. If

the safety timer function has been turned ON, the charger will stop the charging

process once this time limit has been reached to avoid damage caused by over-



To select values other than the default parameters:

Select/Start Button (A) so ON or OFF ﬂashes

Down (–) Button Up (+) Button or to turn the safety timer ON or OFF

Select/Start Button again to save this setting and the time value

(B) ﬂashes

Down (–) Button Up (+) Button or to DECREASE or INCREASE the

time value

Select/Start Button again to save this value

i BEEP AND BUZZER SOUND CONTROL

Key Beep ON

Buzzer ON B





charging is complete or if there is cause for alarm during charging.

To select values other than the default parameters:

Select/Start Button (A) so ON or OFF ﬂashes

Down (–) Button Up (+) Button or to set the key beep at ON or OFF

Select/Start Button again to save this setting and ON or OFF (B) ﬂashes

Down (–) Button Up (+) Button or to set the buzzer at ON or OFF

Select/Start Button again to save this value

BATTERY CAPACITY CUTOFF

Capacity Cut-Off

ON 5000mAh BA





function is set at ON, the charger will stop charging at the capacity limit to prevent battery



To select values other than the default parameters:

 Select/Start Button

Down (–) Button Up (+) Button or to turn the capacity cutoff ON or OFF

Select/Start Button again to save this setting and the capacity

value ﬂashes (B)

Down (–) Button Up (+) Button or to DECREASE or INCREASE

capacity value

Select/Start Button again to save this value

j INPUT POWER LOW VOLTAGE CUTOFF

Input Power Low

Cut-Off 11.0V A







To select a value other than the default parameter:

Select/Start Button (A) so the voltage value ﬂashes

Down (–) Button Up (+) Button or to DECREASE or INCREASE the

voltage value

Select/Start Button again to save this value

22 USB DEVICE CHARGING

2.1A USB Power Output Port (E). To use the charging



23 TROUBLESHOOTING



charger’s LCD screen, make the recommended responses. If the message continues after you respond as recommended, contact your nearest Horizon Hobby customer

service center for assistance.

 Make sure each connection polarity is correct between the power source and the charger, then between the charger and the battery

 Make sure the power connections are correct for charging

SHORT ERR Make sure there are no short circuits between the poles of the battery or the battery and the charger. Replace damaged wires.

 Input voltage to the charger fell below the default or adjusted input voltage setting. Make sure the power source for the charger provides correct

input voltage.

 

speciﬁcations or replace the battery.

 Charger electronics require repair.

 Battery voltage is lower than the value setting in the charger. Adjust settings, then make sure the battery is not damaged or replace the battery.

 Battery voltage is higher than the value setting in the charger. Adjust settings, then make sure the battery is not damaged or replace the battery.

Battery Type Li-Po Li-Io Li-Fe Ni-MH Ni-Cd Pb

      

      

      

NON-US LIMITED WARRANTY

What this Warranty Covers - 

-

terials and workmanship at the date of purchase.

What is Not Covered - -



     



       

-

lations.

-

-

        

       

        

         



Purchaser’s Remedy - Horizon’s sole obligation and purchaser’s sole and exclusive

        

Product determined by Horizon to be defective. Horizon reserves the right to inspect



are at the sole discretion of Horizon. Proof of purchase is required for all warranty





Limitation of Liability -





        





price of the Product on which liability is asserted. As Horizon has no control over use,

setup, ﬁnal assembly, modiﬁcation or misuse, no liability shall be assumed nor ac-

cepted for any resulting damage or injury. By the act of use, setup or assembly, the user

accepts all resulting liability. If you as the purchaser or user are not prepared to accept

the liability associated with the use of the Product, purchaser is advised to return the

Product immediately in new and unused condition to the place of purchase.

Law --



which vary from state to state. Horizon reserves the right to change or modify this

warranty at any time without notice.

WARRANTY SERVICES

Questions, Assistance, and Services - -

chase cannot provide warranty support or service. Once assembly, setup or use of the

Product has been started, you must contact your local distributor or Horizon directly.

This will enable Horizon to better answer your questions and service you in the event

that you may need any assistance. For questions or assistance, please visit our website



-



a Product Support representative.

Inspection or Services - If this Product needs to be inspected or serviced and is

compliant in the country you live and use the Product in, please use the Horizon Online

Service Request submission process found on our website or call Horizon to obtain a



shipping carton. Please note that original boxes may be included, but are not designed

to withstand the rigors of shipping without additional protection. Ship via a carrier that

provides tracking and insurance for lost or damaged parcels, as Horizon is not respon-

sible for merchandise until it arrives and is accepted at our facility. An Online Service

    -

der-service-center. If you do not have internet access, please contact Horizon Product

Support to obtain a RMA number along with instructions for submitting your product for



address, email address and phone number where you can be reached during business



the included items, and a brief summary of the problem. A copy of your original sales

receipt must be included for warranty consideration. Be sure your name, address, and

RMA number are clearly written on the outside of the shipping carton.

NOTICE: Do not ship Li-Po batteries to Horizon. If you have any issue with a

Li-Po battery, please contact the appropriate Horizon Product Support ofﬁce.

Warranty Requirements- For Warranty consideration, you must include your

original sales receipt verifying the proof-of-purchase date. Provided warranty

conditions have been met, your Product will be serviced or replaced free of charge.

Service or replacement decisions are at the sole discretion of Horizon.

Non-Warranty Service - Should your service not be covered by warranty,

service will be completed and payment will be required without notiﬁcation

or estimate of the expense unless the expense exceeds 50% of the retail

purchase cost. By submitting the item for service you are agreeing to payment of the

    

include this request with your item submitted for service. Non-warranty service es-

timates will be billed a minimum of ½ hour of labor. In addition you will be billed for

 

MasterCard, American Express, and Discover cards. By submitting any item to Horizon

for service, you are agreeing to Horizon’s Terms and Conditions found on our website



ATTENTION: Horizon service is limited to Product compliant in the country

of use and ownership. If received, a non-compliant Product will not be ser-

viced. Further, the sender will be responsible for arranging return shipment

of the un-serviced Product, through a carrier of the sender’s choice and at

the sender’s expense. Horizon will hold non-compliant Product for a period of

60 days from notiﬁcation, after which it will be discarded.

WARRANTY AND SERVICE CONTACT INFORMATION

Country of Purchase Horizon Hobby Contact Information Address



Horizon Service Center

 





Horizon Product Support







Sales sales@horizonhobby.com



 

Horizon Hobby Limited

sales@horizonhobby.co.uk 





Germany Horizon Technischer Service service@horizonhobby.de 



Sales: Horizon Hobby GmbH 

France 

Horizon Hobby SAS

infofrance@horizonhobby.com 





China 



info@horizonhobby.com.cn 





COMPLIANCE INFORMATION FOR THE EUROPEAN UNION

Declaration of Conformity



 

 





EN55022:2010 + AC:2011

EN55024:2010

EN61000-3-2:2006+A1:2009+A2:2009

EN61000-3-3:2008

EN60335-1: 2002+A11:2004+A1:2004+A12:2006+A2:2006+A13:2008+A14:2010+A15:2011

EN60335-2-29:2004+A2:2010

Signed for and on behalf of:

Horizon Hobby, LLC





Robert Peak

Chief Financial Ofﬁcer, Horizon Hobby, LLC

Instructions for disposal of WEEE by users in the European Union

This product must not be disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it over to a designated

collections point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help

to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off

your waste equipment for recycling, please contact your local city ofﬁce, your household waste disposal service or where you purchased the product.

 

FCC INFORMATION



reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio communications.

16 LEAD-ACID/SEALED-LEAD-ACID (PB) BATTERIES

Press the Battery Type/Memory Button (H) to change among the 7 main menu screens

and go to the PROGRAM SELECT Pb BATT screen. Press the to enSelect/Start Button (K) -

ter this menu. This is the menu in which you set the standard Pb battery charge parameters.

PROGRAM SELECT

Pb BATT

The nature of a Lead-Acid or Sealed-Lead-Acid battery is very different from that of

Lithium, Ni-MH or Ni-Cd batteries. The output current of a Pb battery is lower than

other batteries relative to their capacities. Furthermore, lead-acid batteries can’t be





charge and discharge capabilities of your battery, please refer to the charging data

supplied by the battery manufacturer.

Press the or to go to one of the control Down (–) Button (I) Up (+) Button (J)



your Pb battery to the charger. Press the and adjust charg-Select/Start Button (K)

ing parameters as needed. Press and hold the Select/Start Button 



conﬁrmation, charging starts and information will show on the LCD screen.

Pb–6 4.0A 12.39V

CHG 022:43 01082

B DC

A. A Pb battery pack is charging

B.

C. 

D. 

E.

F. 

During charging, the or can be pressed to show several Down (–) Button Up (+) Button





change the charging rate during charging, press the , then increase Select/Start Button

or decrease the rate using the and . The charger signals Down (–) Button Up (+) Button



Press the Battery Type/Memory Button

NICKEL-CADMIUM (NI-CD) BATTERIES

Press the Battery Type/Memory Button (H) to change among the 7 main menu

screens and go to the PROGRAM SELECT Ni-Cd BATT screen. Press the Select/

Start Button (K) to enter this menu. This is the menu in which you set the standard

Ni-Cd battery charge parameters.

PROGRAM SELECT

NiCd BATT



Refer to the section.

Press the or to go to one of the control Down (–) Button (I) Up (+) Button (J)

connect your Ni-Cd battery to the charger. Press the and Select/Start Button (K)

adjust charging parameters as needed. Press and hold the Select/Start Button

sequence. After conﬁrmation, charging starts and information will show on the LCD

screen.

NiCd 2.0A 7.59V

CHG 022:43 01082

B C

A. A Ni-Cd battery pack is charging

B. 

C. 

D.

E. 

During charging, the or can be pressed to show Down (–) Button Up (+) Button

several parameter messages on the LCD screen including: Ni-Cd Sensitivity, Capacity

Cut-off, Safety Timer setting, Temperature Cut-off, External Temperature and Input



Press the Battery Type/Memory Button

CAUTION:

Ni-Cd charge programs will damage the battery or the charger.

13 NI-CD CHARGING

Press the Battery Type/Memory Button (H) until you reach the 7 main menus.

Then press the Battery Type/Memory Button until you reach the PROGRAM

SELECT NiCd BATT screen. Press the to enter this menu.Select/Start Button (K)

Press the or to reach the NiCd CHARGE Down (–) Button (I) Up (+) Button (J)

screen and set charging parameters. The charging amperage can be set (A)



NiCd CHARGE Man

CURRENT 0.1A A

To select a value other than the existing parameter:

 Select/Start Button (A) so the charge current value ﬂashes

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the

charge current value

 Select/Start Button again to save the value

If no parameters are ﬂashing, you can press the or Down (–) Button Increase

Button

To start charging, press and hold the for 3 seconds.Select/Start Button

14 NI-CD DISCHARGING

A battery pack’s capacity can be veriﬁed by discharging the pack to its minimum

voltage level and measuring the current as the pack is discharged.

Press the Battery Type/Memory Button (H) until you reach the 7 main menus.

Then press the Battery Type/Memory Button until you reach the PROGRAM

SELECT NiCd BATT screen. Press the to enter this menu.Select/Start Button (K)

Press the or to reach the NiCd Down (–) Button (I) Up (+) Button (J)

DISCHARGE screen and set discharging parameters. The discharging amperage (A)



NiCd DISCHARGE

0.1A AUTO BA

To select values other than the existing parameters:

 Select/Start Button (A) so the discharge current value ﬂashes

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the

discharge current value

 Select/Start Button (B) again to save the value and the voltage value

ﬂashes

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the

voltage

 Select/Start Button again to save the voltage value

If no parameters are ﬂashing, you can press the or Down (–) Button Increase

Button

To start discharging, press and hold the for 3 seconds.Select/Start Button

15 NI-CD CYCLE CHARGING

program. Cycling Ni-Cd batteries can increase capacity and rejuvenate neglected

batteries. Discharge capacity and average battery voltage help you compare batteries

for the best run time and power.

Press the Battery Type/Memory Button (H) until you reach the 7 main menus.

Then press the Battery Type/Memory Button until you reach the PROGRAM

SELECT NiCd BATT screen. Press the to enter this menu.Select/Start Button (K)

Press the or Down (–) Button (I) Up (+) Button (J)



NiCd CYCLE

DCHG>CHG 5 BA

To select values other than the existing parameters:

 Select/Start Button (A) so the cycle type ﬂashes

 Down (–) Button Up (+) Button or to set the cycle type as

CHG>DCHG or DCHG>CHG

 Select/Start Button again to save your choice and the number of

cycles ﬂashes(B)

 Down (–) Button Up (+) Button or to DECREASE or INCREASE the



 Select/Start Button again to save the cycle count value

If no parameters are ﬂashing, you can press the or Down (–) Button Increase

Button to select another program such as CHARGE or DISCHARGE.

To start cycling, press and hold the for 3 seconds.Select/Start Button DYNAMITE 5-YEAR US LIMITED CHARGER WARRANTY INFORMATION



plan on all of our Dynamite Prophet and Passport chargers.



do, reserve the right to deny replacement to any abusers of our plan. See below for

full details. Contact the appropriate Horizon Service Department for instructions on

warranty claims.

5-YEAR US LIMITED WARRANTY

Warranty Period -        







What is Not Covered --

lations.

-



Purchaser’s Remedy - Horizon’s sole obligation and purchaser’s sole and exclusive

Product determined by Horizon to be defective. Horizon reserves the right to inspect

are at the sole discretion of Horizon. Proof of purchase is required for all warranty

       



Period of the Product which they have replaced, whichever is longer.
