Sida 1/40

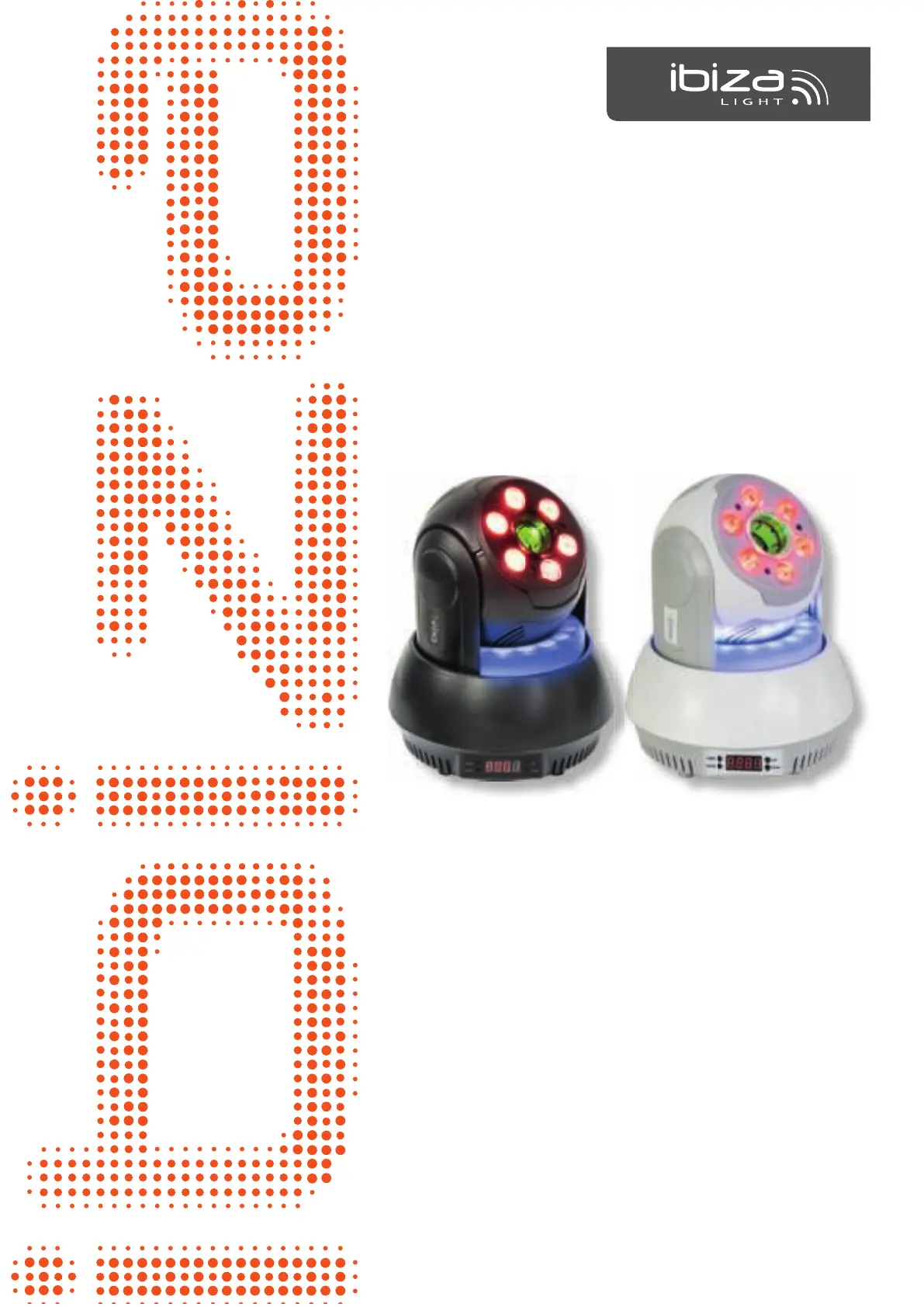

LASER GOBO MOVING HEAD
WITH WASH LED AND LED RING
MANUAL
Ref.
STAR-LASER
FR - Manuel d'Utilisation - p. 6
DE - Bedienungsanleitung - S. 10
NL - Handleiding - p. 13
ES - Manual de Uso - p. 17
RO - Manual de Instrucţiuni - p. 21
SI - Navodila za uporabo - s. 24
IT - Manuale di istruzioni - p. 28
PT - Manual de Instruções - p. 32
HR - Upute za uporabu - s. 36
STAR-LASER-BL STAR-LASER-WH
Code: 15-1948 Code: 15-1947
Manual - STAR-LASER
2
©Copyright LOTRONIC 2021
LASER GOBO MOVING HEAD WITH WASH LED & LED RING
INSTRUCTION MANUAL
CONTENTS OF THE CARTON:
• 1 x Moving head
• 1x Mains lead
• 1x User Manual
UNPACKING INSTRUCTIONS
Immediately upon receiving a 󰊟 xture, carefully unpack the carton, check the contents to ensure that all parts are
present and have been received in good condition. Notify the freight company immediately and retain packing
material for inspection if any parts appear to be damaged from shipping or the carton itself shows signs of mis-
handling. Keep the carton and all packing materials. In the event that a 󰊟 xture must be returned to the factory, it
is important that the 󰊟 xture be returned in the original factory box and packing.
EXPLANATION OF SYMBOLS
The triangle containing a lightning symbol is used to indicate
whenever your health is at risk (due to electrocution, for
example).
An exclamation mark in a triangle indicates particular risks in handling or operating the appliance.
The unit complies with CE standards
For indoor use only
Protection class I. Requires an earth connection
1.2m Minimum distance between the appliance and other objects
Don’t stare into the light beam
Do not stare into the laser beam
IMPORTANT INSTRUCTIONS :
• Laser device in accordance with EN60825-1: 2014
• This is a Class 3R laser, direct exposure may be harmful to the eyes
• The use of this laser device is limited to speci󰊟 c show or display applications.
• Use of this product is strictly reserved to professionals.
• The device must be installed in such a way that the beams cannot hit the eyes of the audience.
• The device must be securely fastened to prevent falling or changing the orientation of the angle of the beams.
• Any risk of accidental re󰊠 ections of the beams (objects, obstacles, walls, etc.) must be avoided.
• The device may only be used for the purpose for which it is intended. Any other use is prohibited.
• Never look at the beam directly, the exposure can be dangerous for the eyes
• Access to the device control must be closed or reserved
• The device should never be opened. Only the manufacturer is authorized to open the device
• Only external cleaning of the device is permitted. Disconnect the device from the mains before cleaning or
handling.
IMPORTANT SAFETY INSTRUCTIONS AND DANGER WARNINGS
• Please read these instructions carefully, they include important information about the installation, usage and
maintenance of this product.
• Please keep this User Guide for future reference. If you sell the unit to another user, be sure that p2-he also
receives this instruction booklet.
• Always make sure that you are connecting to the proper voltage, and that the line voltage you are connecting
to is not higher than that stated on the decal or rear panel of the 󰊟 xture.
• This product is intended for indoor use only!
• It is essential that the device is earthed. A quali󰊟 ed person must carry out the electric connection.
CAUTION
DO NOT OPEN THE HOUSING
SHOCK HAZARD
CAUTION
LASER
3R
AVOID EXPOSURE TO BEAM
EXPOSITION AU FAISCEAU DANGEREUSE
Manual - STAR-LASER
3
www.ibiza-light.com
• To prevent risk of 󰊟re or shock, do not expose 󰊟xture to rain or moisture. Make sure there are no 󰊠ammable
materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least 1.2m from adjacent surfaces. Be
sure that no ventilation slots are blocked.
• Always disconnect from power source before servicing or replacing fuse and be sure to replace with same fuse
size and type.
• Secure 󰊟xture to fastening device using a safety chain. Never carry the 󰊟xture solely by its head. Use its carry-
ing handles.
• Maximum ambient temperature (Ta) is 35°C. Do not operate the 󰊟xture at temperatures higher than this.
• In the event of a serious operating problem, stop using the unit immediately. Never try to repair the unit by
yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the near-
est authorized technical assistance center. Always use the same type of spare parts.
• Don’t connect the device to a dimmer pack.
• Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on.
• The product is for decorative purposes only and not suitable as a household room illumination.
• The light source of this luminaire is not replaceable. When it reaches the end of its life time, the whole unit
must be discarded.
• DISCONNECT DEVICE: Where the MAINS plug or an appliance coupler is used as the disconnect device, the
disconnect device shall remain readily operable.
INSTALLATION
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is 󰊟rmly 󰊟xed to
avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit
is secure and able to support a weight of 10 times of the unit’s weight. Also always use a safety cable that can
hold 12 times the weight of the unit when installing the 󰊟xture.
The equipment must be 󰊟xed by professionals at a place where is out of the reach of people and where nobody
can pass by or under it.
FUSE REPLACEMENT
• With a 󰊠at head screwdriver wedge the fuse holder out of its housing.
• Remove the damaged fuse from its holder and replace with exactly the same type of fuse.
• Insert the fuse holder back in its place and reconnect power.
• The fuse is located inside this compartment. Remove using a 󰊠at head screwdriver.
FIXTURE LINKING
You will need a serial data link to run light shows of one or more 󰊟xtures using a DMX-512 controller or to run
synchronized shows on two or more 󰊟xtures set to a master/slave operating mode. The combined number of
channels required by all 󰊟xtures on a serial data link determines the number of 󰊟xtures that the data link can
support.
Console Light1 Light2 Light3
Important: Fixtures on a serial/data link must be daisy chained in one single line. Maximum recommended seri-
al data link distance: 100 meters. Maximum recommended number of 󰊟xtures on a serial data link: 32 󰊟xtures
CABLE CONNECTORS
Cabling must have a male XLR connector on one end and a female XLR connector on the other end.
DMX CONNECTOR CONFIGURATION
INPUT
COMMON
DMX +
DMX-
Resistance 120 ohm
1/ 4w between pin 2
(DMX-) and pin 3
(DMX+) of t the las
fixture.
Termination reduces signal errors. To avoid signal
transmission problems and interference, it is always
advisable to connect a DMX signal terminator.
CAUTION
Do not allow contact between the common and the 󰊟xture’s chassis ground. Grounding the common can cause
