Sida 1/22
1
©Copyright LOTRONIC 2016 DJLIGHT80LED

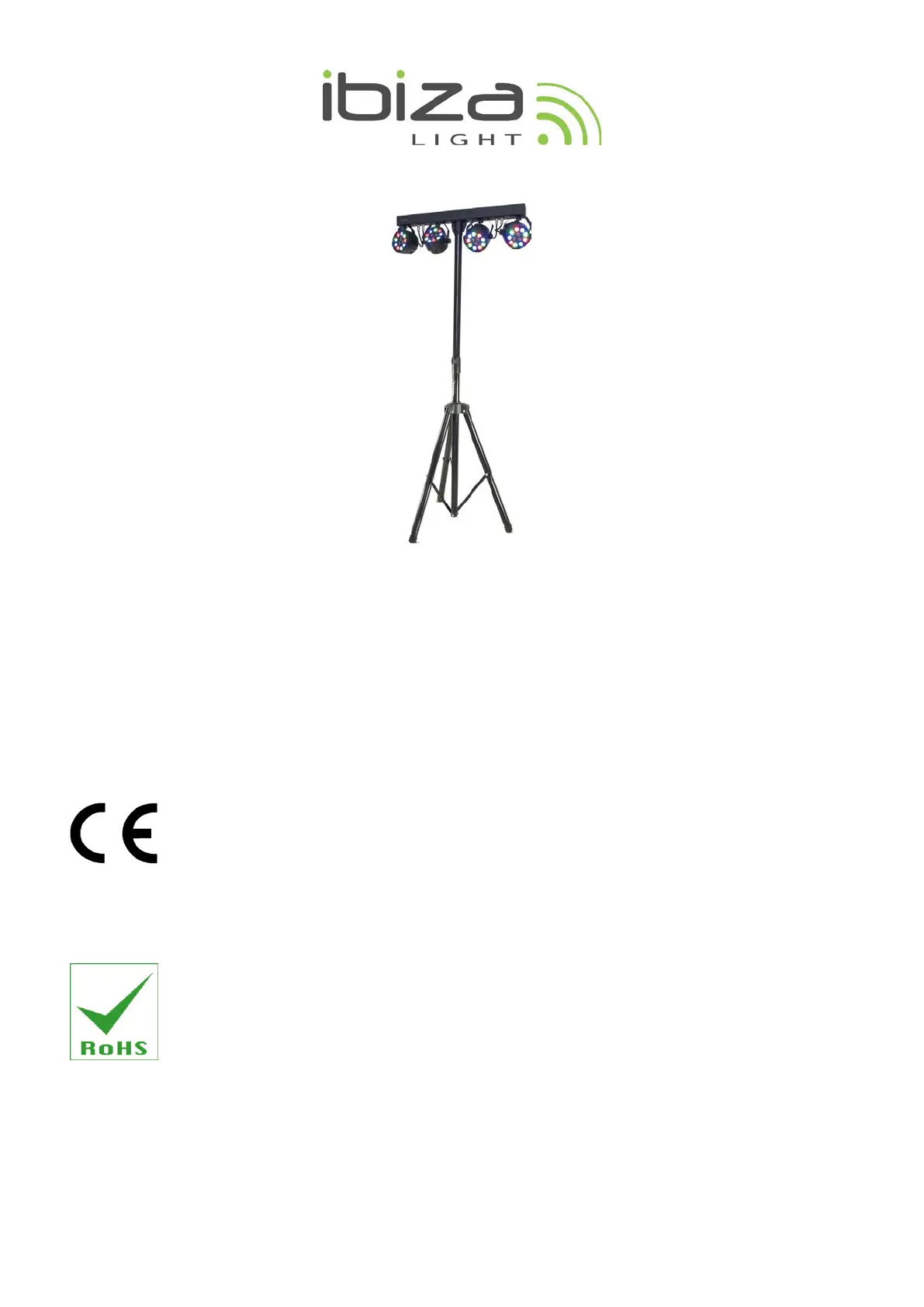

LED PAR SET
D
DJ
JL
LI
IG
GH
HT
T8
80
0L
LE
ED
D
GB – INSTRUCTION MANUAL
F - MANUEL D’UTILISATION
D – BEDIENUNGSANLEITUNG
NL - HANDLEIDING
SLO – NAVODILA ZA UPORABO
ES – MANUAL DE INSTRUCCIONES
2
©Copyright LOTRONIC 2016 DJLIGHT80LED
Unpacking Instructions
Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are
present and have been received in good condition. Notify the freight company immediately and retain packing
material for inspection if any parts appear to be damaged from shipping or the carton itself shows signs of
mishandling. Keep the carton and all packing materials. In the event that a fixture must be returned to the
factory, it is important that the fixture be returned in the original factory box and packing.
Safety Instructions
Please read these instructions carefully, they include important information about the installation, usage and
maintenance of this product.
• Please keep this User Guide for future reference. If you sell the unit to another user, be sure that he also
receives this instruction booklet.
• Always make sure that you are connecting to the proper voltage, and that the line voltage you are connecting
to is not higher than that stated on the decal or rear panel of the fixture.
• This product is intended for indoor use only!
• To prevent risk of fire or shock, do not expose fixture to rain or moisture. Make sure there are no flammable
materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least adjacent surfaces. Be sure 1m from
that no ventilation slots are blocked.
• Always disconnect from power source before servicing or replacing fuse and be sure to replace with same fuse
size and type.
• Maximum ambient temperature (Ta) is 104° F (40°C). Do not operate the fixture at temperatures higher than
this.
• In the event of a serious operating problem, stop using the unit immediately. Never try to repair the unit by
yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest
authorized technical assistance center. Always use the same type of spare parts.
• Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on.
• DISCONNECT DEVICE: Where the MAINS plug or an appliance coupler is used as the disconnect device, the
disconnect device shall remain readily operable.
• The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a
similar qualified person.
Specifications
Voltage ................................................................................... 220-240V AC~ 50/60Hz
Consumption .......................................................................................................60W
LED lamp: ................................................................................... 12 x 1W (RGBW) x 4
DMX channels ........................................................................................................... 8
Control modes ..................................................... Auto, Master/Slave, DMX, Remote
Power cable ........................................................................................................... 4m
Packing Size...................................................................................... 89.5 x 19 x 39cm
GB
3
©Copyright LOTRONIC 2016 DJLIGHT80LED
Power supply, wire Connection
Use a dedicated plug to connect the LED light and power. Make sure the unit is connected to the appropriate
power supply.
Installation of the units
Before positioning the light, ensure the stability of the installation site. Drive the screw into the screw hole on
the stand. Make sure that the units can’t fall from the stand. The manufacturer cannot be held responsible for
damages due to bad installation of the units.
Warning
Carry the lights only by the handle.
F eatures
The control panel features 4 buttons and a 4- digit LED display.
Operation
1) When power is on, the digital LED display works with red dots.
When a DMX signal is present, the dot will be shiny.
2) DMX address code setting: Press “MENU” hen the button. W digital LED displays d001-d512, press “UP” or
“Down” . T -to set the address code he code ranges from 001 512.
3) IP code setting: Press “MENU”. When IP.01-IP.64 is displayed, press “UP” or “DOWN” . to set the address code
T - he code ranges from 001 512.
4) Internal program running:
There are 5 built- in programs. Press “MENU” to choose - -one of the built in programs from A1 A5: A1 is static
color mode, A2 LED jump function, A3 LED rainbow function, A4 LED sound active function, and A5 LED
strobe function, A6 Auis to Run and A7 scrolling effect.
Button Specifications:
Connection of Signal Cable
You can use the 3 ble to connect the OUT socket of the first light and the IN socket of the following -pin XLR ca
light. Connect all the lights as below:
A1
Solid Mode
←UP/DOWN→ 1- 19
A2.
Jump Mode
←UP/DOWN→ 1- 19
A3.
Rainbow mode
1- ←UP/DOWN→ 19
A4.
Sound active mode
←UP/DOWN→ 1- 19
A5.
Strobe Mode
1- ←UP/DOWN→ 19
R.
Solid Red Color intensity
←UP/DOWN→ 0- 255
G.
Solid Green Color intensity
0- ←UP/DOWN→ 255
B.
Solid Blue Color intensity
←UP/DOWN→ 0- 255
U.
Red+White Color Wash
0- ←UP/DOWN→ 255
D.
DMX Mode
d.512
IP.
IP Mode
IP.64
