Sida 1/2
– – 4
– – 1
For accessory attachment details, download the IC-F29SR
operating guide from the Icom web site.
(http://www.icom.co.jp/world/support/)
Thank you for choosing the IC-F29SR pmr446 trans-
ceiver.
READ ALL INSTRUCTIONS carefully and com-
pletely before using the transceiver.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan A-7150H-1EU Printed in Japan
© 2014 Icom Inc.
INSTRUCTIONS
PMR446 TRANSCEIVER
Iç-F29SR
SUPPLIED ACCESSORIES
Battery pack
(BP-279)
Battery charger
(BC-213)
Belt clip
(MB-133)
Power adapter*
(for the battery charger)
* Not supplied, or the shape is different,
depending on the transceiver version.
BATTERY PACKS D
BP-278/BP-279• battery pack
Battery pack Voltage Capacity Battery
life*
BP-278
7.2 V
1130 mAh (minimum)
1190 mAh (typical)
16
hours
BP-279 1485 mAh (minimum)
1570 mAh (typical)
21
hours
*
When the power save function is turned ON, and the operat-
ing periods are calculated under the following conditions:
TX:RX:standby = 5:5:90
CHARGERS D
BC-213 • desktop + charger BC-123S ac adapter
BC-214 • multi + charger BC-157S ac adapter
DC CABLES D
CP-23L• cigarette lighter cable
For BC-213.
OPC-656 • dc power cable
For BC-214.
OTHERS D
MB-130 • mobile bracket
MB-133 • belt clip
HM-158LA, HM-159LA, HM-168LWP•
speaker microphone
HM-153LA, HM-166LA • earphone microphone
HS-94, HS-95, HS-97 headset
+ VS-4LA ptt switch cable
HS-94: Ear-hook type
HS-95: Neck-arm type
HS-97: Throat microphone
VS-4LA: To connect headset and for PTT use
Some options may not be available in some countries. Ask your
dealer for details.
Approved Icom optional equipment is designed for optimal perfor-
mance when used with an Icom transceiver. Icom is not responsible
for the destruction or damage to an Icom transceiver in the event
the Icom transceiver is used with equipment that is not manufac-
tured or approved by Icom.
OPTIONS
For more information, download the IC-F29SR operating guide from the Icom web site.
(http://www.icom.co.jp/world/support/)
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incor-
porated (Japan) in Japan, the United States, the United Kingdom, Germa-
ny, France, Spain, Russia and/or other countries.
All other products or brands are registered trademarks or trademarks of
their respective holders.

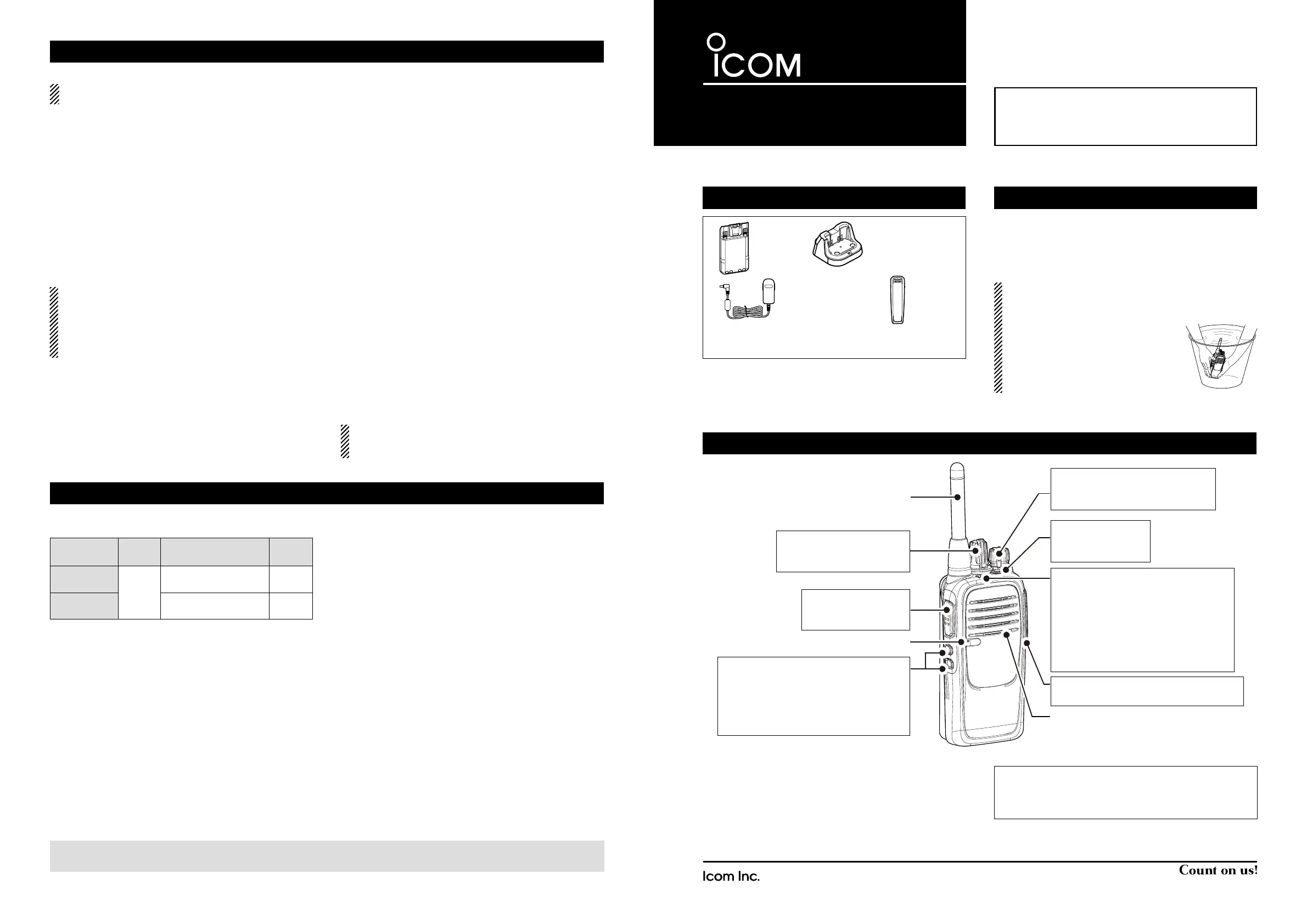

PANEL DESCRIPTION
[VOL]
Rotate to turn the power ON or OFF,
and to adjust the audio level.
[TOP]*
No function is initially
assigned.
Speaker
SPEAKER-MICROPHONE JACK
Connect an optional speaker microphone.
Microphone
LED INDICATOR
•Lights red while transmitting.
• Lights green while receiving a signal,
or when the squelch is open.
• You should charge the battery when
the indicator slowly blinks green.
• You must charge the battery when the
indicator quickly blinks green.
[ROTARY SELECTOR]
Rotate to select the memory
channels.
[PTT]
Hold down to transmit,
and release to receive.
[Upper]*/
[Lower]*
[Upper]: Push to make a Smart-Ring call.
Hold down to make a Call-Ring
call.
[Lower]: Hold down to cancel the CTCSS
(DTCS) mute.
Antenna
RECOMMENDATION
CLEAN THE TRANSCEIVER THOROUGHLY WITH FRESH
WATER after exposure to saltwater, and dry it before operat-
ing. Otherwise, the transceiver's keys, switches and control-
lers may become unusable due to salt crystallization.
NOTE: DO NOT submerge the transceiver in water if you
suspect the waterproof protection may not be effective,
especially after one of the following:
The transceiver has been dropped•
The transceiver’s case or the water-•
proof seal is cracked or damaged
The jack cover or the optional HM-•
168LWP is detached from the trans-
ceiver.
Turning ON the power D
Before using the transceiver for the first time, the battery
must be fully charged for optimum life and operation.
Rotate [VOL] to turn ON the power. ➥
Receiving and Transmitting D
Receiving•
Rotate q[ROTARY SELECTOR] to select a channel.
When receiving a call, rotate w[VOL] to adjust the audio
output to a comfortable listening level.
Transmitting•
Wait until the channel is clear to avoid interference.
While holding down q[PTT], speak at your normal voice
level.
Release w [PTT] to receive.
NOTE:
To insure the readability of your signal:
1. After pushing , pause briefly before you start [PTT]
speaking.
2. Hold the microphone 5 to 10 cm from your mouth, and
then speak at your normal voice level.
Call-Ring operation D
Sends the preselected ring tone of your group members.
Call your group members with a Call-Ring•
Set the same operating channel and CTCSS tone for all of q
your group transceivers.
Hold down w[Upper] for 1 second to send the preselected
ringer to your group members.
•Theringersoundswhileholdingdown[Upper].
•Thesameringersoundsfromyourgroupmembers’speaker.
Smart-Ring operation D
This function has an answer back feature. You can confirm
whether or not a call has reached your group members, even
if the operators are temporarily away from their transceivers.
The called transceiver automatically sends an answer back
call to your transceiver.
Set the same operating channel and CTCSS tone for all q
of your group transceivers, as described on the reverse
side of this sheet.
Push w[Upper] to make the Smart-Ring call.
•Whenananswerbackisreceived,thetransceiversoundsbeep
tones every 10 seconds and the LED indicator blinks orange.
- Push to stop the beeps and the LED blinking.[Lower]
•When no answer back is received, the transceiver sounds
short failure beeps.
Push e[PTT] to answer the call and stop the beeps and
blinking.
NOTE: This function is usable only when the called sta-
tions’ transceivers are set to the same CTCSS tone and
operating channel.
BASIC OPERATION
* Other functions can be assigned to these keys with the CS-F29SR
cloning software (purchase separately).
– – – – 2 3
R Immediately wash, using clean water, any part WARNING!
of the body that comes into contact with fluid from inside the
battery pack.
R WARNING! NEVER put the battery pack in a microwave
oven, high-pressure container, or in an induction heating cook-
er. This could cause a fire, overheating, or cause the battery
pack to rupture.
CAUTION: Always use the battery pack within the specified
temperature range, for the radio (–30°C to +60°C) and the bat-
tery pack itself (–20°C to +60°C). Using the battery pack out
of its specified temperature range will reduce the performance
and the life. Please note that the specified temperature range
of the battery pack may exceed that of the radio. In such cases,
the radio may not work properly because it is out of its operat-
ing temperature range.
CAUTION: Shorter battery life could occur if the battery pack
is left fully charged, completely discharged, or in an excessive
temperature environment (above +50°C) for an extended pe-
riod of time. If the battery pack must be left unused for a long
time, it must be detached from the radio after discharging. You
may use the battery pack until the remaining capacity is about
half, then keep it safely in a cool and dry place at the following
temperature range:
–20°C to +50°C (within a month)
–20°C to +40°C (within three months)
–20°C to +20°C (within a year)
BE SURE to replace the battery pack with a new one after five
years, even if still holds a charge. The inside battery material
will deteriorate after a period of time, even with little use.
Charging caution•
R DANGER! NEVER charge the battery pack in areas with
extremely high temperatures, such as near fires or stoves, in-
side a sun-heated vehicle, or in direct sunlight. In such environ-
ments, the safety/protection circuit in the battery pack will acti-
vate, causing the battery to stop charging.
R charge or leave the battery pack in the WARNING! NEVER
battery charger beyond the specified time for charging. If the
battery pack is not completely charged by the specified time,
stop charging and remove the battery pack from the battery
charger. Continuing to charge the battery pack beyond the
specified time limit may cause a fire, overheating, or the battery
pack may rupture.
R WARNING! NEVER insert the radio (the battery pack at-
tached to the radio) into the charger if it is wet or soiled. This
could corrode the battery charger terminals or damage the
charger. The charger is not waterproof.
NOTE: Charge the battery pack within the specified tempera-
ture range of +10°C to +40°C. Otherwise, the charging time will
be longer, but the battery pack will not reach a full charge. While
charging, at a point after the temperature goes out of the spec-
ified range, the charging will automatically stop.
PRECAUTIONS (continued)
WORD DEFINITION
RDANGER! Personal death, serious injury or an explosion may occur.
RWARNING! Personal injury, fire hazard or electric shock may occur.
CAUTION Equipment damage may occur.
NOTE If disregarded, inconvenience only. No risk of personal injury, fire or electric shock.
EXPLICIT DEFINITIONS
Radio caution•
R DANGER! NEVER short the charging terminals of the bat-
tery pack.
R DANGER! Use and charge only specified Icom battery packs
with Icom radios or Icom chargers. Only Icom battery packs are
tested and approved for use with Icom radios or to be charged
by Icom chargers. Using third-party or counterfeit battery packs
or chargers may cause smoke, fire, or cause the battery packs
to burst.
R WARNING! NEVER hold the radio so that the antenna is
very close to, or touching exposed parts of the body, especially
the face or eyes, while transmitting. The radio will perform best
if the microphone is 5 to 10 cm away from the lips and the ra-
dio is vertical.
R WARNING! NEVER operate the radio with a headset or oth-
er audio accessories at high volume levels. The continuous
high volume operation may cause a ringing in your ears. If you
experience the ringing, reduce the volume level or discontin-
ue use.
R WARNING! NEVER operate the radio while driving a vehi-
cle. Safe driving requires your full attention—anything less may
result in an accident.
CAUTION: MAKE SURE the flexible antenna, battery pack and
jack cover are securely attached to the radio, and that the an-
tenna and battery pack are dry before attachment. Exposing
the inside of the radio to dust or water will result in serious dam-
age to the radio.
DO NOT operate the radio near unshielded electrical blasting
caps or in an explosive atmosphere.
DO NOT push [PTT] when you do not actually intend to transmit.
DO NOT operate or place the radio in direct sunlight or in plac-
es with temperatures below –30°C or above +60°C. The basic
operations of the radio are guaranteed within the specified op-
erating temperature range.
DO NOT modify the radio. The specifications may change and
then not comply with the requirements of a corresponded regu-
lation. The radio warranty does not cover any problems caused
by unauthorized modification.
DO NOT use harsh solvents such as benzine or alcohol when
cleaning, as they will damage the radio surfaces.
BE CAREFUL! The radio may become hot when operating it
continuously for long periods of time.
BE CAREFUL! The radio meets IP67* requirements for dust-
tight and waterproof protection. However, once the radio has
been dropped, dust-tight and waterproof protection cannot be
guaranteed because of possible damage to the radio’s case or
the waterproof seal.
* Only when the jack cover or the optional HM-168LWP is attached.
Even when the radio power is OFF, a slight current still flows in
the circuits. Remove the battery pack from the radio when not
using it for a long time. Otherwise, the installed battery pack will
become exhausted, and will need to be recharged or replaced.
MAKE SURE to turn OFF the radio power before connecting
the supplied or optional equipment.
Battery caution•
Misuse of Li-ion batteries may result in the following hazards:
smoke, fire, or the battery pack may rupture. Misuse can also
cause damage to the battery pack or degradation of battery
performance.
R short terminals (or charging terminals) DANGER! NEVER
of the battery pack. Also, current may flow into nearby metal
objects such as a key, so be careful when placing the battery
packs (or the radio) in handbags, etc.
Simply carrying with or placing near metal objects such as a
key, etc. may cause shorting. This may damage not only the
battery pack, but also the radio.
R DANGER! DO NOT hammer or otherwise impact the battery
pack. Do not use the battery pack if it has been severely impact-
ed or dropped, or if it has been subjected to heavy pressure.
The damage may not be visible on the outside of the case. Even
if the surface of the battery pack does not show cracks or any
other damage, the cells inside may rupture or catch fire.
R DANGER! NEVER use or leave the battery pack in areas
with temperatures above +60°C. High temperature buildup in
the battery pack, such as could occur near fires or stoves, in-
side a sun heated car, or in direct sunlight for long periods of
time may cause the battery pack to rupture or catch fire. Ex-
cessive temperatures may also degrade performance or short-
en battery life.
R DANGER! DO NOT expose the battery pack to rain, snow,
seawater, or any other liquids. Do not charge or use a wet bat-
tery pack. If the battery pack gets wet, be sure to wipe it dry be-
fore using.
R DANGER! KEEP the battery pack away from fire. Fire or
heat may cause them to rupture or explode. Dispose of an used
battery pack in accordance with local regulations.
R DANGER! NEVER solder the battery pack terminals, or
modify the battery pack. This may generate heat in the battery,
and the battery pack may burst, emit smoke or catch fire.
R Use the battery pack only with the radio for which DANGER!
it is specified. Never use a battery pack with any other equip-
ment, or for any purpose that is not specified in this sheet.
R If fluid from inside the battery pack gets in your DANGER!
eyes, blindness can result. Rinse your eyes with clean water,
without rubbing them, and see a doctor immediately.
R Immediately stop using the battery pack if it WARNING!
emits an abnormal odor, heats up, or is discolored or deformed.
If any of these conditions occur, contact your Icom dealer or
distributor.
PRECAUTIONS
Rapid charging with the supplied BC-213 D
The BC-213 rapidly charges the Li-ion desktop charger
battery pack.
The BC-213 is used with the power adapter or the CP-23L
cigarette lighter cable ( )purchase separately .
Charging time of the BP-279•
Approximately 2 to 3 hours
CAUTION: STOP charging if the charge indicator lights
orange and green alternately. This indicates charging fail-
ure is occurring.
NOTE: Charge the battery within the specified tempera-
ture range of +10°C to +40°C. Otherwise, the charging
time will be longer, but the battery will not reach a full
charge. While charging, at a point where the temperature
goes out of the specified range, the charging will auto-
matically stop.
Battery
pack only
Transceiver
+ Battery pack
Charge indicator
• Lights orange
while charging.
• Lights green when
charging is completed.
wer adapterPo
(A diff rente typ ore, no
po adapte is supwer r -
plied, depending on the
transceiver version.)
BC-213
CP-23L
(for V 12 cigarette
lighter so et) can ck
be used instead of
the power adapter.
Turn the rOFF Powe
Rapid charging with the BC-214 D
The BC-214 can simultaneously charge up multi * charger
to 6 Li-ion battery packs.
The BC-214 is used with the BC-157S ac adapter or the
OPC-656 dc power cable (Purchase separately).
Charging time of the BP-279•
Approximately 2 to 3 hours
OPC-656
Connect to a DC
power supply:
12 to 16 V,
at least 7 A
Red line: +
Black line: _
BC-214
BC-157S
Turn the power OFF
Battery
pack only
Transceiver
+ Battery pack
BATTERY CHARGING
Produktspecifikationer
| Varumärke: | Icom |
| Kategori: | Radio |
| Modell: | IC-F29SR |
Behöver du hjälp?
Om du behöver hjälp med Icom IC-F29SR ställ en fråga nedan och andra användare kommer att svara dig
Radio Icom Manualer
24 Augusti 2024
24 Augusti 2024
12 Augusti 2024
1 Augusti 2024
Radio Manualer
- Radio Sony
- Radio Xiaomi
- Radio Bosch
- Radio AEG
- Radio Philips
- Radio Panasonic
- Radio Daewoo
- Radio DeWalt
- Radio Garmin
- Radio Grundig
- Radio JVC
- Radio JBL
- Radio Kenwood
- Radio Karcher
- Radio Motorola
- Radio Medion
- Radio Quigg
- Radio Topcom
- Radio Yamaha
- Radio Adler
- Radio Aiwa
- Radio Albrecht
- Radio Akai
- Radio Acoustic Energy
- Radio Argon
- Radio OneConcept
- Radio Lexibook
- Radio Sharp
- Radio Telefunken
- Radio Silvercrest
- Radio Makita
- Radio Hitachi
- Radio Nedis
- Radio Thomson
- Radio Tristar
- Radio Lenco
- Radio Pyle
- Radio Vonroc
- Radio Audizio
- Radio Stanley
- Radio Manta
- Radio GPO
- Radio Caliber
- Radio Timex
- Radio OK
- Radio Hyundai
- Radio Sonoro
- Radio Renkforce
- Radio ECG
- Radio Moulinex
- Radio Ryobi
- Radio Bush
- Radio Clatronic
- Radio Lowrance
- Radio Sencor
- Radio GPX
- Radio Festool
- Radio Blaupunkt
- Radio Metabo
- Radio Logik
- Radio Milwaukee
- Radio Telestar
- Radio Salora
- Radio Denver
- Radio Imperial
- Radio Schneider
- Radio Sanyo
- Radio Vitek
- Radio Einhell
- Radio Hama
- Radio Soundmaster
- Radio Brigmton
- Radio Denon
- Radio Sunstech
- Radio Sennheiser
- Radio Maginon
- Radio Midland
- Radio GlobalTronics
- Radio Technisat
- Radio GoGEN
- Radio Rockford Fosgate
- Radio Marquant
- Radio Nordmende
- Radio AudioAffairs
- Radio Krüger And Matz
- Radio Binatone
- Radio Steren
- Radio Kicker
- Radio Bose
- Radio Audiosonic
- Radio Clarion
- Radio Proline
- Radio Coby
- Radio Crosley
- Radio Envivo
- Radio Muse
- Radio Teufel
- Radio Bigben Interactive
- Radio Kathrein
- Radio Olympia
- Radio Pure
- Radio Powerplus
- Radio Porter-Cable
- Radio Uniden
- Radio Audiovox
- Radio Ion
- Radio Roberts
- Radio Yaesu
- Radio Tesco
- Radio Artsound
- Radio Dual
- Radio Boss
- Radio Terris
- Radio Oricom
- Radio Camry
- Radio Cobra
- Radio MB Quart
- Radio Switel
- Radio Bigben
- Radio Auna
- Radio Alba
- Radio Clas Ohlson
- Radio Naxa
- Radio Lexon
- Radio Sven
- Radio Ricatech
- Radio Konig
- Radio Mpman
- Radio Trevi
- Radio Sogo
- Radio JL Audio
- Radio Zebra
- Radio Technaxx
- Radio Nikkei
- Radio PerfectPro
- Radio Peaq
- Radio Freecom
- Radio Jensen
- Radio Roadstar
- Radio Gira
- Radio Scott
- Radio Jung
- Radio Sangean
- Radio Basetech
- Radio Dnt
- Radio Balance
- Radio Audio Pro
- Radio HQ
- Radio Be Cool
- Radio Noveen
- Radio Karcher Audio
- Radio CRUX
- Radio Fusion
- Radio IHome
- Radio August
- Radio Infinity
- Radio AIC
- Radio Ruarkaudio
- Radio Tivoli Audio
- Radio Go Green
- Radio Victrola
- Radio Linn
- Radio Elta
- Radio Iluv
- Radio Monitor Audio
- Radio TELEX
- Radio Multiplex
- Radio Tangent
- Radio SPC
- Radio Stabo
- Radio Clint
- Radio Soundstream
- Radio Xoro
- Radio Sagemcom
- Radio Woxter
- Radio Xhdata
- Radio Monacor
- Radio Noxon
- Radio Orava
- Radio Geneva
- Radio Ferguson
- Radio Wet Sounds
- Radio DAP Audio
- Radio Reflexion
- Radio Duronic
- Radio Scansonic
- Radio TFA Dostmann
- Radio Audisse
- Radio ETON
- Radio Lenoxx
- Radio H-Tronic
- Radio Equity
- Radio Intertechno
- Radio Schwaiger
- Radio EKO
- Radio Pinell
- Radio Aquatic AV
- Radio Digitalbox
- Radio Ruark Audio
- Radio NUVO
- Radio Narex
- Radio Tiny Audio
- Radio Klein Tools
- Radio E-bench
- Radio Peha
- Radio Sanwa
- Radio Sailor
- Radio SSV Works
- Radio Microlab
- Radio QFX
- Radio Voxx
- Radio SACK It
- Radio BasicXL
- Radio Roth
- Radio Majestic
- Radio Ices Electronics
- Radio AmpliVox
- Radio Memphis Audio
- Radio AMX
- Radio Elbe
- Radio GBS Elettronica
- Radio Sang
- Radio Gewiss
- Radio Lutron
- Radio Axxess
- Radio Majority
- Radio Retekess
- Radio Wintal
- Radio Acoustic Solutions
- Radio Atlantis Land
- Radio Ranger
- Radio BLUEPALM
- Radio Weather X
- Radio Data-Tronix
- Radio Aconatic
- Radio Mebby
- Radio Yamazen
Nyaste Radio Manualer
27 Oktober 2024
26 Oktober 2024
24 Oktober 2024
24 Oktober 2024
24 Oktober 2024
23 Oktober 2024
22 Oktober 2024
20 Oktober 2024
19 Oktober 2024
18 Oktober 2024
