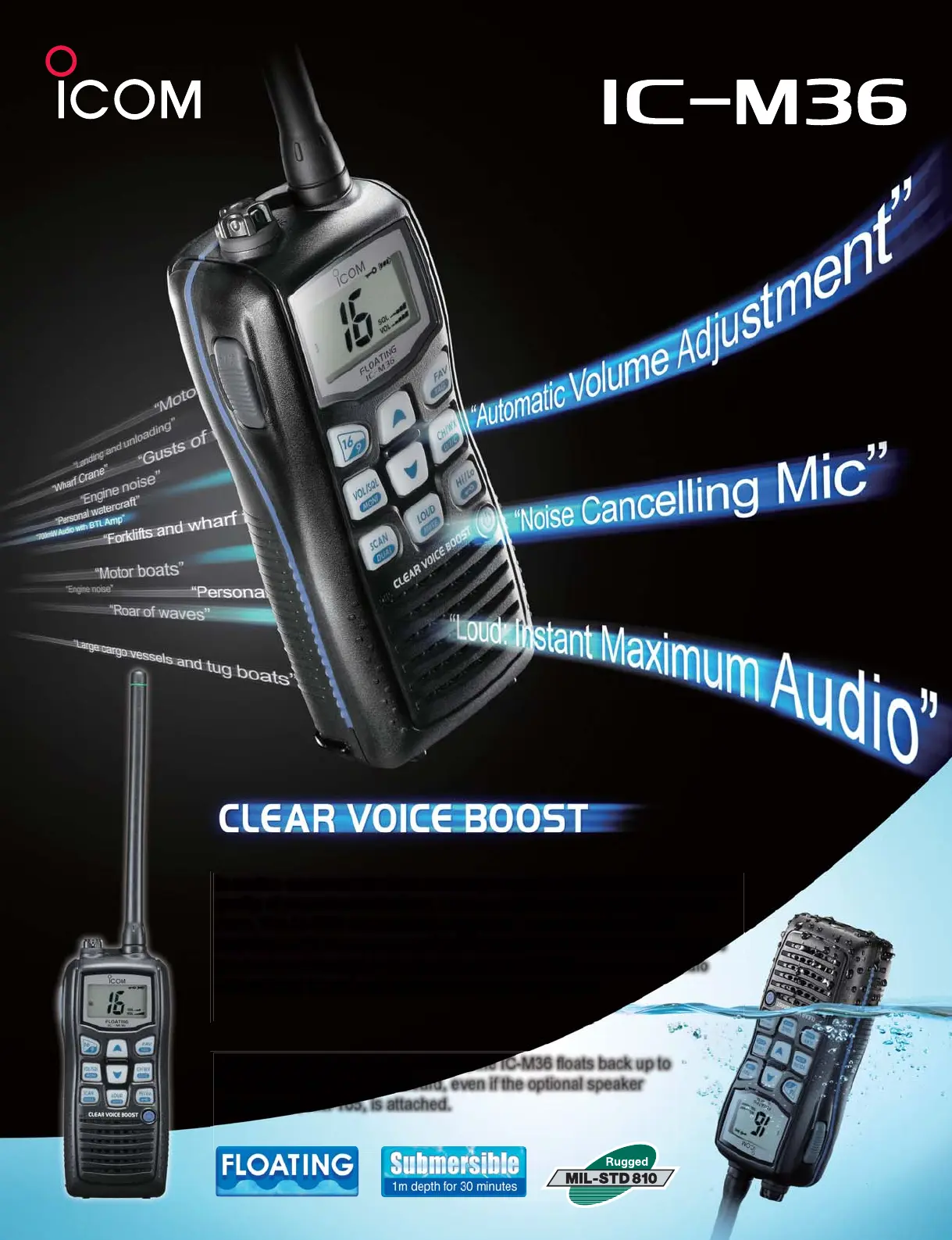

VHF MARINE TRANSCEIVER

In marine environments there are many sources of noise that can affect the

quality of your communications, such as engine noise, breaking surf and

more. The IC-M36 automatically adjusts the outgoing voice and the

incoming audio to compensate for the ambient noise level: whether you're

in a loud environment or in a quiet area, the IC-M36 ensures your radio

conversation is sent and received as clearly as possible.

Continuing the legacy of the IC-M34, the IC-M36 floats back up to

the surface if dropped overboard, even if the optional speaker

microphone, HM-165, is attached.

And yes, it floats too!

(Clear Voice + Voice Boost)

Count on us!

Printed in Japan

www.icomamerica.com www.icom.net.au

www.icomcanada.com

Your local distributor/dealer:

E-mail: sales@icombrazil.com www.icomuk.co.uk

www.icom-france.com

www.icomspain.com

www.icomeurope.com

www.icom.co.jp/world

1-1-32, Kamiminami, Hirano-Ku, Osaka 547-0003, Japan Phone: +81 (06) 6793 5302 Fax: +81 (06) 6793 0013

VHF MARINE TRANSCEIVER

SPECIFICATIONS

• Frequency range :

Tx 156.025–157.425 MHz

Rx 156.050–163.275 MHz

• Usable channel groups :

INT, USA, CAN, WX channels

• Type of emission : 16K0G3E (FM)

• Current drain (at 7.4 V DC) :

Tx 6 W output 1.5 A typical

Rx AF max. 300 mA typ. (Internal SP)

200 mA typ. (External SP)

Power save 10 mA typ.

• Operating temp. range :

–20°C to +60°C; –4°F to +140°F

• Antenna impedance : 50 Ω(STUD)

• Dimensions : 62×139.5×43 mm;(W×H×D)

(projections not included) 2.44×5.49×1.69 in

• Weight (approx.) : 295 g; 10.4 oz (With BP-252,

FA-SC58V, MB-109)

• Output power (Hi/Low) : 6 W/1 W

2 W/1 W (Alkaline cells)

• Max. frequency deviation : ± 5 kHz

• Frequency error : ± 10 ppm

• Spurious emissions : –68 dBc typ.

• Adjacent channel power : 70 dB

• Audio harmonic distortion :

Less than 10% (at 60% dev.)

• Residual modulation : 40 dB

• Sensitivity (at 12 dB SINAD) : 0.25 μV typ.

• Squelch sensitivity : 0.35 μV typ. (at threshold)

• Adjacent Ch. selectivity : 70 dB typ.

• Spurious response : 70 dB typ.

• Intermodulation rejection : 70 dB typ.

• Hum and noise ratio : 40 dB

• Audio output power (at 10% distortion) :

Internal speaker 700 mW typ. (16 load)Ω

External speaker 350 mW typ. (8 load)Ω

Measurements made in accordance with TIA/EIA-603. All stated

specifications are subject to change without notice or obligation.

GENERAL TRANSMITTER

RECEIVER

Supplied accessories: (* Not supplied, depending on version)

• Battery pack, BP-252 • Battery charger, BC-173*

• AC adapter, BC-147* • Belt clip, MB-109

• Antenna, FA-SC58V • Hand strap *

BC-173 DESKTOP CHARGER

+ *BC-147 1 AC ADAPTER

Charges the battery pack, BP-252, in

10 hours .(approx.)

FA-SC58V

ANTENNA

Soft flexible antenna.

Same as supplied.

BC-162 DESKTOP CHARGER

+ BC-145/BC-123*2 AC ADAPTER

Rapidly charges the battery pack,

BP-252, in 2 hours .(approx.)

BP-251 BATTERY CASE

Battery case for AAA (LR03)×5 alkaline cells.

Output power: 2 W.

BP-252

RECHARGEABLE Li-Ion BATTERY PACK

7.4 V, 940 mAh (min.) 980 mAh (typ.). Pro-

vides 8 hours operating time (approx.).

(Typical operation with Tx (Hi): Rx: standby=5:5:90)

▲ HM-165

MB-109 BELT CLIP

Alligator type.

Same as supplied.

▲ MB-109 ▲ FA-SC58V

▲ BC-173

▲ BC-162

BC-147SA

▲ BC-145/BC-123

OPTIONS Some options may not be available in some countries. Please ask your dealer for details.

▼

LOUD button

When you need an instant “boost” in the

volume, a simple push of the “LOUD” button

gives you full volume immediately. In addi-

tion, holding the “LOUD” button mutes the

audio output.

Noise cancelling microphone

The sub-microphone on the rear panel inverts

phase and cancels out ambient noise from the

main microphone. As a result, the IC-M36 re-

duces the affect of background noise (particu-

larly trebly noise) from the transmitted signal and

makes it easier to catch voice communication.

Automatic volume adjustment

When in an engine room or high noise en-

vironment, the sub-microphone detects the

ambient noise and the IC-M36 automati-

cally increases the volume output to suit the

surrounding environment.

Low power consumption

Although the IC-M36 delivers a high 6 W

RF output and 700 mW audio output, its

current saving circuit offers a practical 8

hours* of operating time with the supplied

980 mAh Lithium-Ion battery pack.

* Typical operation with Tx (Hi): Rx: standby=5:5:90

Large buttons and slim dimensions

Thanks to the large, easy-to-operate but-

tons, the IC-M36 provides intuitive opera-

tion. A pinched-waist slender body makes

it easy to hold and carry the radio, and is

surprisingly compact for a floating radio.

Other features

• IP57 dust protection and waterproof

(1 m; 3.3 ft

depth of water for 30 minutes)

construction

• Dual/Tri-watch functions

• Weather channel with weather alert

• 4-step battery life indicator

• Auto scan function

• Instant access to Ch 16 or Ch 9

▲ BP-252▲ BP-251

Please note : The noise cancellation can produce little or no effect in some conditions depending on type of noise, or the position and distance between the noise source and the microphone, etc.
